Monitor Audio

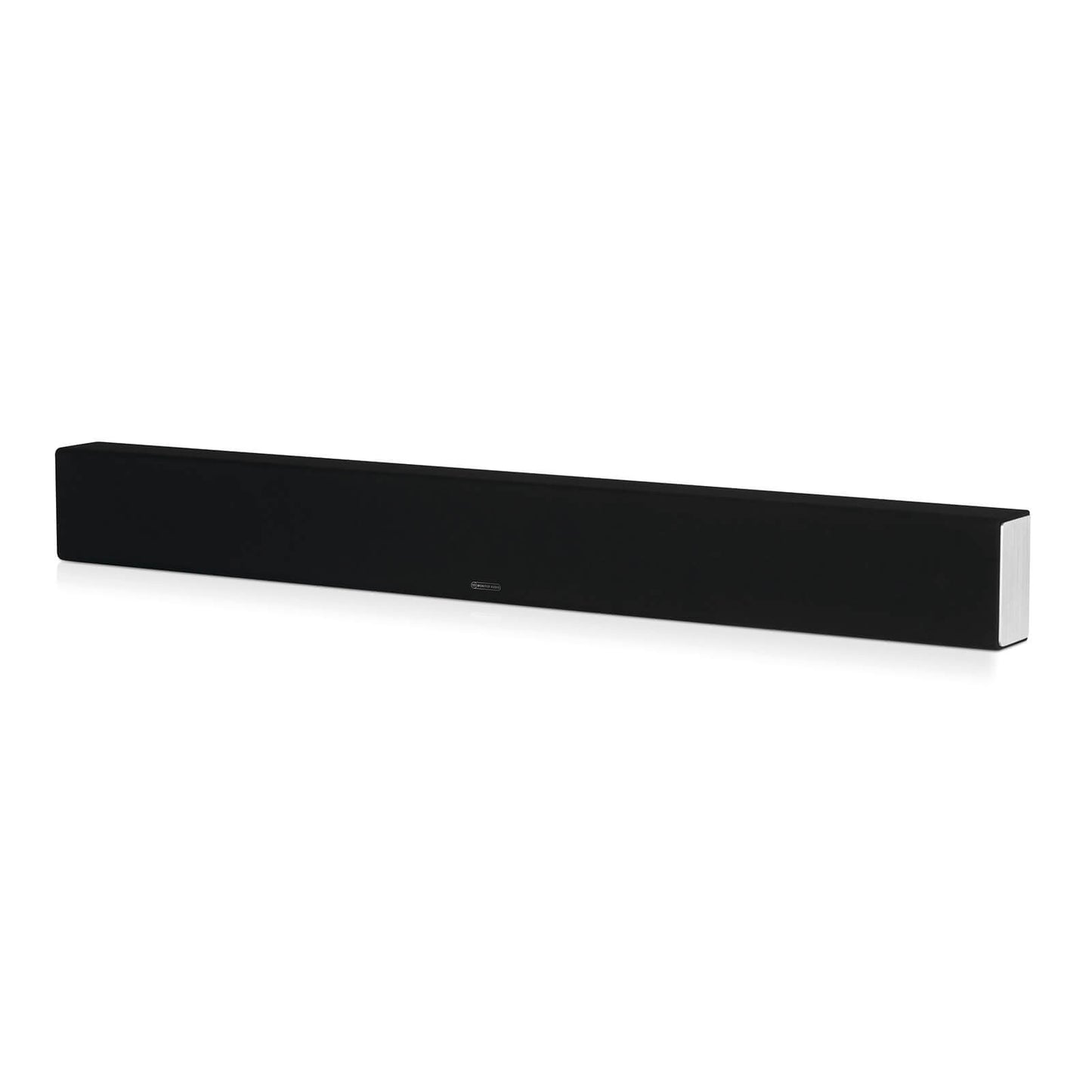

Monitor Audio SB-3 Soundbar
Couldn't load pickup availability
The SB-3 is custom-built for screen sizes above 60 inches and features three separate driver arrays for left, centre, and right channels in a single cabinet.
Key Features:
- 4 x 4" (100 mm) C-CAM cone bass/mid driver
- 3 x 1" (25 mm) C-CAM Gold Dome tweeter
- Three separate driver arrays
- Optional dedicated wall bracket
- Integrated Silicon feet Sealed
- Auxiliary Bass Reflex (ABR) per channel
Setting the bar for TV sound
Twin C-CAM bass drivers, twin ABRs (Auxiliary Bass Radiators), and a single C-CAM tweeter in the centre section provide the SB-3 with higher acoustic output and power handling for critical centre channel reproduction. This is combined with individual mid-bass, tweeter, and sealed ABR drivers for both left and right channels.
In larger rooms the SB-3 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full-range audio way beyond the limits of any TV's sound system.
Specifications
Category |
Details |
|---|---|
| Frequency Response (-3 dB) | All Channels: 80 Hz – 30 kHz |
| Sensitivity (1W@1M) |
Left and Right Channels: 84 dB Centre Channel: 87 dB |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS) |
Left and Right Channels: 40 W Centre Channel: 80 W |
| System Power Handling (RMS) | All Channels: 100 (High pass filter set to 100 Hz) |
| Recommended Amplifier Requirements | All Channels: 30 — 100 W |
| Crossover Frequency | All Channels: 80 — 120 Hz |
| Maximum SPL | 104 dBA (108.8 all channels driven) |
| Bass Alignment | Auxiliary Bass Reflex (ABR) Loading |
| Drive Unit Complement | Left and Right Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 2 x 1" (25 mm) C-CAM Gold Dome tweeter Centre Channel: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 1 x 1" (25 mm) C-CAM Gold Dome tweeter |
| Cabinet Dimensions (H x W x D) (Including Feet) | 145 x 1310 x 89 mm (5 11/16 x 51 9/16 x 3 1/2") |
| External Dimensions (Including Bracket H x W x D) | 145 x 1310 x 100 mm (5 11/16 x 51 9/16 x 3 15/16") |
| Bracket | BSB |
| Weight | 9.1 kg (20 lb) |
| Sold As | Single Unit |
| Warranty | Lifetime |
