AW 300 M MONO POWER AMPLIFIER

The AW 300 M is Electrocompaniet’s latest Mono Power Amplifier. This amplifier embodies an updated, yet unmistakable Electrocompaniet design, perfectly complementing both current and legacy Electrocompaniet products.

300 WATT PER CHANNEL

0,0006 % THD+N

>1000 DAMPING FACTOR

110000 UF POWER SUPPLY FILTERING

THE ALL-NEW MONO POWER AMPLIFIER

COMPLETELY RE-ENGINEERED MECHANICALLY AND ELECTRONICALLY.

RE-DESIGNED

POWER AMPLIFICATION

The AW 300 M boasts Electrocompaniet's direct-coupled high open-loop bandwidth topology, now enhanced with high slew-rate and extended bandwidth amplifier stages. A novel output stage has been engineered to isolate input and driver stages from the load, rendering the output exceptionally rigid and impervious to connected loads. This innovation not only simplifies the feedback system but also ensures exceptionally low distortion.

POWER SUPPLY

HEAVILY UPDATED

The power supply has undergone substantial enhancements, featuring a generous 110,000 uF supply filtering. Mains power input is meticulously filtered for both DC and RF noise. Feeding the supply is 800VA wire gauge upgraded transformer, with magnetic and electrostatic shielding that effectively minimizes interference from the mains.

The internal ground reference has been significantly over-dimensioned to eliminate rectifying and output currents, yielding an immaculate, noise-free output signal at any power level. This translates into a stable soundstage with an unparalleled background silence.

IMPROVED

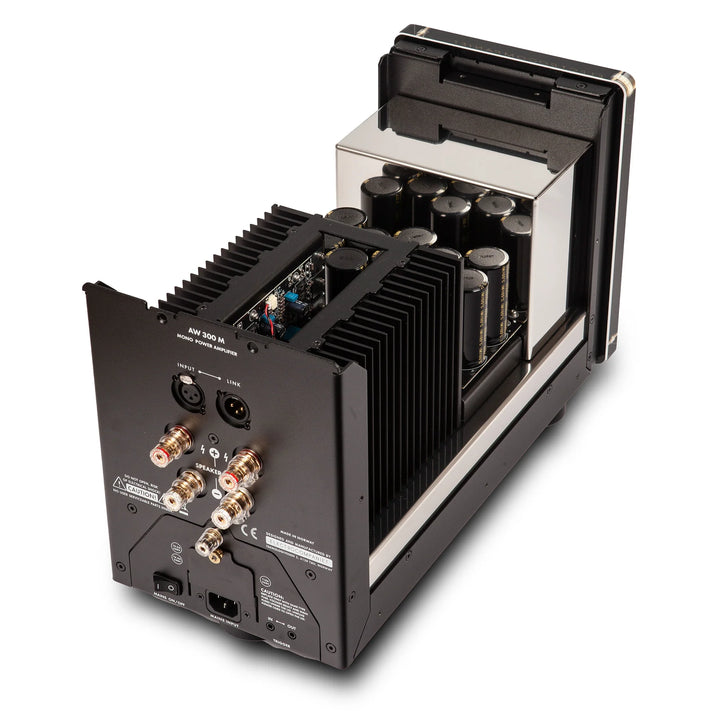

CONSTRUCTION & DESIGN

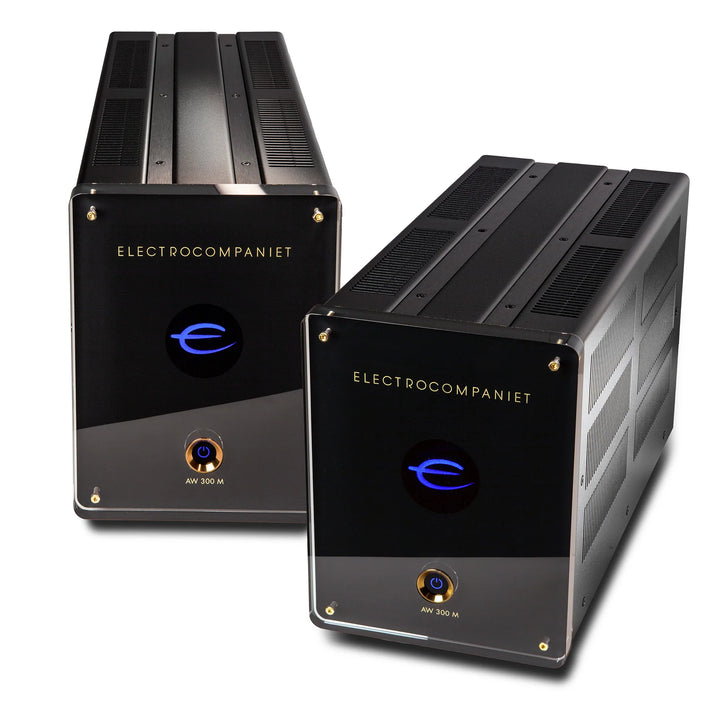

The AW 300 M showcases design improvements, including a new front plate with a 3D logo and a redesigned power button. The chassis has undergone a ground-up reengineering, featuring a modular design construction. Two sleek black brushed aluminum rods not only enhance chassis rigidity but also introduce an aesthetic touch. All of this is encased in a luxurious matte finish, upholding Electrocompaniet's timeless and distinctive look.

Experience the future of power amplification with the Electrocompaniet AW 300 M.

MADE IN NORWAY

SOUNDCARE® SUPERSPIKES™

is an all-in-one spike foot. The unique construction of the SuperSpikes eliminates the most common problem experienced when using a conventional spike: damaged surfaces, while offering the benefits of isolating the equipment from external vibrations in the environment.

SPECIFICATIONS

Input impedance	330 kΩ
Frequency resp. (in. filter active)	0.5 – 220 kHz
Frequency resp. (in. filter dis.)	0.5 – 1.1 MHz
Voltage gain (mono, bal. input)	29 dB (x28)
Input-referred noise (20-20kHz)	< 2 μV
SNR (ref. 1W/8Ω load, 20-20 kHz)	95 dB
SNR (ref. full power out, 20-20 kHz	120 dB
Slew-rate (input filter disabled)	140 V/μs
DC output voltage	< 5 mV
THD+N	0.0006 %
IMD	0.001 %
Damping factor (8Ω load)	> 1000
Power consumption standby	< 0.5W
Protection	DC, overload, temperature
RATED OUTPUT POWER STEREO	8Ω load: 300 W 4Ω load: 600 W 2Ω load: 1000 W
WEIGHT & DIMENSIONS	Weight: 30 kg – 66.13 lbs Width: 212 mm – 8.34 inches Depth: 488 mm – 19.21 inches Height: 292 mm – 11.49 inches *Features and specifications are subject to change without further notice.
