Ortofon

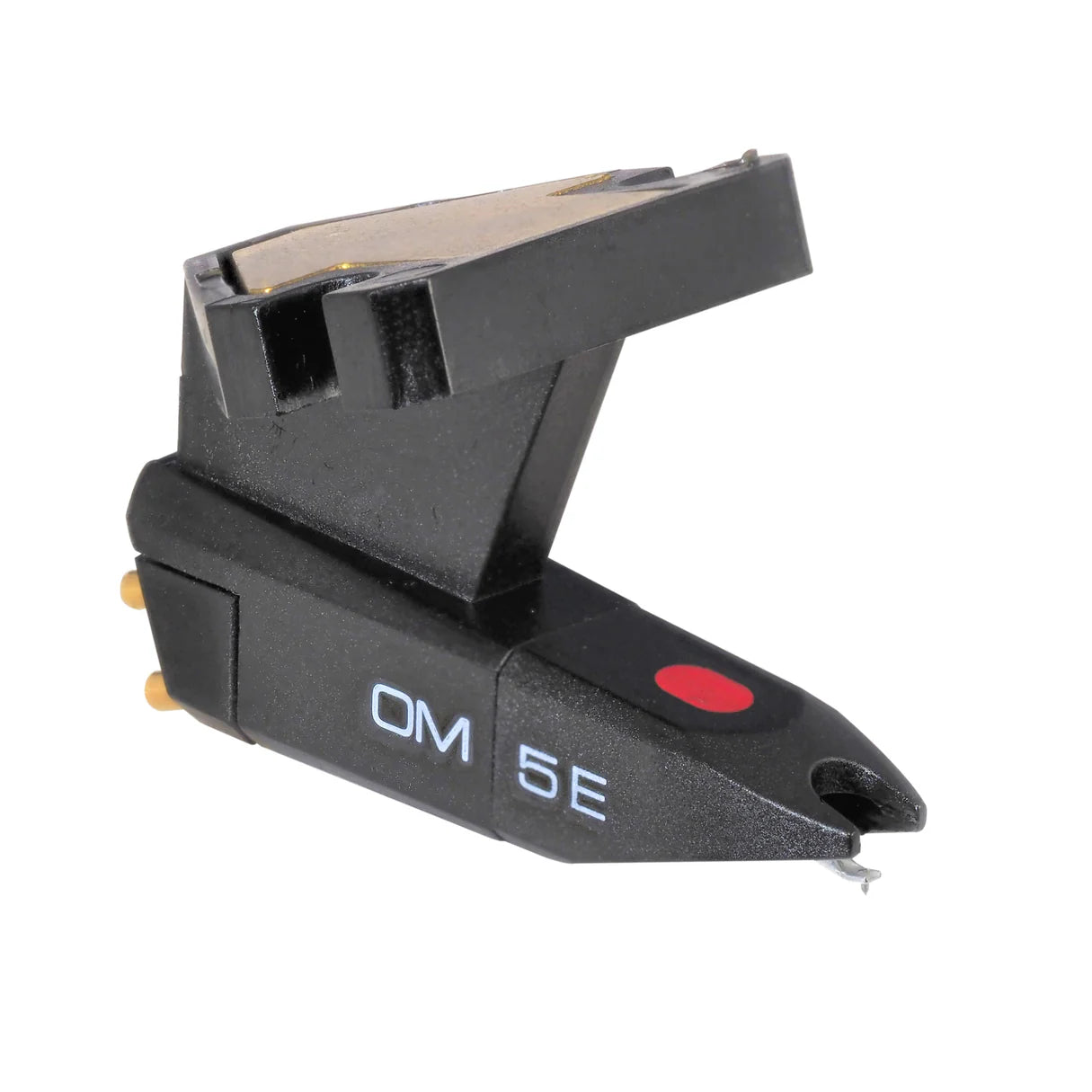

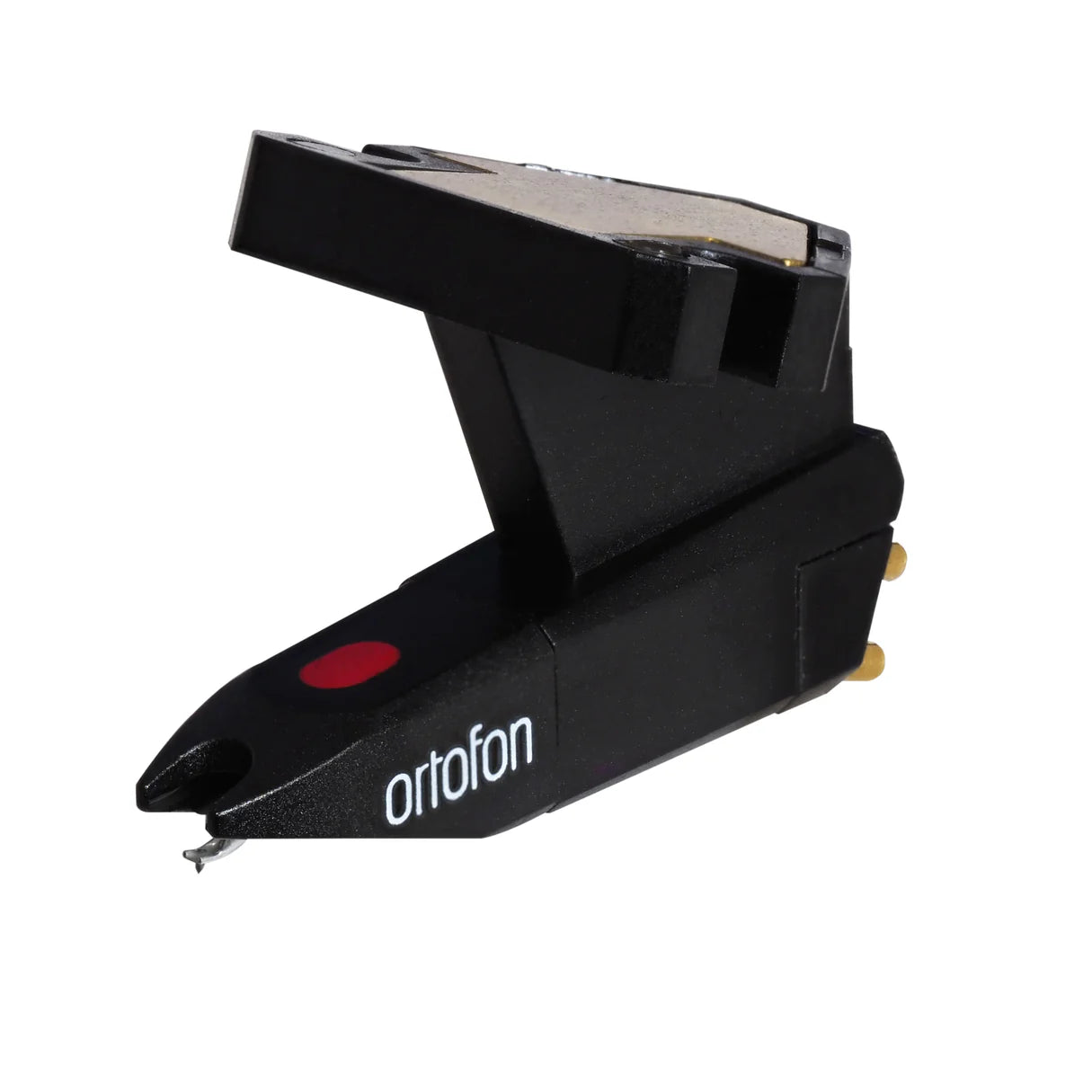

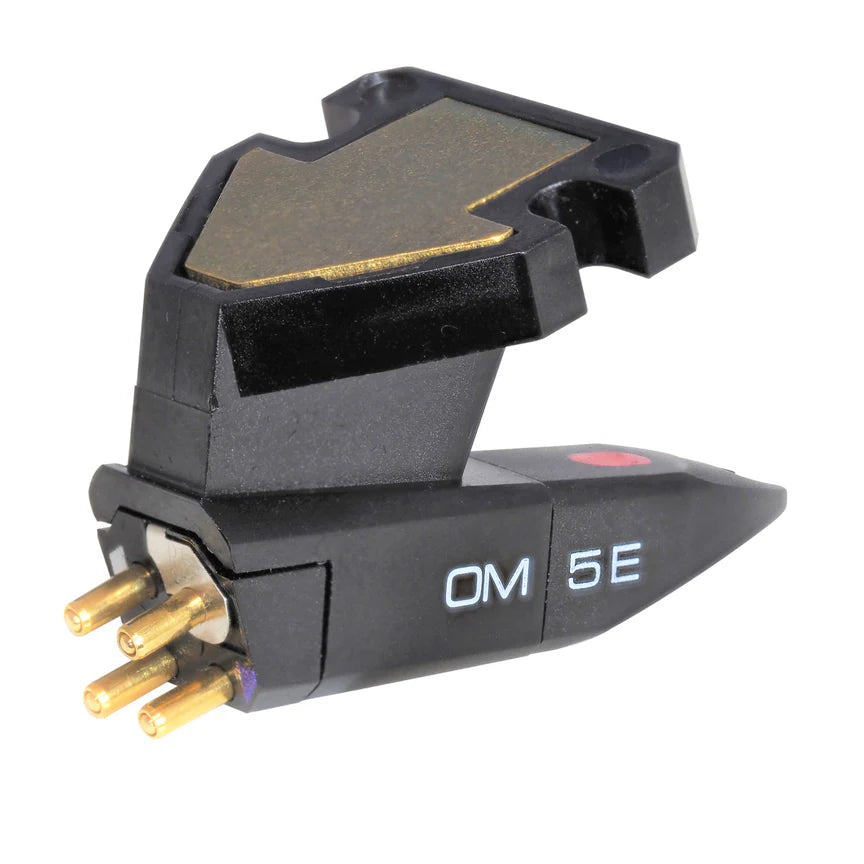

Ortofon OM-5e

$120.00
$120.00
En oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
This product cannot be sold online.
Please call our store to purchase:
904-642-6677

OM-5e

Optimal fit and sound reproduction

OM 5E

OM 5E features Elliptical stylus that provides balanced and distortion-free playback.

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at any one of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is a standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.

A great match for your home system

Styli types and interchangeability

By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application, and budget.

In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.

Depending on your preference, styli for the OM 5 Series are easily interchanged and include: styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.

OM-5e

The OM 5 Series

The Ortofon OM 5 series encompasses three basic cartridges: OM 5S, OM 5E and Super OM 5E.

  • The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.
  • The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.
  • The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The Super OM 5E major improvements:

  • By means of computer simulations it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. The result: improved linearity, higher channel separation, and reduced distortion.
  • OM Super cartridges models have split pole PINs which reduces magnetic losses at the treble end. This technology extends the frequency range and improves phase linearity.
  • The OM Super 5 cartridge body is manufactured from a Noryl (plastic & glass compound), which ensures high rigidity and freedom from resonances.

HiFi Statement

"... be prepared for never-before-heard details, a huge space, powerful timbres, gripping rhythmic accents, a well-defined, melodic bass, and, above all, a homogeneity in which the aforementioned individual aspects are to be discovered. A dream for experienced analog connoisseurs!"

Dirk Sommer

www.hifistatement.net

HiFi+

"Ortofon have been refining the tech behind their finest moving coil cartirdge for more than a few years now, and the results fully warrant the effort involved. It's hard to say what the nano tube suspension has added to the mix, but this is a superb cartirdge that extracts more detail from the groove than most. It's high mass and low output require careful partnering for maximum thrill power, but even in less than perfect systems, results are in another league. Give it the right turntable and amplification, and I'll warrant that it's up there with the very best in vinyl cosmos."

Jason Kennedy

www.hifiplus.com

Specifications

Channel balance at 1 kHz
2 dB
Output voltage at 1 kHz, 5cm/sec
4 mV
Channel separation at 1 kHz
22 dB
Frequency response 20 Hz - 20 kHz
20-20.000 Hz + 3 / -3
Tracking ability at 315 Hz
60 µm
Compliance, dynamic, lateral
20 µm/mN
Stylus type
Elliptical
Stylus tip radius
r/R 8/18 µm
Tracking force, recommended
1.8 g
Tracking angle
20°
Internal impedance, DC resistance
750 Ohm
Cartridge colour
Black/Black
Cartridge weight
incl. extra weight 5 g, excl. extra weight 2.5 g
Recommended load resistance
47 kOhm
Internal inductance
450 mH
Recommended load capacitance
200-500 pF
Replacement stylus
Stylus 5E
