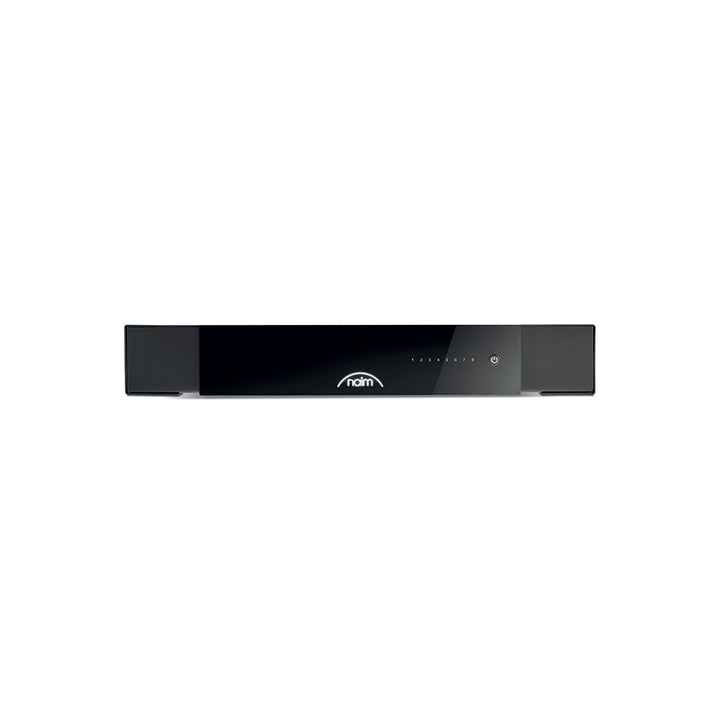

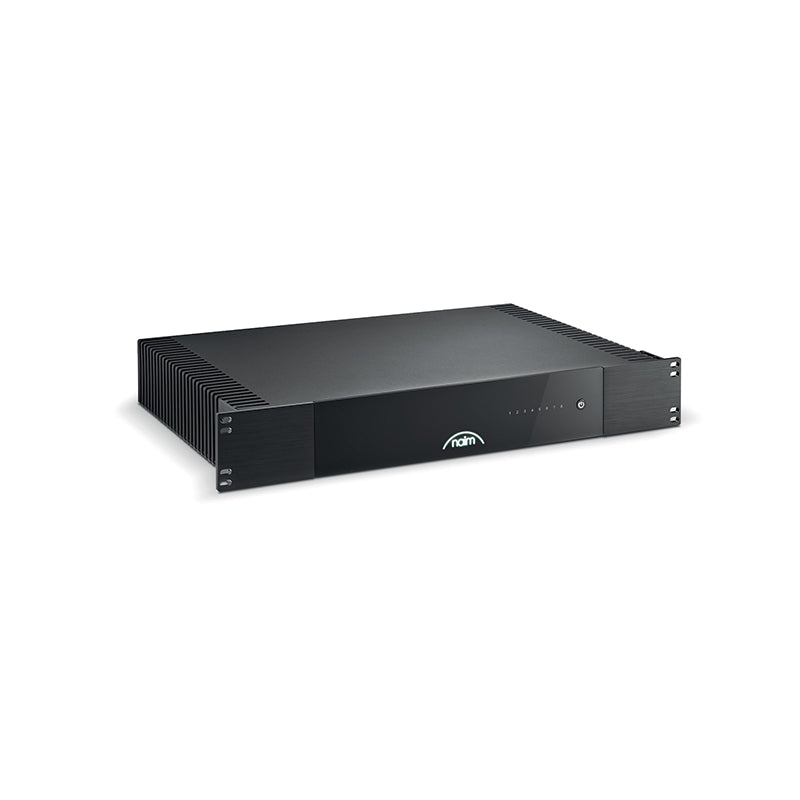

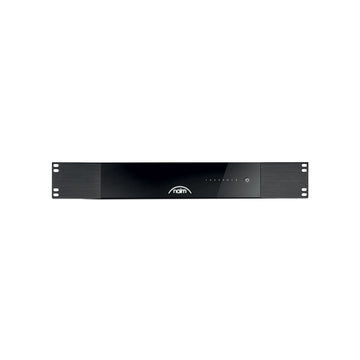

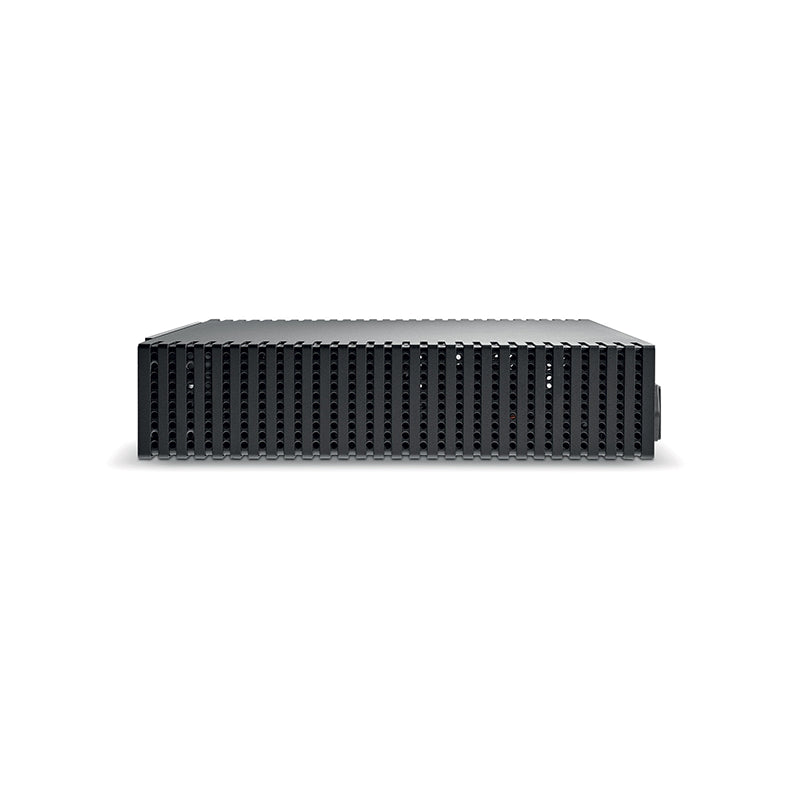

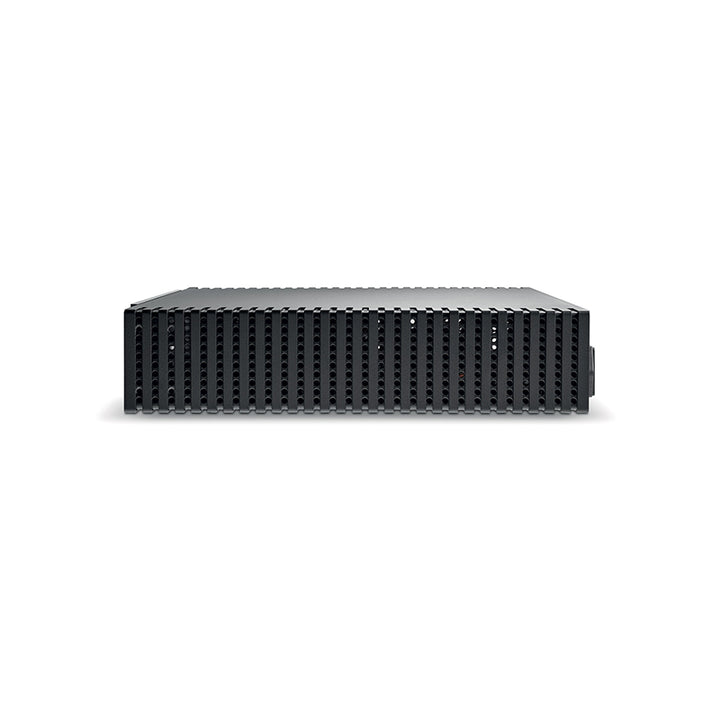

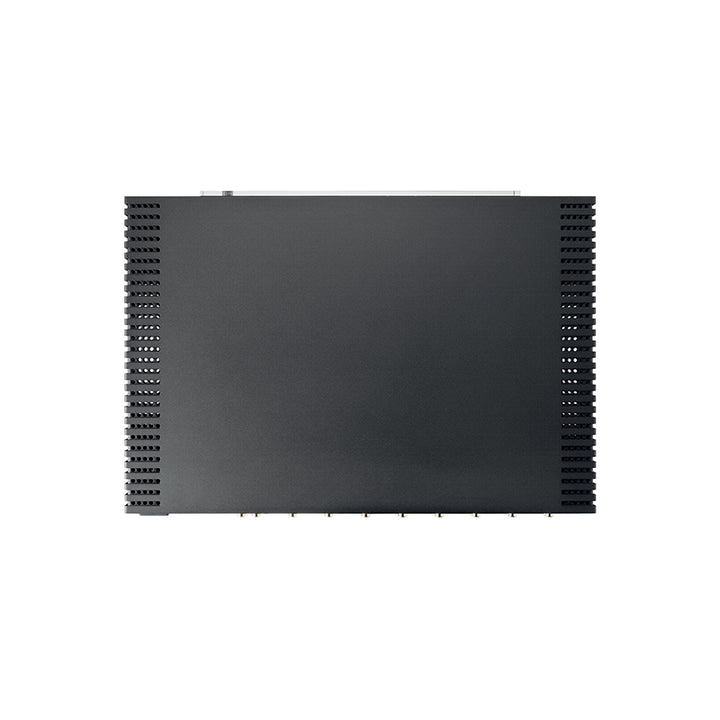

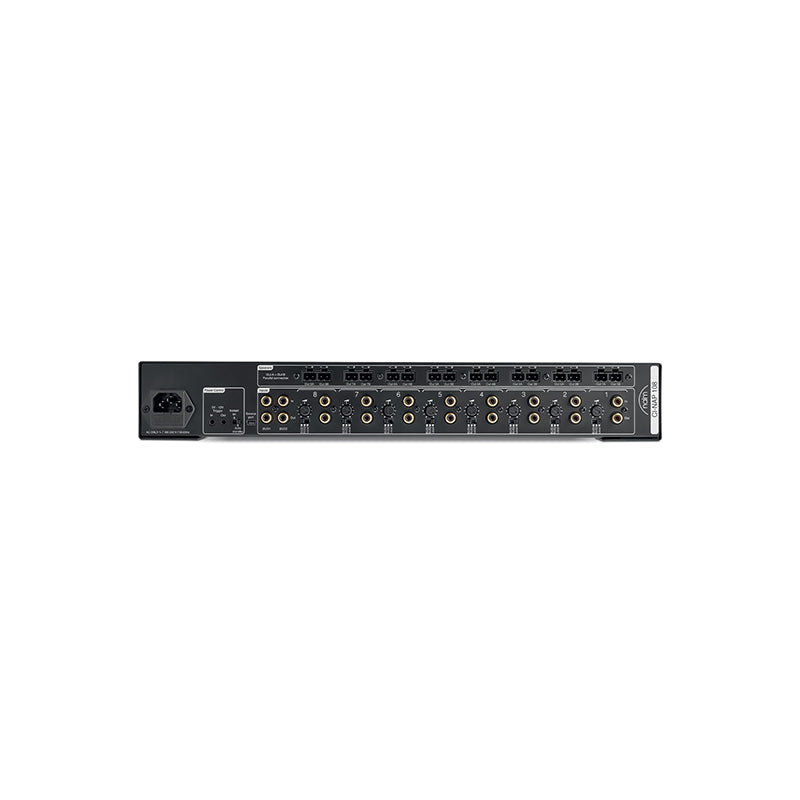

CI-NAP 101
Mono power amplifier
The CI-NAP 101 is a rack-mountable mono power amplifier. Working in conjunction with the CI-Uniti 102, it is dedicated to the seamless usage of subwoofers and high-impedance speaker systems whilst maintaining exceptional audio quality.
The CI-NAP 101 is a high-performance mono-power amplifier that is compatible with 70V/100V line array loudspeakers. It is designed to be ultra-quiet and compact, making it easy to install discreetly in almost any setting. The amplifier is perfect for powering subwoofers or integrated hi-fi speakers that require a lot of power, while delivering exceptional audio quality. Additionally, it can be used in combination with an audio-video processor for custom installations that deliver the ultimate in performance.
POWER AND SOUND QUALITY
The CI-NAP 101, part of the CI Series range, has been designed and manufactured by Naim engineers to complement Focal integrated loudspeakers and create an outstanding sound installation. It can operate with an output load of 2 ohms, making it the perfect choice for amplifying the 1000 IWLCR Utopia loudspeakers and two 1000 IWSUB Utopia subwoofers from Focal. This discreet solution is the epitome of excellence.
Key features
-
Stereo RCA inputs and RCA outputs for daisy-chaining
-
Inbuilt ultra-quiet, efficient and compact power amplifier, capable of driving the most demanding speaker
-
Dual Euroblock outputs for easy parallel speaker connections
-
High impedance 70/100V speaker outputs with a selectable high-pass filter. High impedance outputs are galvanically isolated using toroidal audio transformers
-
Level control
-
Temperature-controlled fan
-
Music sensing with auto-standby activating after 20 minutes
-
Universal mains power 100V – 240V
-
0.5W standby
-
19'' rack-mountable
Focal & Naim App
The Focal & Naim app serves as an all-in-one remote control for your home hi-fi system, providing you with millions of tracks that you can access effortlessly, along with access to product settings and features. You can enjoy instant playback through your connected Naim devices, regardless of the room they are in.
The application is available from Apple Store and Google Play Store.
SPECIFICATIONS
| Type | Amplifier |
| Number of channels | 1 |
| Power low impedance | 8Ω 500W 4Ω 800W |
| Power high impedance | 100V 240W 70V 150W |
| Input connections | Analogue – Stereo RCA - Combined to mono - (47 kΩ) |
| Output connections | Line Stereo RCA Low Impedance Euroblock 70V Euroblock 100V Euroblock |
| Total Harmonic Distortion (THD+N@1 kHz) | <0.008% |
| Gain | 29dB |
| Signal-to-noise ratio | 110dB (A - Weighted) |
| Frequency response (-3dB) | Low impedance 3Hz - 70kHz High impedance 50Hz/120Hz - 25kHz |
| Operating power supply | 100V to 240V +/-10%, 50/60Hz |
| Wired automation | 12V in/out |
| Rack height | 1U |
| Dimensions (H x L x D) | 13/4x173/8x113/4" (4.45x44x30cm) |
| Weight | 19.62lbs (8.9kg) |
| Nominal power consumed | 100W |
| Power consumption in standby mode | 0.5W |
| Operating temperature | 5°C to 35°C |
| Storage temperature | -20°C to 60°C |
