KEF Ci200Q In-Ceiling Speaker
SELECT OPTIONS:
Please call our store to purchase:
904-642-6677
Ci200Q
Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci Q Series range gives you tremendous freedom to position the speakers where you please.
Fast and Easy to Install
KEF's Ci loudspeaker design makes them so quick and easy to install that once the wire is run and the hole is cut in your wall or ceiling you can be listening to music in less than two minutes.
Key Features
- UTB™ Ultra-Thin Bezel
- 200mm (8 in.) Uni-Q driver
- 25mm (1in.) Aluminium dome tweeter with 'tangerine' waveguide

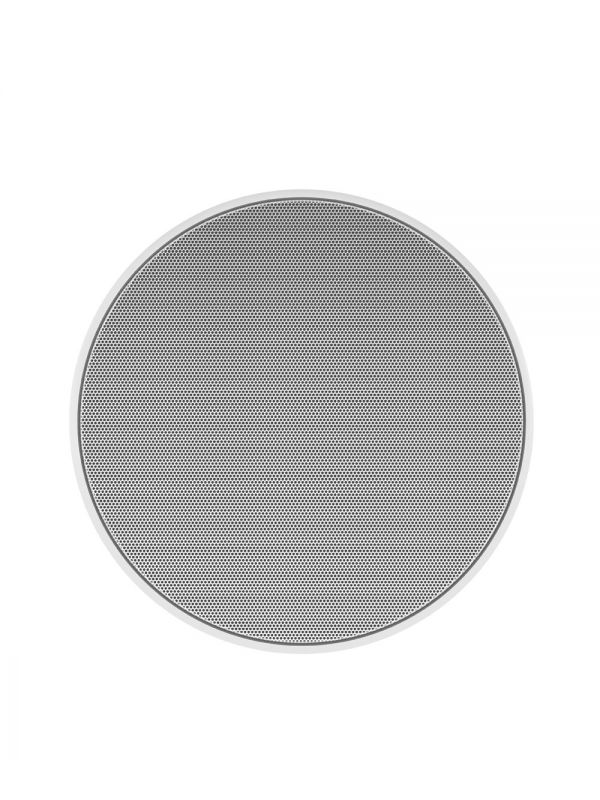

- Magnetic grille
- Paintable grille and bezel
- Weather Resistant
- IP64 Certified

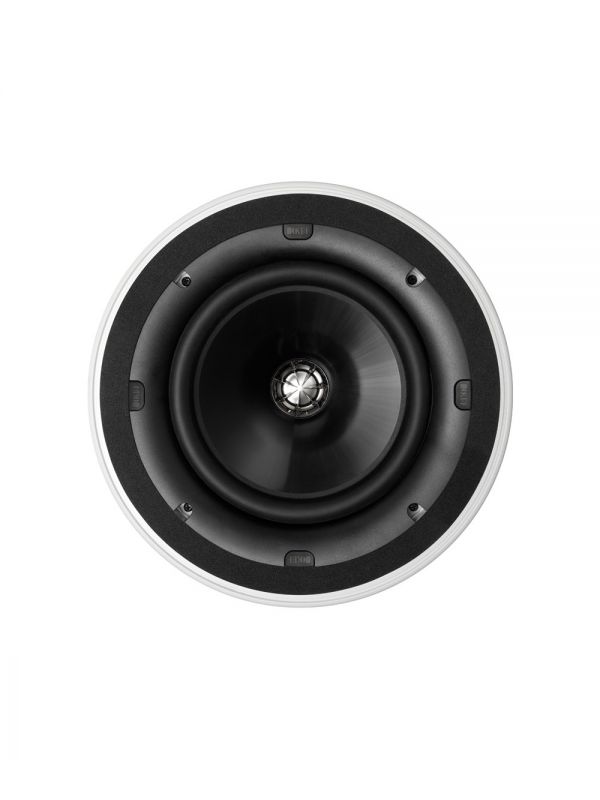

| Model | Ci200QR |
| Nominal Impedance | 8Ω |
| Sensitivity (2.83V/ 1m) | 90dB |
| Frequency Response +/-6dB 2pi/open-backed |
35Hz - 34kHz |
| Drive units | LF: 200mm (8.0in.) MF: - HF: 25mm (1.0in.) |
| Recommended amplifier power | 10-150W |
| Product external dimensions | Diameter Ø: 289.6mm (11.4in.) Depth: 109.8mm (4.33in.) |
| Cut-out dimension | Diameter Ø: 240mm (9.45in.) |
| Mounting depth from surface | Product only: 103.3mm(4.07in.) |
| Optional rough in frame | RIF200R |

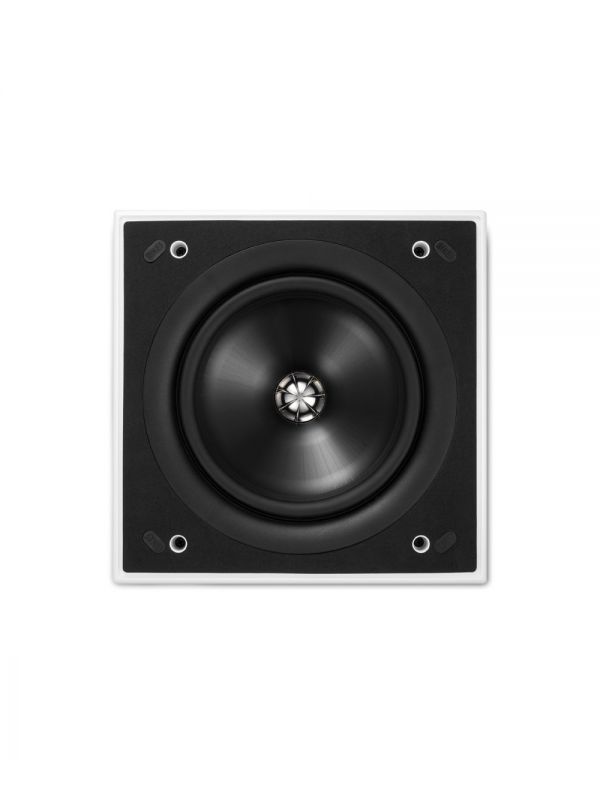

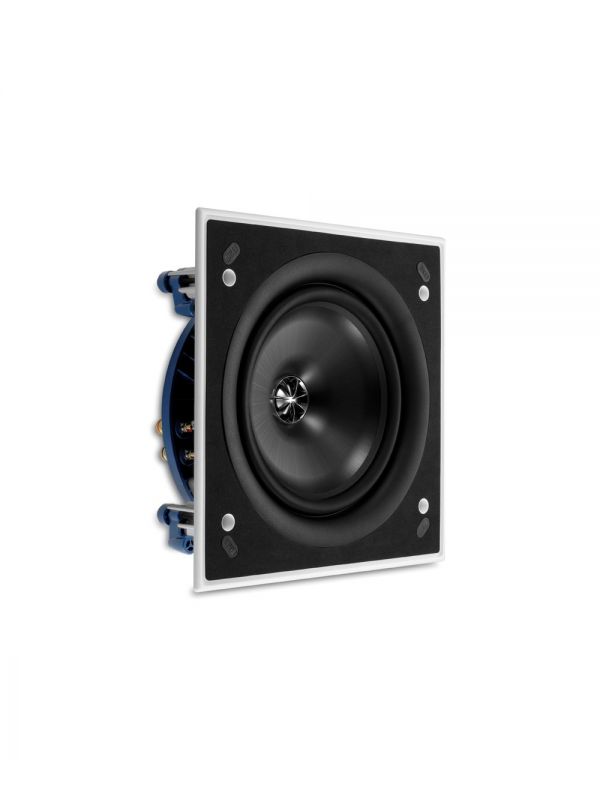

| Model | Ci200QS |
| Nominal Impedance | 8Ω |
| Sensitivity (2.83V/ 1m) | 90dB |
| Frequency response (±6dB) open-backed |
35Hz - 34kHz |
| Crossover frequency | 2.5kHz |
| Drive units LF HF |
200mm (8in.) 25mm (1in.) Uni-Q |
| Recommended Amplifier Power | 10 - 150W |
| Product external dimensions (H x W x D) |
273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.) |
| Cut-out dimensions (H x W) |
238 x 238 mm (9.37 x 9.37 in.) |
| Net Weight | 2.4kg (5.3lbs.) |
| Mounting depth from surface | 99.8mm (3.93in.) |
| Optional rough in frame | RIF200S |
| Optional rear enclosure | RNC200S |

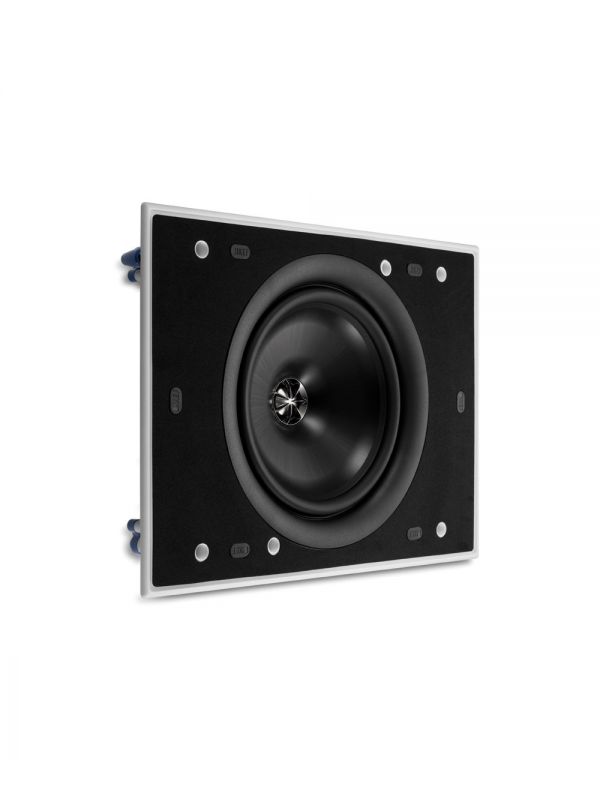

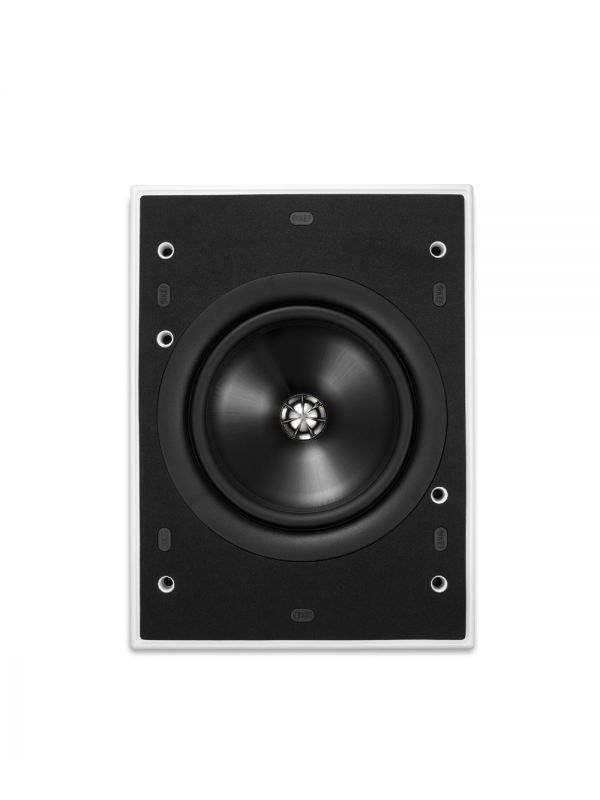

| Model | Ci200QL |
| Series | Q Series |
| Nominal Impedance | 8Ω |
| Sensitivity(2.83V/1m) | 90dB |
| Frequency response (±6dB) | 35Hz - 34kHz |
| Crossover frequency | 2.5kHz |
| Drive Units | LF - 200mm (8in.) HF - 25m (1.0in.) Uni-Q |
| Reccomended amplifier power | 10 - 150W |
| Product external dimensions (H x W x D) |
369 x 273 x 106 mm (14.53 x 10.75 x 4.27 in.) |
| Net Weight | 2.6kg (5.77lbs.) |
| Cutout dimensions (Hx W) |
334 x 238 mm (13.15 x 9.37 in.) |
| Mounting depth from surface | 99.8mm (3.93in.) |
| Optional rough in frame | RIF200L |
| Optional rear enclosure | RNC200L |
** KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. **
