Monitor Audio In-Wall Subwoofer IWA250
This product may take 3 to 5 business days to fulfill.
No se pudo cargar la disponibilidad de retiro

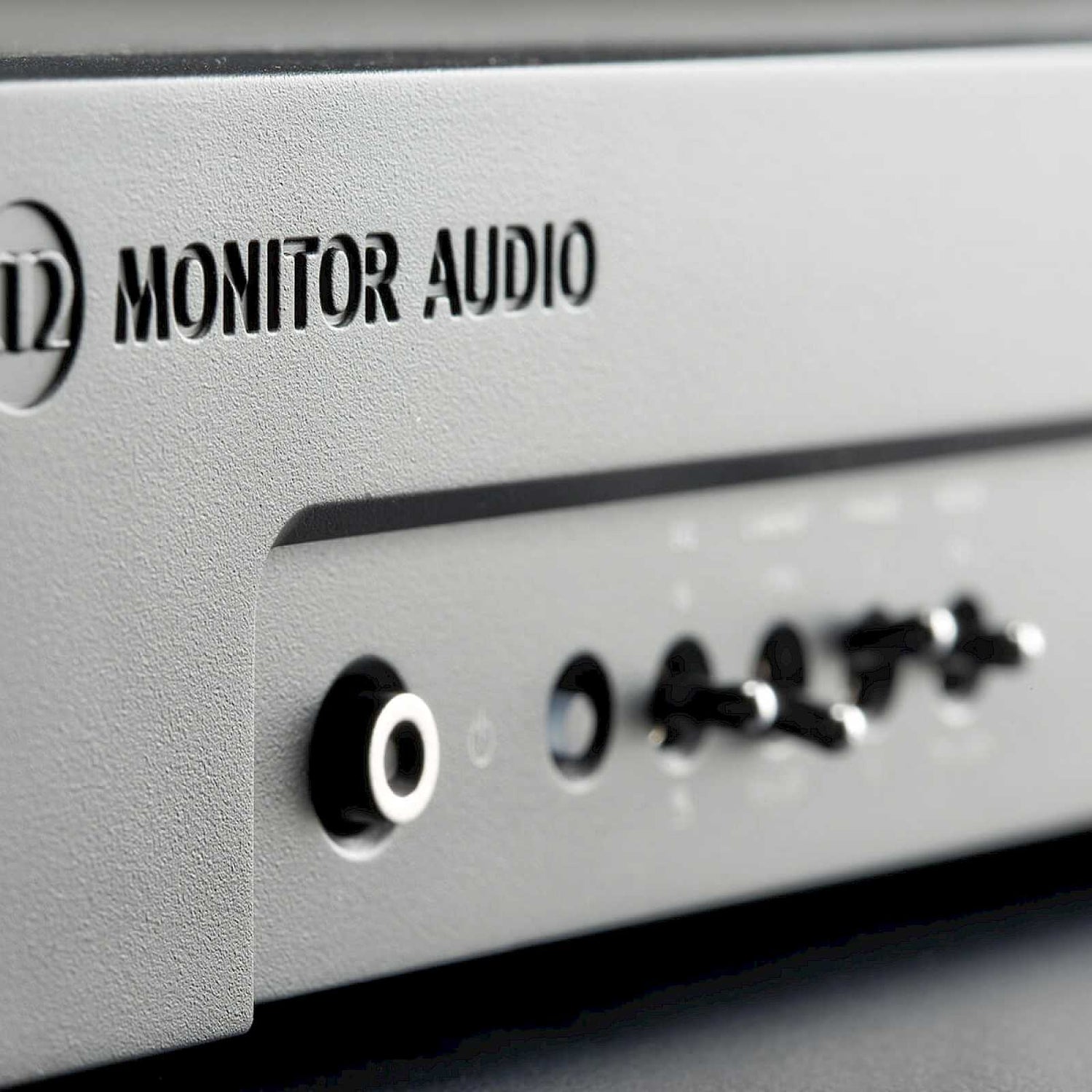

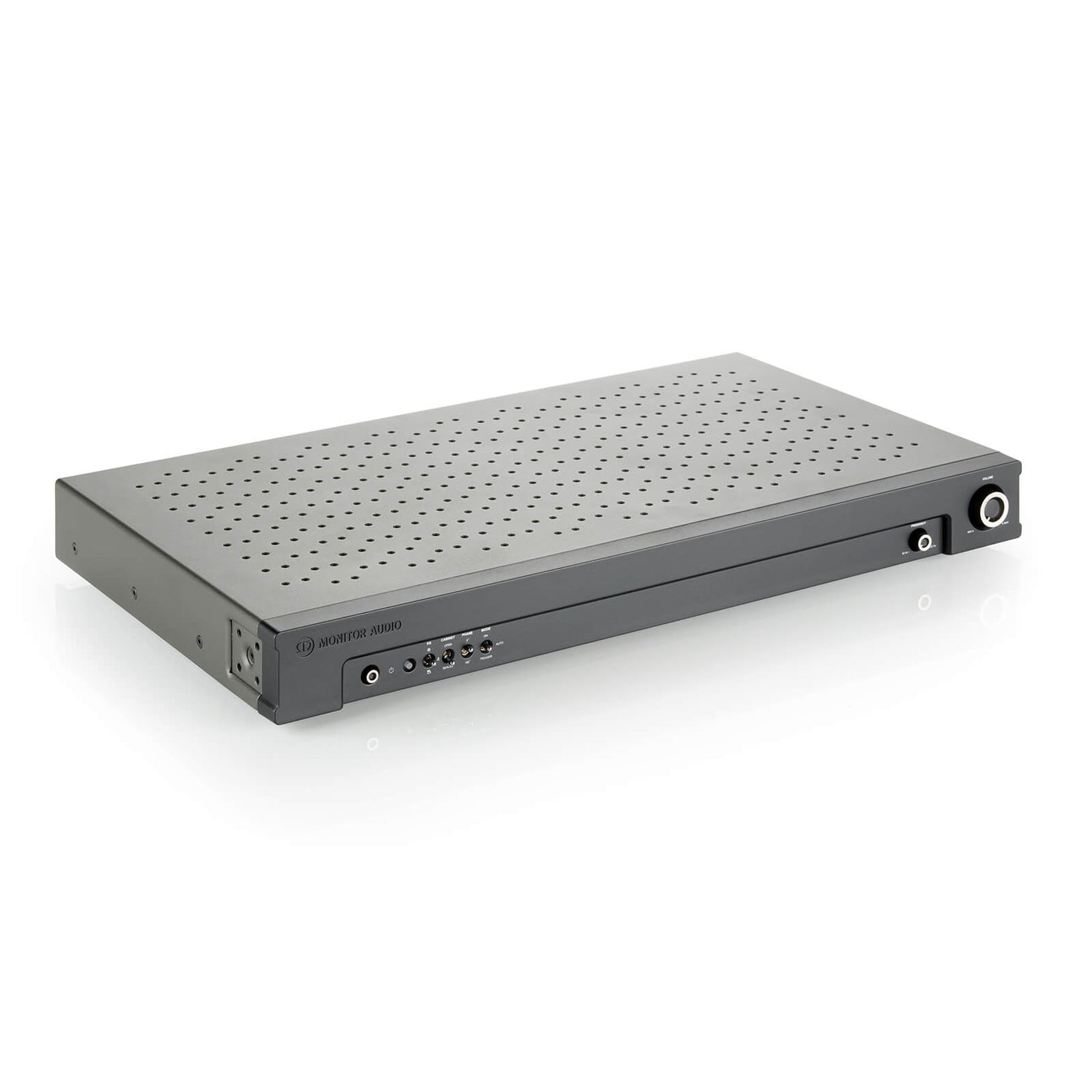

The IWA-250 switch mode amplifier is a slim, powerful, dedicated design in a heavy-duty 1U rack mount case.
Delivering up to 250 watts into 4 ohms, a single IWA-250 will power single or dual IWS-10's to provide higher power levels for larger rooms or to meet customer demands.
Specifications
Category |
Details |
|---|---|
| System Format | Active sub-woofer amplifier |
| Lower Frequency Limit | 25 Hz |
| Upper Frequency Limit | Variable 40 – 120 Hz @ 24 dB/Octave |
| Amplifier Output | 250 W @ < 1% THD+N |
| Drive Unit Complement | 4 – 8 ohms |
| Amplifier Classification | Class D amplifier with Switch mode power supply (SMPSU) |
| Cabinet Support | For use when using the dedicated back box |
| EQ | Music / Movie / Impact |
| Phase Control | 0 & 180 degrees |
| Auto Sensing | Line Level > 3.5 mV |
| Input Level Requirements | Standby after ~15 minutes if no signal sensed |
| Input Impedance | > 20K ohms |
| Mains Input Voltage | AC 110 – 120 V ~ 50/60 Hz; AC 220 – 240 V ~ 50/60 Hz (Factory Region Preset) |
| Dimensions (H x W x D) | 43.7 x 432 x 263 mm (13/4 x 17 x 103/8) |

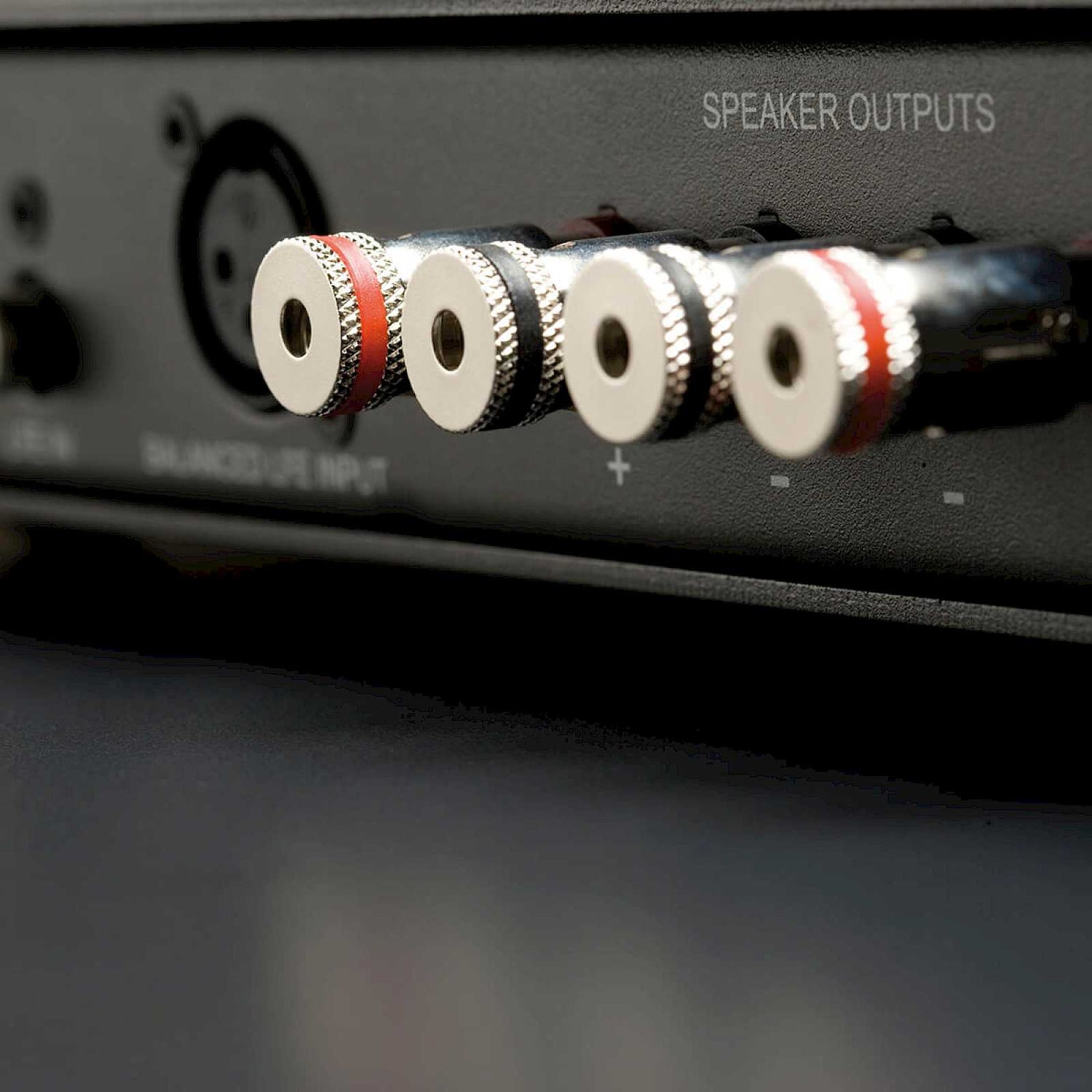

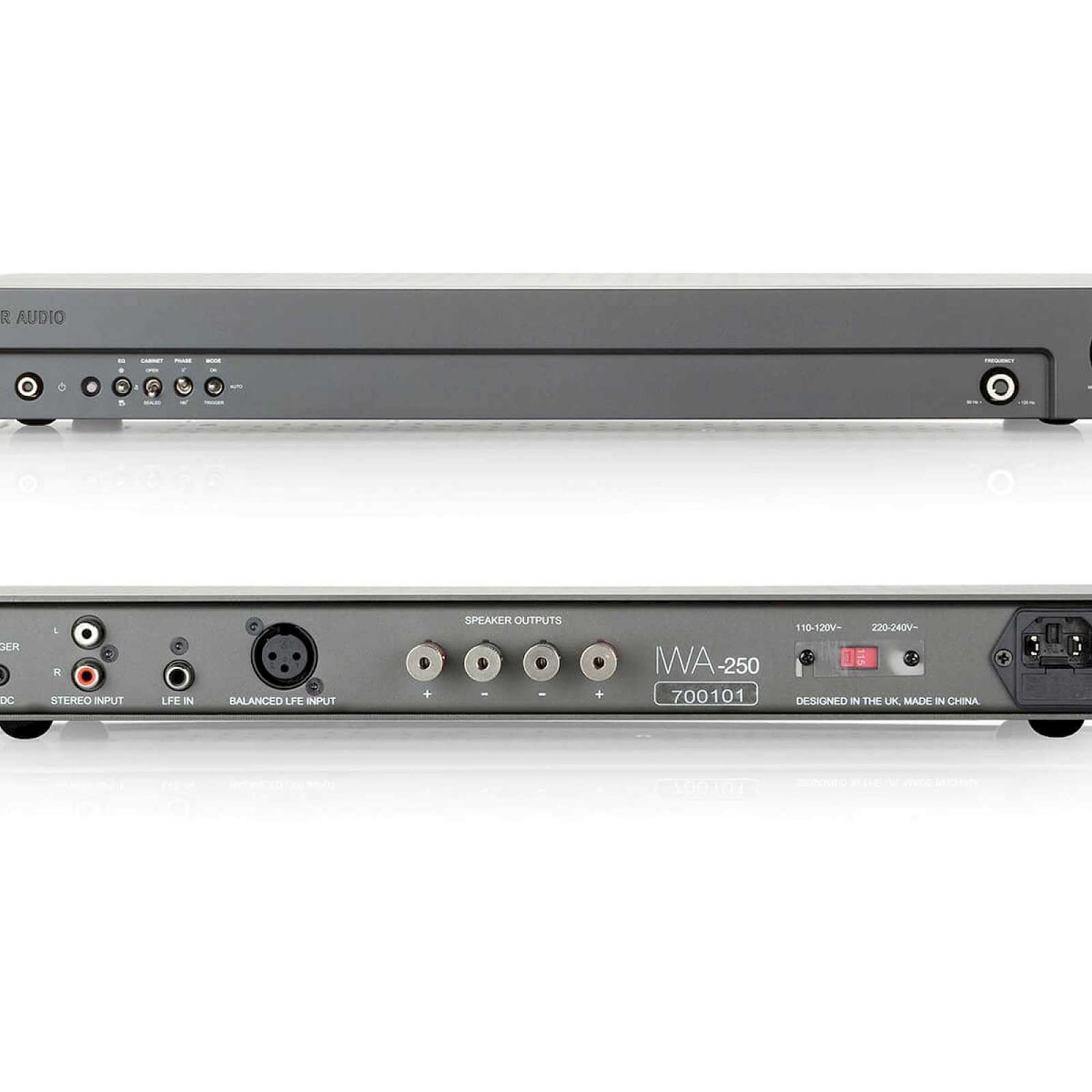

| Connection | LFE in (Stereo RCA and Balanced), 12v Trigger in (3.5 mm mono mini-jack), left & right speaker output |
| Trigger Input | 5 – 12 V via 3.5 mm mono mini-jack socket |
| Power Consumption | Standby: < 0.5 W (ErP approved); Typical Idle: < 10 W; Max Rated: 200 W |
| Weight (unpacked) | 4 kg (8 lb 12 oz) |
| Sold As | Single Unit |
| Warranty | 5 years |

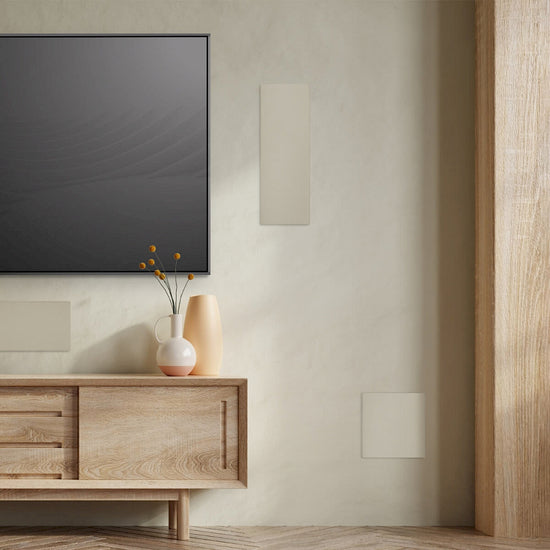

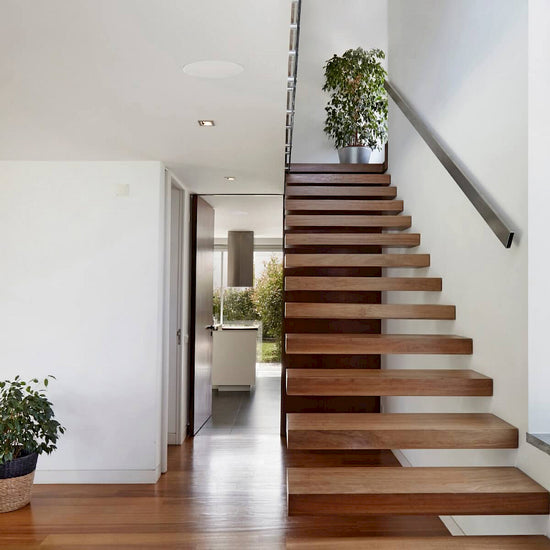

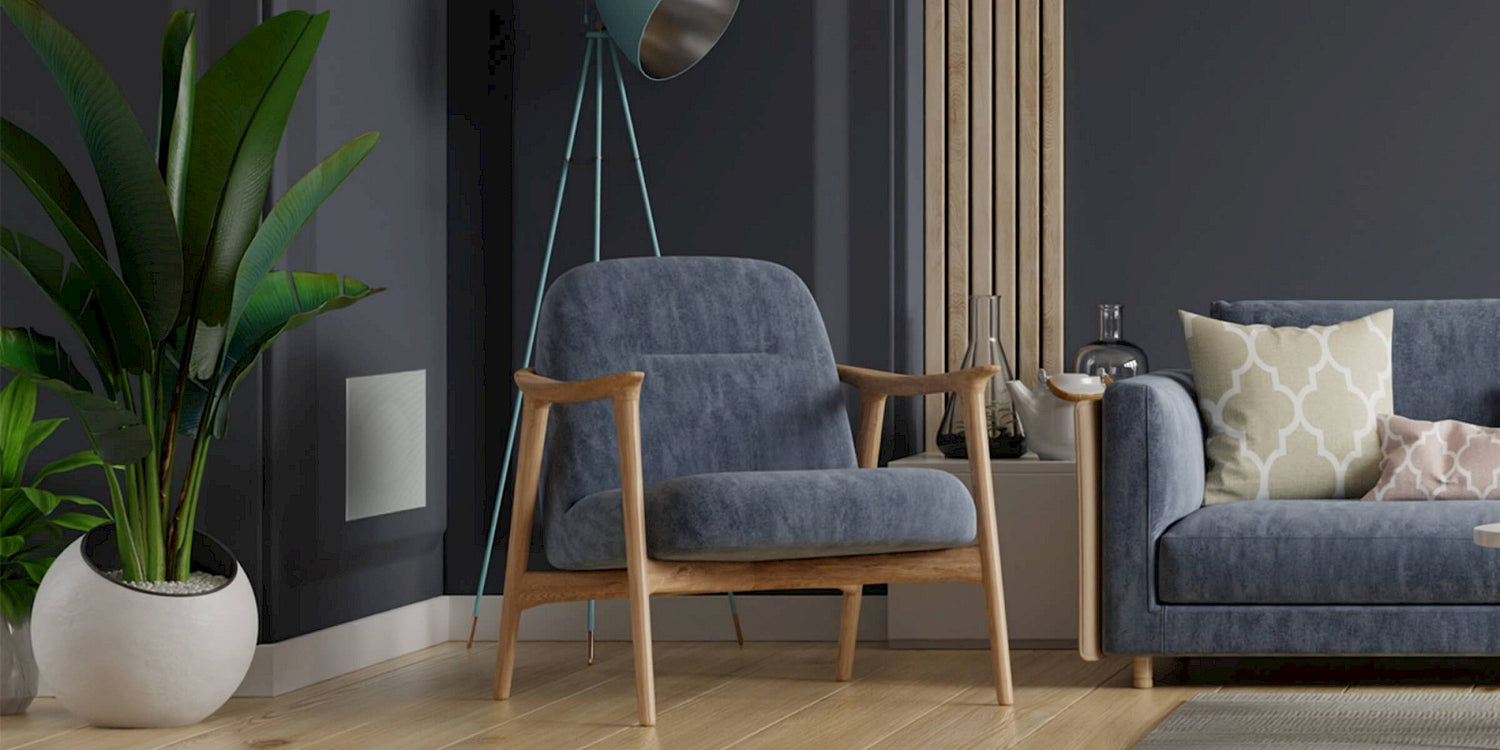

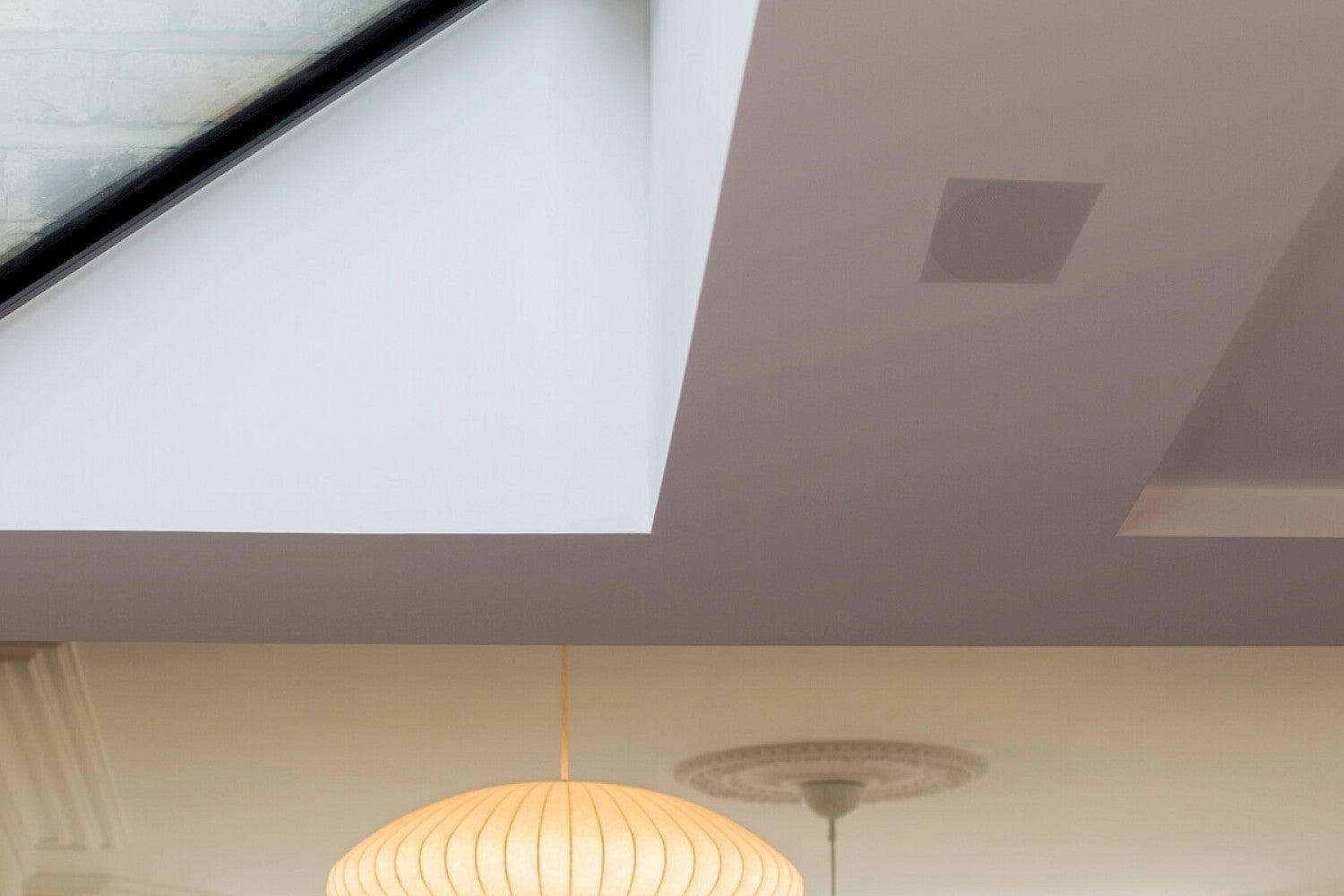

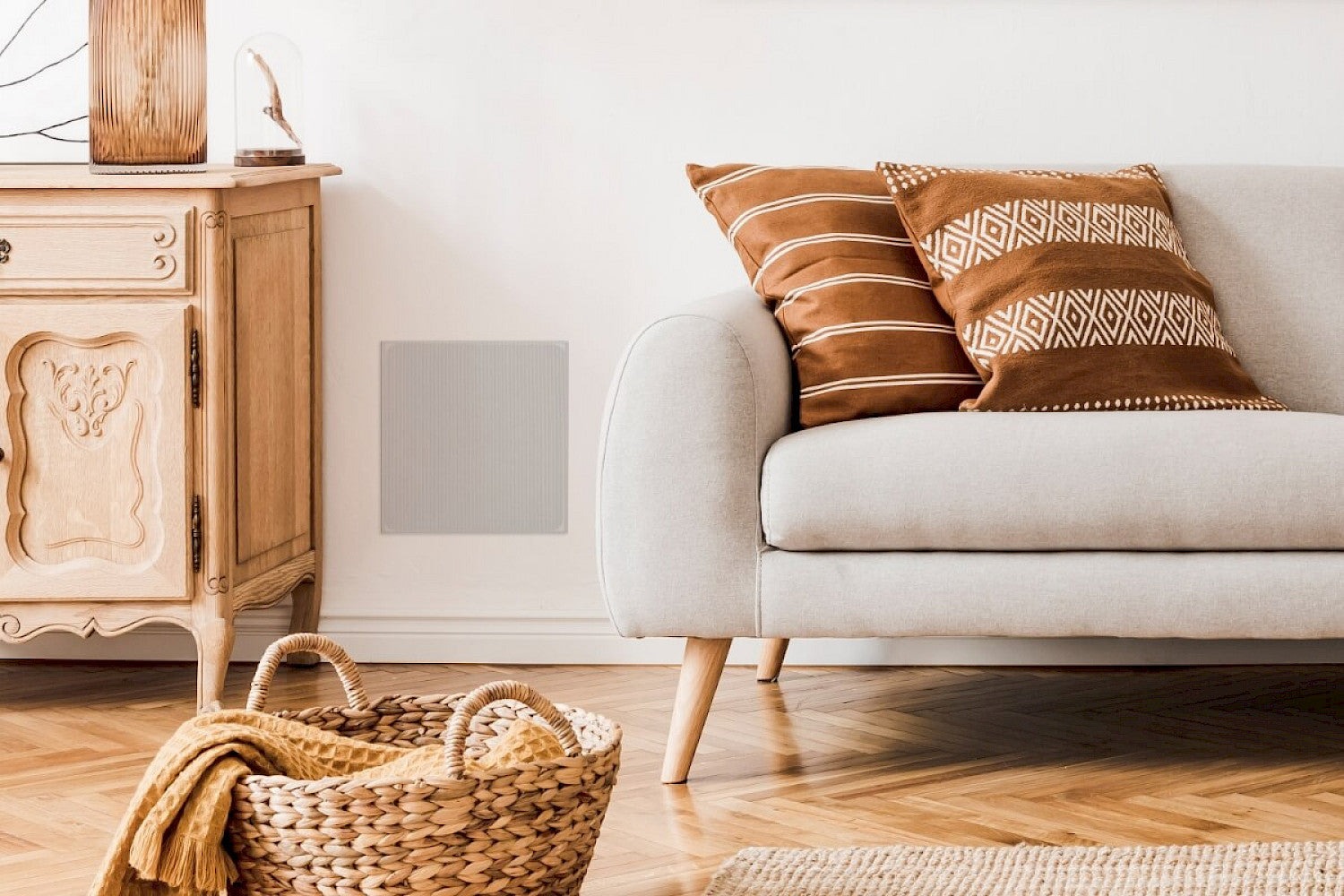

Discreet bass, but without the big boxes
Designed to perfectly complement our in-ceiling and in-wall speakers, the Custom Subwoofer range brings added bass reach, yet demands little in the way of footprint. Choose from our ultra-compact freestanding, in-ceiling, or in-wall models.
ICS-8
A high-performance passive subwoofer able to fit into discreet spaces, such as ceiling and wall cavities, we primarily developed the ICS-8 to complement the CF230 Flush Fit In-Ceiling speaker.
IWS-10
Our In-Wall Subwoofer design marries the IWS-10 subwoofer driver, IWA-250 amplifier, and IWB-10 black box. Use the IWS-10 model in a range of ceiling, floor, and In-Wall locations, ideally – but not exclusively – with its IWB-10 back box.
IWA-250

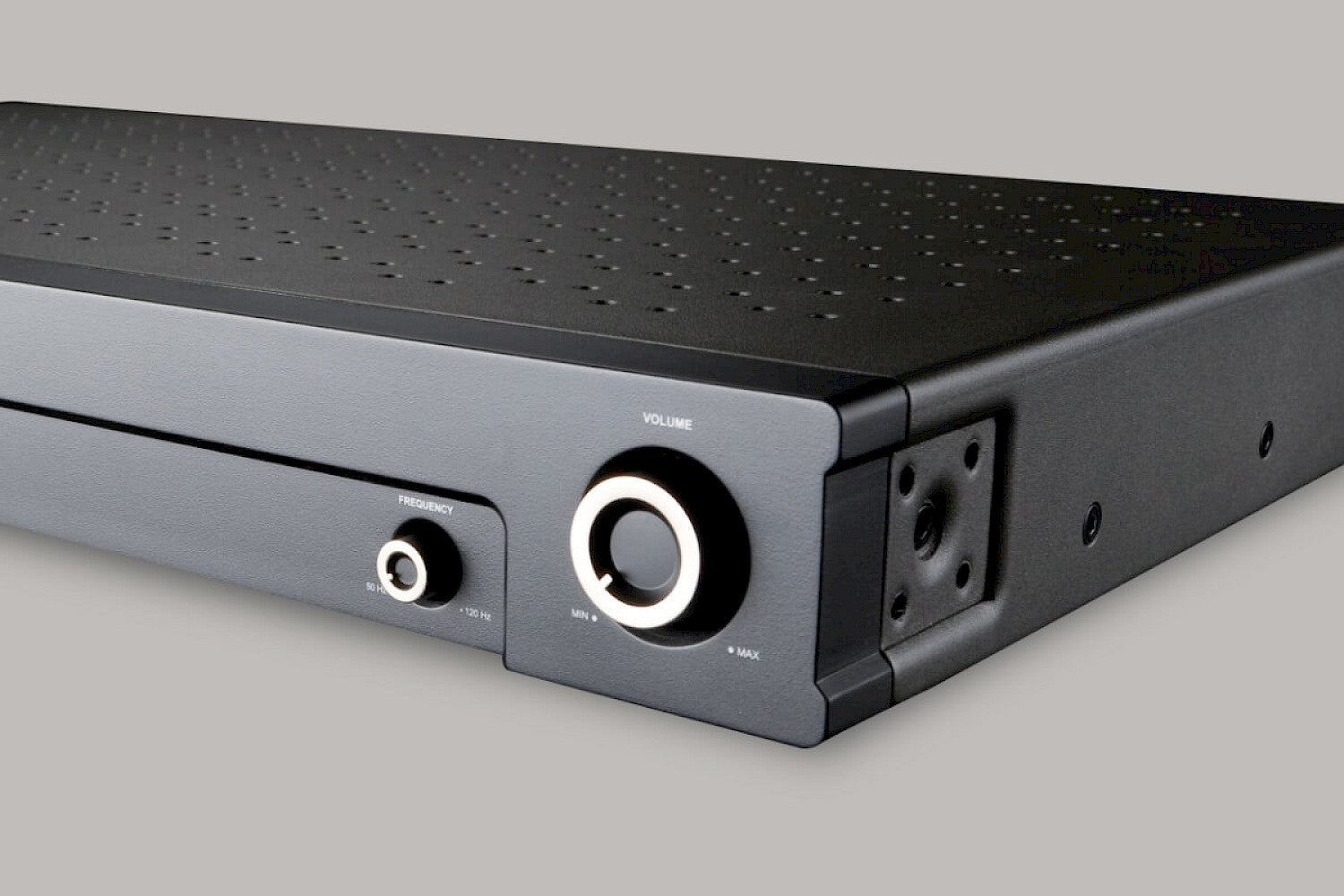

Designed to work with the IWS-10 subwoofer, the IWA-250 switch mode amplifier is a slim, powerful design in a robust 1U rack mount case. Delivering up to 250 W into 4 ohms, the IWA-250 has input signal sensing, or is triggered from an AVR or other system source.
