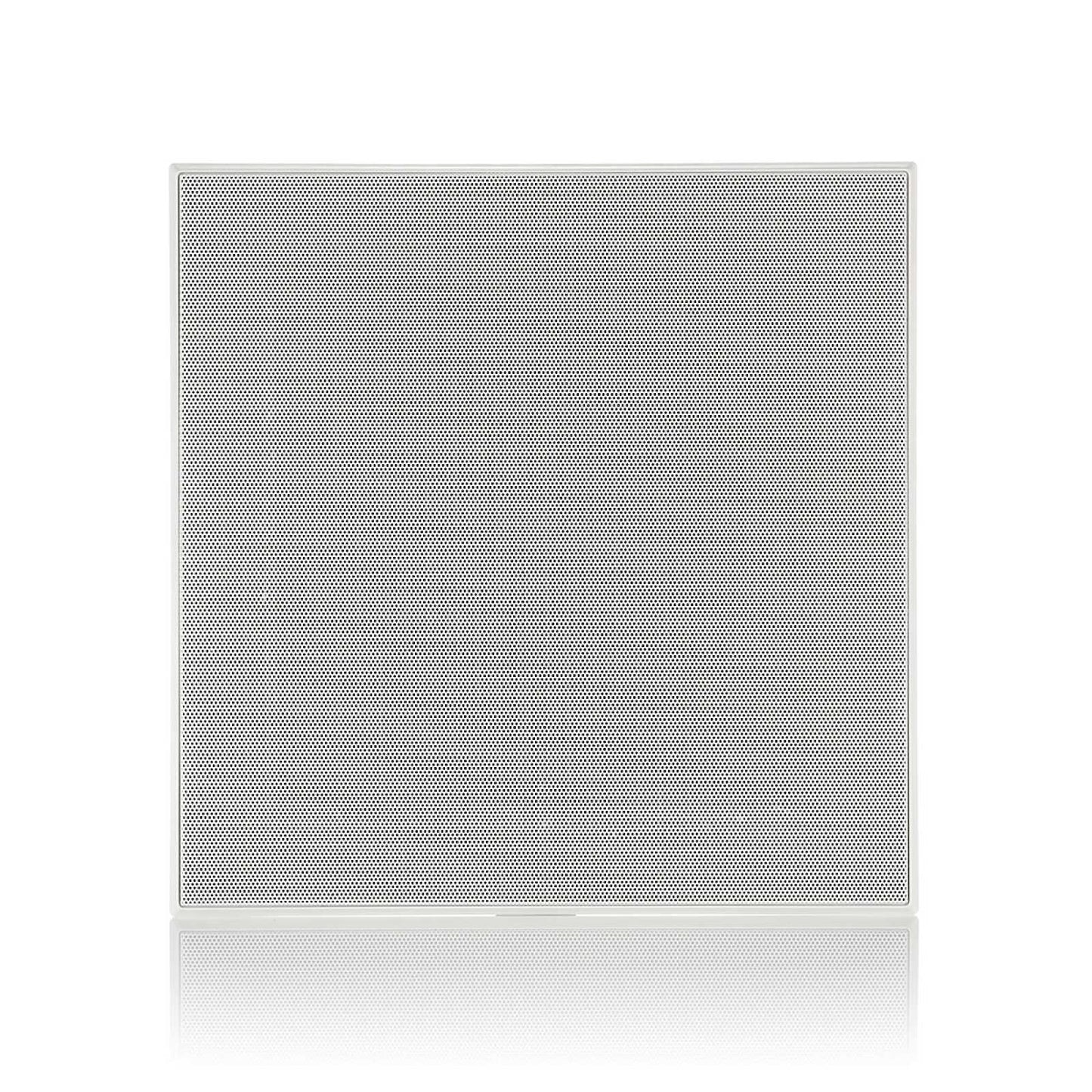

Monitor Audio In-Wall Subwoofer IWS10
This product may take 3 to 5 business days to fulfill.
No se pudo cargar la disponibilidad de retiro

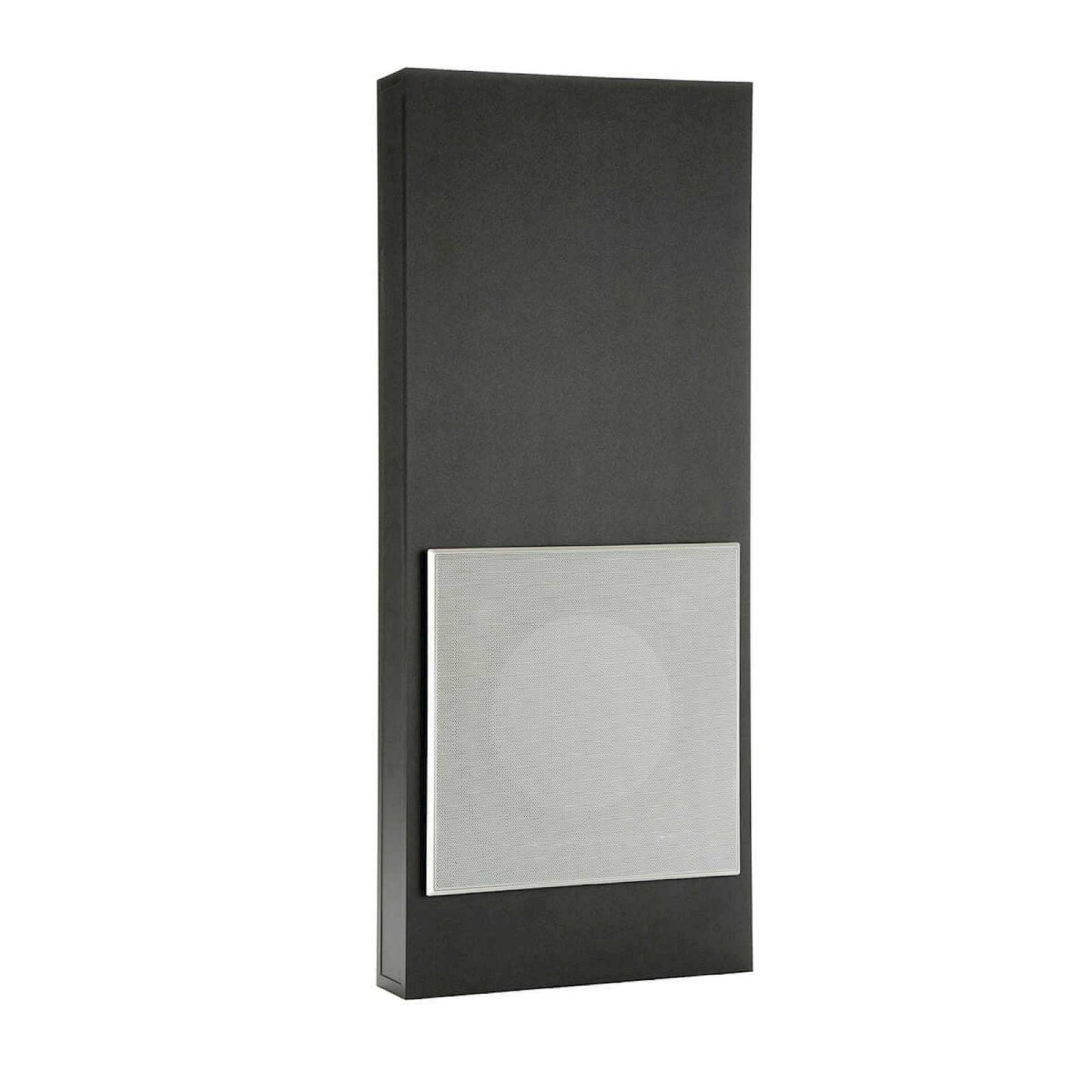

The IWS-10 is specified to produce excellent bass quality in a range of wall, ceiling, and even floor locations, ideally but not exclusively with its IWB-10 back box.
Discreet bass, but without the big boxes

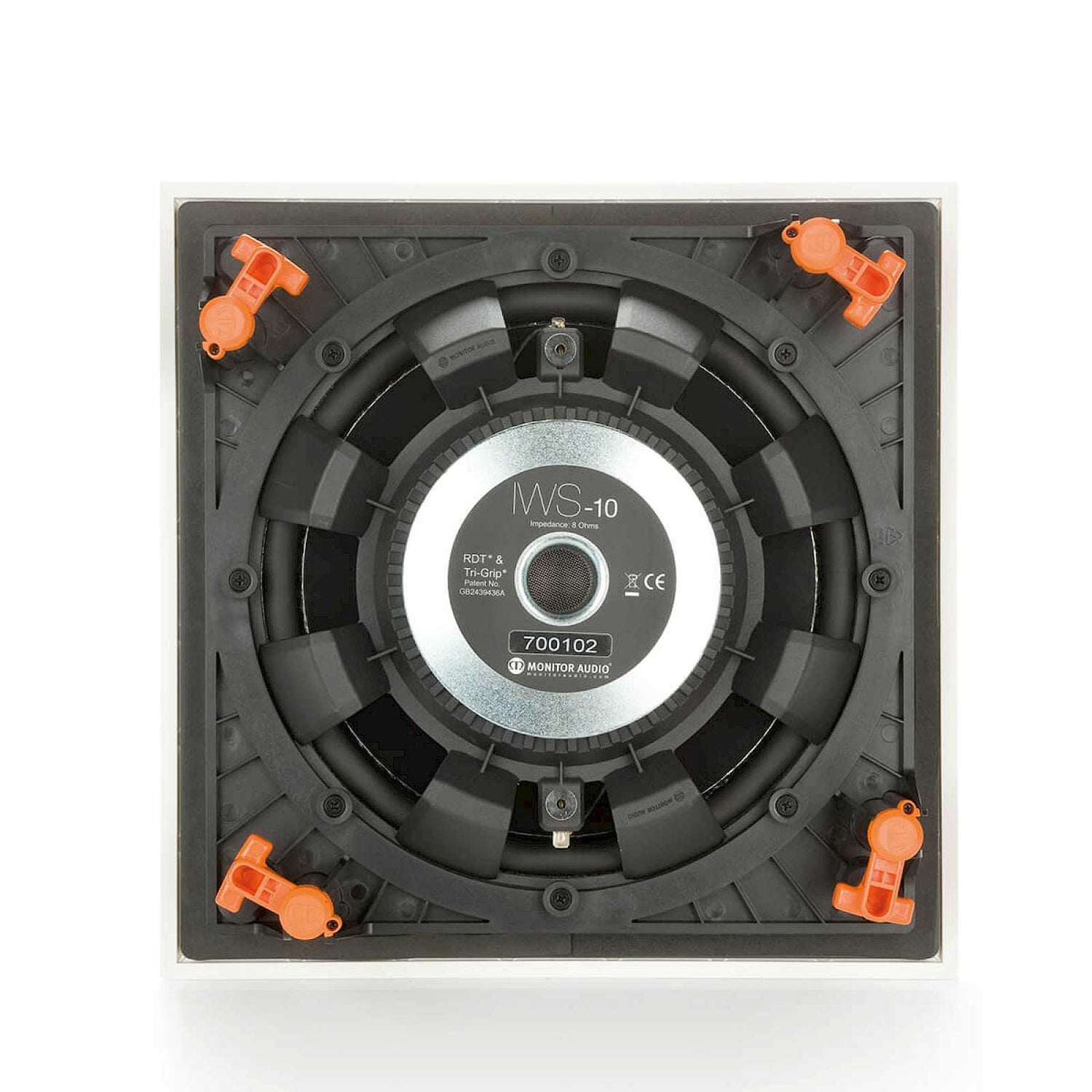

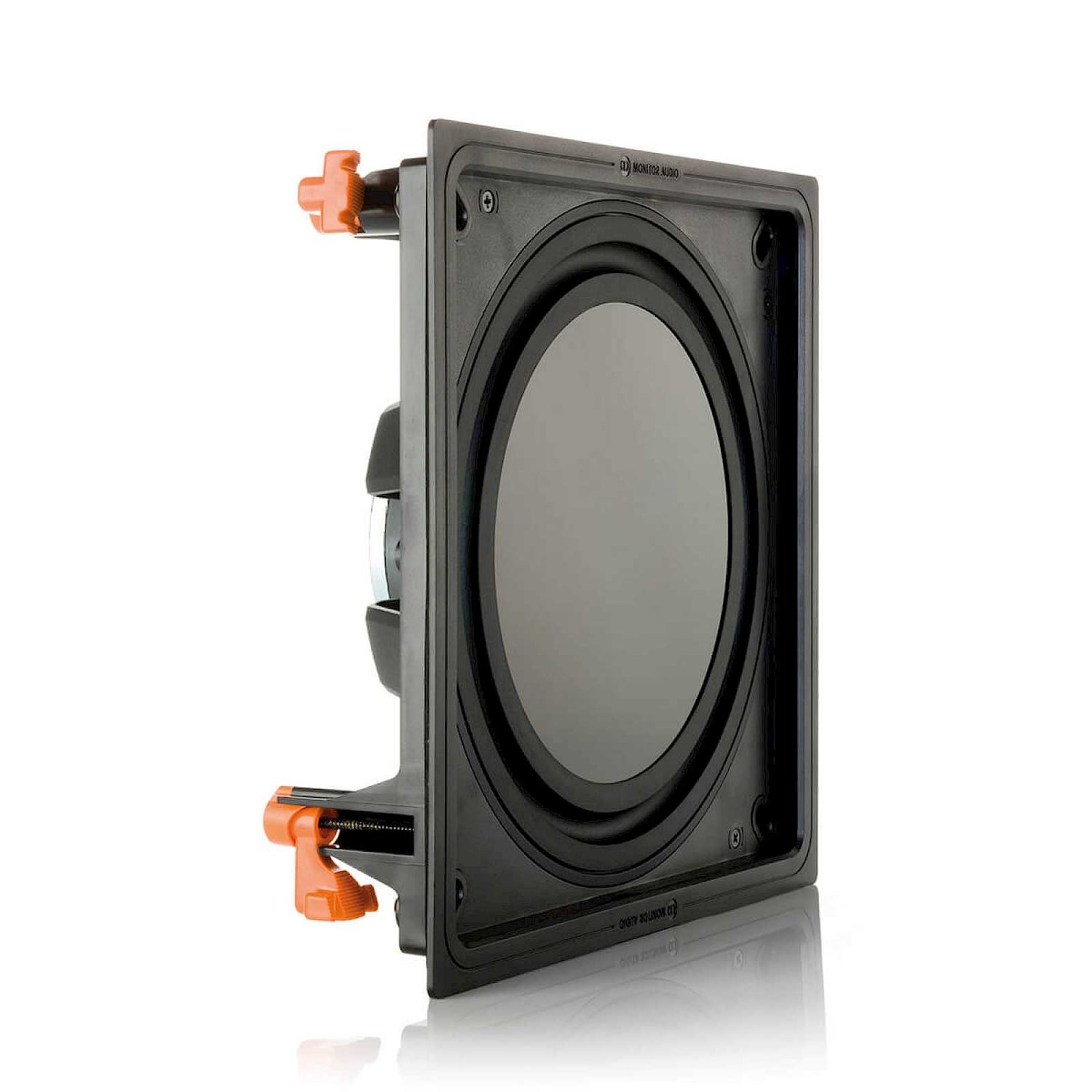

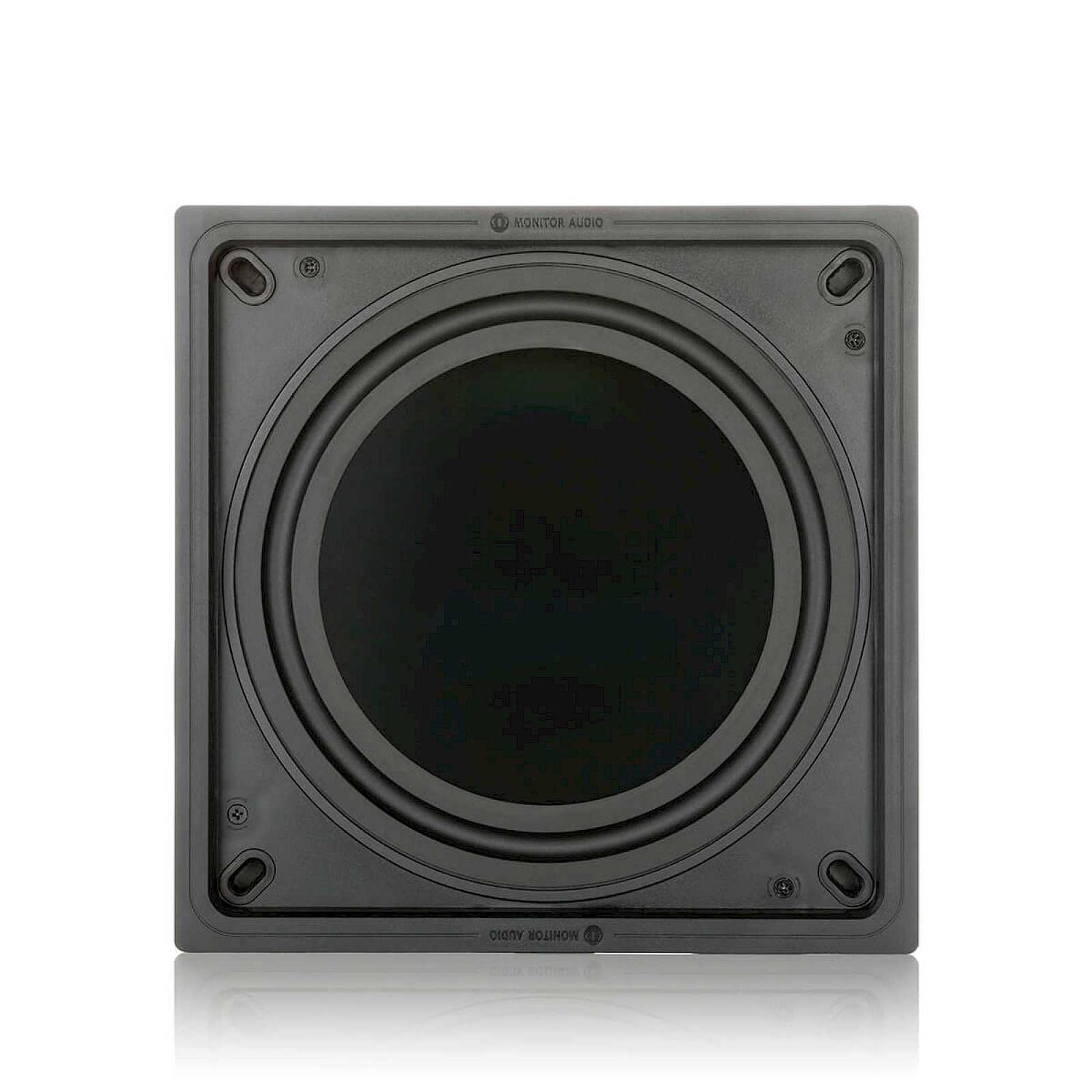

The IWS-10 subwoofer driver employs a rigid, flat 10” surface of 10 mm (3/8") RDT material derived from Monitor Audio’s acclaimed ‘Platinum’ series of high-end speakers. A large vented pole helps to move air quickly, reducing power compression and increasing heat dissipation.

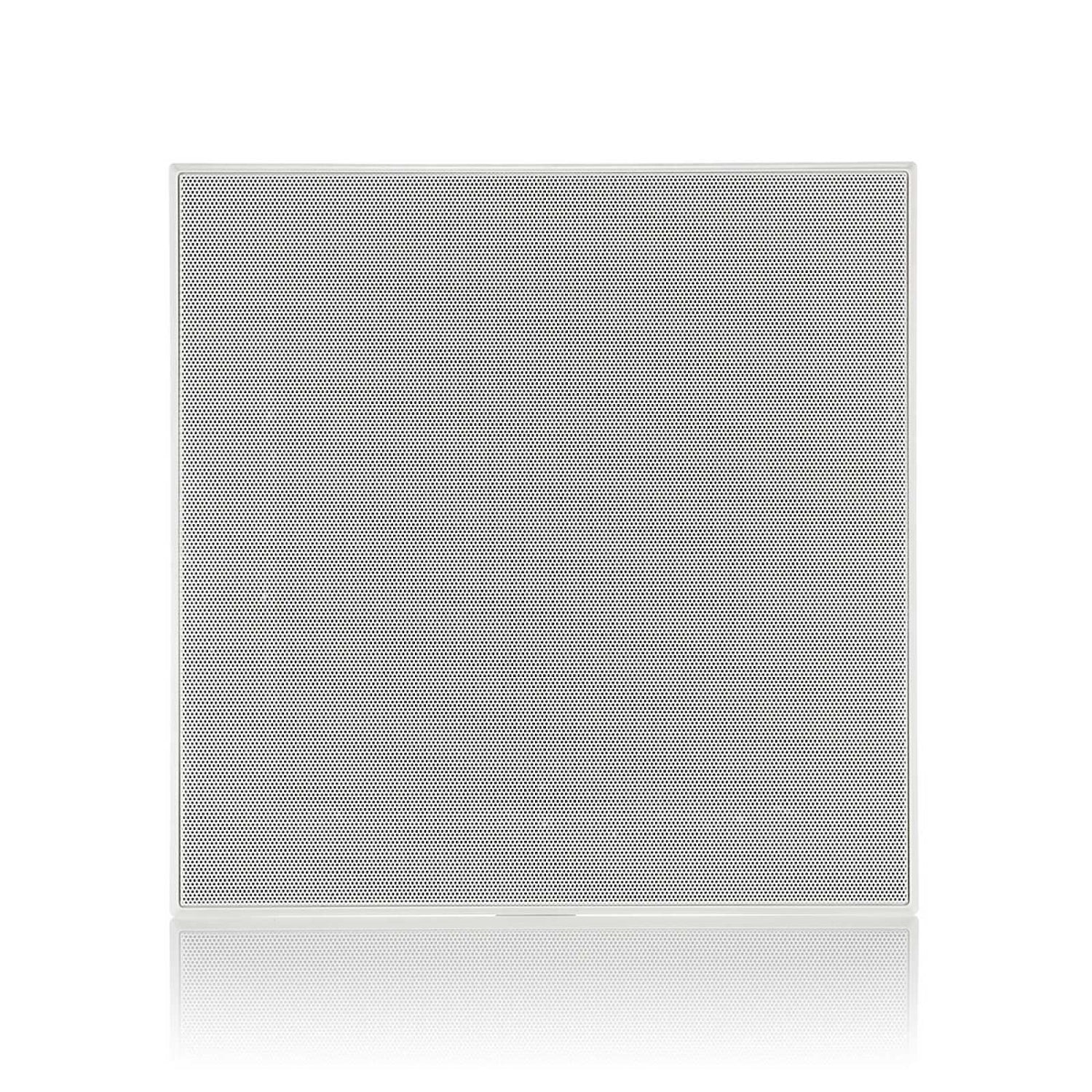

It features Monitor Audio’s patented Tri-Grip clamping system and paintable trim-less grille and frame edge.
Specifications
Category |
Details |
|---|---|
| Frequency Response | 28 Hz — 120 Hz (when mounted in optimum enclosure) |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W@1M) | 86 dB |
| Maximum SPL | Single unit: 109.8 dB; Pair: 115.8 dB |
| Power Handling (RMS) | 150 W |
| Cut-Out Dimensions | 280 x 280 mm (11 x 11") |
| Mounting Depth | 89.98 mm (31/2") |
| Fixing Type | 4 position Tri-Grip dog leg fixings |
| Connection | Gold plated "push" type terminals |
| Construction Material | Mineral Filled ABS Plastic (RoHS2 Compliant) |
| Overall Dimensions (H x W x D) | 302 x 302 x 92.28 mm (117/8 x 117/8 x 35/8") |
| Overall Dimensions (Including Grille) | 314.21 x 314.21 x 100.78 mm (123/8 x 123/8 x 315/16") |
| Weight | 3.8 kg (8 lb 6 oz) |
| Sold As | Single Unit |
| Warranty | Lifetime |
Discreet bass, but without the big boxes

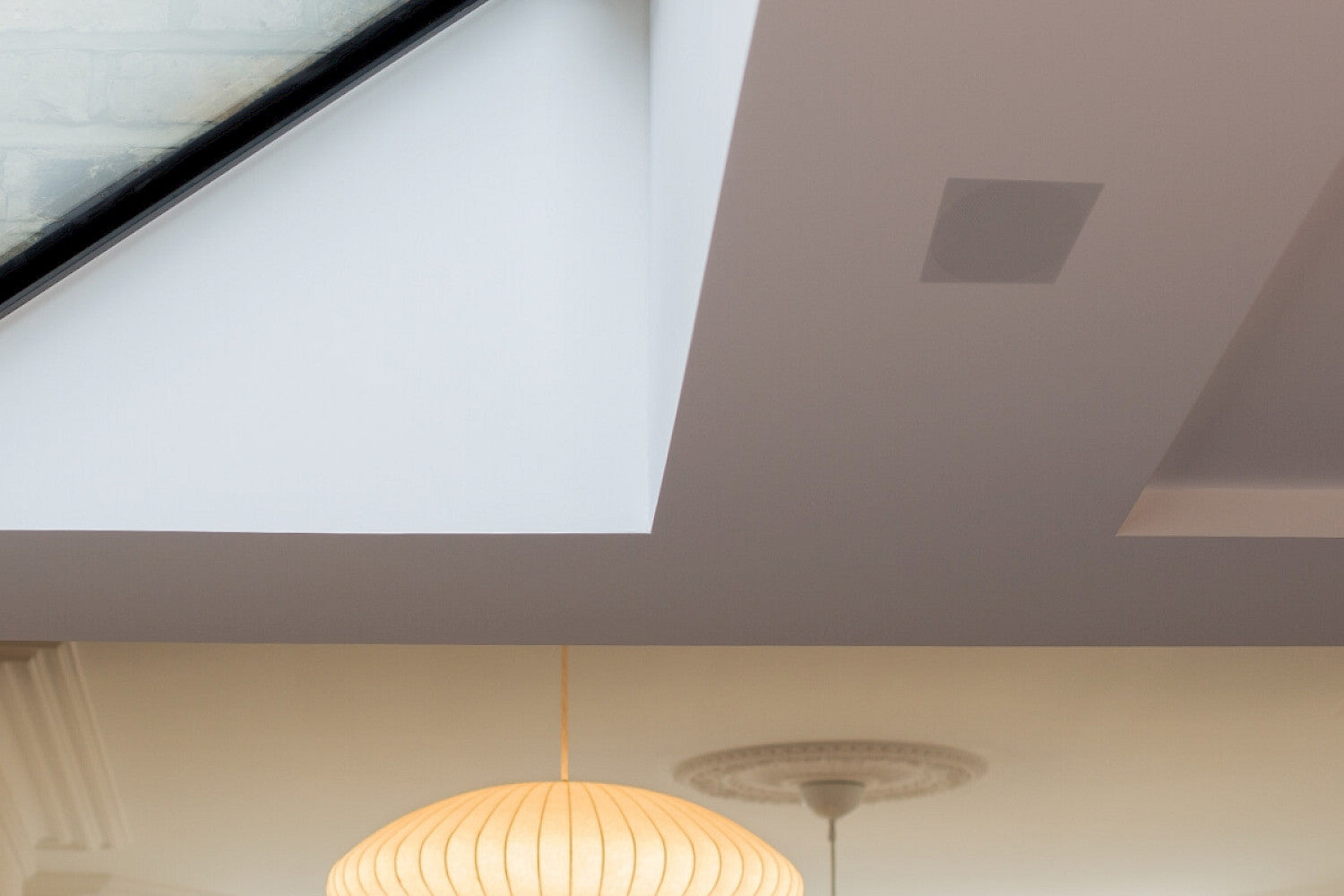

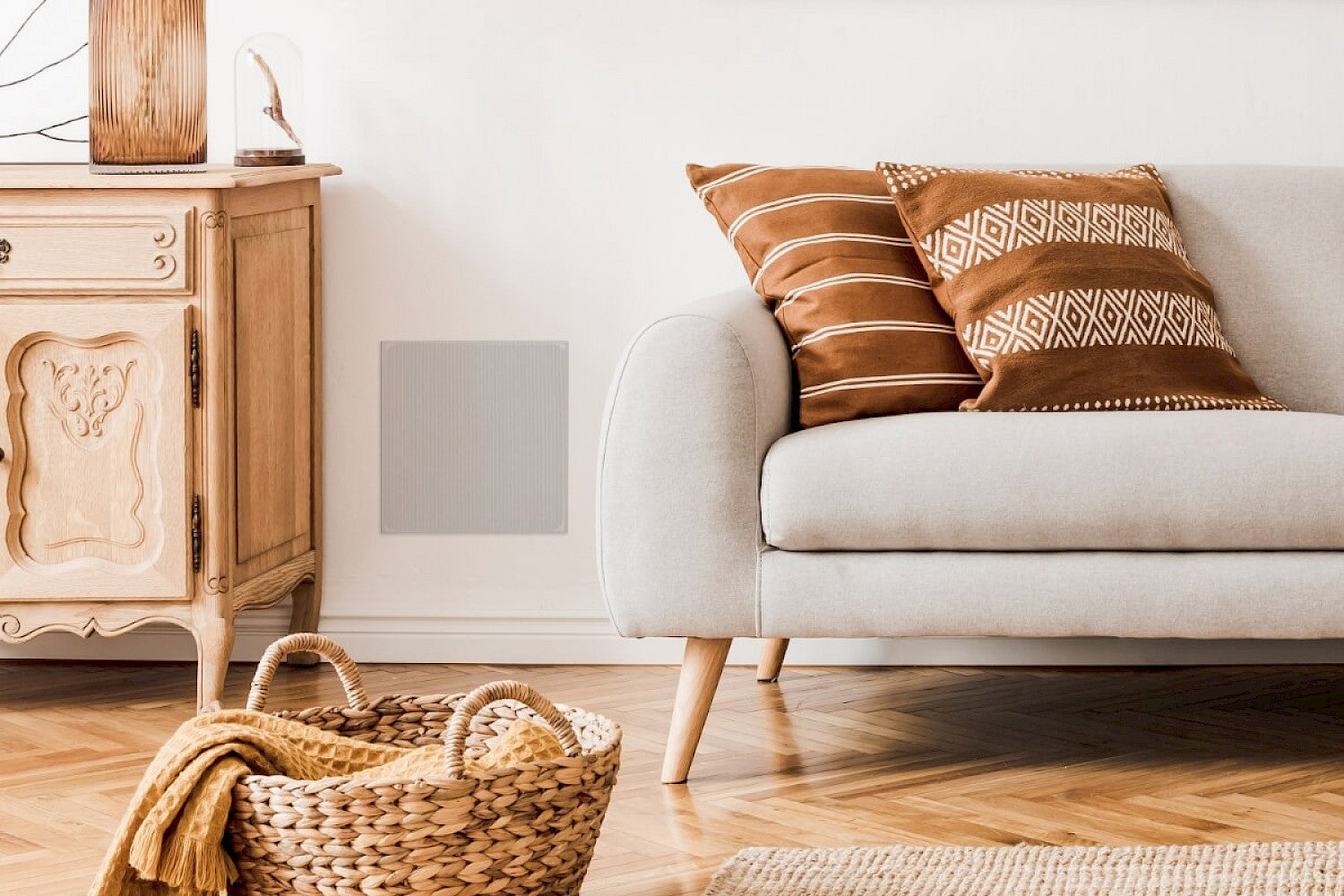

Designed to perfectly complement our in-ceiling and in-wall speakers, the Custom Subwoofer range brings added bass reach, yet demands little in the way of footprint. Choose from our ultra-compact freestanding, in-ceiling, or in-wall models.
ICS-8
A high-performance passive subwoofer able to fit into discreet spaces, such as ceiling and wall cavities, we primarily developed the ICS-8 to complement the CF230 Flush Fit In-Ceiling speaker.
IWS-10
Our In-Wall Subwoofer design marries the IWS-10 subwoofer driver, IWA-250 amplifier, and IWB-10 black box. Use the IWS-10 model in a range of ceiling, floor, and In-Wall locations, ideally – but not exclusively – with its IWB-10 back box.

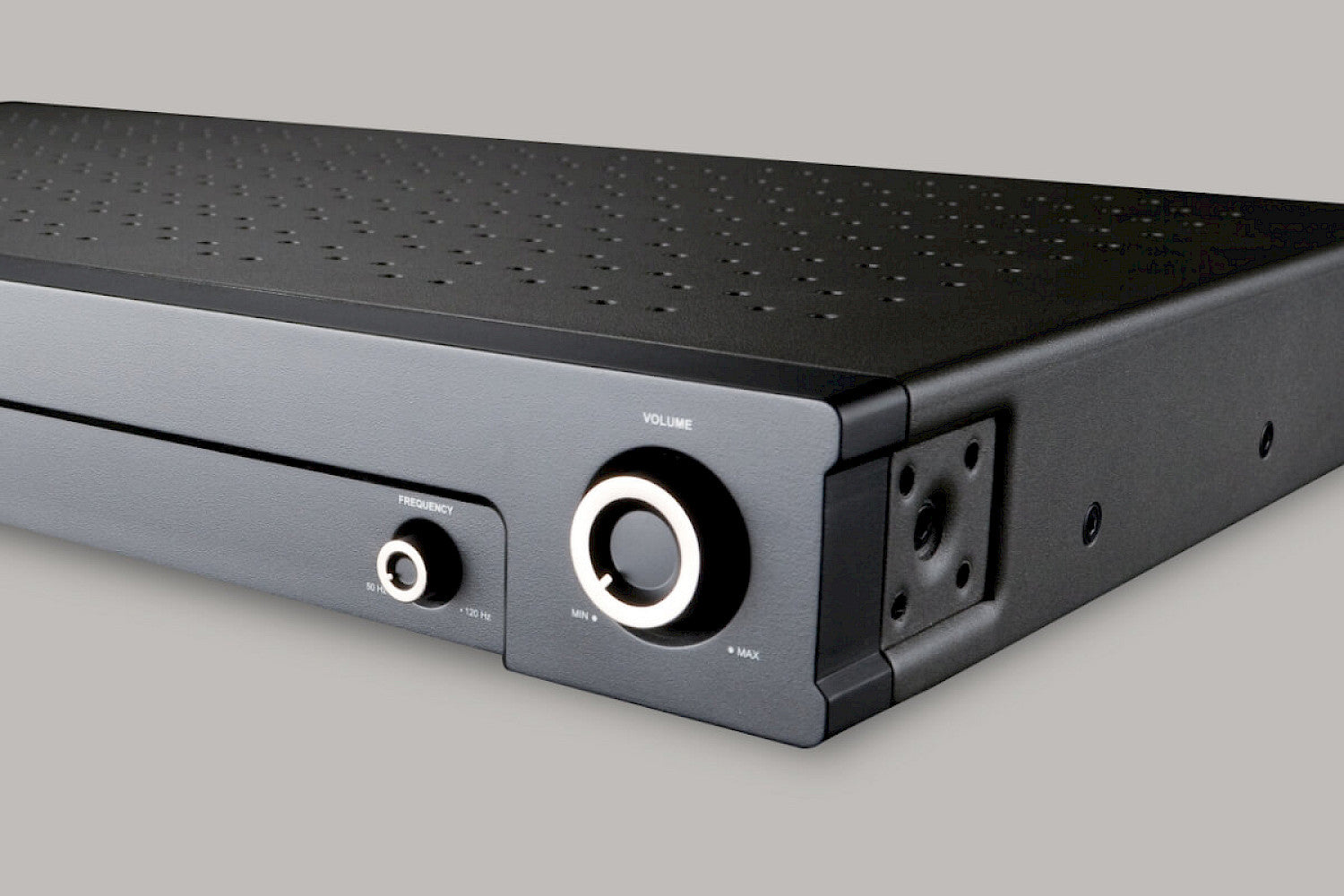

IWA-250
Designed to work with the IWS-10 subwoofer, the IWA-250 switch mode amplifier is a slim, powerful design in a robust 1U rack mount case. Delivering up to 250 W into 4 ohms, the IWA-250 has input signal sensing, or is triggered from an AVR or other system source.
