REL Acoustics

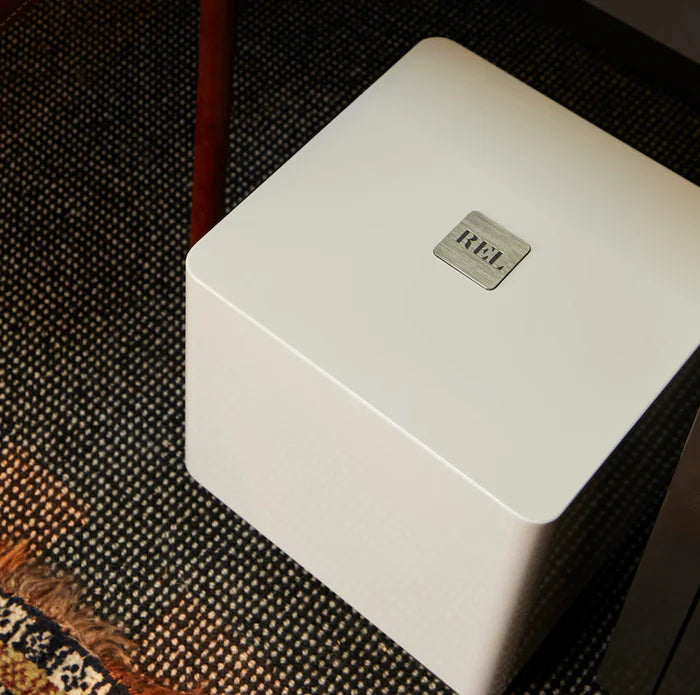

REL Series T/5x
SELECT OPTIONS:
No se pudo cargar la disponibilidad de retiro
REL Subs that are not in stock, may take upto 7 to 10 days to fulfill.
Stunningly Simple
Designed for Elegance
Perfect for small and medium rooms, T/5x seats perfectly into any décor. Floor-firing is part of its secret; bass energy strikes the floor and spreads uniformly throughout the space making it perform like a larger model. For those picky about style, the hidden bonus is this design eliminates even the grill, rendering it the purest of forms.
Slightly larger in volume than its predecessor, it actually appears to be smaller due subtle design changes to minimize it’s visual presence. Finally, 5 hand polished coats of lacquer in your choice of High Gloss White or Piano Black add luster to the softly rounded cabinetry.
Designed for Elegance
Many don’t realize the intense linkage between performance and design here at REL. Performance is everything to us and so it drives physical design revisions. Our engineers, recognizing the need for greater acoustic volume to achieve the goals of greater fluidity and power, turn to the designer who works dimensions to fool the eye into seeing a smaller, more compact footprint even though cabinet volume increases. Using gently rounded corner radii that allows the eye to flow over and see less visual mass. The result is both modern and familiar with no unnecessary adornment.
Faster & Deeper
T/5x borrows a single longthrow 8” (200mm) bass engine from its elder sibling, T/7x. Developed using a composite of aluminum and light paper, this cone captures details that will amaze, while supplying sufficient energy to plumb deeper than one would expect for its size. In T/5x, its throw–the ability to play louder–has been increased. Internally, the suspension received numerous upgrades akin to transforming the handling of a car from a family sedan to a true sports car. More power, greater finesse.
Amplified Power
T/5x builds on its predecessor’s reliable, expensive 125 W Class A/B amplifiers. Internally, key items significant to upgrading transparency and speed have been upgraded at no cost to REL’s legendary reliability. Separate inputs for High Level Inputs, Low Level Input (necessary for the increasing number of powered active speakers emerging on the market) allow for a natural, perfect transition from speaker to subwoofer. And in theater a separate, dedicated .1/LFE Input for Theatre performance permits automatic transition between music in high end 2-channel applications and home theater without needing to change a single setting. Magic? No, superior engineering.
Standby Mode switch is only included on 220V units.
Zero Compression Wireless
At REL, we’ve developed a sterling reputation for building the finest sounding, fastest wireless systems available in the industry. REL never rely upon digital compression as it results in thin, lifeless sound. Instead, we have perfected an (optional) Arrow™ Wireless system; so fast and dynamic we’re comfortable encouraging the use of wireless on one channel of a pair of RELs while the other channel may be connected hardwired with cable.
Technical Specifications
Type
Closed Box, down-firing driver
Active Driver Size & Material
8 in. (200mm) long-throw, FibreAlloy™ cone, inverted alloy centre cap, steel chassis
Passive Radiator Size & Material
N/A
Low Frequency Extension
-6dB at 32 Hz Low Frequency
Input Connectors
High Level Neutrik Speakon, Low Level (1) RCA, (1) LFE RCA
Output Connectors
N/A
Power Output
125 watts (RMS)
Amplifier Type
Class A/B
Wireless Capability
REL Arrow (sold separately)
Dual Parametric Filter
N/A
Finish
Piano Black Lacquer, Gloss White Lacquer 5 coats
Fully Electronic Set Safe
Yes
D.C. Fault
Yes
Output Short
Yes
Mains Input Voltage
220-240 volts, 1120-120 volts for certain markets
Fuses
1.6 Amp semi delay 230 volts operation, 3.15 Amp semi delay 115 volts operation
Mains Lead
Yes
Neutrik Speakon
Yes (10 Meters Nominal)
Interconnect
-
User Manual
Yes
DIMS
W x H x D 11.8 x 12 x 12.3 in., (300 x 307 x 313 mm)
Net Weight
31.5 lbs. (14.3 kg)
Awards & Industry Reviews
AUDIOGRADE RECOMMENDED
"The T/5x is a fabulous little subwoofer that grabs your attention for the sheer musical joy and engagement it brings to music. It represents one of the most effective upgrades I've heard to enhancing an audio system's performance at the price."
AUDIOGRADE
Read Article
THE AUDIOPHILIAC
"The low end of the Soul 6 is a tad lightweight. I wish it had a little more low end so I popped in the T/5x, played with those controls a bit. 5 minutes and I was in. It transformed the sound of the Soul 6. It made it sound like a bigger speaker."
- THE AUDIOPHILIAC
Read Article
IIWI REVIEWS
"It's a nice addition to a system that doesn't have full range speakers. When I turn it off now, I miss it immediately."
- IIWI REVIEWS
Read Article
What's in the box
- Serie T/5x Subwoofer
- Grille
- 6' AC Power Cord
- 32' Neutrik Speakon cable
- User Manual & Warranty Information
The Right REL for You
Specifications will never tell the whole story behind one of our subwoofers, but they can help to clarify the technical difference between them.
SERIE T
Tzero MKIII
W x H x D
8.5 x 9.5 x 10.5 in.
(216 x 241 x 260 mm)
100 watts (RMS) Class D
N/A
-6dB at 37 Hz Low Frequency
SERIE T/x
T/5x
W x H x D
11.8 x 12 x 12.3 in.,
(300 x 307 x 313 mm)
125 watts (RMS) Class A/B
N/A
-6dB at 32 Hz Low Frequency
SERIE HT
HT/1003 MKII
W x H x D
14.25 in. x 13.25 in. x 15.25 in.
(362mm x 343mm x 387mm)
300 watts (RMS) Class D
N/A
-6dB at 24 Hz Low Frequency
