FOCAL 100IC6ST / MOUNTING KIT
SELECT OPTIONS:
This product may take 3 to 5 business days to fulfill.
Couldn't load pickup availability
Focal's 100IC6ST / MOUNTING KIT, priced as a unit
FOCAL 100IC6ST / MOUNTING KIT
COMFORT OF THE STEREO

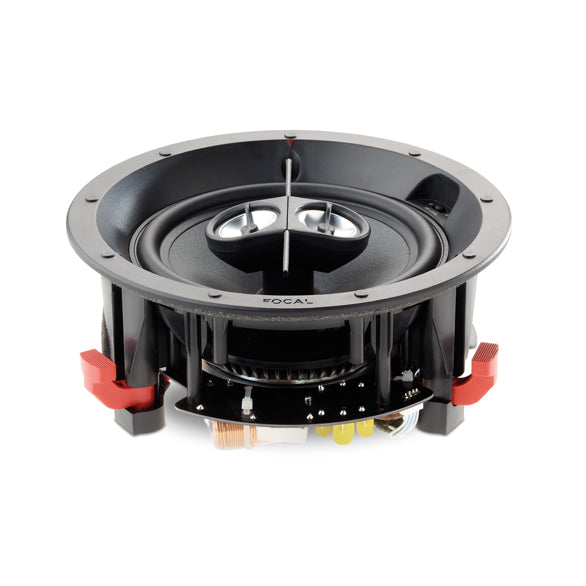

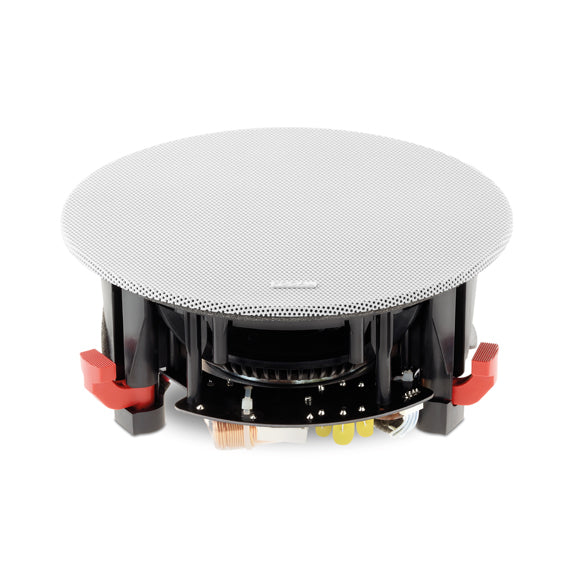

IN-CEILING 2-WAY COAXIAL LOUDSPEAKER
The 100 IC6ST loudspeaker which is dedicated to home audio delivers an amazing sound quality and has a compact design. Its dual voice coil Polyglass mid-bass driver makes it ideal for acoustics in small to medium sized rooms, such as a bedroom, a kitchen, a hall or even in humid environments – bathrooms for example.

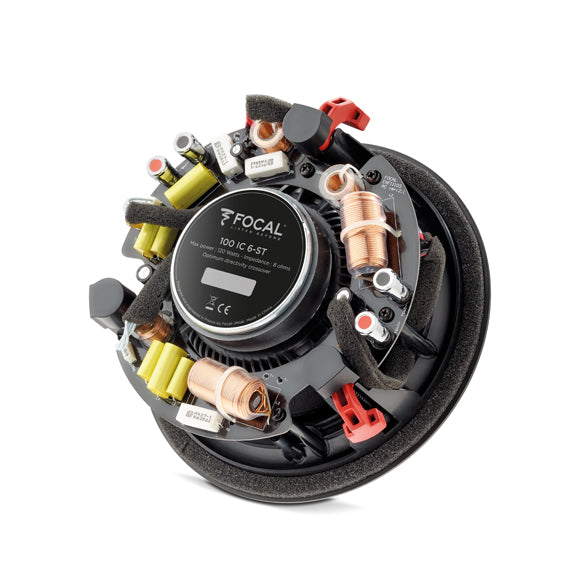

This coaxial loudspeaker has a new aluminum inverted dome adjustable tweeter, more compact, improving the sound dispersion. It is also equipped with a new Polyglass cone (61/2” – 16.5 cm). A new crossover improves the off-axis listening and avoids the “shower effect”.
This product can be installed everywhere thanks to a compact design with the speaker driver’s basket and chassis being redesigned as one only piece, frameless square and circular front grilles. The 100 Series brings an unexpected musicality to your home with ease. Let yourself be surprised by the technology behind this product, an efficient design and ideal features for an easy use at this price.

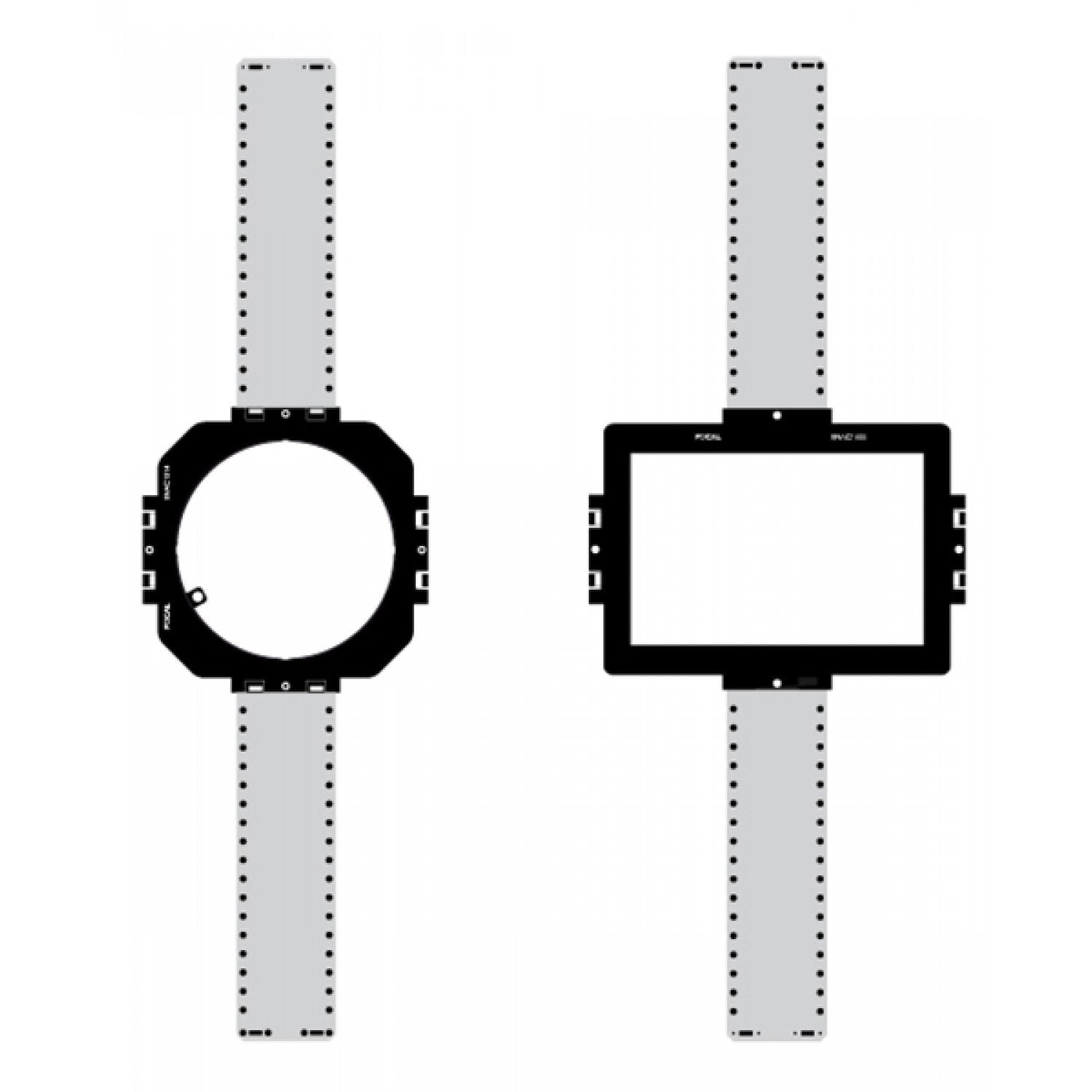

Accessories required for installation are sold separately (pre-mounting kit and fire rated back box)
MANY FEATURES
PERFECT ACOUSTICS
100 ICW5, 100 ICW6 and 100 ICW8, 100 IC6ST and ICLCR5 offer three position switch (-3dB, 0 dB, +3 dB) to adjust the treble according to the acoustic environment (reverberation on windows or on tiles for example). Two loudspeakers can be connected to the same amplifier.
HI-FI OR HOME CINEMA
All the products from the 100 Series can be used to reinforce classic Hi-Fi systems, particularly the loudspeakers from the Chorus 700 series, for those looking for discreet, high-quality Home Cinema system.
Tropicalisation
INSTALLATION IN HUMID ENVIRONMENTS
Tropicalisation is used on Polyglass membranes to allow the installation in humid environments, such as bathrooms.
INSTALL
Installation is an important criterion: the three mounting brackets with optimised grips ensure a quick and easy installation. The screw system prevents screws from falling out when dismantling the product. The installation time is reduced at its bare minimum. The 100 Series products have a shallow mounting depth which greatly facilitates installation.
SPECIFICATIONS
| Type | In-celling - Stereo 2-way coaxial |
| Drivers |
61/2" (16.5cm) Dual voice coil Polyglass Midbass 2 x 1" (25mm) AI inverted dome Tweeters |
| Sensitivity (2.83V/1m) | 89dB |
| Frequency response (+/-3dB) | 60Hz-23kHz |
| Low frequency point (-6dB) | 48Hz |
| Nominal impedance | 2 x 8Ώ |
| Minimal impedance | 2 x 6.7Ώ |
| Recommended amplifier power | 25-100W |
| External dimensions (Ø/Depth) | 83/16"x33/4" (208x95mm) |
| Cut-Out diameter | 71/4" (184mm) |
| Depth from wall | 39/16" (91mm) |
| Net weight (with front grille) | 3.86lbs (1.75kg) |
| Packing dimensions (WxDxH) | 105/8"x105/8"x611/16" (270x270x170mm) |
| Total weight (with packaging) | 5.29lbs (2.40kg) |
