Focal
FOCAL 100IW6 / MOUNTING KIT
SELECT OPTIONS:
This product may take 3 to 5 business days to fulfill.
Couldn't load pickup availability
Focal's 100IW6 / MOUNTING KIT, priced as a unit
FOCAL 100IW6 / MOUNTING KIT
MAKE YOUR HOUSE ACOUSTIC

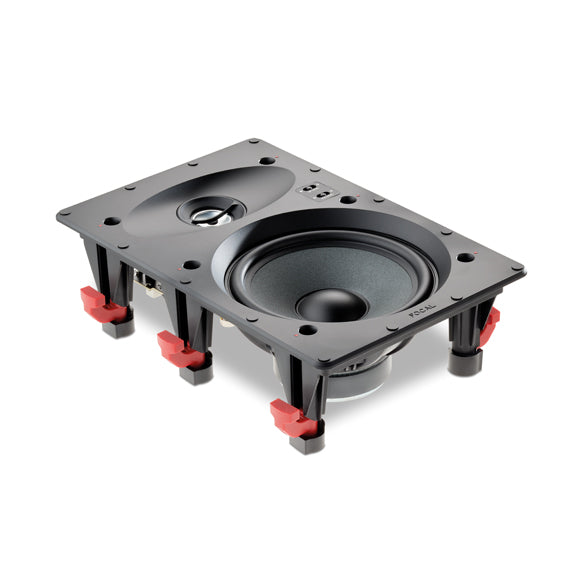

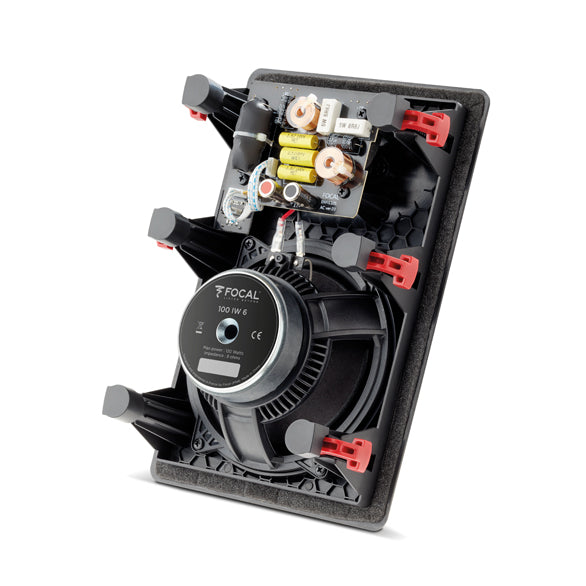

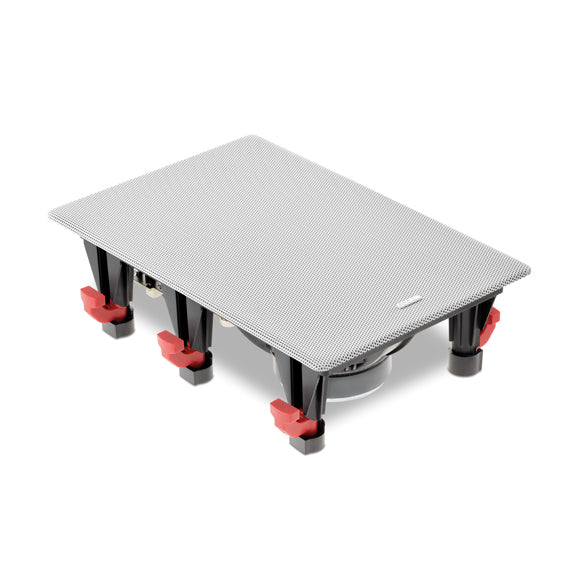

IN-WALL 2-WAY LOUDSPEAKER
The 100 IW6 loudspeaker which is dedicated to home delivers an amazing sound quality and has a compact design. This product is aimed at small to medium sized rooms and for three types of use: distributed systems (hallways, living rooms…), stereo systems (bedrooms, kitchens…) and Home Cinema systems (in dedicated rooms or living rooms). The product is suitable for every room in the house, even in humid environments such as bathrooms.
This in-wall loudspeaker has a new aluminum inverted dome adjustable tweeter, more compact, improving sound dispersion. It is also equipped with a new Polyglass cone (61/2” – 16.5 cm).
A two positions switch allows adjusting the trebles and the mid-bass for a better acoustic performance.
The 100 Series brings an unexpected musicality to your home with ease. Let yourself be surprised by the technology behind this product, an efficient design and ideal features for an easy use at this price.

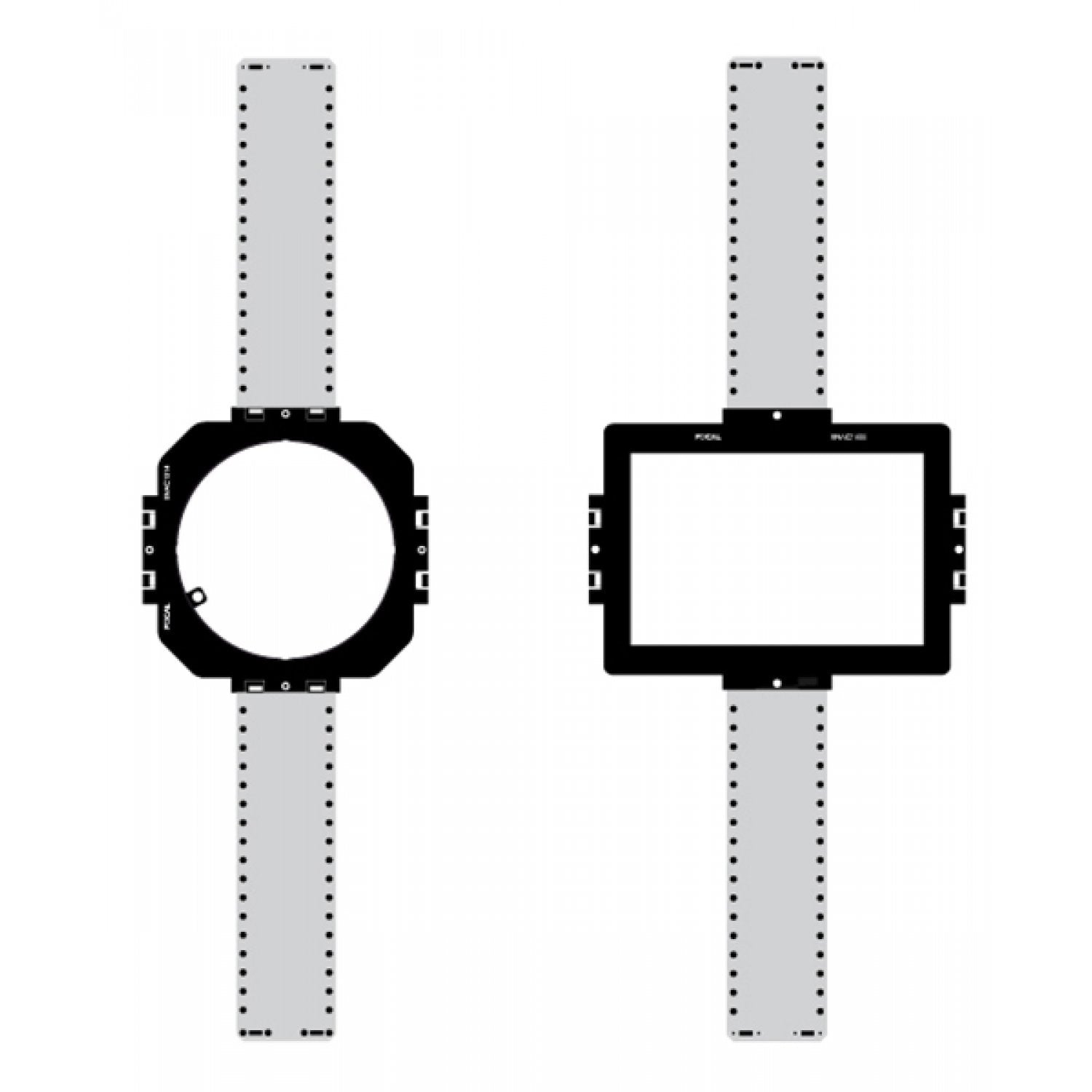

Accessories required for installation are sold separately (pre-mounting kit and fire rated backcan box)
MANY FEATURES
PERFECT ACOUSTICS
100 ICW5, 100 ICW6 and 100 ICW8, 100 IC6ST and ICLCR5 offer three position switch (-3dB, 0 dB, +3 dB) to adjust the treble according to the acoustic environment (reverberation on windows or on tiles for example). Two loudspeakers can be connected to the same amplifier.
HI-FI OR HOME CINEMA
All the products from the 100 Series can be used to reinforce classic Hi-Fi systems, particularly the loudspeakers from the Chorus 700 series, for those looking for discreet, high-quality Home Cinema system.
Tropicalisation
INSTALLATION IN HUMID ENVIRONMENTS
Tropicalisation is used on Polyglass membranes to allow an installation in humid environments, such as bathrooms for example.
INSTALL
Installation is an important criterion: the three mounting brackets with optimized grips ensure a quick and easy installation. This system prevents screws from falling out when dismantling the product. The installation time is kept to a minimum. The 100 Series products have a shallow mounting depth which makes the installation much easier.
SPECIFICATIONS
| Type | In-wall 2-way |
| Drivers |
61/2" (16.5cm) Polyglass Midbass 1" (25mm) AI inverted dome Tweeter |
| Sensitivity (2.83V/1m) | 89dB |
| Frequency response (+/-3dB) | 60Hz-23kHz |
| Low frequency point (-6dB) | 48Hz |
| Nominal impedance | 8Ώ |
| Minimal impedance | 7,2Ώ |
| Recommended amplifier power | 25-120W |
| External dimensions (Ø/Depth) | 113/4"x711/16"x35/8" (298x195x92mm) |
| Cut-Out diameter | 103/4"x611/16" (273x170mm) |
| Depth from wall | 37/16" (88mm) |
| Net weight (with front grille) | 4,1lbs (1.85kg) |
| Packing dimensions (WxDxH) | 131/2"x97/16"x415/16" (343x240x126mm) |
| Total weight (with packaging) | 4.98lbs (2.25kg) |
