Viola Labs

Viola Labs Chorale

$29,750.00 USD
$29,750.00 USD
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:

This product may take 3 to 5 business days to fulfill.

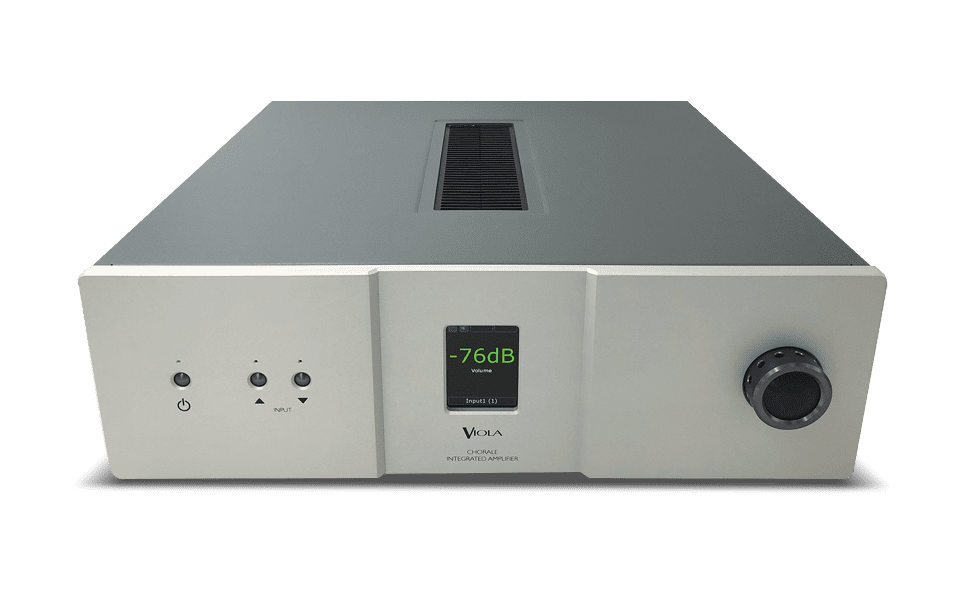

The amplifier Chorale puts out 125 watts per channel into 8 ohms, 250 into 4 ohms. Remote control is provided by an iOS  application. Two option slots are provided for a phono section or DAC.

In addition to what you can add into the slots, there are three balanced and three unbalanced inputs along with RS232 support for automation control, and a USB jack for software updates. Finally, the Chorale is a dual-mono design with separate power supplies and transformer for each channel.

P10 Phono Module (Optional)

This is the phono module upgrade available for the Chorale, integrated amplifier.

Inputs: Analog 3 XLR Balanced
3 RCA Unbalanced
Inputs: Digital Optional Plugin Module
Outputs WBT0703 nextgen Binding Post
Input Impedance 40k Ohms
Damping Factor —- @ 1kHz
Maximum Gain 36db (Balance @ 0db)
Rated Output 125 Watts @ 8 Ohms
Frequency Response 20Hz to 20KHz ± –dB
IMD (SMPTE) Less than 0.1% @ Rated Output
THD Less than .05% @  1kHz Rated Output
Noise > -85dB 10Hz – 22kHz
Power Comsumption Approximately –W
Weight 68 lbs (30.8 kg)
Dimensions 17.5″ W x 5.5″ H x 19″ D (44.5 cm W x 14.0 cm H x 48.25 cm D)
