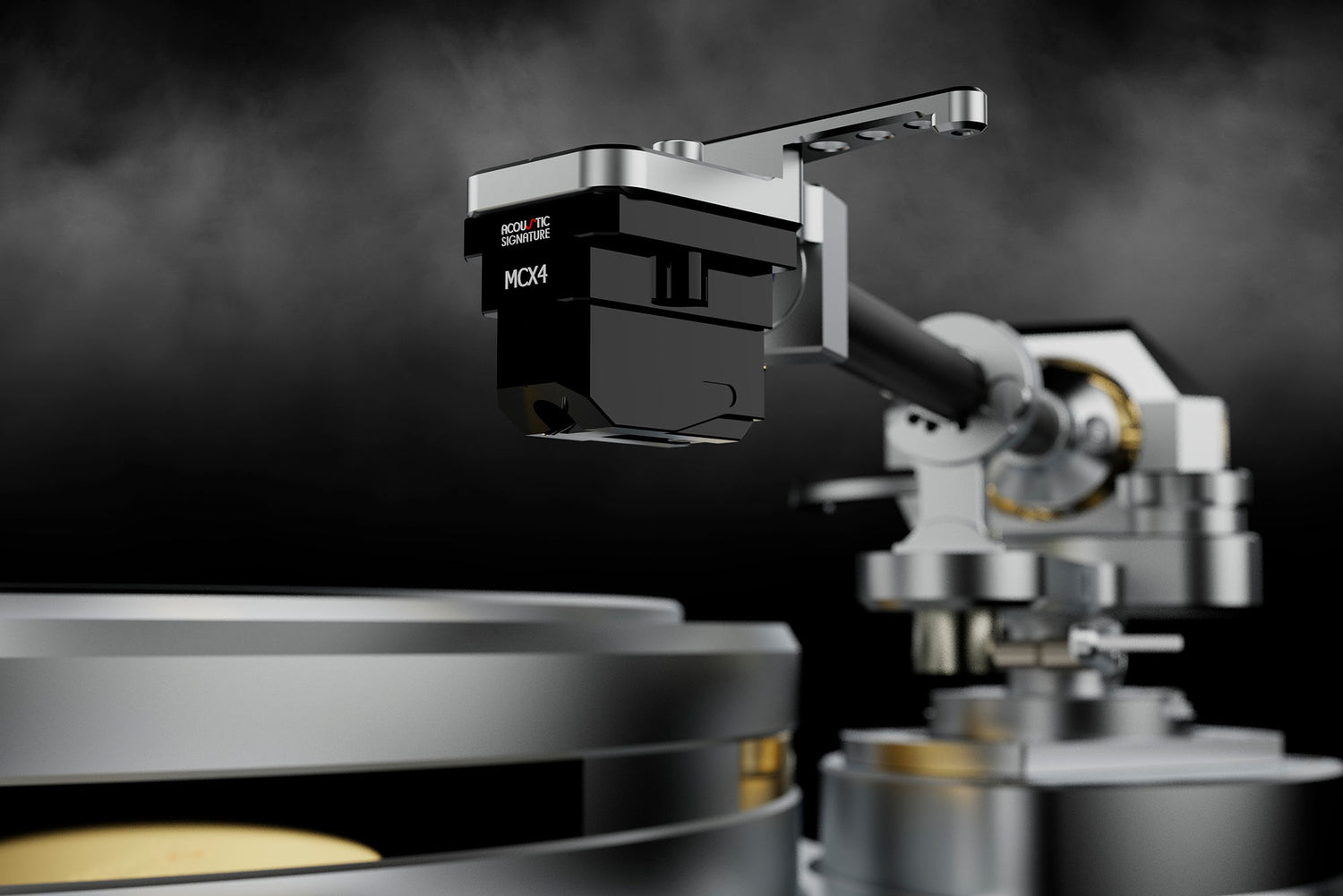

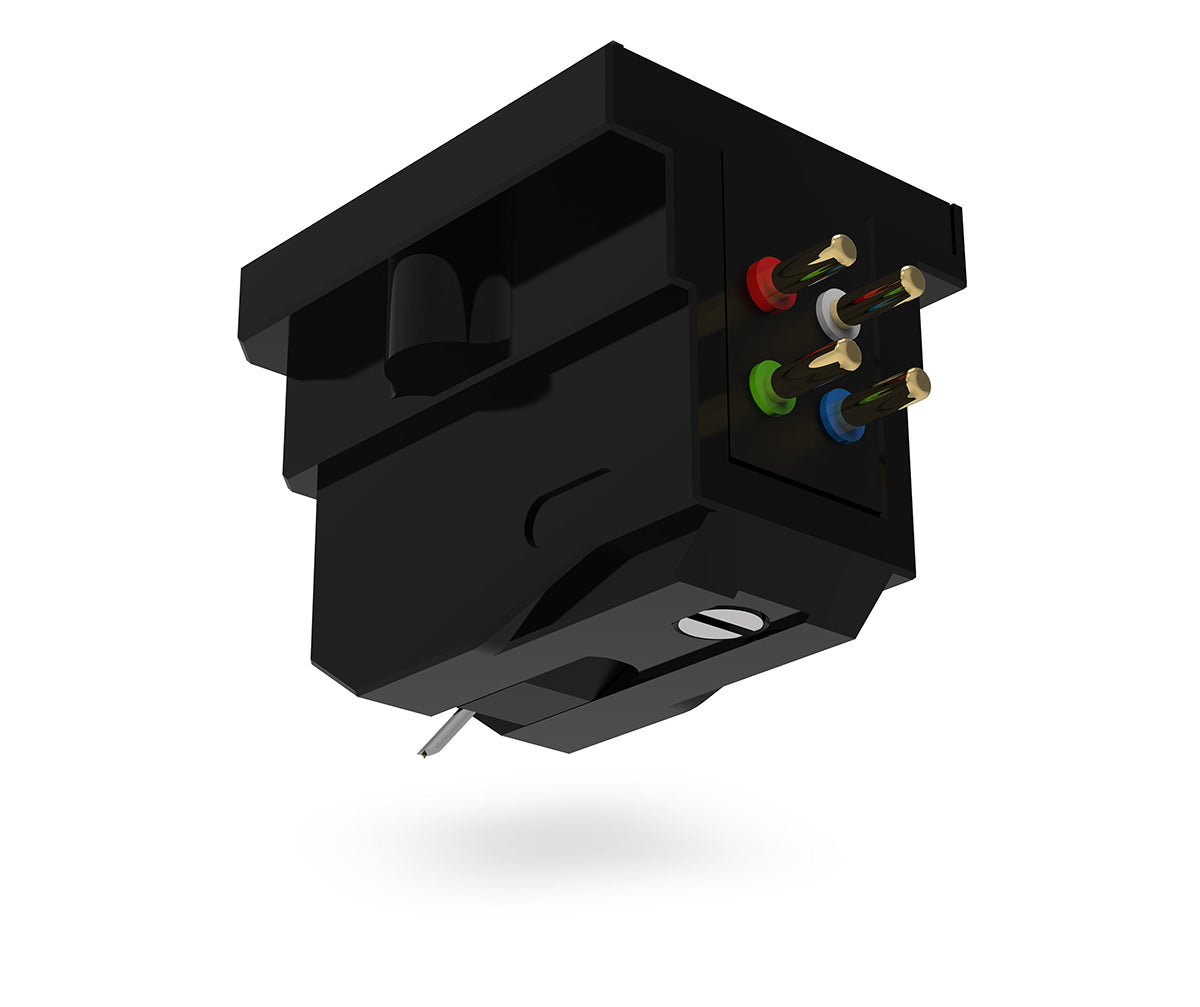

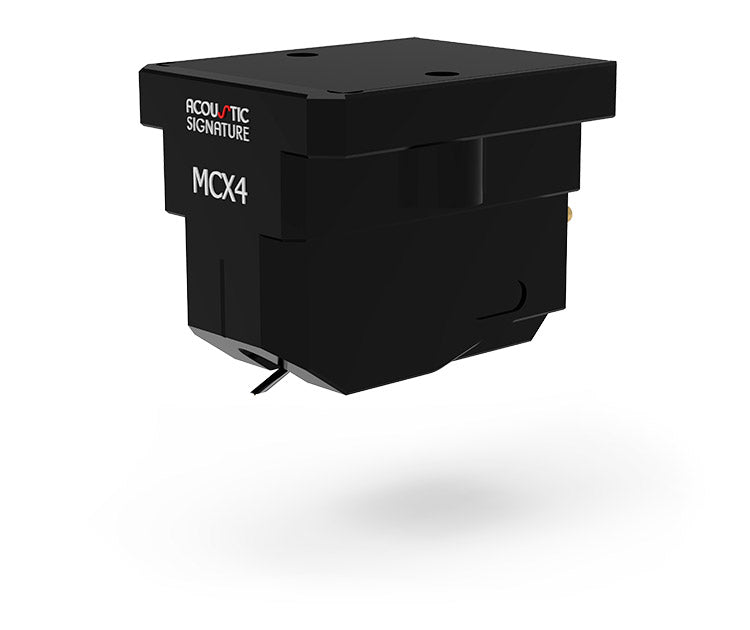

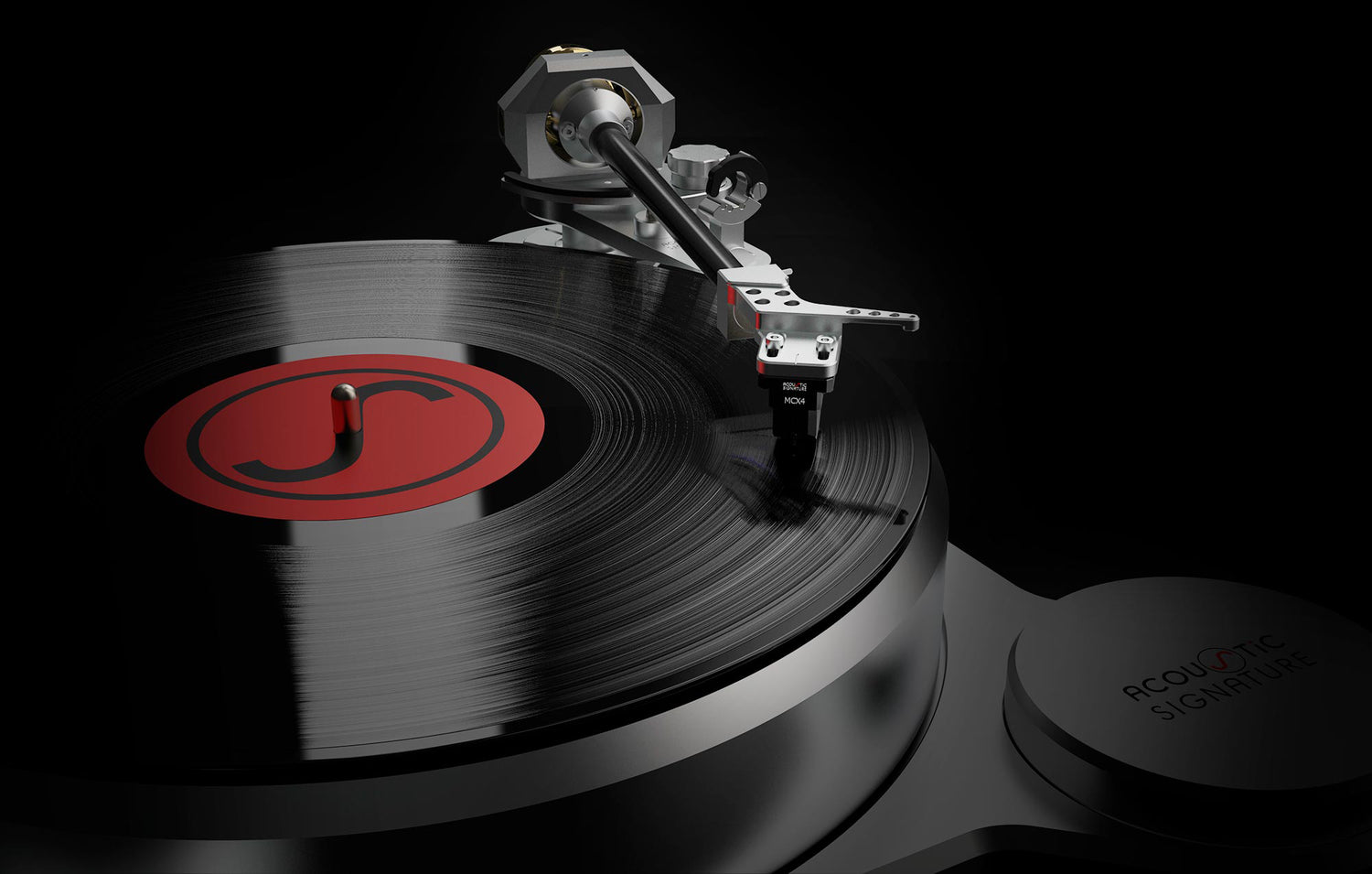

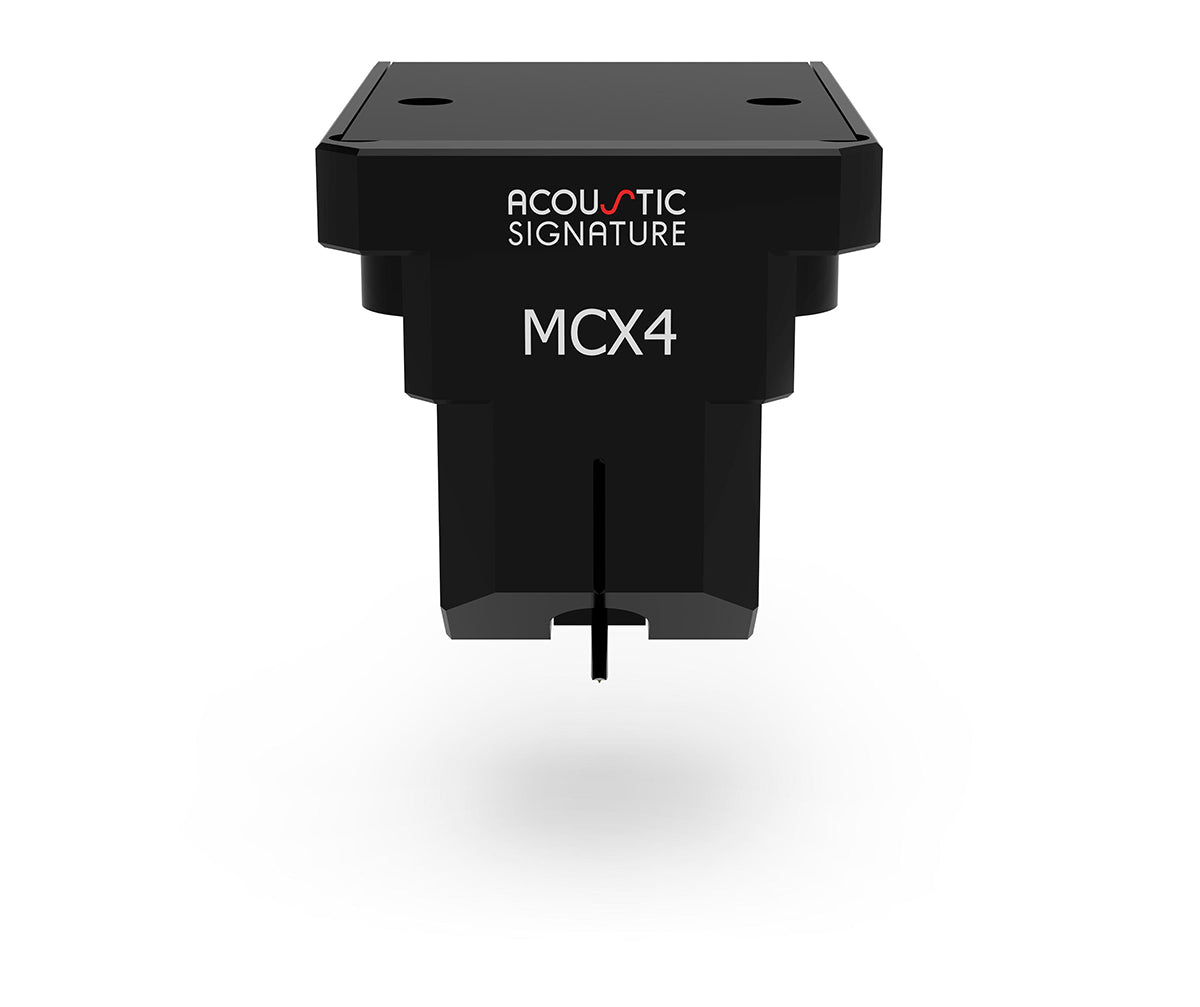

Acoustic Signature MCX4 Moving-coil Cartridge

$4,897.00
$4,897.00
Sale Sold out
Shipping calculated at checkout.


CARTRIDGES MCX4
Acoustic Signature MCX4

QUICK PROFILE

The Acoustic Signature MCX4 is our flag­ship! This modern moving-coil cart­ridge is manu­fac­tured accor­ding to the latest tech­no­logies – the opti­mal part­ner for our NEO tone­arm series. A ‘nude’ Shibata stylus assu­ring perfect tracking results, gold-plated coils made of oxygen-free cop­per and a CNC-milled and reso­nance-opti­mized chassis deve­loped accor­ding to the finite ele­ment design princi­ple form the basis for an abso­lute top-class cartridge.

AWARDS


OFFERINGS


FINISHES:


Finish 3

FEATURES:


  • Modern MC cartridge with gold-plated, oxygen-free copper coils
  • Reso­nance-opti­mized alumi­num chassis
  • Easy mounting
  • Excellent tracking due to nude Shibata stylus
  • Suitable for medium to high mass tonearms

TECHNICAL DATA:


Cartridge system:
Moving-coil
Stylus type:
Nude Shibata
Coil material:
Gold-plated, oxygen-free copper coils
Cartridge chassis:
Resonance-optimized aluminum chassis
Voltage output (at 1 kHz, 5 cm/sec.):
0.3 mV
Channel balance at 1 kHz:
< 1.0 dB
Channel separation at 1 kHz:
> 26 dB
Compliance, dynamic, lateral:
15 µm/mN
Tracking force range:
2.1 to 2.5 g
Recommended tracking force:
2.3 g (23 mN)
Frequency range at -3 dB:
20-25,000 Hz
Frequency response 20-20,000 Hz:
± 1.5 dB
DC resistance:
5 Ω
Recommended load:
100 Ω
Cartidge weight:
12.6g
