Acoustic Signature

Acoustic Signature TA-5000 Neo

$12,874.00
$12,874.00
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:

TA-5000 NEO
TA-5000 Neo

QUICK PROFILE

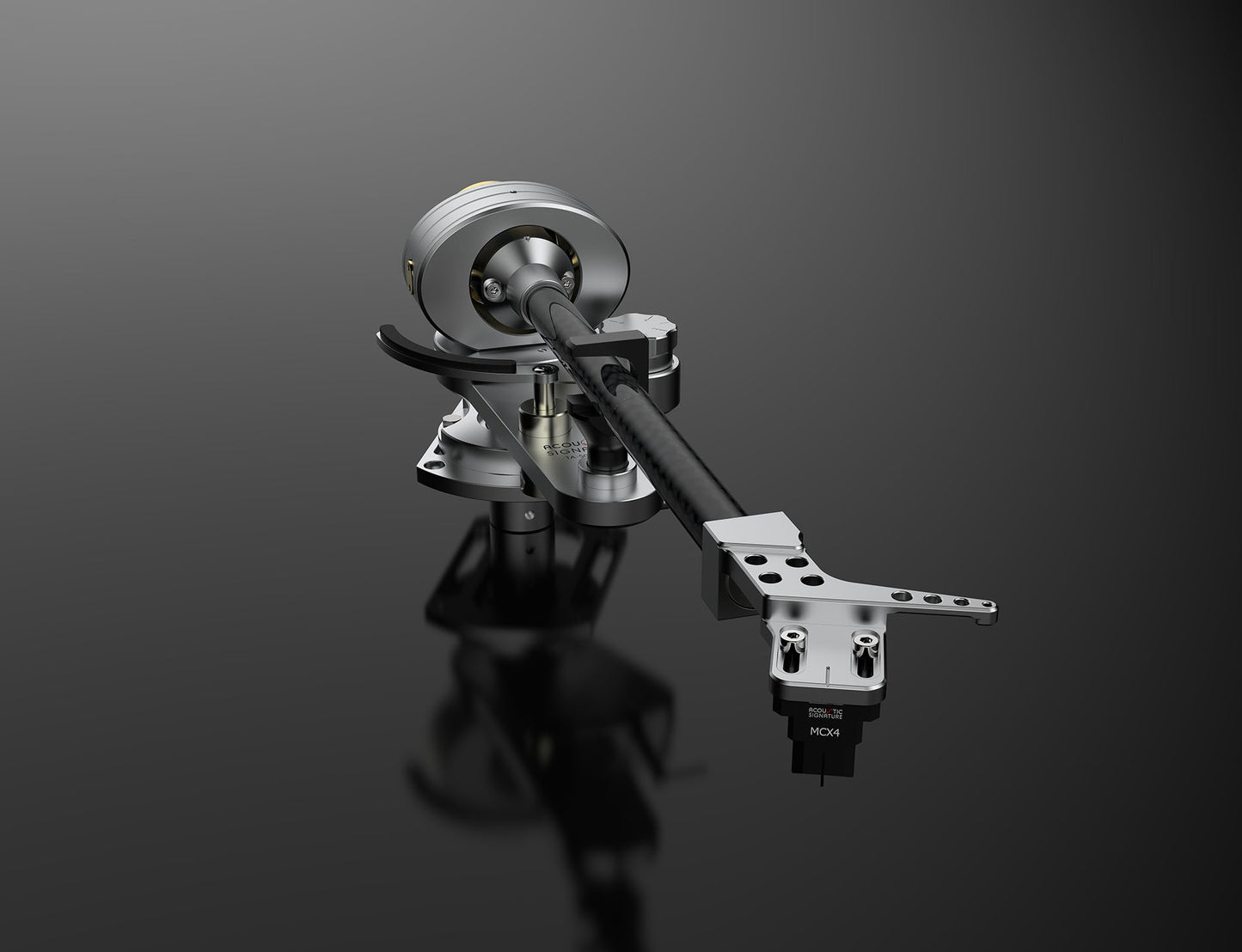

When plan­ning the TA‑5000 NEO, one thought was at the fore­front: to deve­lop a tone­arm at a fair price that has virtu­ally no limi­ta­tions. To realize this, it was neces­sary to break new ground. High-preci­sion hybrid ball bea­rings made of cera­mic and stain­less steel, 3 layers of carbon, con­nec­ted via special dam­ping ele­ments with 2 tone­arm tubes lying one inside the other, an inter­nal cab­ling made of high-purity silver and our typical bench­mark manufac­turing quality cul­minate in an inno­vative tone­arm that is always up against the best of its guild.

AWARDS

OFFERINGS

FINISHES:

Finish 1
Finish 2
Finish 3

FEATURES:

  • Tonearm with triple-layer carbon armtube
  • Low resonance, rigid tube design
  • Available as 9″ and 12″ version
  • Optimal tracking results due to pre-tensioned high-precision hybrid ball bearings by SKF
  • Better rigidity and smooth operation due to stainless steel tonearm axis design
  • Internal high-purity silver wiring (4N)
  • Supplied with external Atlas Equator 5-pin phono cable (RCA)
  • Counterweight made of brass
  • Adjustable VTA & azimuth
  • Anti-skating knob
  • SME-type mounting versions
  • 5-year warranty (with registration)
TA-5000 Neo

An absolute all-rounder

The TA-5000 NEO comes with unbeatable price-perfomance ratio and is therefore an optimal partner for all top turntables - of course also for the turn-tables of Acoustic Signature.

TA-5000 Neo

Thought out down to the smallest detail

The cranked, low-resonance headshell is firmly connected to the TA-5000 NEO's triple-layer armtube - the perfect 'docking station' for top-of-the-line cartridges!

TA-5000 Neo

Innovative triple layer armtube

The TA-5000 NEO features a highly innovative, extremely rigid tonearm tube made of three layers of carbon, connected by specially designed damping elements.

TA-5000 Neo

Innovative hybrid bearing

The high-precision ball bearings by SKF are pre-tensioned and made of ceramic and stainless steel, giving the TA-5000 NEO exceptional control with outstanding tracking results.

TECHNICAL DATA:

Available sizes:
9″ version,
12″ version
Length:
289 mm (9″ version),
362 mm (12″ version)
Effective length:
239.3 mm (9″ version),
309.0 mm (12″ version)
Mounting distance (from pivot to center of platter):
222 mm (9″ version),
295.8 mm (12″ version)
Total weight:
573 g (9″ version),
687 g (12″ version)
Effective mass:
12.4 g (9″ version),
14.4 g (12″ version)
Overhang:
17.3 mm (9″ version),
13.2 mm (12″ version)
Cartridge balance range:
6 to 16 g
Mounting:
SME style
Armtube:
Triple-layer carbon
Signal cable material:
High-purity silver wiring (4N)
Phono cable:
Atlas Equator phono cable
Connectors:
5-pin to RCA/ground connector
Finishes:
Tonearm:Black (anodized, optional: counter weight 24K gold-plated), Silver (anodized),
Armtube: Aluminum in selected tonearm color
