Acoustic Signature

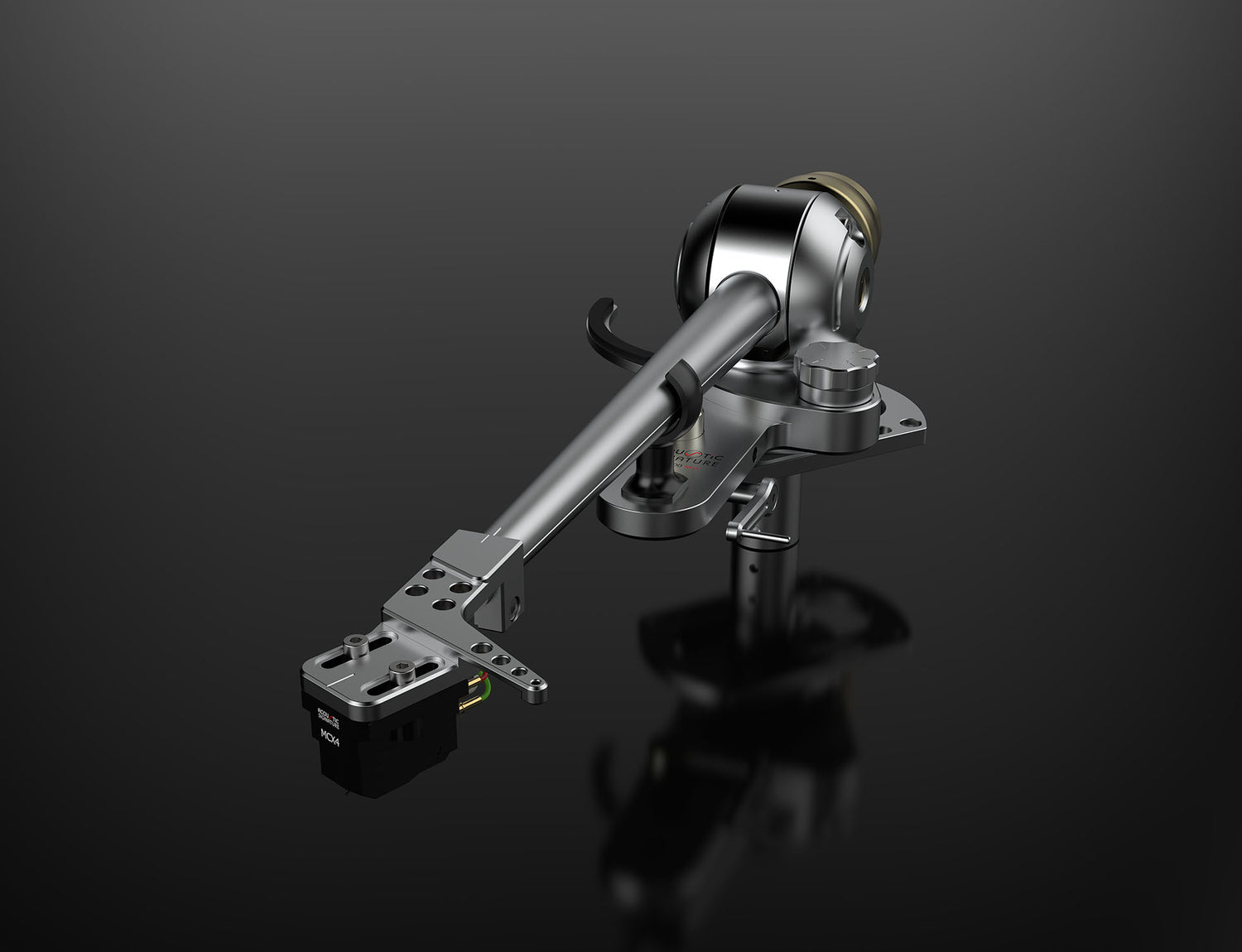

Acoustic Signature TA-9000 Neo

$46,182.00
$46,182.00
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:

TA-9000 NEO
TA-9000 Neo

QUICK PROFILE

One of the most elabo­rate arm­tube designs in the history of high-end compo­nents, space technology ball bea­rings which can hardly be surpas­sed in terms of pre­cision and low friction, an inno­vative, vibration-absorbing ma­terial sym­biosis that has been thought out down to the smal­lest detail and resolves the contradiction between stiffness and light­ness makes the TA‑9000 NEO the ultimate partner for the ulti­mate turntables.

AWARDS

OFFERINGS

FINISHES:

Finish 1
Finish 2
Finish 3

FEATURES:

  • Tonearm with exten­sively dam­ped multi-structure alumi­num armtube
  • Available as 9″ and 12″ version
  • Perfect tracking results due to friction­less, pre-tensio­ned high-pre­cision ball bea­rings by Timken
  • Better rigidity and smooth ope­ration due to NEO stain­less steel tone­arm axis design
  • Internal high-purity silver wiring (4N)
  • Supplied with external Atlas Equator 5-pin phono cable (1.5 m, RCA or XLR)
  • VTA adjustment on the fly possible
  • Optional head­shell made of massive titanium
  • Adjus­table VTA & azimuth
  • SME-type moun­ting versions
  • Anti-skating knob
  • 5-year warranty (with registration)
TA-9000 Neo

Made for the best of the best

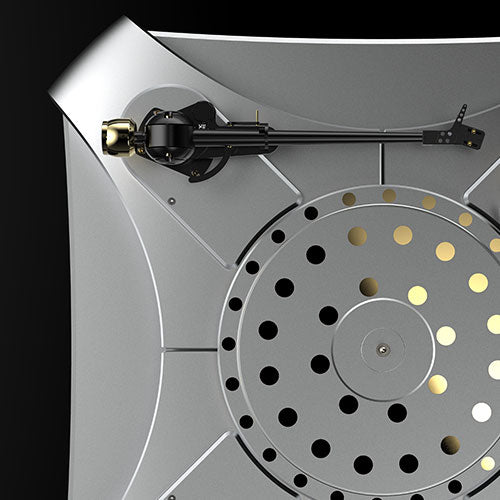

The TA-9000 NEO is the ultimate match for the world's best turntables - like our reference: the Invictus NEO.

TA-9000 Neo

A ball bearing that sets standards

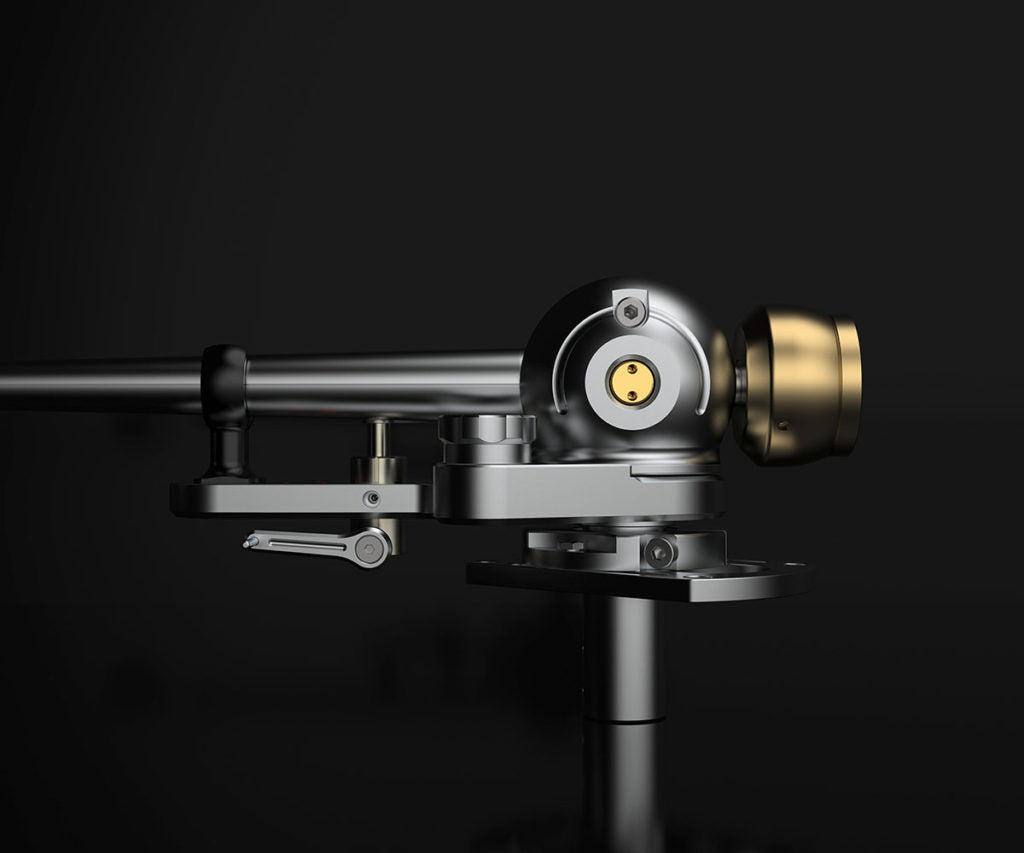

The pre-tensioned high-precision ball bearings of the TA-9000 NEO originate from space technology and set a new benchmark in terms of precision and low friction.

TA-9000 Neo

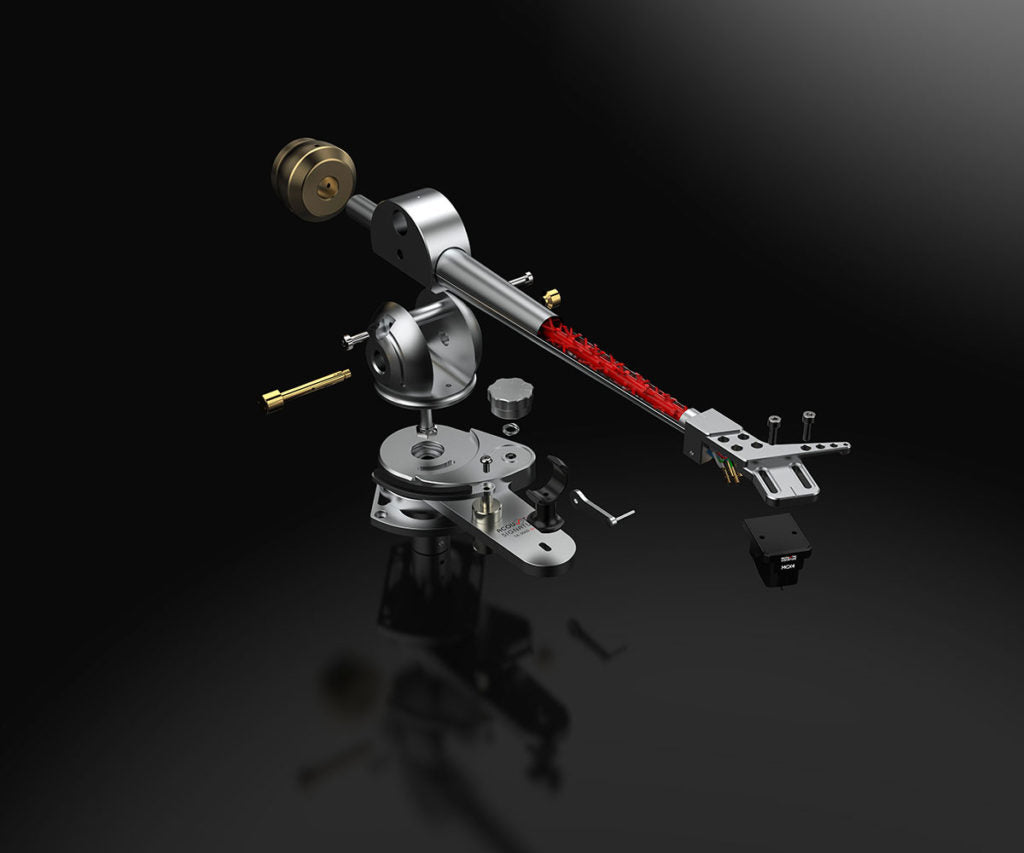

Thought out down to the smallest detail

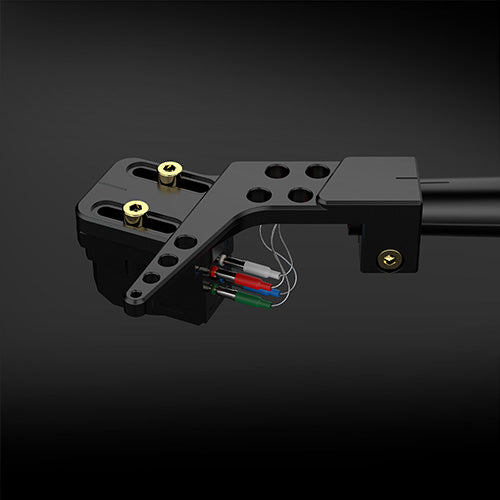

The cranked, low-resonance headshell is firmly connected to the TA-9000 NEO's aluminum multi-structure armtube - the perfect 'docking station' for top-of-the-line cartridges!

TA-9000 Neo

Flawless workmanship

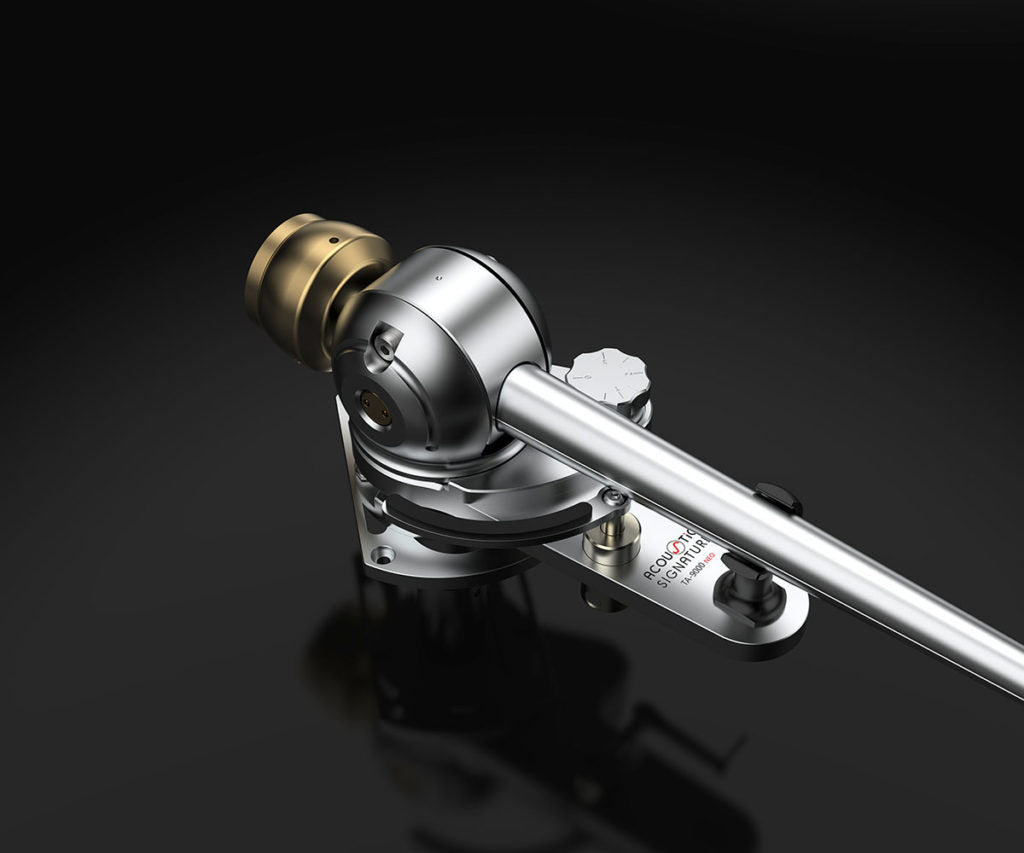

The TA-9000 NEO sets the bar unrivaled high when it comes to build quality. To match your turntable's look, it is available in various finishes - including 24-carat gold plating.

TECHNICAL DATA:

Available sizes:
9″ version,
12″ version
Length:
298 mm (9″ version),
368 mm (12″ version)
Effective length:
239.3 mm (9″ version),
309.0 mm (12″ version)
Mounting distance (from pivot to center of platter):
222 mm (9″ version),
295.8 mm (12″ version)
Total weight:
678 g (9″ version),
746 g (12″ version)
Effective mass:
14.7 g (9″ version),
16.1 g (12″ version)
Tilt angle (depends on cartridge):
23.9° (9″ version),
18.1° (12″ version)
Overhang:
17.3 mm (9″ version),
13.2 mm (12″ version)
Cartridge balance range:
6 to 16 g
Mounting:
SME style
Armtube:
Extensively damped multi-structure aluminum armtube
Signal cable material:
High-purity silver wiring (4N)
Phono cable:
1.5 m Atlas Equator phono cable
Connectors:
5-pin to RCA or XLR/ground connector
Finishes:

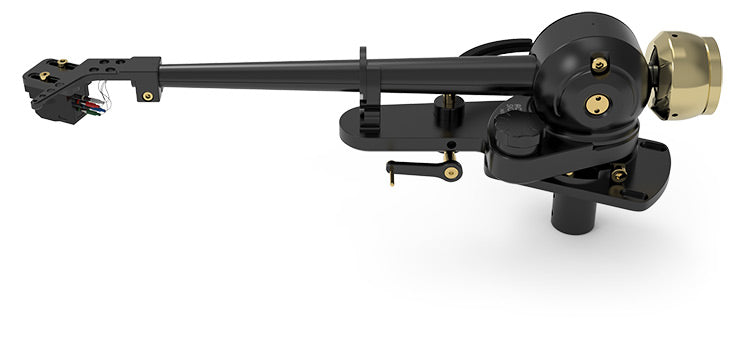

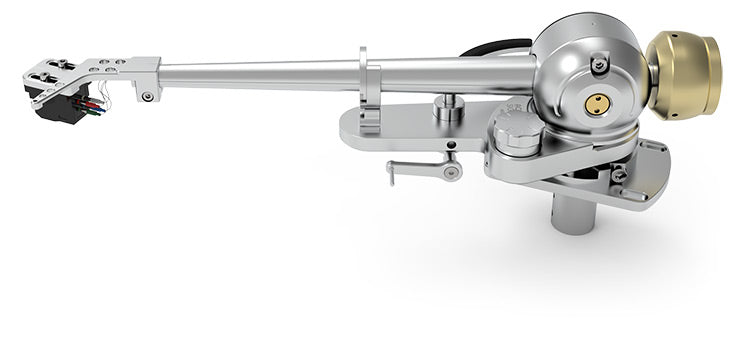

Tonearm:Black (anodized, optional: counter weight 24K gold-plated), Silver (anodized),
Armtube: Aluminum in selected tonearm color
