IsoTek

IsoTek V5 Aquarius

Regular price $3,524.00
Regular price $4,230.00 Sale price $3,524.00
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:


V5 AQUARIUS

THE PERFORMANCE SERIES

The original Aquarius was one of the most cost-effective power cleaning upgrades money could buy. The new V5 model takes the Aquarius concept to a higher level. There is more instant on tap power due to an increased 35% circuit board copper loading, direct current resistance is at least 25% improved moving closer to the ideal of zero Ohms. Protection is also raised to 81’000A instantaneous. This six-way mains power-cleaning unit resets the market standard. Two high-current outlets are provided for amplifiers, subwoofers and so on, with four medium-current sockets for other components. Each outlet of Aquarius has its own dedicated power-cleaning network, thus six power cleaners in one box!




FEATURES

  • Suitable for all audio or AV systems
  • RFI reduction 65dB
  • 6 optimised power cleaning circuits to effectively remove Common and Differential
  • Mode mains noise
  • 4 independent outlets for source components (6A)
  • 2 independent high current outlets for power amps, active subwoofers, active loudspeakers, TVs etc. (16A)
  • Easy reset thermomagnetic fusing system
  • 81’000A instantaneous protection, 40’000A continuous
  • Fully star-earthed network
  • Solid core Ohno Continuous Cast copper silver-plated internal wiring with FEP virtual air dielectric
  • SYSTEM LINK outlet for extending the outlets and maintaining a starred earth reference
  • Supplied with IsoTek EVO3 PREMIER POWER CABLE (1.5m)
  • UK, EU, US, AU & CH outlets available







REMOVES MAINS NOISE

Differential Mode mains noise is created by all electrical appliances – everything with a power supply, in fact. This includes your microwave oven, your television and your computer, as well as every hi-fi component you own.

Common Mode mains noise is often referred to as RFI – transmitted frequencies that surround us but we cannot see. For example, imagine how much data is transmitted by smartphones and tablets; cheap power cables act as aerials (antennas) for these unwanted frequencies.



SINE WAVE CORRECTION

From a high quality audio point of view, mains electricity needs two factors; a nice 50 or 60Hz sine wave supplied from a very low impedance source, without radio frequency noise. The low impedance makes for a near constant voltage regardless of how much power is used in the surrounding area. In reality we can typically expect around 5% fluctuation. The very low impedance of the mains, which is way below 1 ohm at 50 or 60Hz is not maintained when approaching radio frequencies (> 50 ohms > 100 kHz) and acts as an aerial (antenna) inviting RF noise.

IsoTek’s power cleaning circuits are designed to reduce impedance whilst remaining safe as well as correcting well into the audio frequency bands. This is not only a judgment from sound electrical engineering, but it also follows the codes of electrical safety, which are independently assessed.



MULTIPLE FILTER SYSTEM

Many IsoTek products are not just a single power cleaning system but are multiple power cleaners in one convenient chassis. The advantage being that each component in your audio system has own dedicated clean power delivery system. Furthermore, Differential Mode noise, created as electrical devices draw power, is kept to a minimum and the possibility of electrical noise cross contamination between outlet sockets is eliminated.

Many power cleaning systems simply place a standard filter design in a box with all outlet sockets joined together in series one after the other, thus connected equipment cross contaminates and the purpose of the product is lost.



INDEPENDENT SOCKETS

IsoTek products feature outlet sockets that are totally independent from each other; no two outlet sockets being directly connected. This is a critical point for limiting or eliminating the cross contamination of Differential Mode mains noise.

Each socket connects directly back to the PCB and is serviced by IsoTek’s unique power cleaning technologies.



HIGH GRADE COMPONENTS

Every IsoTek product uses the finest grade electrical components, many custom made, using the highest quality metals and materials which are specifically designed for purpose. Quality doesn’t stop at parts but also extends into the PCB designs, which maintain high levels of amperage and extraordinarily low levels of resistance, using up to eight times the general standard of copper prior to pure silver plating.

Internal wiring also uses high purity coppers combined with silver plating, with either Fluorinated Ethylene Propylene (FEP) dielectric or IsoTek’s Virtual Dielectric of Air (VDA), where a FEP tube is wound around the conductor before an extruded FEP dielectric protects this construction giving unrivalled performance and the ultimate low resistance, high performance internal power delivery system.



SURGE PROTECTION

Power surges or spikes on the mains supply are generally very bad for any electrical device especially a high quality audio replay system. Power surges occur when there is a boost to the electrical charge at some point in the power lines. This causes an increase in the electrical potential energy, which can increase the current flowing to your wall outlet. This in turn can damage your sensitive audio system.

The IsoTek protection system uses an array of VDRs which offer a cascading level of protection, in some cases over 100’000A. These step in fast and sequentially dependent upon the severity of the encountered power surge or spike. The architecture of the protection circuit extends dramatically and almost instantly when required.

The protection circuit has two primary functions, one to preserve itself and the second to step in gradually as any problem increases, with the ability to act very fast should an extreme condition occur. The protection circuits also protect the filters and the filters assist the protection in the initial stage. Unlike many protection devices these assist sound quality as well as providing protection.  Studies suggest this problem is not subtle and is frequent. The disturbing challenge is the 1’000 to 6’000V range. It is likely most protection systems do very little good and probably cause sound degradation.



ADAPTIVE GATING

IsoTek’s unique Adaptive Gating system determines the appropriate level of differential filtration for any connected load. The maximum level of overall power filtration is achieved whilst respecting current requirements.

This system also eliminates Differential Mode noise cross contamination between outlet sockets, as all connected devices will corrupt the supplied clean power upon consumption throwing back Differential Mode noise. It is vital that this noise isn’t allowed to affect another component’s performance.



K.E.R.P.

Technical papers state that Kirchhoff’s circuit laws are two equalities that deal with the current and potential difference (commonly known as voltage) in the lumped element model of electrical circuits. They were first described in 1845 by German physicist Gustav Kirchhoff. This generalized the work of Georg Ohm and preceded the work of James Clerk Maxwell. Widely used in electrical engineering, they are also called Kirchhoff’s rules or simply Kirchhoff’s laws. These laws can be applied in time and frequency domains and form the basis for network analysis.

The guiding principles for IsoTek circuits are driven by Kirchhoff’s two current laws, a simple analogy would be that for every litre of water placed into a water distribution system we would expect to get the same out.

To put it another way, Kirchhoff and Gauss described how seemingly impossible problems could be resolved by the concept of a town. If traffic flows on a circular orbital road around the town there is no effect on the town. However, if traffic enters the town, then there will be an effect on the town, and however many cars that enter eventually have to leave. The structure of that town will have either a positive or negative effect on that migration. In electronics this is also true. We must totally respect the signal path as, whether one wishes it or not, ultimately everything will be in the signal path to a greater or lesser degree.



SOLID OCC COPPER AG

As one would expect the internal wiring of any IsoTek product is of the highest standard, ultra pure Ohno Continuous Cast copper solid core conductor strands with silver-plating offers low resistance and high amperage. A Fluorinated Ethylene Propylene (FEP) helix is wound around the conductor before an extruded FEP dielectric protects the conductor and creates a Virtual Dielectric of Air (VDA). This construction gives unrivalled performance and gives the ultimate low resistance, high performance internal power delivery system.

IsoTek’s internal wiring synergizes with the range of IsoTek power cables. One critical but overlooked area is maintaining commonality of design and material properties though an audio wiring loom, be it signal carrying cables or your power cable network.



CONTINUOUS ABSOLUTE POWER

IsoTek delivers absolute power, unrestricted current delivery within what the power company can supply, and regulations allow. Generally, for power amplifiers or high wattage electronics IsoTek provides output which offers extremely low impedance and low DCR, this completely eliminates (within the concepts of power filtering) any possibility of current restriction and enhances dynamic range, the impedance of the chain back to the power station being far larger. When power is contaminated, dynamic range is reduced.

It is impossible to get more than 100% out of the mains supply. The very principle of AC power is that it doesn’t store energy in the transmission system. It is therefore impossible to store energy in an AC system by the very principles by which it works. There can be no so-called power reserve, thus a power reserve within an AC circuit in the truest sense of the word does not and cannot exist.

Power reserve would require the voltage to increase as ohms law insists it must, saying a circuit doesn’t sag isn’t a reserve of power. The AC waveform goes between maximum and minimum points at 50 Hz in 10 mS, it then swings to the maximum negative value. At 20 mS a full cycle is achieved. Therefore, in fact the average values of an AC waveform is zero. Only as a power wave can it be positive, this is due to the law of squared negatives. It looks like a ballooned sine wave where the value of 45 degrees is 0.5 not 0.7071 from a trigonometric table. Were this only a voltage wave it would have a long-term value of zero! As far as energy storage is concerned zero is the value of stored energy.

Direct Current resistance (DCR) will cause sag. To put it in other words, a system has to be developed which does not limit the power reserve of the power station, meaning a circuit needs to have extremely low resistance whilst maintaining sufficiently high inductance. When done correctly and in perfect balance the inductance is virtually zero at 50/60 Hz and the Direct Current resistance (DCR) is also very close to zero. Therefore, an ideal filter circuit must maintain zero Ohms resistance DC (or very close) and considerable AC resistance to noise above 50/60 Hz. Despite statements to the contrary, this is precisely where correctly specified materials matter most. Whilst some might consider these ‘exotic’ they represent a critical and important part of the function and appropriate to use. Remarkably IsoTek filter designs can maintain very low resistance at 50/60Hz but have very high amounts of noise cancellation above that frequency.

Most AC circuits are reactive – produce a reaction either from the power drawn or the circuit itself, put simply they are not pure resistors and behave like a capacitance and resistance or an inductance and resistance. In an ideal world the only allowable impediment is resistance and ideally this needs to be extremely low. A dilemma, do you want high transient power, or do you want heavy filtration – amazingly you can have both, but one must have components of the very highest quality, which are designed specifically for purpose with totally correct architecture. This is extremely complex and has resulted in the design of specialist parts; these do not exist outside the world of specialist power engineering and are unique to IsoTek designs.



SYSTEM LINK

Some IsoTek products (all V5) contain a System Link outlet, which is designed to connect multiple units together, maintaining a stared earth reference, and preserving the need for multiple wall outlet sockets.

This is particularly useful for joining multiple units together using our System Link cable available in EVO3 Initium, EVO3 Premier, EVO3 Sequel and EVO3 Optimum quality.



3 YEAR WARRANTY


As part of our on-going commitment to the highest standards of customer service, IsoTek offers you the opportunity to extend the standard 2 years product warranty to 3 years, free of charge.

Simply REGISTER YOUR PURCHASE with IsoTek. We do not share your personal details with any third parties without your permission.



DESIGN

IsoTek’s iconic Aquarius power cleaning system has been dramatically improved and boldly restyled. The V5 model is not only state of the art in its visual design, appearing hewn from a single block of aluminum but harness the latest technical innovations from a leading brand in the specialist field of power systems for audio and AV.

The V5 Aquarius is an innovative power cleaning and distribution system measuring 450mm in width, 350mm deep and 110mm high. It features 6 independent outlets each one with its own dedicated power cleaning network. Thus, Aquarius is six power cleaning networks in one box. Both Differential Mode and Common Mode noise are dramatically reduced. Cross contamination of connected components is also kept to a minimum due to the multiple power cleaning stages for each output socket. Most power filters join output sockets together, running each in series. This is an error as Differential Mode Noise created by your connected electronics will cross contaminate from one output socket to the next.

The electrical architecture and design of the V5 Aquarius is dramatically improved. PCB design and topology has been reworked, offering over 35% impoved amperage and decreased resistance. Unique critical (bespoke) components have better overall tolerances with improved inductance and current handling. The new circuit offers twice the inductance, with 40% increase in current leading to more open sound staging, micro dynamics and detail with more immediate timing. Dramatically improved Direct Current Resistance (DCR) has been applied throughout the design. Part of the IsoTek goal being to reduce DCR bringing performance closer to the zero Ohms ideal, V5 Aquarius is at least 25% improved compared to its predecessor.

These technological improvements result in the V5 Aquarius delivering absolute power, unrestricted current delivery within what the power company can supply, and regulations allow.

The V5 design features two thermo magnetic fuses, one rated at 16A for the two high current power output sockets, delivering 3’680W at 230V or 1’840W at 115V. The second rated at 6A for the four remaining medium current output sockets, delivering 1’380W at 230V or 690W at 115V, these are dedicated for source components and feature IsoTek’s unique Adaptive Gating © technology. This autosenses the connected load and gives the ideal optimal clean power based upon power draw.

The thermomagnetic fuse system is a substantial upgrade over a standard ordinary fuse due to contact area. By shear virtue of its electrical function a standard fuse must have a very thin wire, this being also true of expensive audiophile grade gold plated versions. The IsoTek thermo magnetic fuse system offers an increased contact area at least 1000 times better, and a connection which is consistently strong.

KERP © (Kirchhoff’s Equal Resistance Path) ensures equal resistance and equal power delivery to all outlets. The internal wiring is of the highest standard – ultra pure Ohno Continuous Cast copper solid core conductor strands with silver-plating offers low resistance and high amperage. A Fluorinated Ethylene Propylene (FEP) helix is wound around the conductor before an extruded FEP dielectric protects the conductor and creates a Virtual Dielectric of Air dielectric (VDA). This construction gives unrivalled performance and gives the ultimate low resistance, high performance internal power delivery system. Furthermore, 81’000A of instantaneous protection is provided, safeguarding valuable equipment via IsoTek’s unique sequential and repeatable protection system.

The internal wiring of IsoTek products synergizes with the range of IsoTek power cables. One critical but overlooked area, is maintaining commonality of design and material properties through an audio wiring loom, be it signal carrying cables or your power cable network.

V5 Aquarius also contains a System Link outlet, this is designed to connect multiple units together, maintaining a stared earth reference, and preserving the need for multiple wall outlet sockets.

V5 Aquarius is high quality design yet highly functional and is an excellent upgrade for a complete audio system. IsoTek’s award winning Premier power cable is also included.



REVIEW & AWARDS

IsoTek Aquarius V5 – New version of the popular power conditioner - Read More

"Supplying an audio system with power is easy to do. Or you can do it right and use a good power conditioner. The significantly revised IsoTek Aquarius V5 now looks more living space-friendly and has also been extensively revised from a technical point of view. With a total of six individually filtered, independent outputs, the new version of the Aquarius is still suitable for medium-sized systems. However, the structure inside the device has been largely revised, so there are now two separate fuses for source and power devices and many other components have been revised with regard to resistance optimization. In my opinion, the IsoTek Aquarius V5 is very noticeable in terms of sound and, in my application, noticeably improved the performance of the hi-fi system. If you are generally satisfied with your hi-fi system and would like to give it the finishing touches, you should definitely give the new Aquarius a listen." - Jonas Bednarz



IsoTek V5 Aquarius power conditioner - Read More

"I’m not finding anything to dislike about the IsoTek V5 Aquarius; it looks great, it brings the best out of the sound of your equipment and if its predecessor is anything to go by it will be hugely popular and be incredibly reliable. Excellent!" - Alan Sircom



ISOTEK V5 AQUARIUS - Read More

"There wasn’t any test I could perform where the EVO3 scored better than the V5. The EVO3 scored extremely well in all these tests; detail retrieval, sound staging, image stability etal. The V5 improved on the EVO3 in each area of performance, and then went further, it drew the sound together in the way only the very "nest of this type of product can. That’s a joy to find at any price." - Alan Sircom



Weitsprung - Read More

"Wer heute ernsthaft in überzeugender Klangqualität Musik hören möchte, braucht eine zweckoptimierte Stromzufuhr. Das hat der IsoTek EVO3 Aquarius in den letzten 12 Jahren tausendfach bewiesen. War es jetzt aber richtig, bei den Typenbezeichnungen eine Version zu überspringen? Zeitintensive i-fidelity.net-Tests belegen, dass der V5 Aquarius hörbar effektiver als sein Vorgänger zu Werke geht. Die Mischung aus verringerter Störlast und Erhöhung der Stromleitfähigkeit führen in Summe zu einem korrigierten, ja zu einem perfektionierten Klangbild. Tonale Einschränkungen, die zu Unrecht Komponenten angelastet werden, finden ihre Ursache häufig in einer Standardnetzversorgung. Den wahren klanglichen Charakter einer Musikanlage in aller Deutlichkeit erkennen zu können, das garantiert der IsoTek V5 Aquarius kompromisslos" - Olaf Sturm



REVIEW ISOTEK V5 AQUARIUS: SILENT POWER - Read More

"Not everyone will agree with that statement, but in our opinion the V5 Aquarius from Isotek can be the final step to possibly add extra refinement and control. Of course, it all depends on what you hang on this power conditioner; not every device needs it equally." - JAMIE BIESEMANS






SPECIFICATIONS

NUMBER OF OUTLETS 6 + System Link
TYPE OF OUTLETS UK, EU, US, AU & CH
MAINS INLET 16A IEC C20
MAINS VOLTAGE MAINS INLET
MEDIUM CURRENT - 230V x4 (6A 1'380W total)
MEDIUM CURRENT - 115V x4 (6A 690W total)
HIGH CURRENT - 230V x2 (16A 3'680W total)
HIGH CURRENT - 115V x2 (16A 1'840W total)
SYSTEM LINK x1
SURGE PROTECTION 81'000A
DIMENSIONS (W X H X D) 450 x 110 x 350mm
WEIGHT

9,5kg



AVAILABLE INPUTS

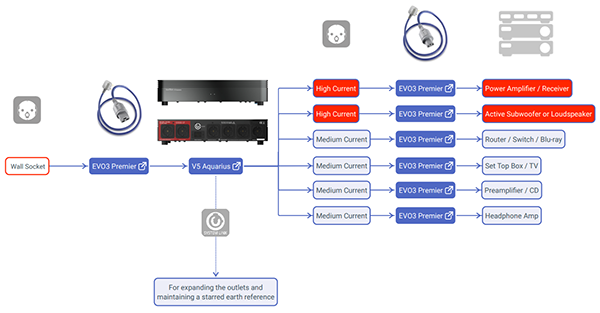

CONNECTION DIAGRAM
