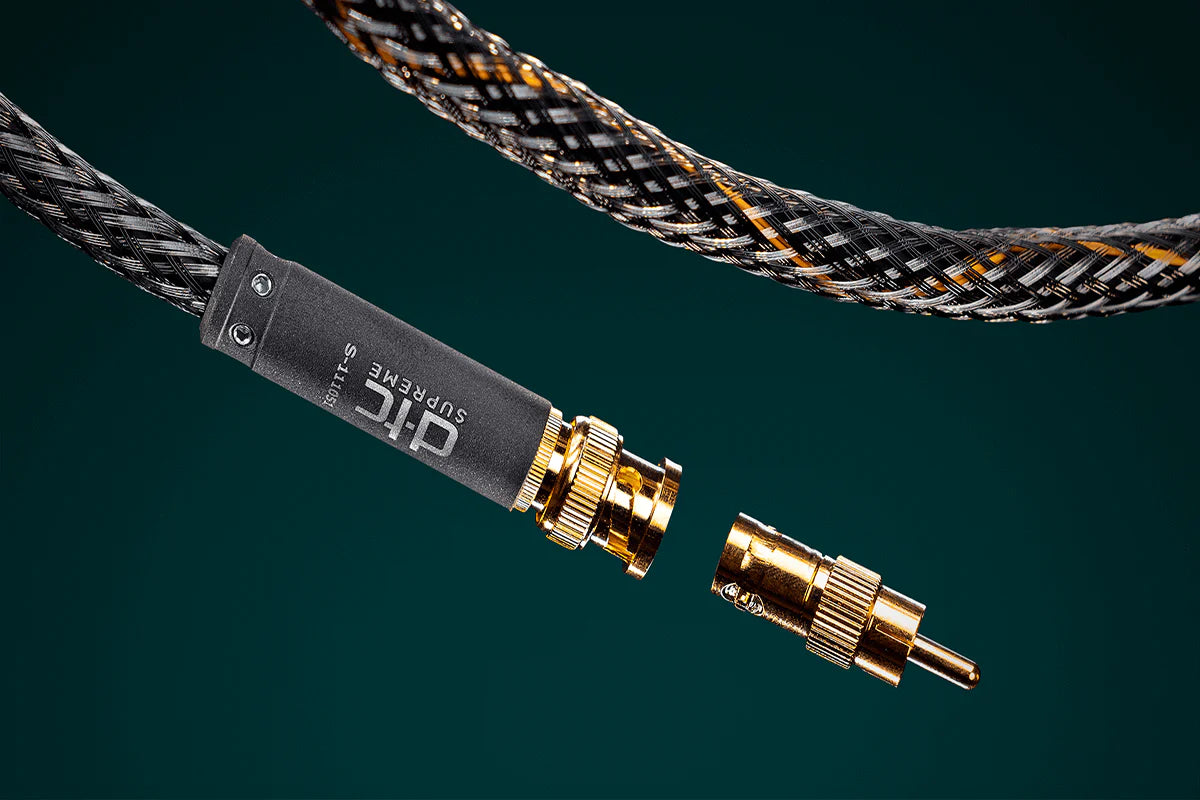

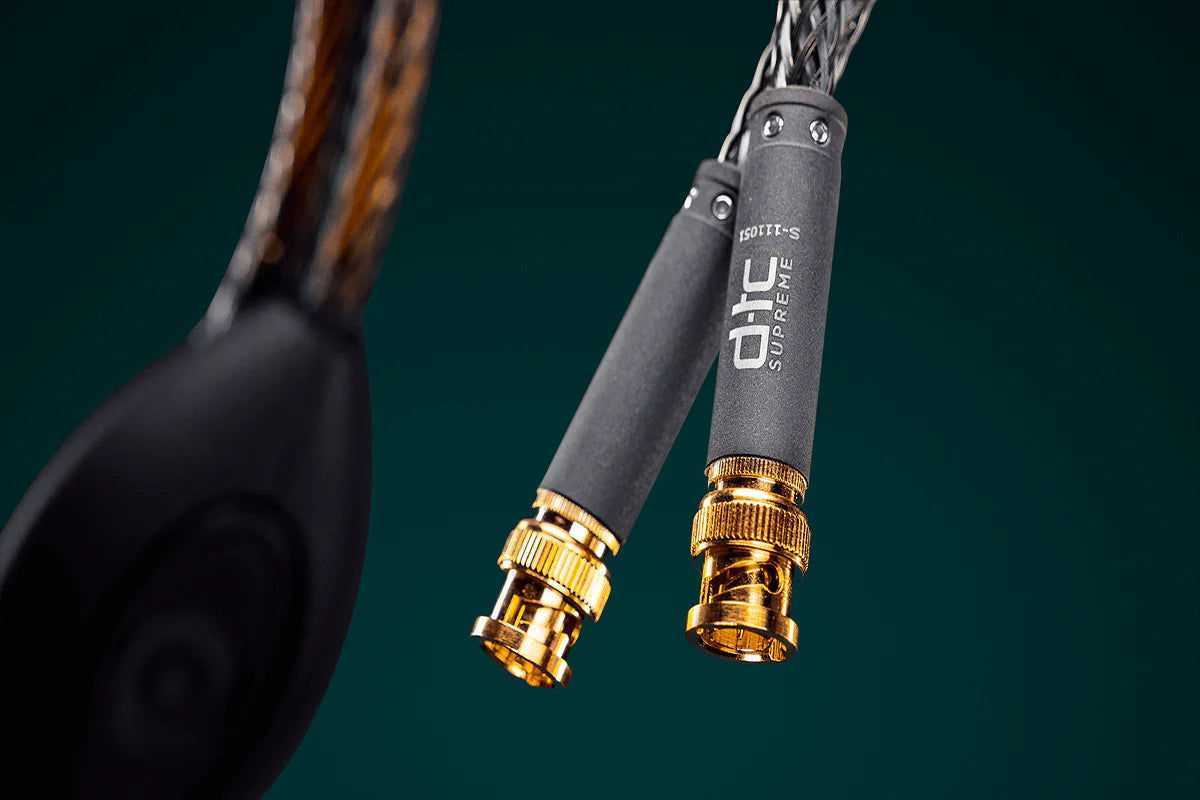

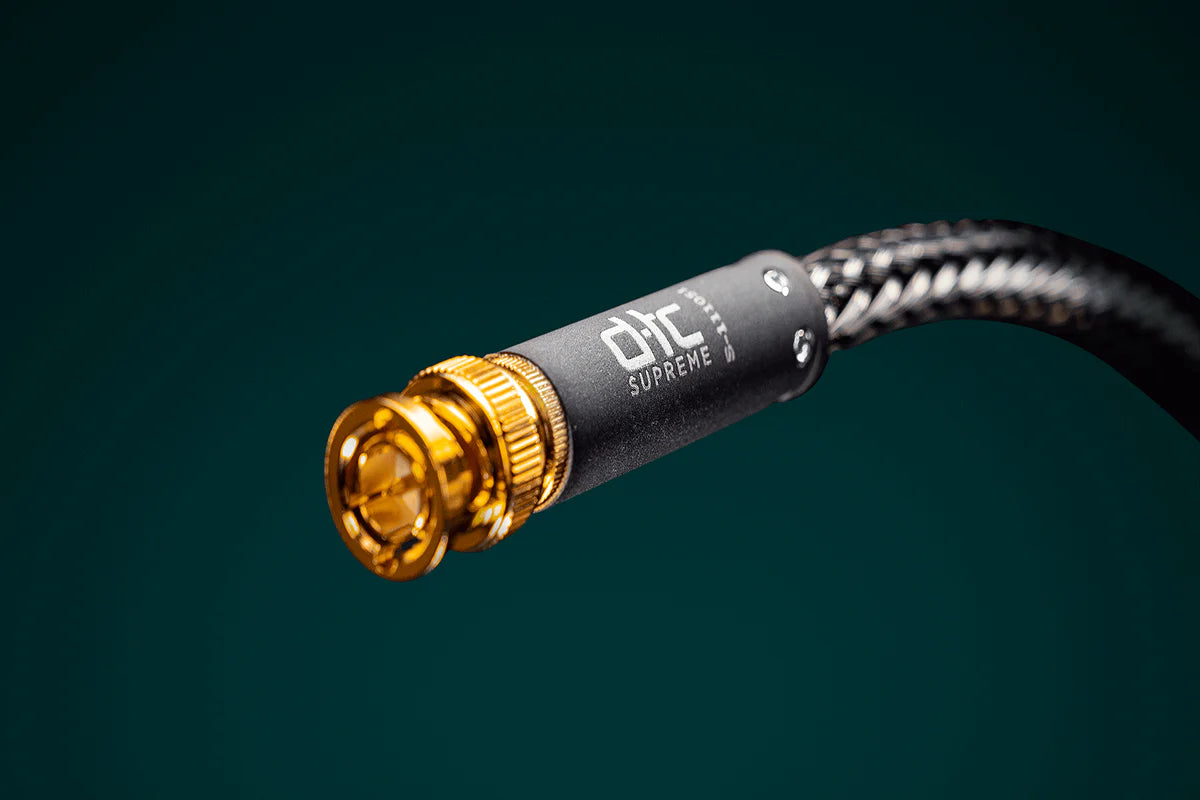

Ansuz Digitalz D-TC SUPREME/Digital Cable (BNC)
SELECT OPTIONS:
Please call our store to purchase:
904-642-6677
Couldn't load pickup availability
Digitalz
D-TC Supreme
Digital Cable – BNC
World-class performer in signal transmission
The Ansuz Digitalz D-TC Supreme is the ultimate digital cable. Equipped with Ansuz most sophisticated and most advanced noise reduction and resonance control this cable is a world-class, top-of-the-line signal cable. Ultra-fine, authentic and natural resolution of the entire sound spectrum from the very high pitch to the deepest bass opens up a new dimension of musicality and creates a jaw-dropping holistic soundstage that defies any further description.
Technologies and Components
Cutting edge technologies.
Ansuz develops and manufactures cables based on advanced, cutting edge technologies. Ansuz cables deliver a pure signal flow that unleashes the authentic sound originally intended by the master recording. To achieve this, it is imperative to lower resistance, curb induction and reduce noise floor to a minimum. The more advanced the cable series, the more refined and sophisticated the implemented technologies, and the more transparent, holistic and authentic the resulting soundstage.
8 PCS |
12 PCS |
2 PCS |
| Active cable Tesla coils | Double inverted helix coils | Anti aerial resonance coils |
Housing (Supreme)
Ensures an organic sound.
The housing is coated with Ansuz’s Supreme resonance coating. This coating avoids any alteration of the authentic sound reproduction that often comes along with the use of traditional grounding materials, which distort the sound by making it unnaturally cold and harsh. The Ansuz Supreme coating is applied to the housing in a HiPIMS (High Power Impulse Magnetron Sputtering) process, and creates the finest, and most uniform layer of zirconium and tungsten, complemented by a layer of aluminum titanium nitride.
Connectors
Golden connection.
The connectors are made of gold-plated pure copper.
Conductors
Carefully settled signal handling.
The conductors are made of shielded silver-plated copper.
The Tesla coil principle
The key operating principle of the Ansuz Tesla coil is to have two coils wound in opposite directions – one coil and one counter coil. In Ansuz words, this is called “A double inverted coil”. The two coils both carry voltage, and when one of the Tesla coils encounters a voltage spike, a counter spike is activated to eliminate the noise. Since noise spikes are pure voltage carrying virtually no charge, the cancelation is quite good, but not perfect. Adding more Tesla coils in parallel, increases the noise cancellation and the perceived blackness in the music increases significantly along with the purity and clarity of the sound. Ansuz uses various types of Tesla coils, as their individual properties ideally complement and reinforce each other.
Double inverted helix coil
Lowest induction.
Ansuz DIHC technology reflects a key advancement in audio technology and is employed in most of Ansuz cable types. Based on this technology, we wind and configure our audio cables. The idea behind this technology is to ensure the lowest possible induction. When the coil and the counter coil are closely wound in a double helix pattern, induction can be significantly reduced.
Anti aerial resonance coil technology
Prevents airborne noise.
All cables and cable shields act as antennas for unwanted airborne sound waves (RF noise), which impairs the clarity of the authentic audio signal. The Anti Aerial Resonance coil protects the signal from absorbing the airborne RF Noise. This noise is absorbed in the coil and eliminated in the countercoil. The AARC splits the length of the cable into undefined lengths. As a result, the cable is less likely to absorb RF noise, which no longer can bleed into the audio system as annoying ‘white noise’.
Active cable Tesla coil
Active anti aerial protection.
The active cable Tesla coil is wound directly on the outer part of the cable and protects the signal from absorbing the airborne RF noise. This noise is absorbed in the Tesla coil. The active version is about three to four times more efficient than the Passive cable Tesla coil.
Ansuz charged dielectric
Redirects electrical charge.
To provide the best possible signal transmission, Ansuz has implemented this technology in all of its most exclusive series. The idea behind this innovative concept is to electrically charge the insulating layer, which is made of Teflon. Teflon is one of the strongest dielectric materials and ensures the creation of an internal electric field, which makes it possible now to obtain the same charge at a lower voltage.
SPECIFICATIONS
| Standard length | 2 m 78,7 inch |
| Termination | BNC/RCA |
Digitalz Cable (BNC) Technology Table
| Ansuz Digitalz X2 / Digital cable (BNC) | Ansuz Digitalz P2 / Digital cable (BNC) | Ansuz Digitalz A2 / Digital cable (BNC) | Ansuz Digitalz C2 / Digital cable (BNC) | Ansuz Digitalz D2 / Digital cable (BNC) | Ansuz Digitalz D-TC2 / Digital cable (BNC) | Ansuz Digitalz D-TC Supreme / Digital cable (BNC) | |
| Connector | Gold plated | Gold plated | Gold plated | Gold plated | Gold plated | Gold plated | Gold plated |
| Conductors | 1 Shielded, silver plated copper | 1+8 shielded, silver plated copper | 1+12 shielded, silver plated copper | 1+12 shielded, silver plated copper | 1+12 shielded, silver plated copper | 1+12 shielded, silver plated copper | 1+12 shielded, silver plated copper |
| Conductors | Anodized aluminium | Anodized aluminium | Anodized aluminium | Anodized aluminium | Anodized aluminium | Anodized aluminium |
Supreme |
| Double inverted helix … | 8 | 12 | 12 | 12 | 12 | 12 | |
| Anti aerial resonance … | 1x37cm | 1x37cm | 1x37cm | 2x37cm | |||
| Active cabel Tesla coil | 4×49 cm | 8×49 cm | 16×70 cm | ||||
| Ansuz PowerBox Connection | Possible upgrade | Required | Required | ||||
| Charged dielectric tec… | * | * |
