Audio-Technica

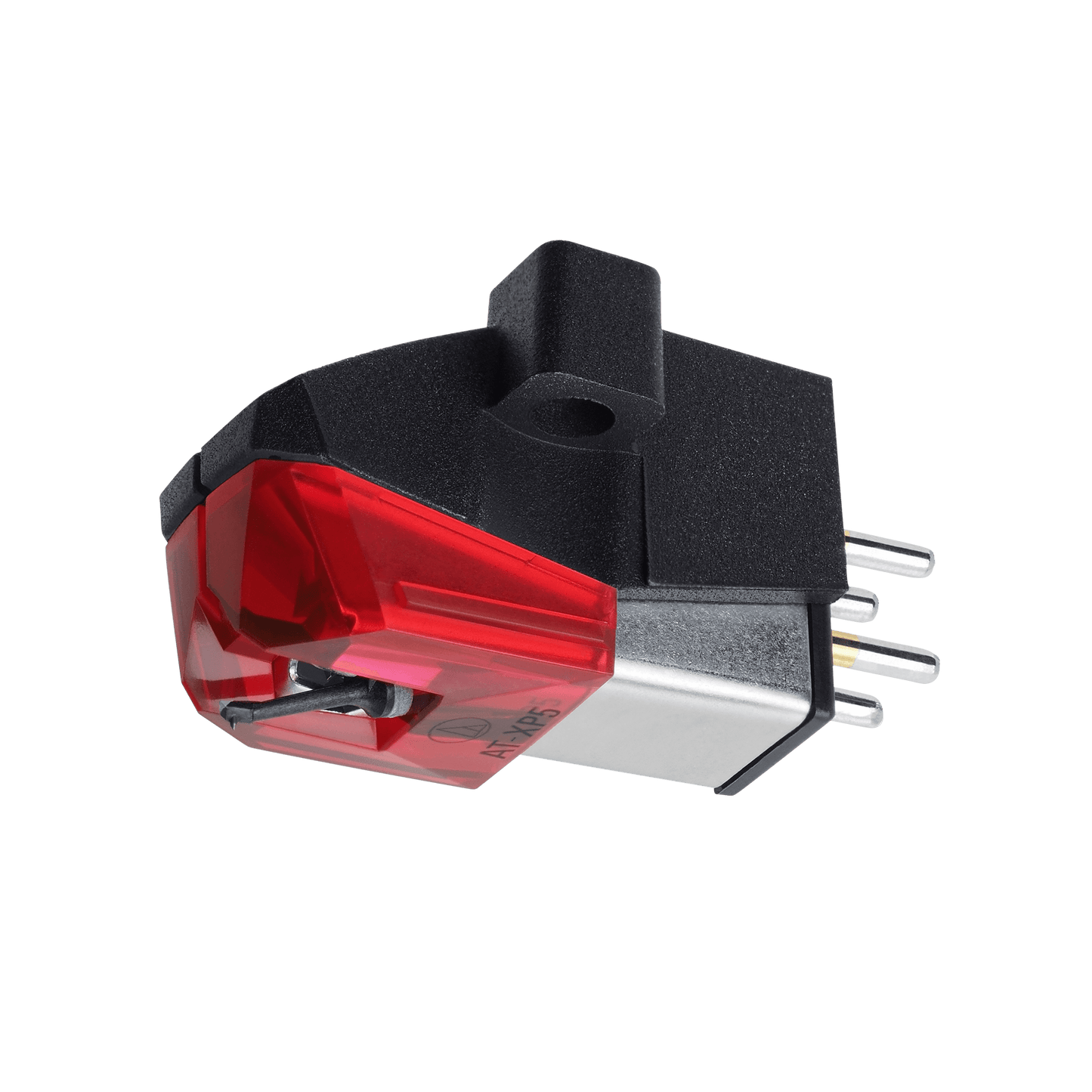

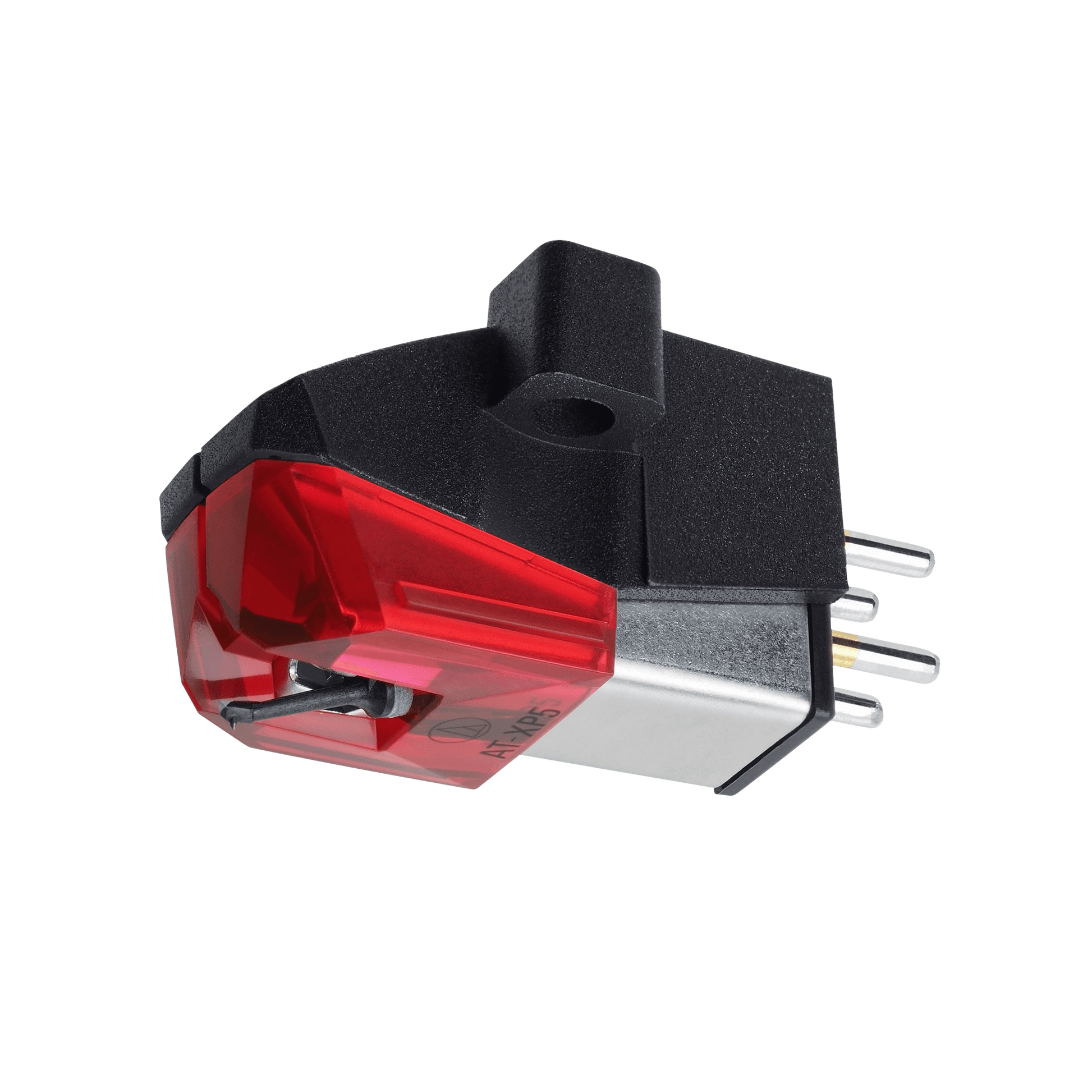

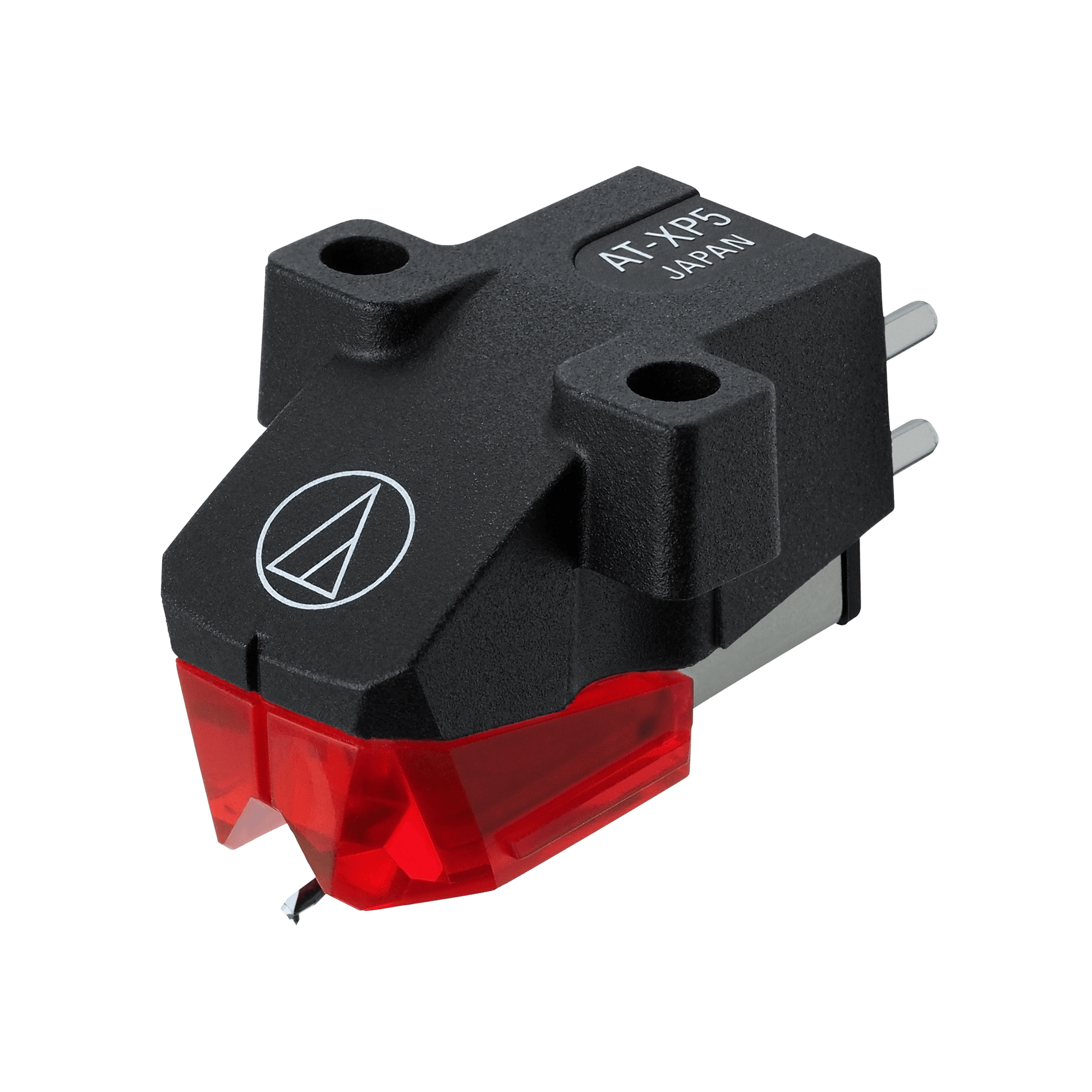

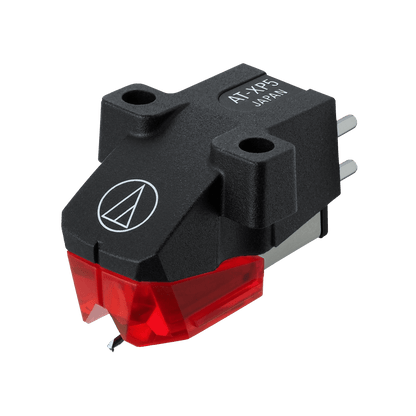

Audio-Technica AT-XP5 Dj Phonograph Cartridge

$113.00
$113.00
En oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.


Features:

  • 0.3 x 0.7 mil elliptical bonded stylus tip
  • Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
  • 5.5 mV high-level output
  • Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
  • Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
  • Design offers maximum visibility of the stylus tip
  • Great tracking and channel separation for high-fidelity sound

Specifications

Frequency Response 20-18,000 Hz
Channel Separation 20 (dB at 1 kHz)
Vertical Tracking Angle 20°
Vertical Tracking Force 2.0-4.0 g (3.0 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 6.7 k ohms (1 kHz)
DC Resistance 990 ohms
Coil Inductance 1.0 H (1 kHz)
Output Voltage 5.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 2.0 dB (1 kHz)
Stylus Shape 0.3 x 0.7 mil elliptical
Cantilever Carbon fiber-reinforced ABS
Static Compliance 20 x 10-6 cm/dyne
Dynamic Compliance 6.0x10-6cm/dyne (100Hz)
Mounting Half-inch
Dimensions 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D

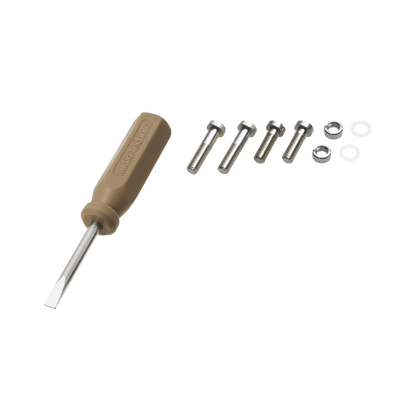

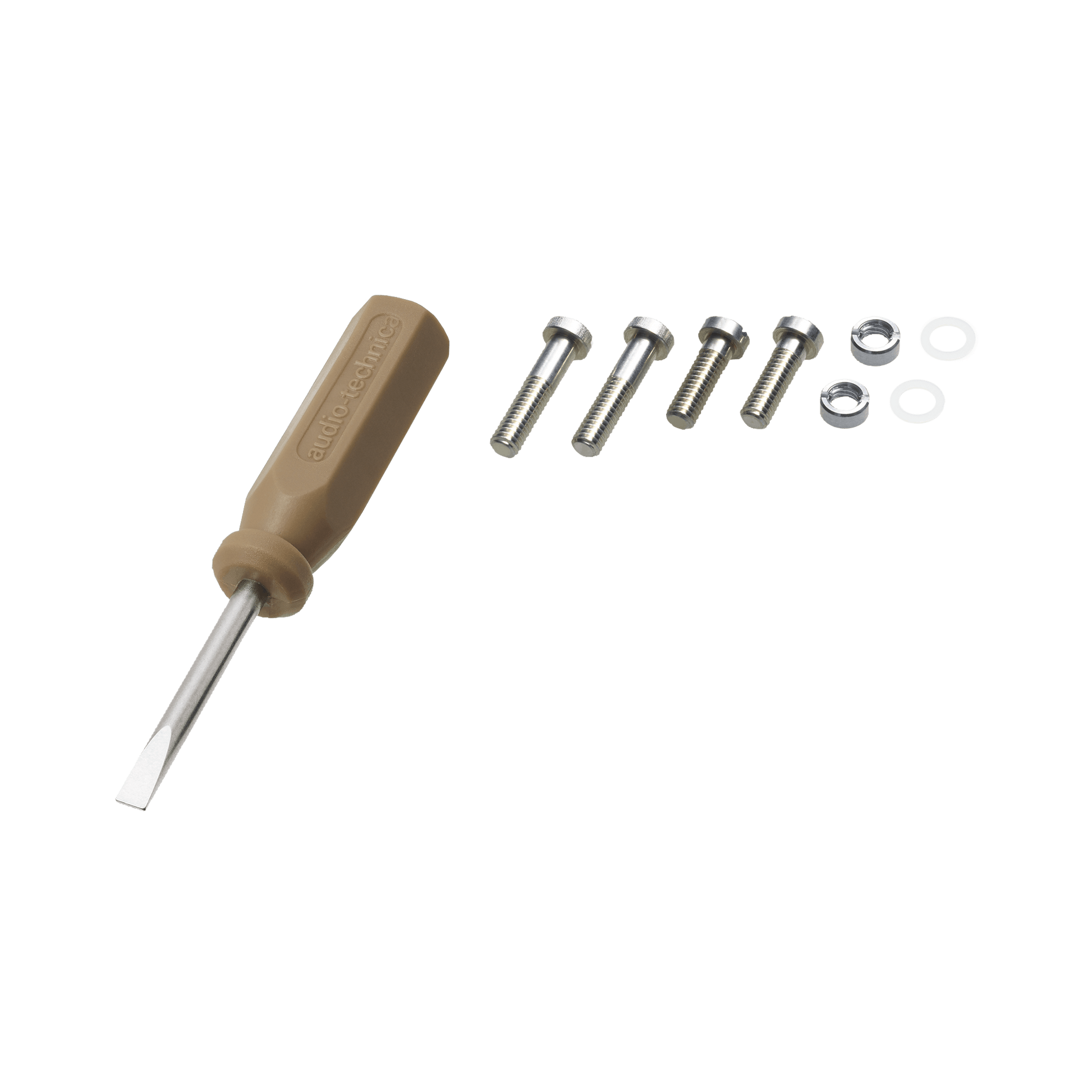

Accessories Included Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2,
Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1
Mounting Feature Half-inch mount
Recommended Load Capacitance 100 to 200 pF
Replacement Stylus ATN-XP5
Stylus Size 0.3 x 0.7 mil
Type VM Dual Magnet
Weight 6.2 g (0.22 oz)
