Gold Note

Gold Note P-1000 MKII Deluxe

Precio habitual $13,016.00
Precio habitual Precio de venta $13,016.00
En oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SELECT OPTIONS:

P-1000 MKII Deluxe
P-1000 MKII Deluxe

State-of-the-art technology for the Class A
preamplifier dedicated to true music lovers

Designed for High-End audio systems, the P-1000 MkII is an innovative Class A preamplifier developed with a new proprietary six-stage ultra-balanced design with relays and ALPS optical encoder volume control.
The P-1000 MkII features a design with three independent linear power supplies and 8 stereo inputs: 4 fully balanced XLR and 4 RCA. It also offers numerous advanced functions: Mono/Stereo selection, left/right channel swap, absolute phase swap, Booster technology and excellent left/right balance.

The Deluxe version of the P-1000 MkII is equipped with noise-canceling coils and capacitors on the six output stages, derived from military technologies, secured in place with custom copper clips.

To perfectly reproduce even the oldest recordings, the preamplifier can be set in both Mono and Stereo mode. It also allows for playback of inverted recordings. Absolute phase shift (0°/180°) can be useful when integrating the preamplifier into your system.

The Booster technology of the P-1000 MkII allows you to get the best out of speakers that require additional power, increasing the emission of energy in a very specific range of low frequencies.
The function is completely bypassed in OFF mode. Easy to use thanks to the color display that clearly and intuitively shows all the functions and allows precise and fast adjustments both through the use of the knob on the front panel and the remote control.
To further improve its performance, the P-1000 MkII can be paired with the external super inductive PSU-1250/1000 power supply and the TUBE-1012/1006 valve stage.

The P-1000 MkII can be equipped with dedicated external units to further improve performance: the Tube 1012 and Tube-1006 – Class A valve stages – and the PSU-1250 and PSU-1000 – external power supplies.

image 1
image 2
image 3

MAIN FEATURES

FREQUENCY RESPONSE
2Hz – 200kHz @ ± 3dB
THD (TOTAL HARMONIC DISTORTION)
< 0.001% @ 1kHz
GAIN
+19dB
SIGNAL TO NOISE RATIO
110dB
CHANNEL SEPARATION
> 118dB
CHANNEL LEFT/RIGHT
Selectable swap
MONO/STEREO
Yes
ABSOLUTE PHASE
0°/180°
BOOSTER
3 adjustable levels (by-passable/off)
VOLUME
100 steps
REMOTE CONTROL
Included – IR receiver on front and back

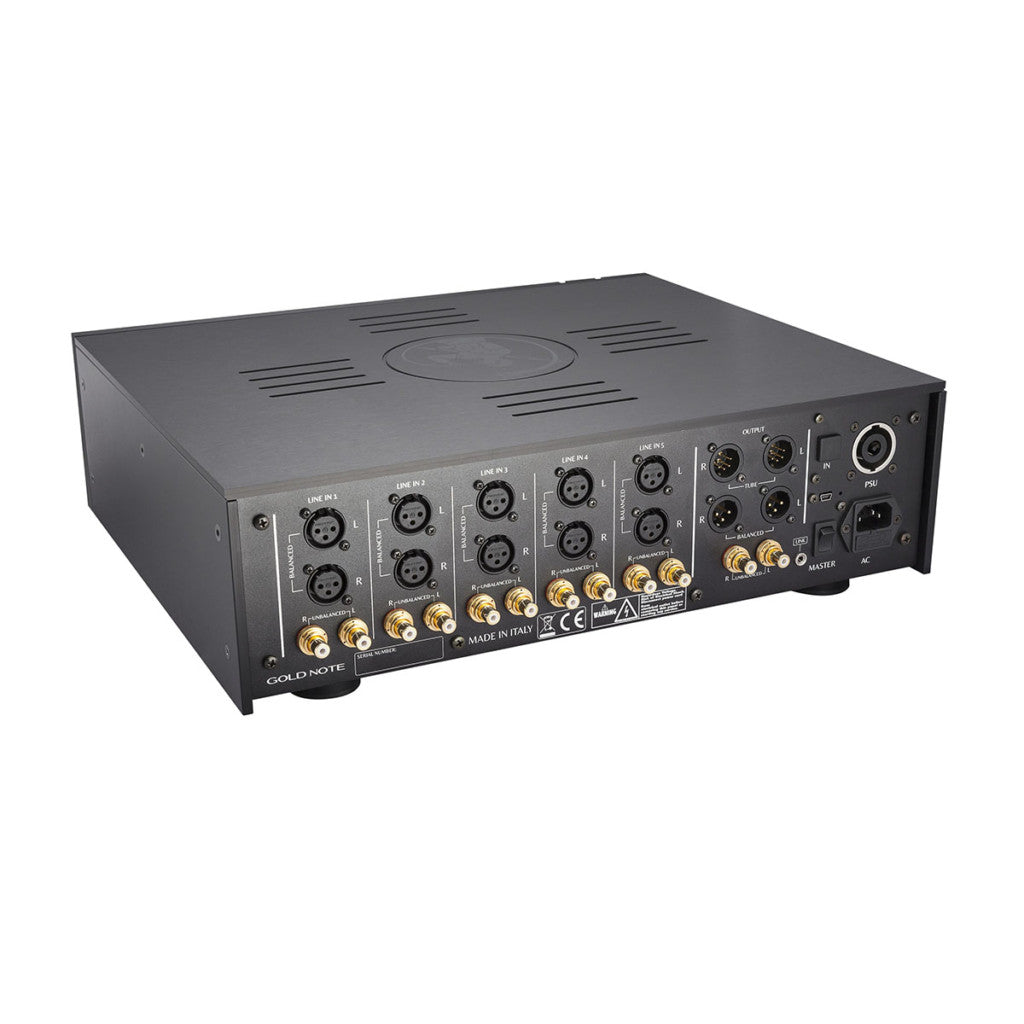

INPUTS AND OUTPUTS

ANALOGUE INPUTS
4x RCA unbalanced
4x XLR balanced
INPUT LEVEL
RCA – nominal 2Vrms, max up to 5Vrms
XLR – nominal 2Vrms, max up to 10Vrms
INPUT IMPEDANCE
100kΩ XLR & RCA
AUDIO OUTPUTS
2x RCA unbalanced
2x XLR balanced
1x TUBE-1012
OUTPUT LEVEL
Max up to 20Vrms on XLR & 10Vrms on RCA
OUTPUT IMPEDANCE
< 50Ω XLR & RCA

POWER

POWER SUPPLY
100-120V or 220-240V, 50/60Hz
Ultra Linear power supply with 3 transformers
PSU INPUT
1 Input for external inductive power supply PSU-1250/1000
FUSE (220/240V)
1A F
FUSE (100/120V)
2A F
POWER CONSUMPTION
max 30W

DIMENSIONS AND WEIGHT

DIMENSIONS
430mm W | 135mm H | 375mm D
WEIGHT
Kg. 11 – net
Kg. 16 – boxed

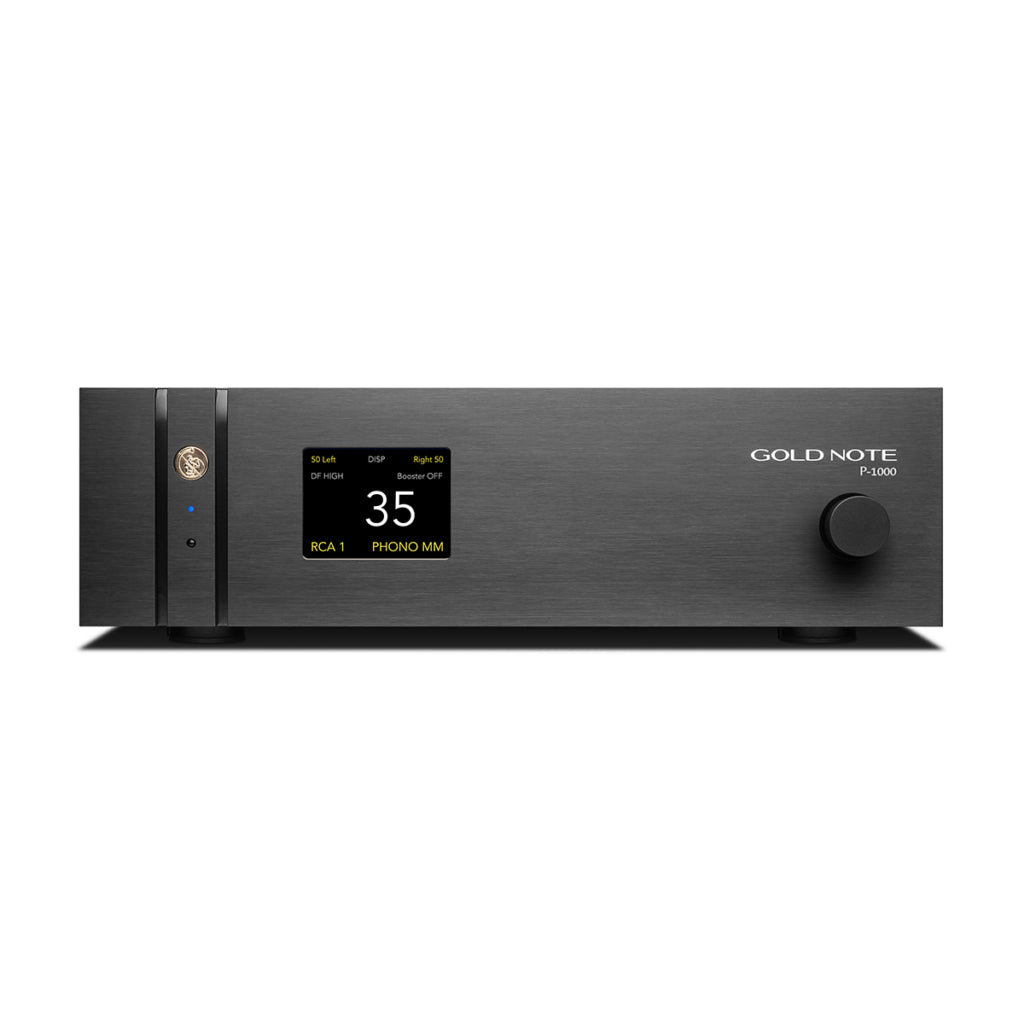

FINISHES

BLACK
Black anodised aluminium with a traditional brushed finish

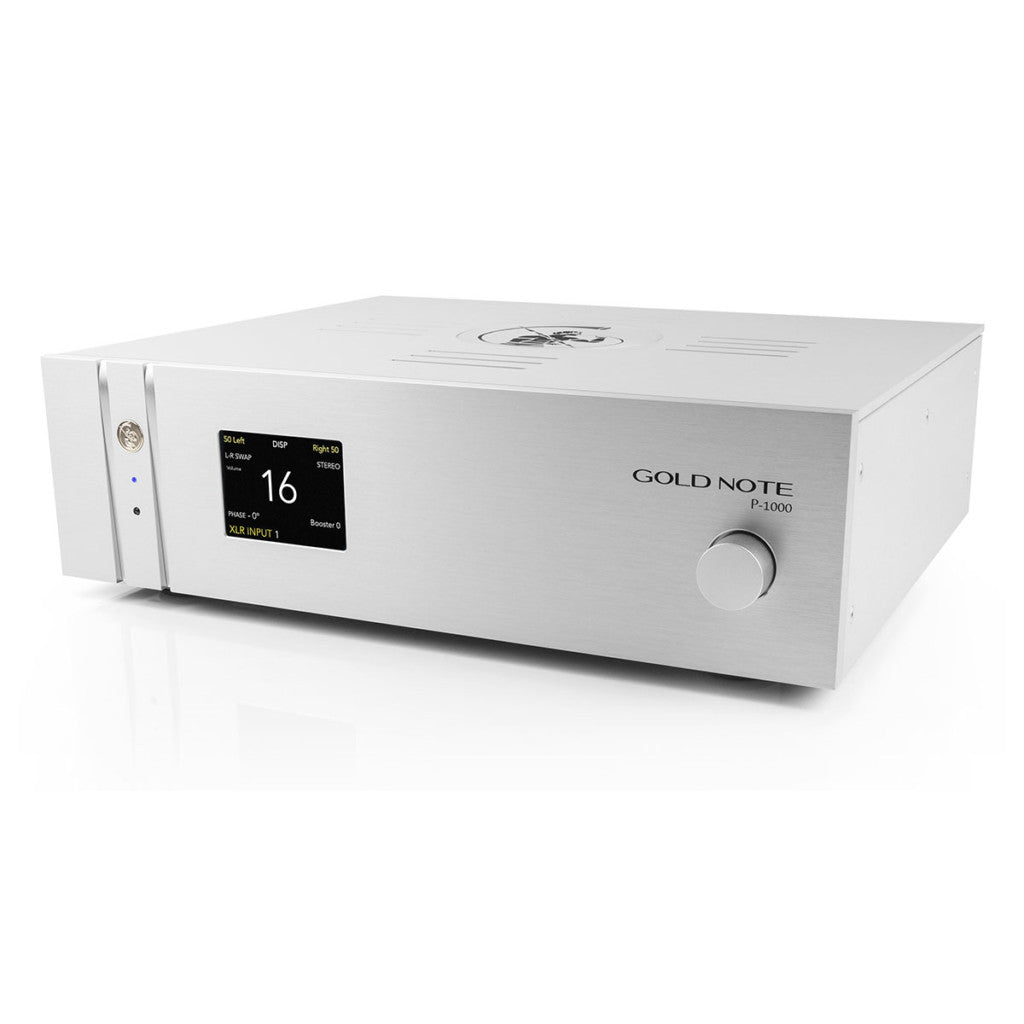

SILVER
Silver anodised aluminium with a traditional brushed finish

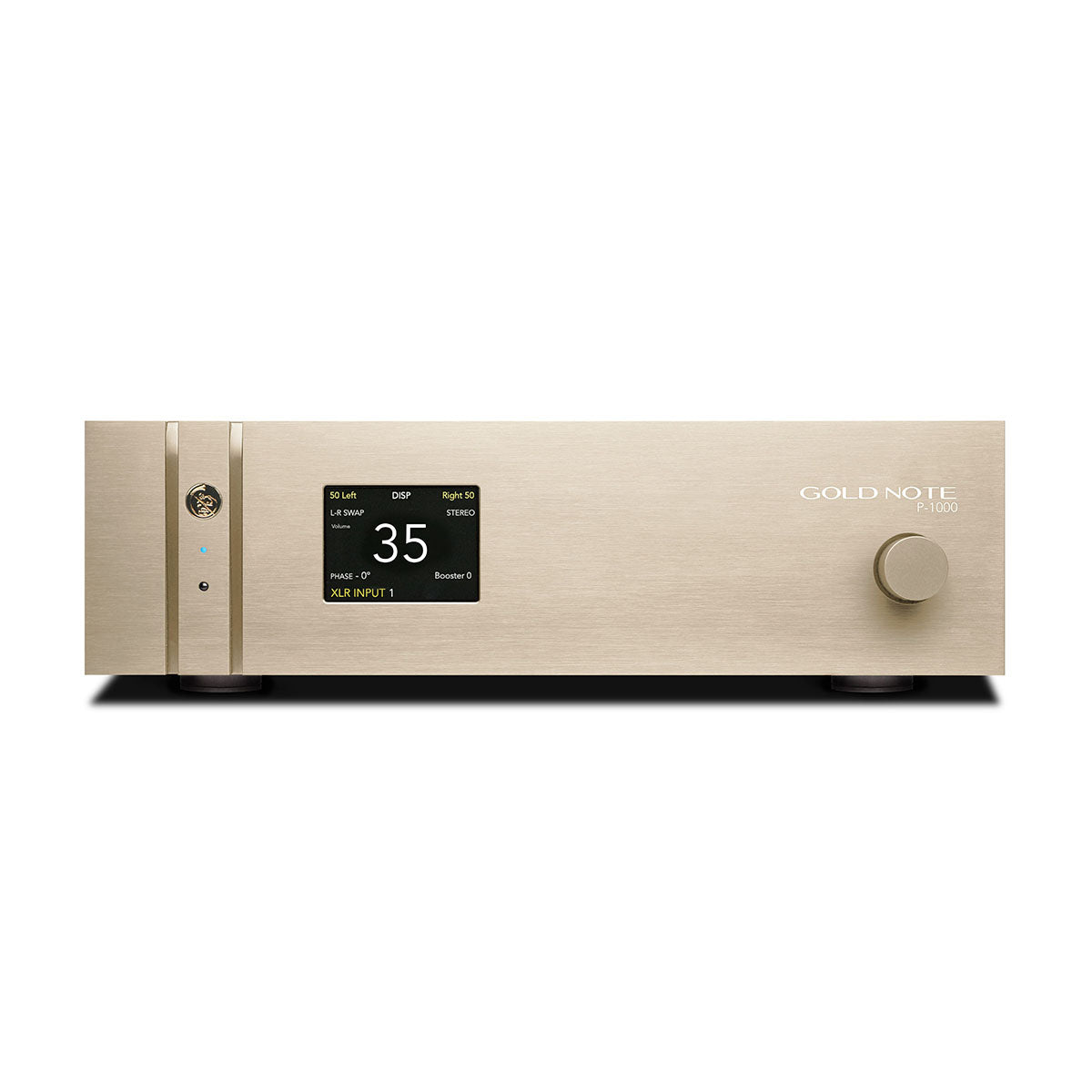

GOLD
Gold anodised aluminium with a traditional brushed finish

MODELS

P-1000 MKII DELUXE
Audiophile audio-grade components and military-grade anti-noise coils and capacitors clamped with custom copper clips.

BOOSTER

The Booster is a feature designed to reproduce the lower range of frequencies with power and control. It works as a custom equalisation, increasing the gain around 50Hz to provide a richer and more full-bodied sound. The 50Hz frequency has been chosen since lower frequencies are more difficult to obtain with small speakers.
The Booster provides a richer and more full-bodied sound, for better realism and dynamic. It’s particularly useful in case of speakers that require more energy in the bass frequencies, for night-time listening at lower volumes, or even to achieve a more realistic headroom. The Booster is completely by-passed when set to OFF, applied to 50% when set to 1, applied to 100% when set to 2.

REMOTE CONTROL

REMOTE CONTROL
Multifunctional remote control included

UPGRADE

VALVE OUTPUT STAGES
TUBE-1006: Class-A 6 Tubes output stages with Dual Mono/inductive tube power supply
TUBE-1012: Class-A 12 Tubes output stages with Dual Mono/inductive tube power supply
EXTERNAL POWER SUPPLY
PSU-1250: external inductive Dual-Mono power supply capable (300W)
PSU-1000: external inductive Dual-Mono power supply capable (200W)
