Gold Note

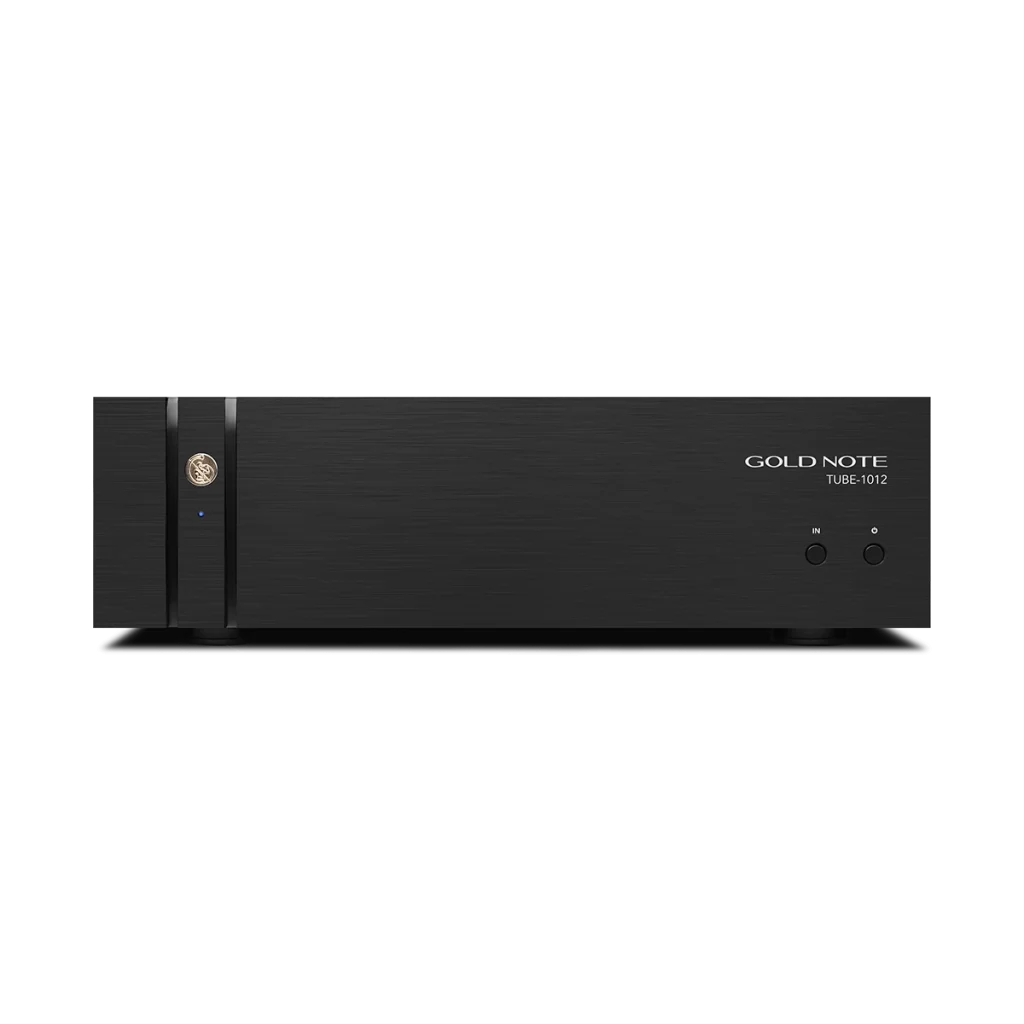

Gold Note TUBE-1012

Precio habitual $10,469.00
Precio habitual Precio de venta $10,469.00
En oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SELECT OPTIONS:

TUBE-1012
TUBE-1012

To add warmth to electronics

TUBE-1012 and TUBE-1006 further improve the performance of Gold Note electronics, reaching a completely new level thanks to the 12-valve (TUBE-1012) or 6-valve (TUBE-1006) class A output stages. Gold Note sources and amplifications guarantee great control and definition while providing exceptional realism in recreating the musical event. But those who love the warm sound of valves and want to bring their system to its maximum performance will find TUBE-1012 or TUBE-1006 the right choice. Working in perfect synergy with Gold Note electronics, you can have a wonderfully natural sound and a High-End listening experience.

The proprietary Totem-Pole design, with six independent audio stages per Tube, ensures an ultra-wide bandwidth response and ultra-low distortion, guaranteeing a pure audio signal. Thanks to the new audio inputs on the rear panel, our valve output stages can be connected simultaneously to two sources: using the Tube input for Gold Note sources and the line input for those from other manufacturers. The input is selectable from the front panel for maximum convenience and ease of use.

image 1
image 2
image 3

MAIN FEATURES

TUBE-1012
Totem-Pole Output Stage design
MAX INPUT (THD < 1%)
RCA 6Vrms
XLR 12Vrms
MAX OUTPUT (THD < 1%)
RCA 8Vrms
XLR 16Vrms
OUTPUT IMPEDANCE
<600Ω
GAIN
2dB
RECOMMENDED LOAD
>10kΩ
TUBES
TUBE-1012 – 12 valves 6n1p
TTHD+N
0.0028% @ 1kHz – 1.736V
S/N
>100dB @ 1kHz – 1.736V

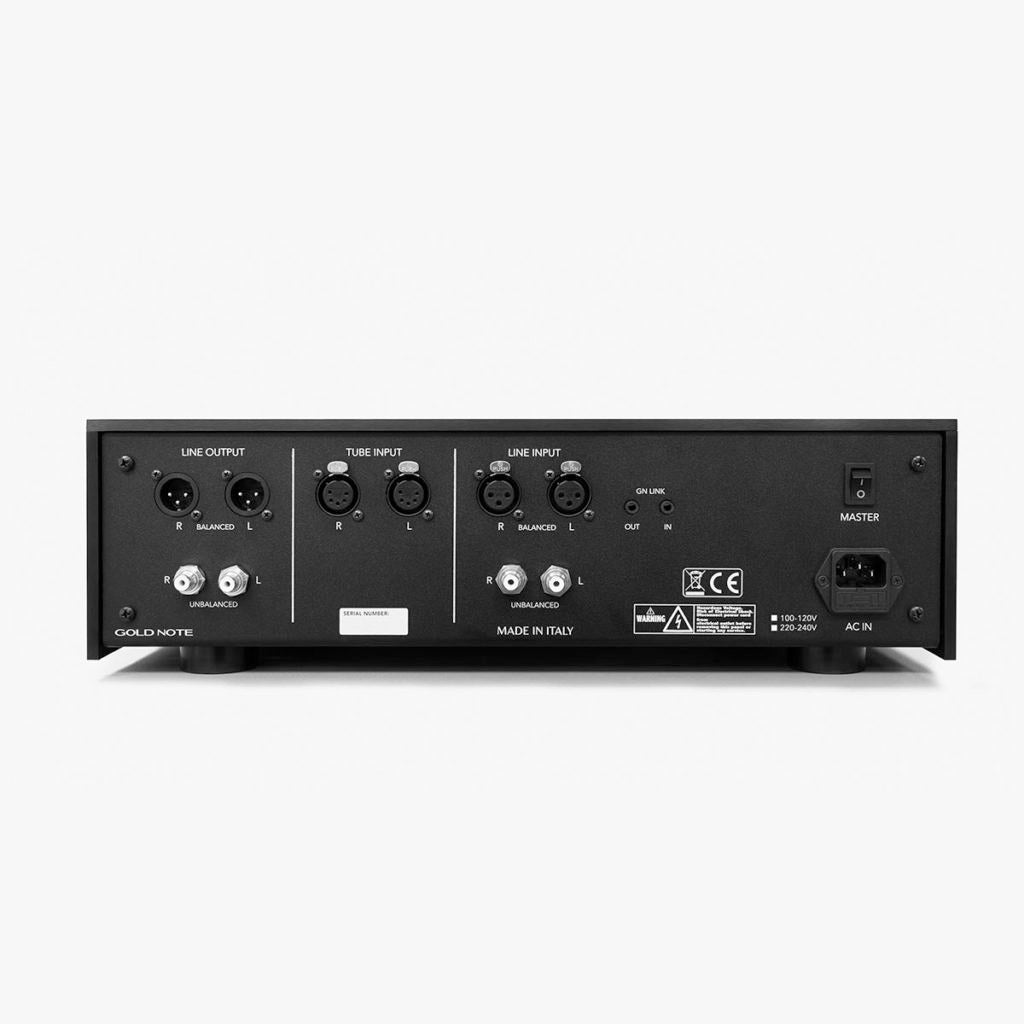

INPUTS AND OUTPUTS

INPUTS TUBE
1x XLR Line In
1x RCA Line In
1x Tube In (5-pole XLR for Gold Note sources only)

Power

POWER SUPPLY
100-120V or 220-240V, 50/60Hz
Super Linear Vacuum Tube Regulator with 4 Inductive Choke filters
POWER CONSUMPTION
TUBE-1012 – 80W
FUSE (220/240V)
2A F
FUSE (100/120V)
3,15A F

DIMENSIONS AND WEIGHT

DIMENSIONS
430mm W | 135mm H | 370mm D
WEIGHT
TUBE-1012 – Kg. 16 net – Kg. 21 boxed

FINISHES

BLACK
Black anodised aluminium with a traditional brushed finish

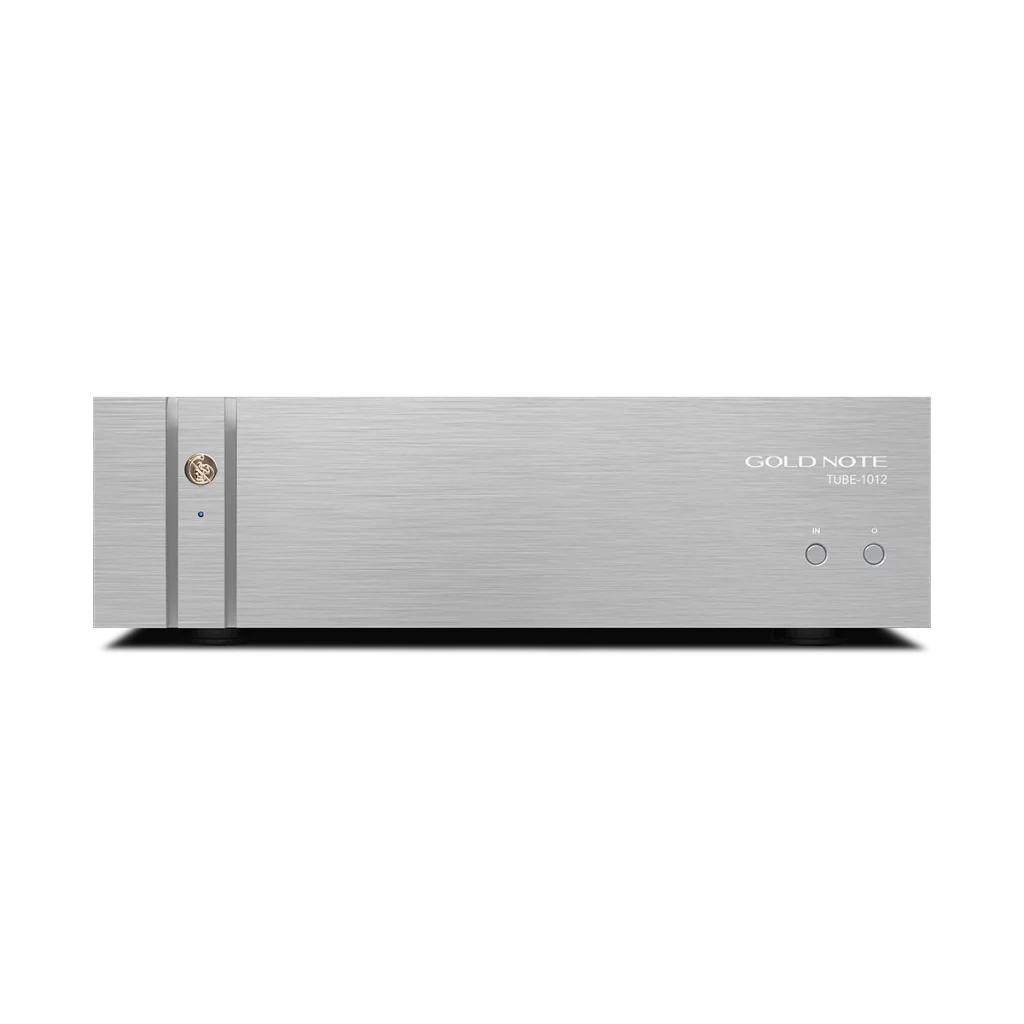

SILVER
Silver anodised aluminium with a traditional brushed finish

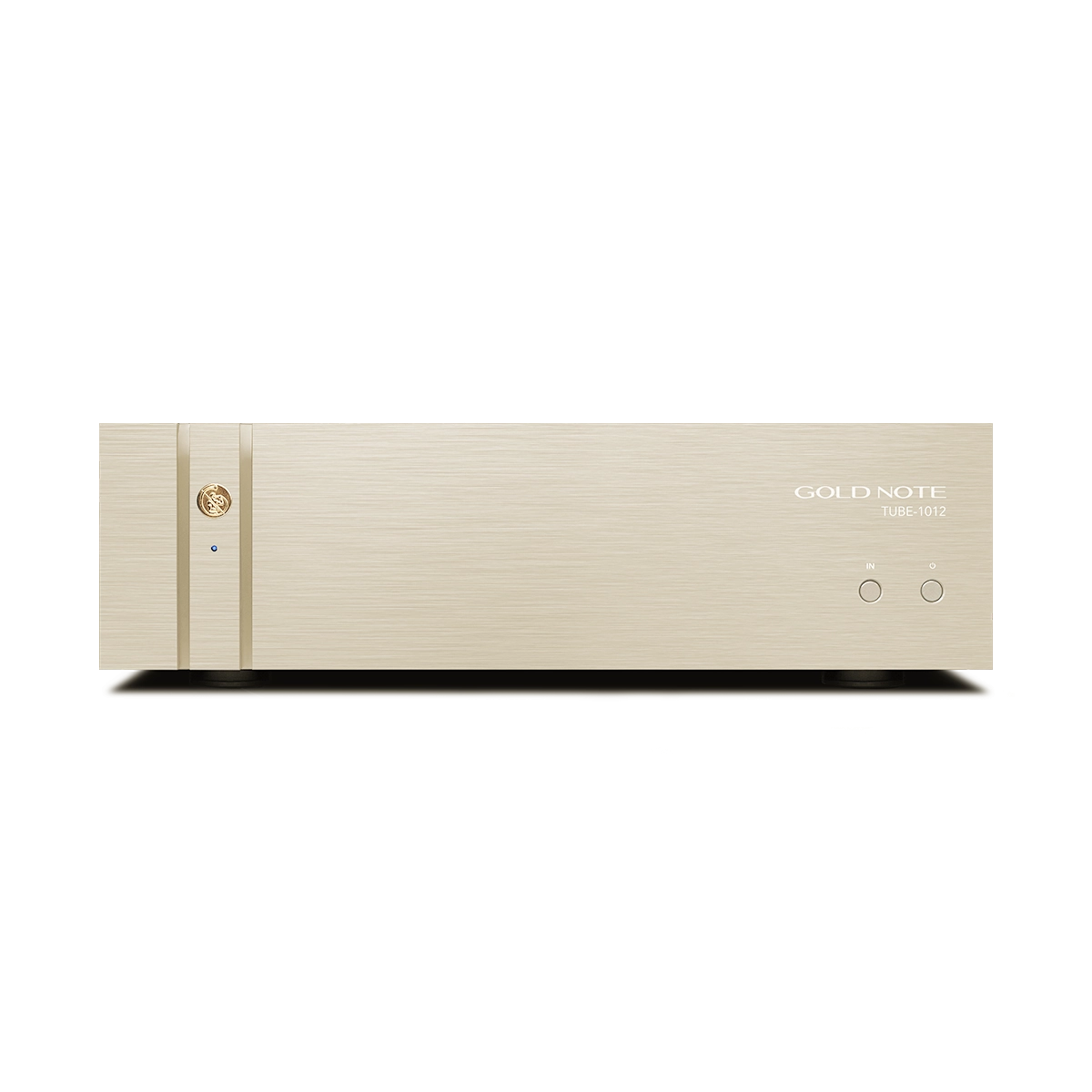

GOLD
Gold anodised aluminium with a traditional brushed finish

MODELS

TUBE-1012
12 valves
Power consumption 80W
3x Gold Note custom transformer
