Six amplified channels
Six 200W channels provide separate power for a multichannel system. Full load and distortion conditions are listed in the technical reference.
Marantz

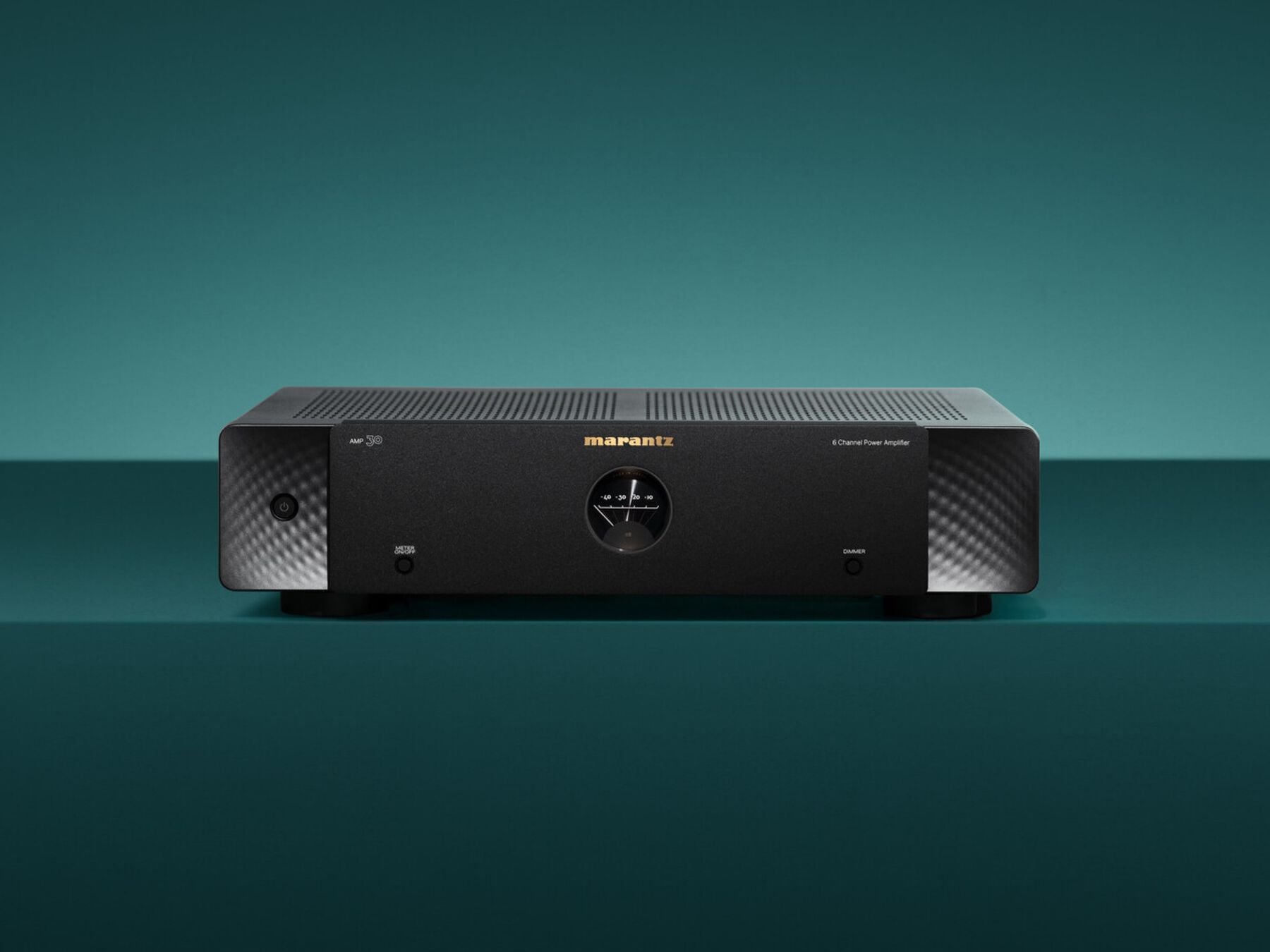

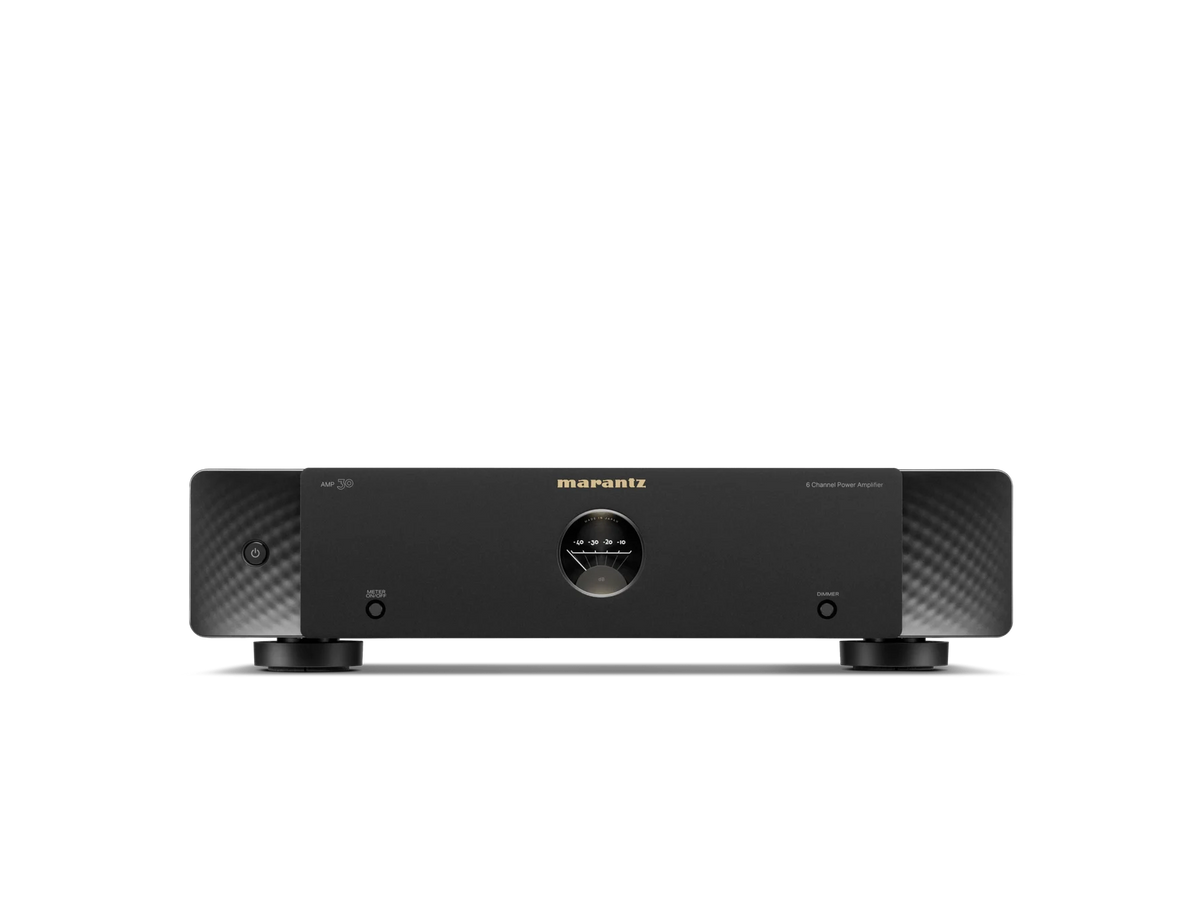

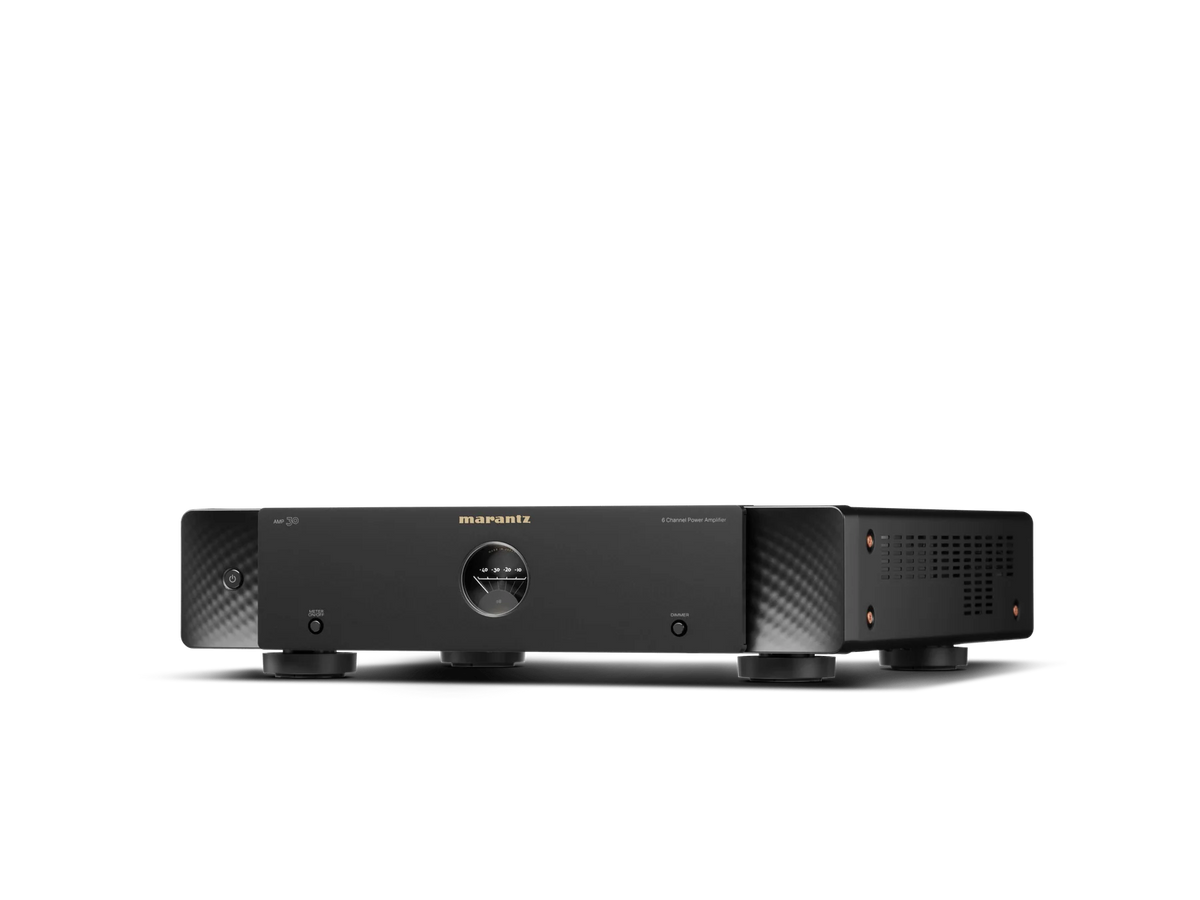

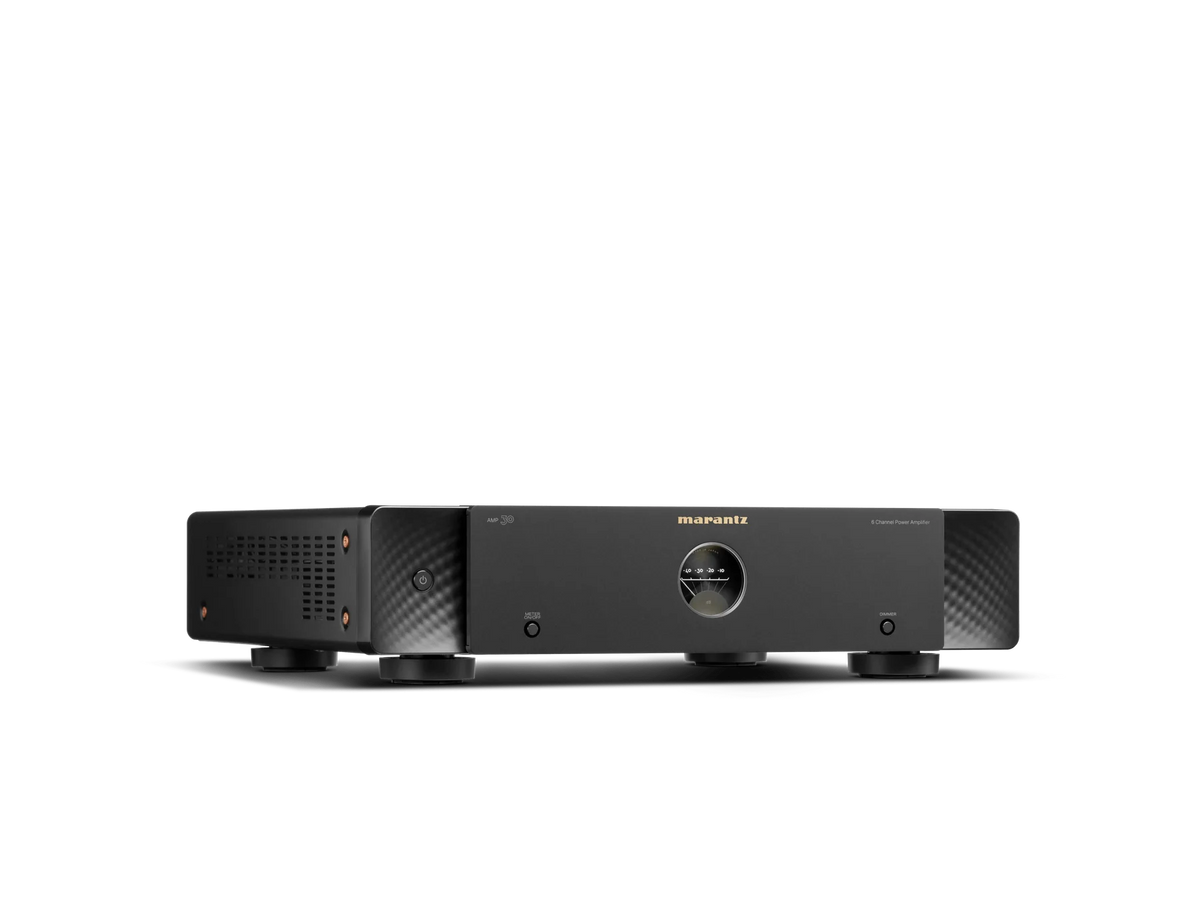

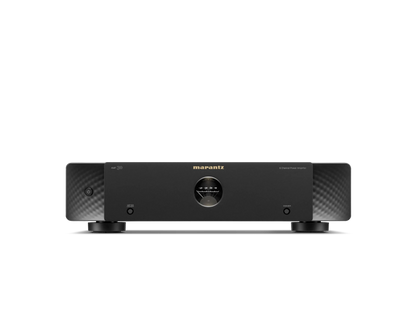

Marantz AMP 30
Marantz AMP 30
Precio habitual
$5,711.00 CAD
Precio habitual
Precio de oferta
$5,711.00 CAD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
Deliveries over $700 - Signature Required!
No se pudo cargar la disponibilidad de retiro
Marantz / Power Amplifiers
AMP 30
AMP 30 brings six channels of amplification into a slim Marantz enclosure. Pair it with an AV processor or use it to extend a compatible receiver’s powered channels.
6 Channels
200 Watts per Channel
Design & engineering
Inside the AMP 30.
Shared system control
The supplied link cable lets a compatible Marantz AV preamplifier coordinate amplifier power and lighting.
Amplification technology
Marantz combines its HDAM approach with Class D power amplification to accommodate six channels in a slim chassis.
Visible Marantz character
A porthole level meter and illuminated front-panel details connect its appearance with the matching AV components.
From Marantz
Product film
Technical reference
Details & specifications
Technical data from Marantz’s US product page. Power ratings use different loads and test conditions; read the complete entry when comparing models. A dash means no value is supplied. Unsupported or malformed source entries are identified where encountered.

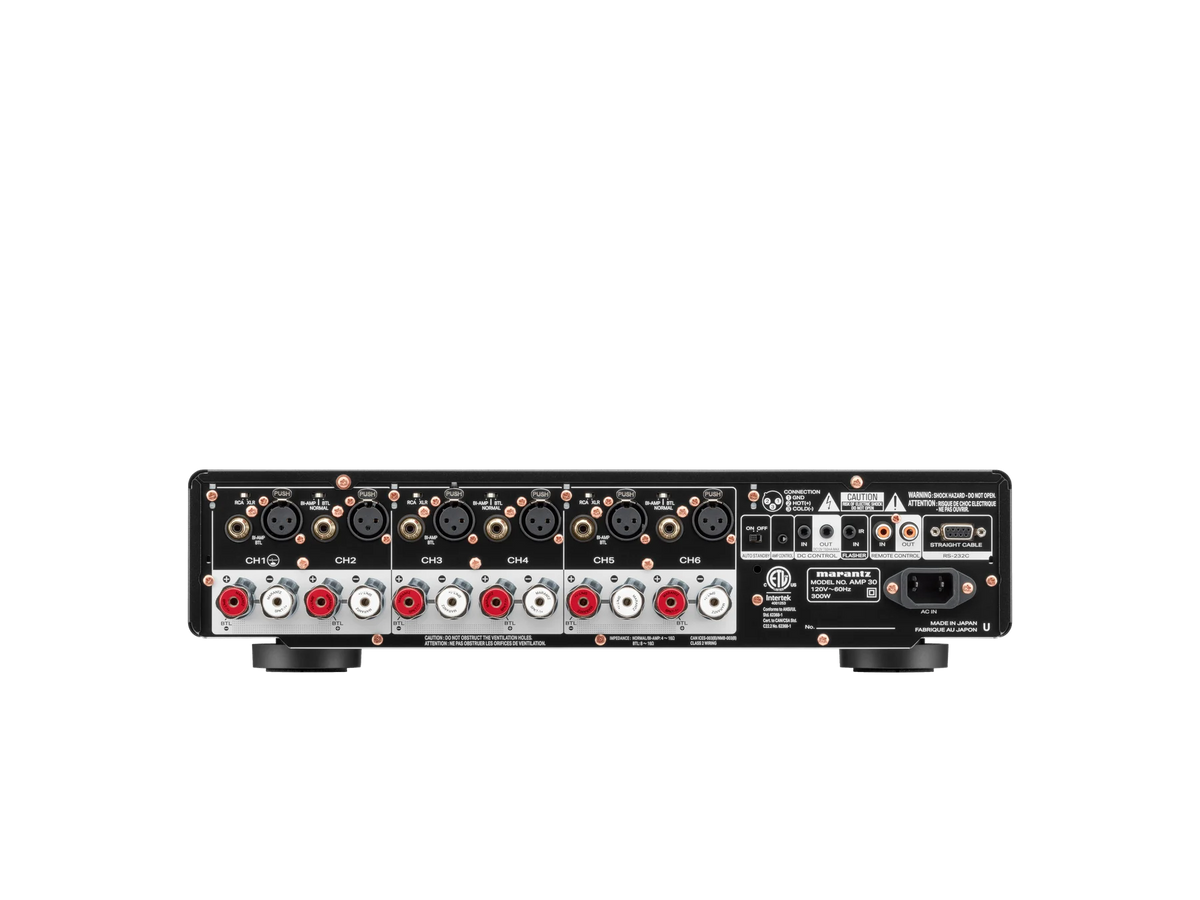

Inputs Outputs
- Main Amplifier in
- Balanced & Unbalanced: 6ch (Exclusive use by a selector switch.)
- Speaker Terminal
- SPKT-1+
- Number of Speaker Terminals
- 6
- Bi-Amp Drive /BTL Drive
- Yes / Yes
- Level Meter
- Yes
Multi-Room CI
- RS232 Control
- Yes
- IR Flasher In
- Yes
- Marantz Remote Bus
- Yes
- DC Trigger Input/ Output
- 1 / 1
Specifications
- Number of Power Amps
- 6
- Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL
- 200W / 400W
- Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal
- 400W
- Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal
- 200W
General
- Front Display
- Level Meter
- Auto Power Off
- Yes
- Metal Front Panel
- Yes
- Power Consumption
- 300W
- Power Consumption, No-Sound (ECO On / Off)
- 70W
- Standby Consumption
- 0.2W
- Maximum Dimensions (W × D × H)
- 17.4 × 17.4 × 4.4 in.
- Weight
- 22.0 lbs
- What's in the box
- Main unit, quick start guide, AC cord, Amp control cable, Remote control cable
- UPC code
- 747192145699
- Limited Warranty (United States and Canada)
- 5-year
