Eleven amplified channels
Its amplifier is rated at 140W per channel under the manufacturer’s stated conditions. Additional external channels can extend the processed speaker layout.
Marantz

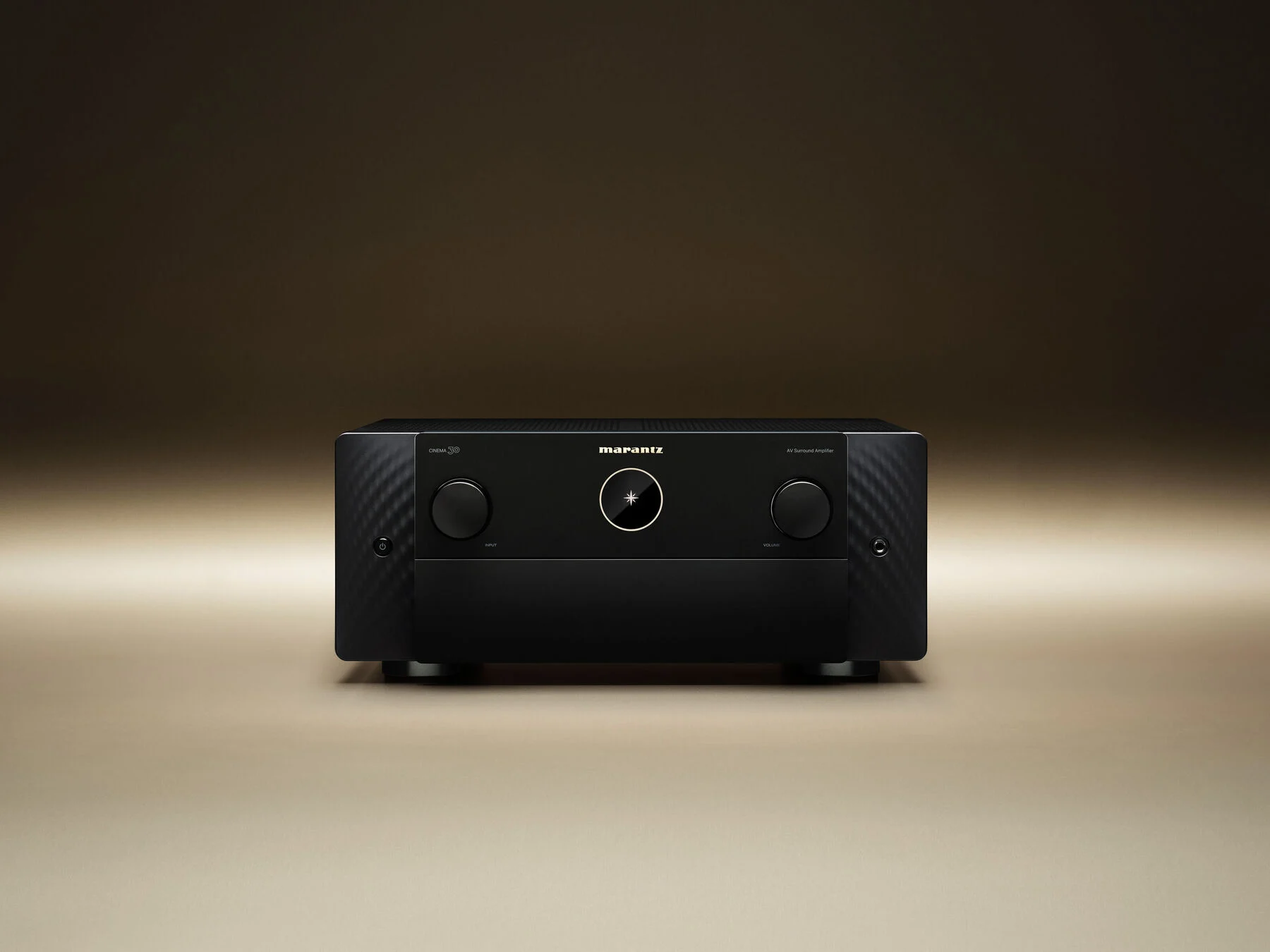

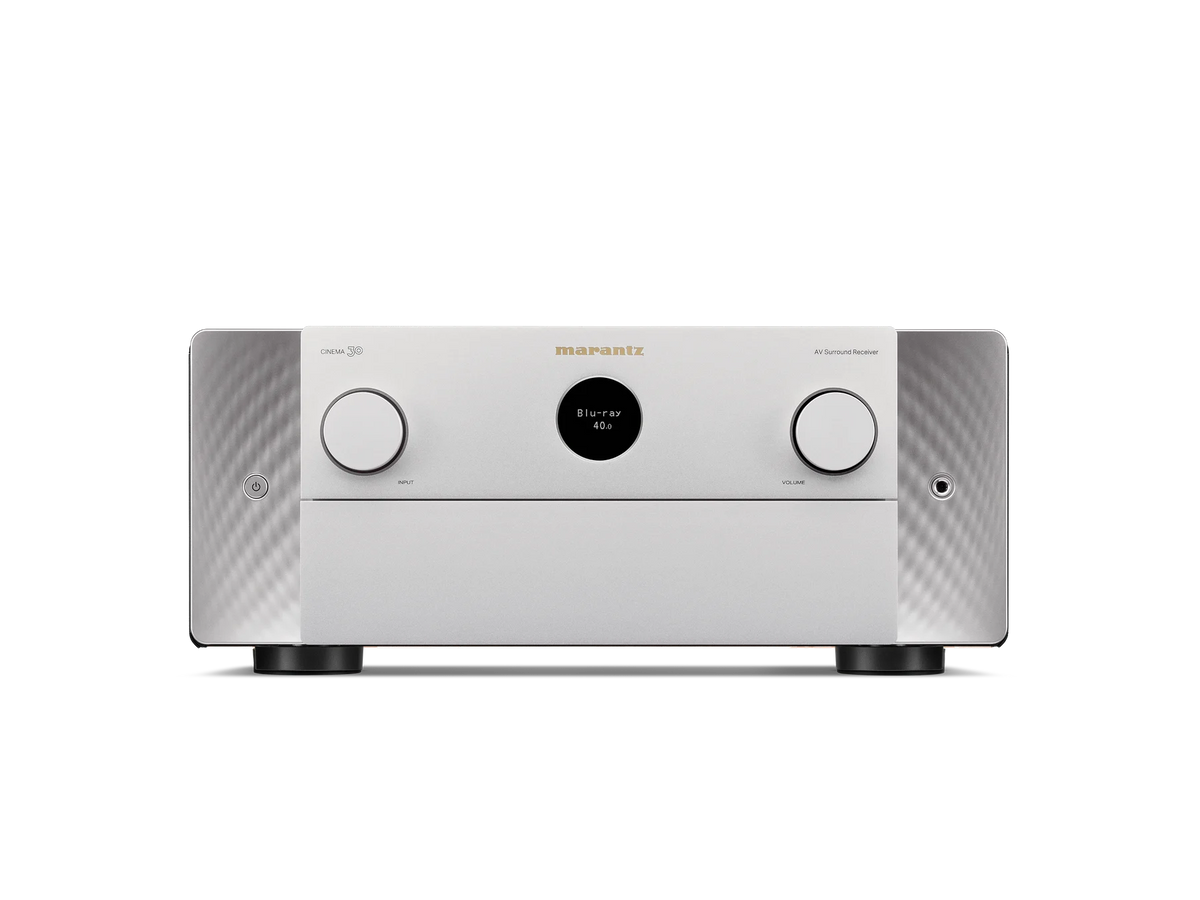

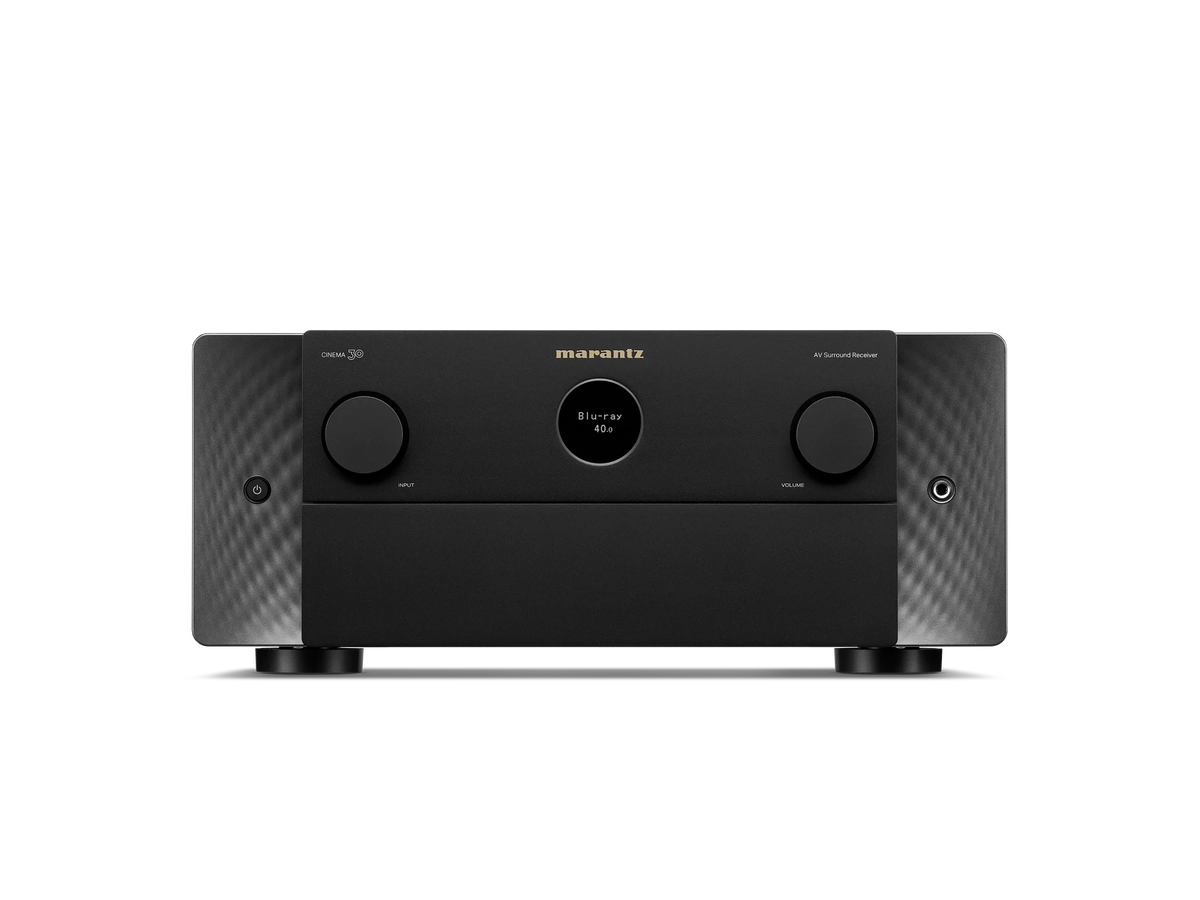

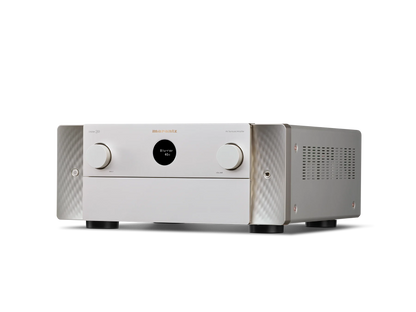

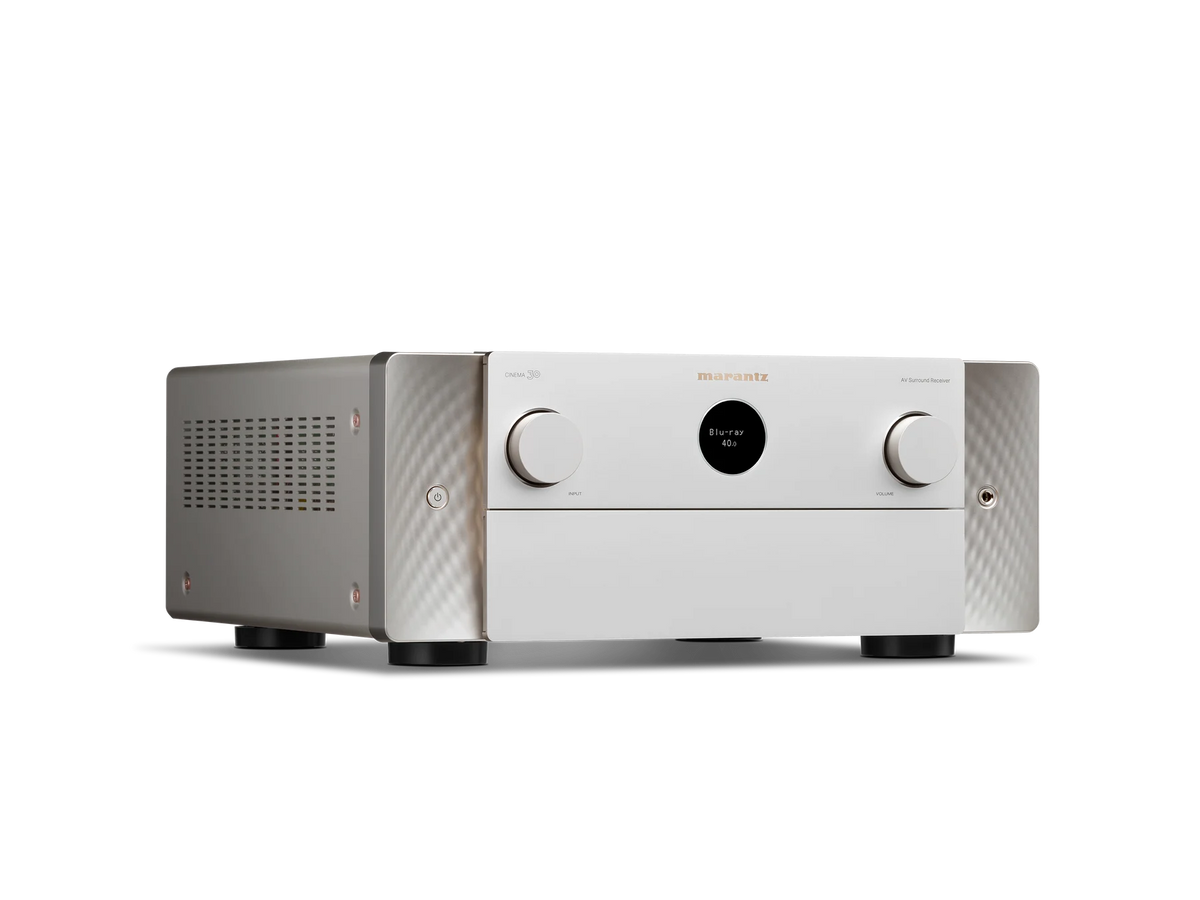

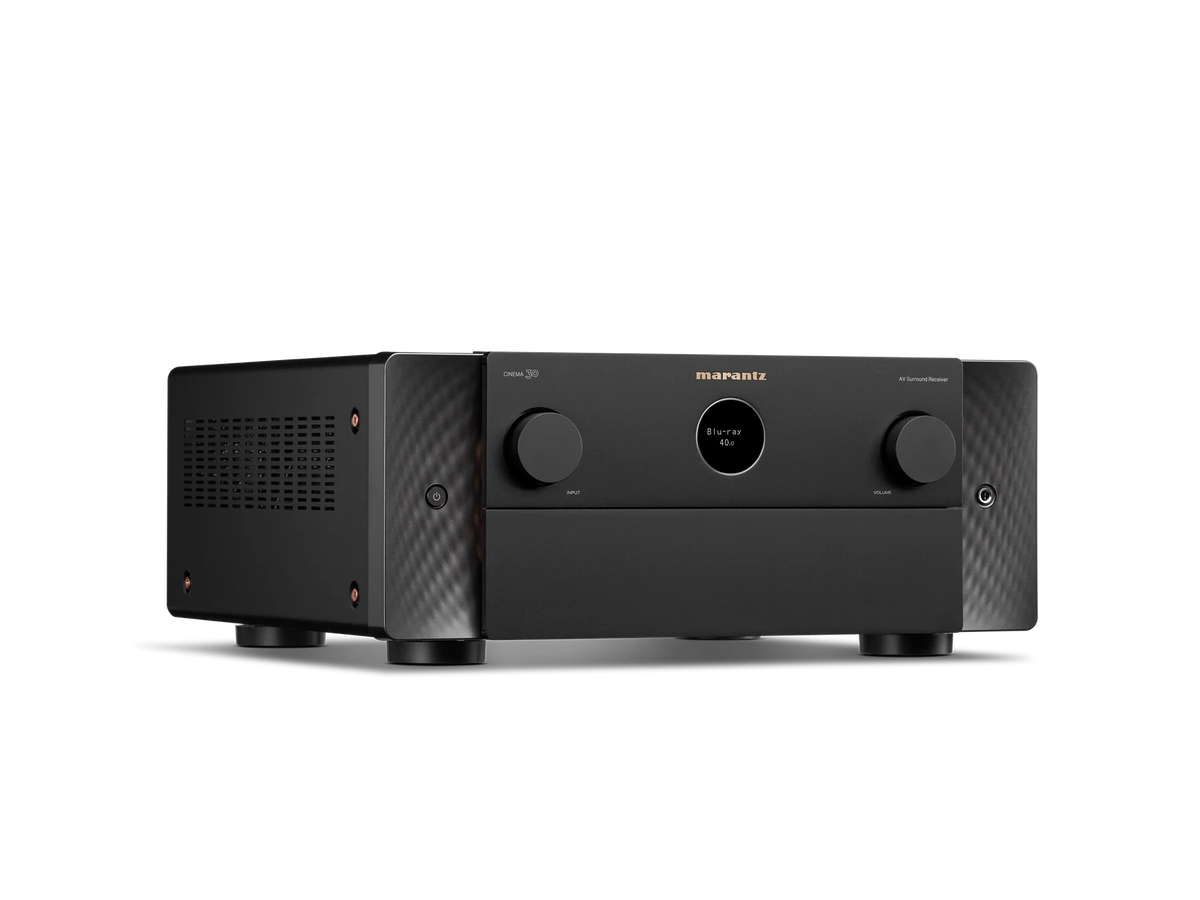

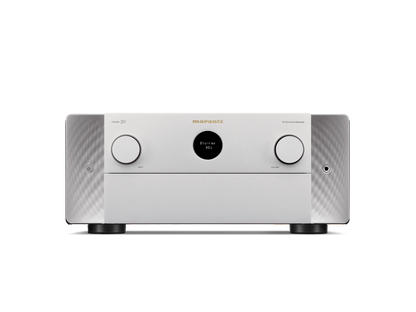

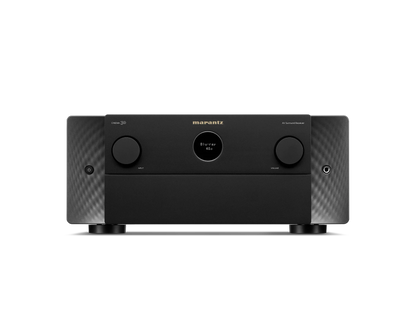

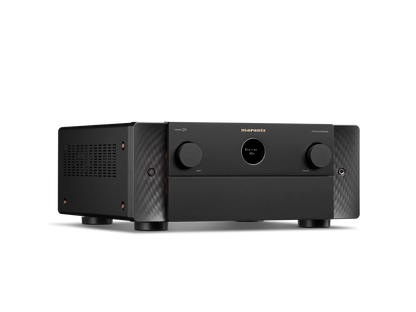

Marantz CINEMA 30
Marantz CINEMA 30
Precio habitual
$6,853.00 CAD
Precio habitual
Precio de oferta
$6,853.00 CAD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
Deliveries over $700 - Signature Required!
No se pudo cargar la disponibilidad de retiro
Marantz / AV Receivers
CINEMA 30

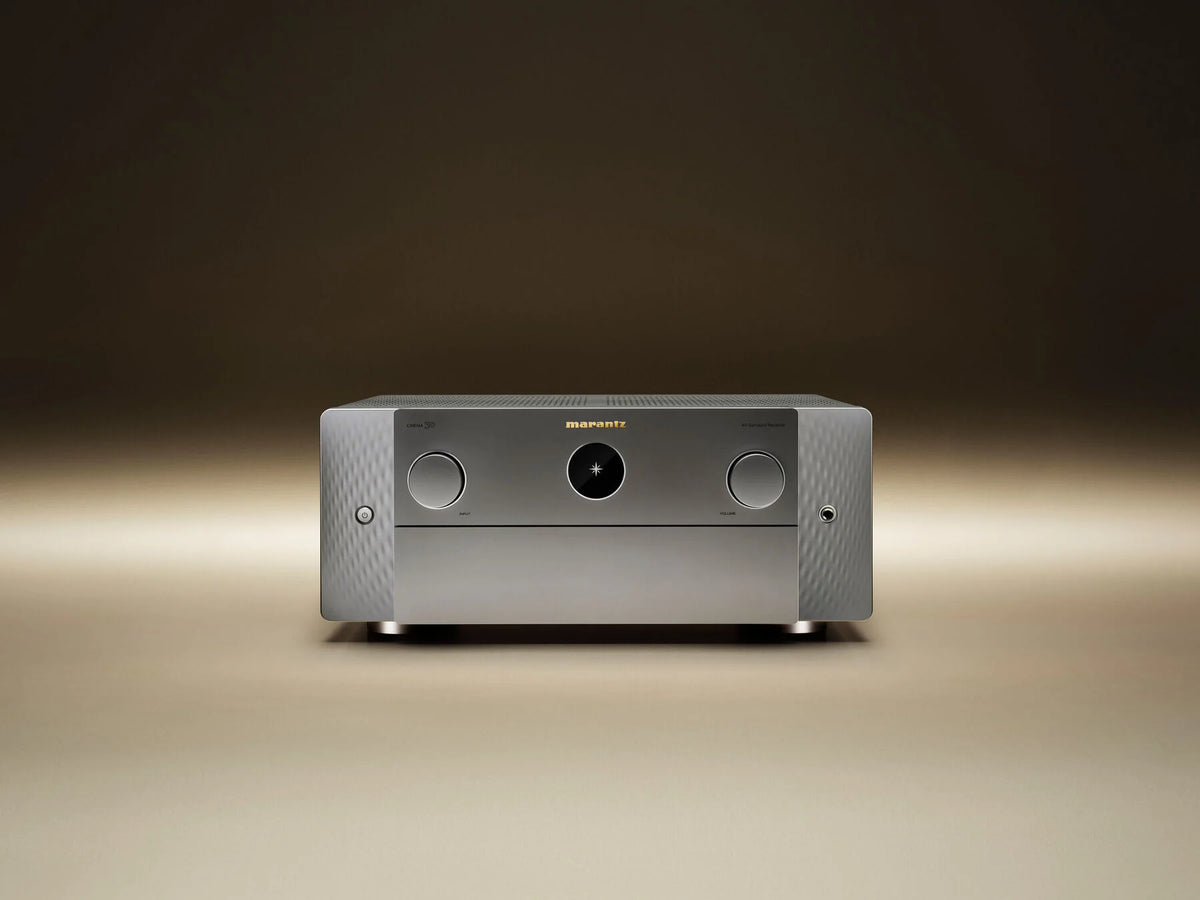

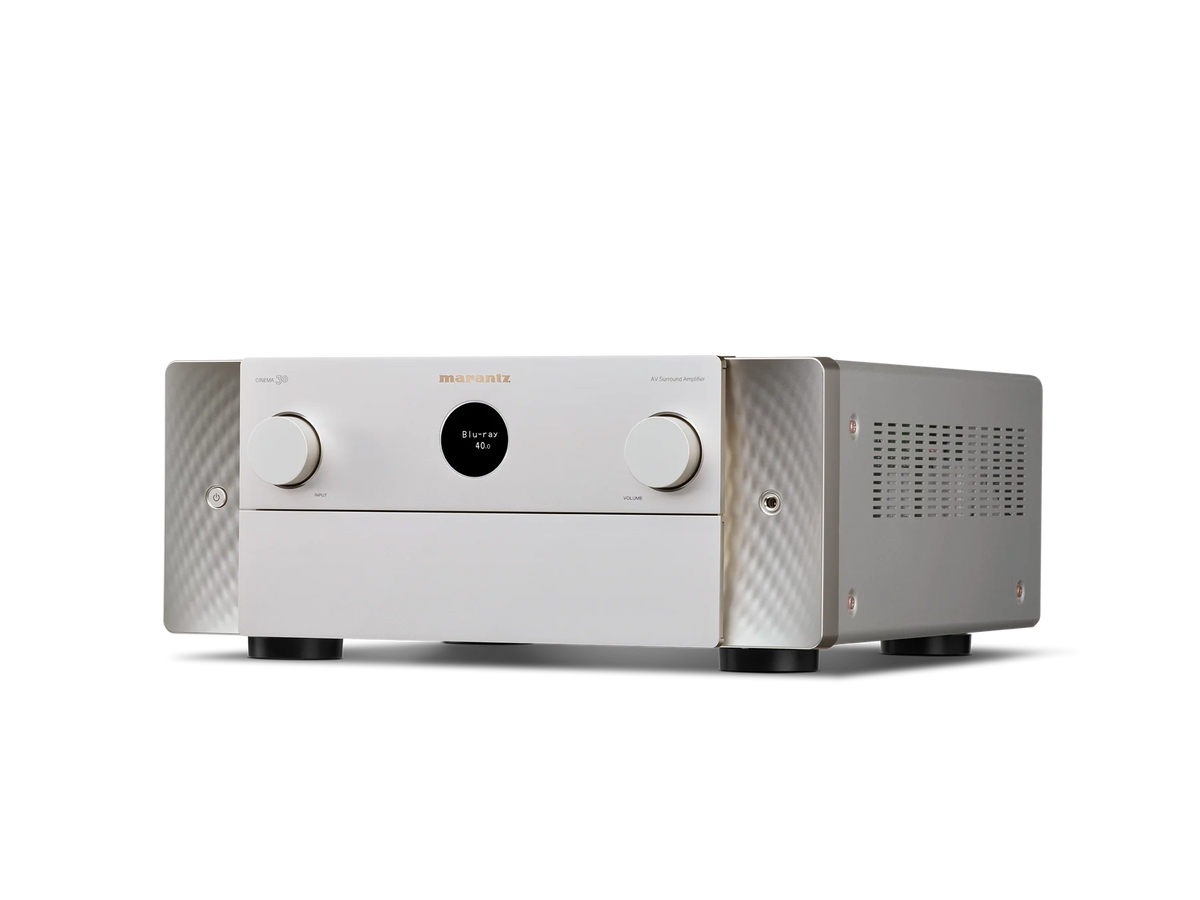

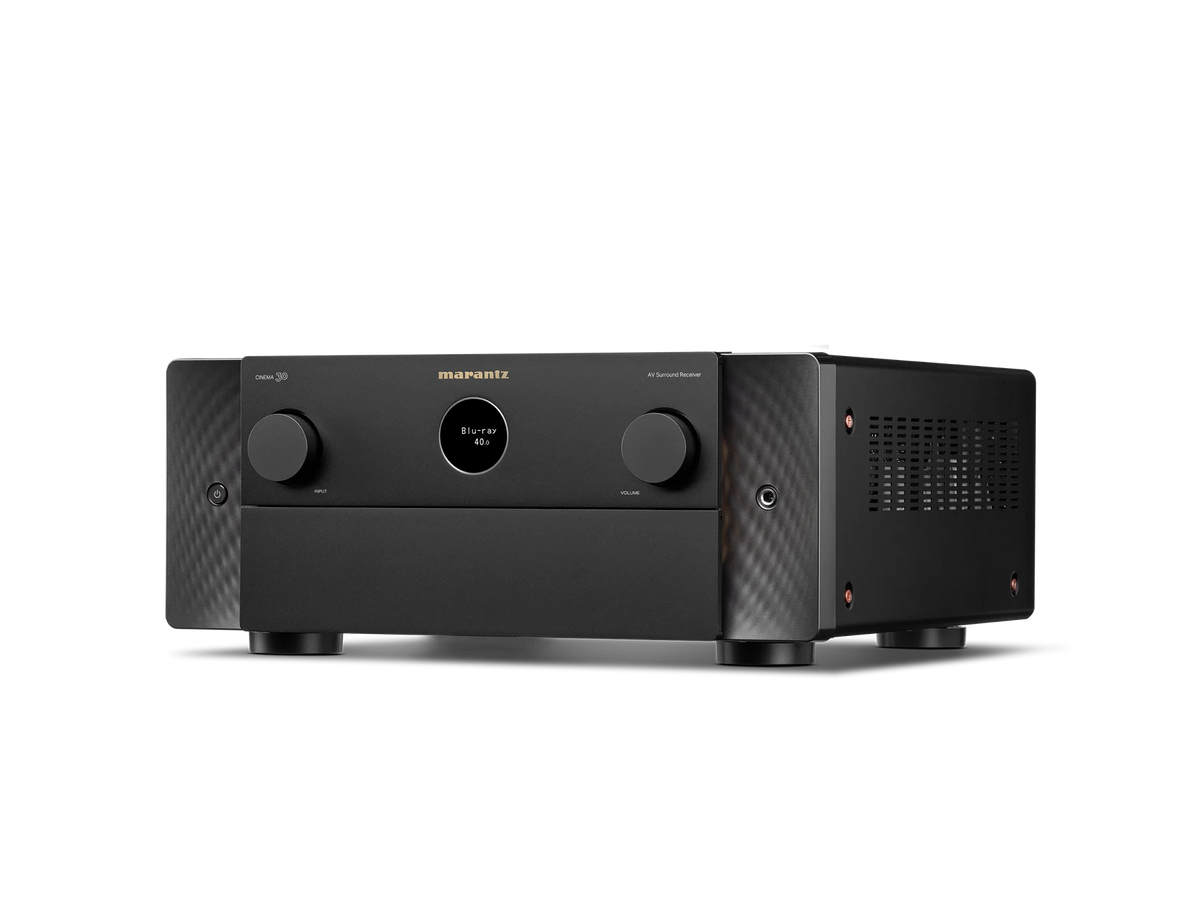

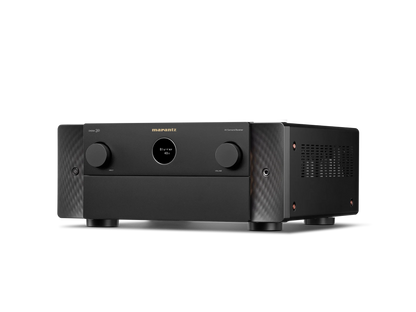

CINEMA 30 combines eleven amplified channels with 13.4-channel processing and four independent subwoofer outputs. Built in Japan, it brings Marantz’s HDAM-SA2 technology and extensive analog and digital connections to a full-size AV receiver.
11.4 Channels
140 Watts per Channel
7 HDMI Inputs plus eARC
HEOS Built-in
Design & engineering
Inside the CINEMA 30.
Audio engineering
HDAM-SA2 circuitry and Marantz’s component selection underpin the receiver’s audio design.
Room-specific calibration
Audyssey tools are included. Dirac Live upgrades require a separately purchased license.
Extensive source connections

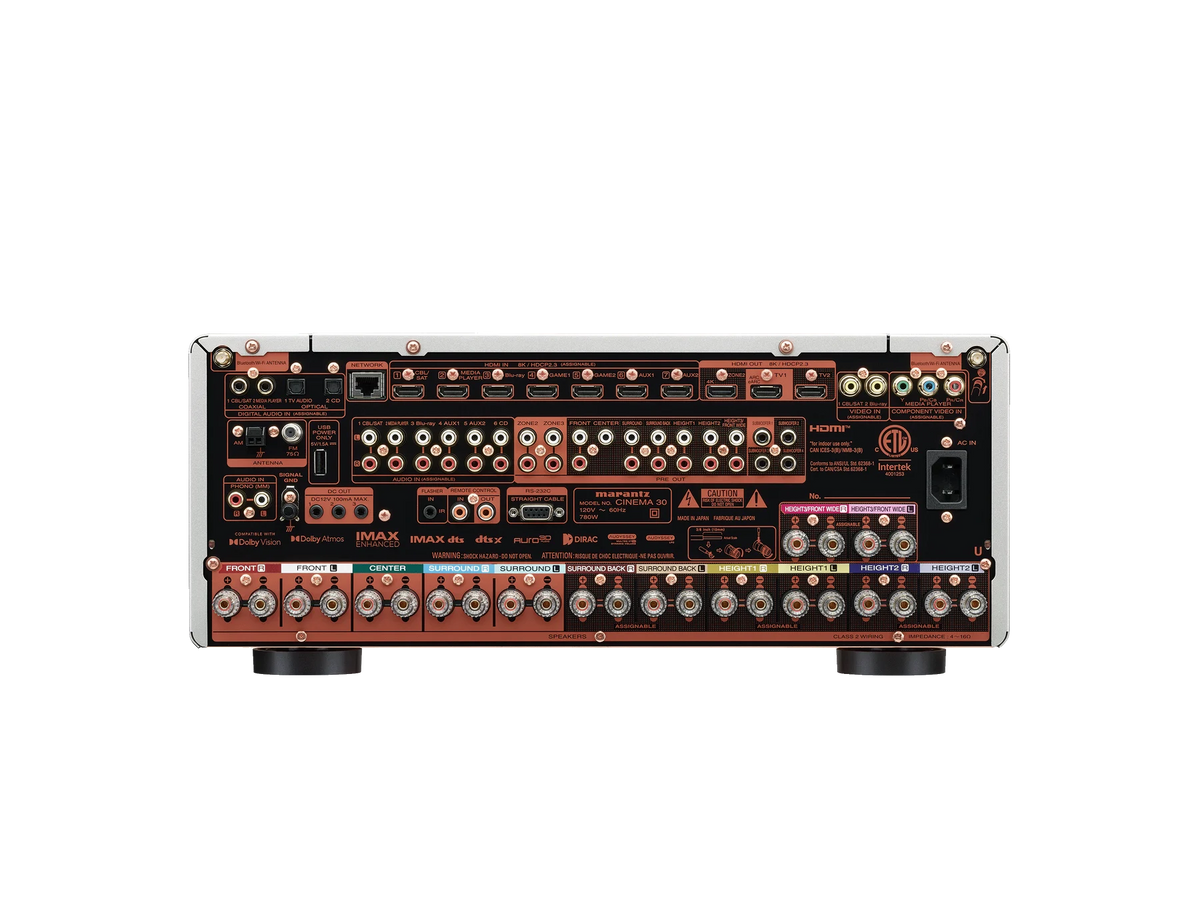

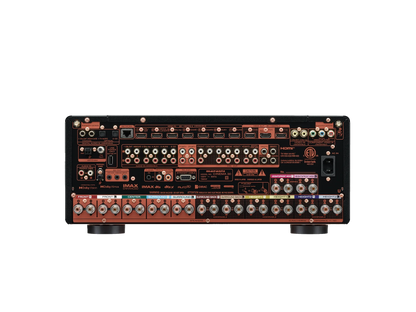

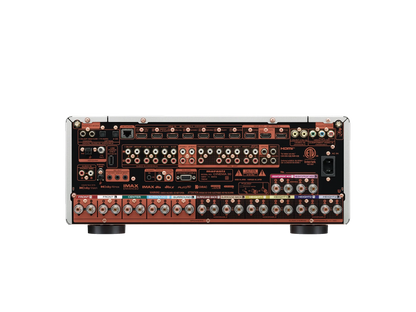

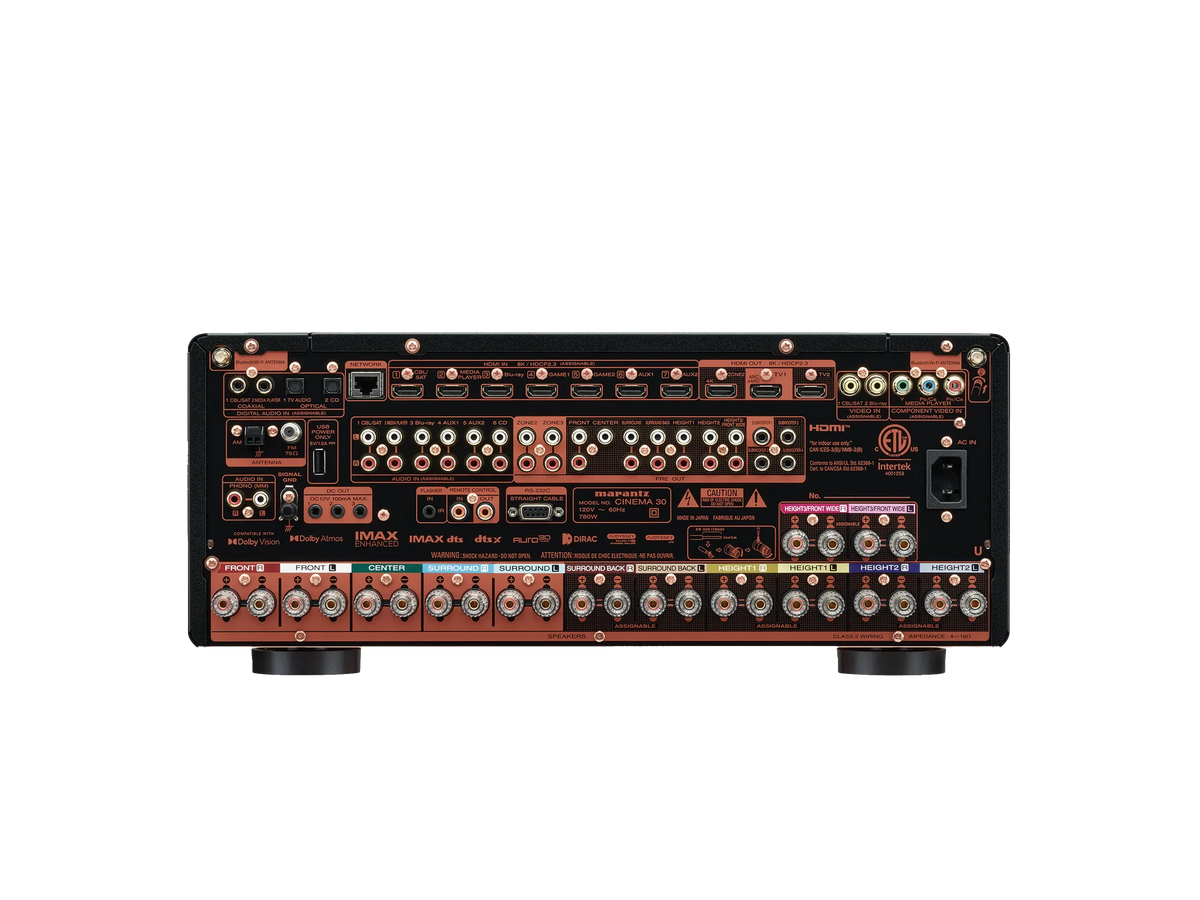

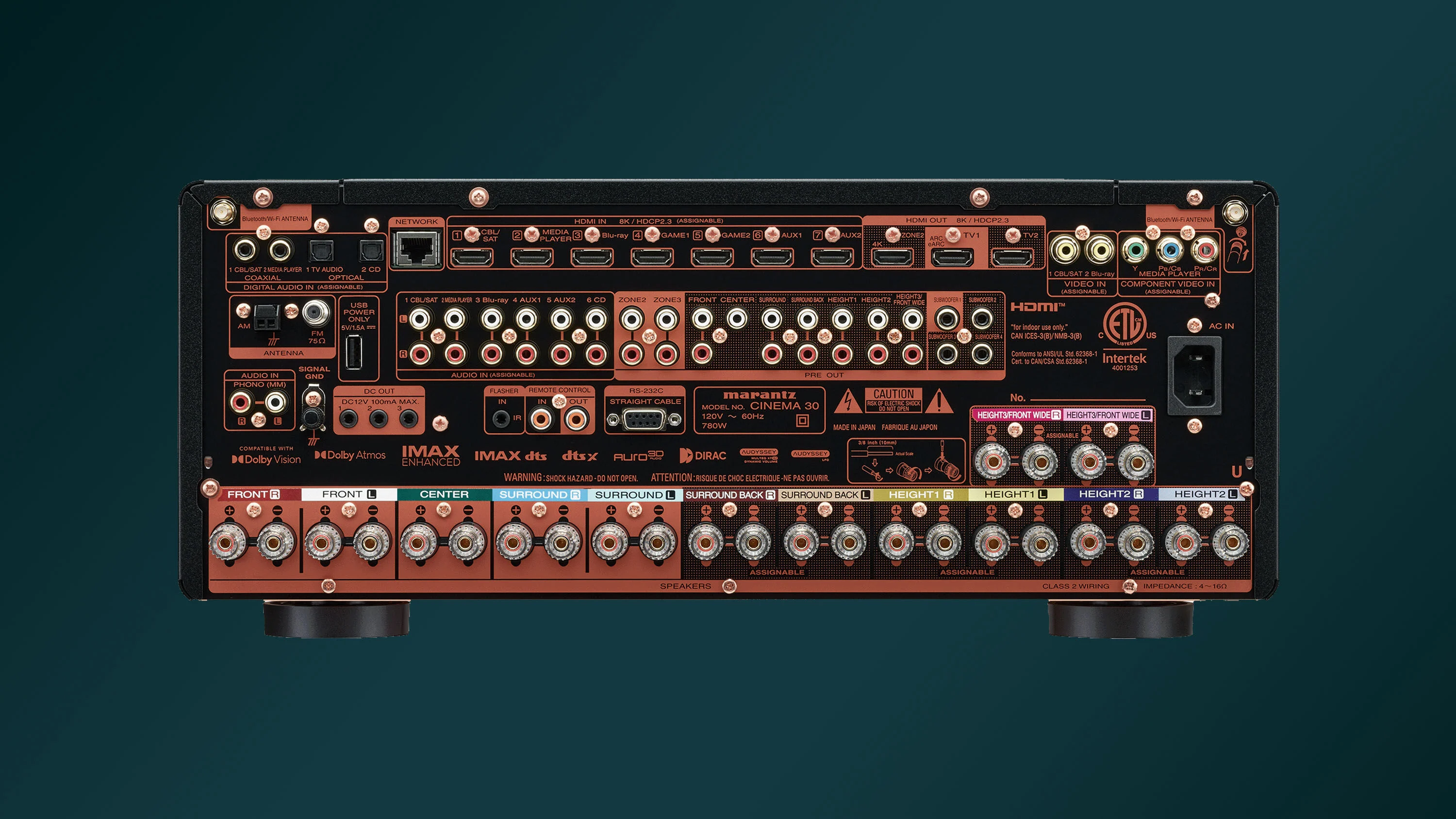

Seven HDMI inputs sit alongside analog, digital and MM phono audio connections, plus analog video support.
Powered by HEOS
Find your music.
Connect your rooms.
Use the HEOS app for supported music services and compatible network music. Group compatible HEOS devices for multiroom playback, or choose a different source in each room where the system supports it.
Service availability depends on region and account. Subscriptions, compatible devices and current firmware may be required. The specifications below identify this model’s supported formats and connections.
System connections
Plan the rest of your system.
From Marantz
Product film
Technical reference
Details & specifications
Technical data from Marantz’s US product page. Power ratings use different loads and test conditions; read the complete entry when comparing models. A dash means no value is supplied. Unsupported or malformed source entries are identified where encountered.
Power Amplifier
- Number of Powered Channels
- 11
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
- -
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)
- 140 W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)
- 175 W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive)
- 250 W
- 70% Guarantee
- Yes
- Discrete Power Amplifier
- Yes
- Amplifier Topology
- Class A/B
- Current Feedback Topology
- yes
- Bi-Amp Drive
- assignable
Multichannel Surround Technologies
- DTS
- DTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual:X
- Dolby
- Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
- Other
- —
- Max Number of Processing (Preamp) Channels
- 13.4
- IMAX Enhanced
- Yes
- Auro 3D
- Yes
- Audyssey DSX
- No
- Multichannel Stereo
- Yes
Inputs Outputs
- Composite In / Out
- 2 / 0
- Component In / Out
- 1 / 0
- HDMI In / Out
- 7 / 3
- Multi-Room Video Out: Video / HDMI
- No / Yes
- Phono (MM) In
- Yes
- Digital In: Optical / Coaxial
- 2 / 2
- Multi-Room Out: analog / digital
- 2 / 0
- Subwoofer Out
- 4 (independent)
- 7.1 multichannel input
- No
- Number of Speaker Terminals
- 13
- Speaker A / B
- assignable
- Multi-Room Speaker Terminal
- assignable
- USB Audio / Made for iPod / Made for iPhone
- Yes / No / No
- AM/FM Tuner
- Yes
- DAB+ Tuner
- No
- Analog In / Out
- 6 / 0
- Multichannel Pre Out
- Yes (13.4)
- Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB-A
- No / No / No / No / Yes
HDMI
- Total HDMI Inputs / No. Support 8K
- 7 / 7
- HDCP2.3 support
- Yes
- HDMI Outputs: Main / Zone
- 2 / 1
- Audio Return Channel
- ARC, eARC
- ALLM (Auto Low Latency Mode) Pass-through for gaming
- Yes
- Variable Refresh Rate / Quick Frame Transport
- Yes / Yes / No
- HDMI Pass-Through in Standby Mode
- Yes
- CEC
- Yes
- DSD Audio over HDMI
- 2-channel – 5.1-channel, 2.8 MHz
- Auto LipSync
- Yes
- HDMI Inputs: Back / Front
- 7 / -
- Video Conversion Analog -> HDMI
- Yes
- HDMI to HDMI Scaling
- 1080P/4K to 8K
- HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB
- Yes / Yes
- 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out
- 7 / 2 (up to 40Gbps)
- HDMI 2.0: 3D / 4K / CEC / ARC
- Yes / Yes / Yes / Yes
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
- Yes / Yes / Yes / Yes / Yes
- Variable Refresh Rate / Quick Flame Transport / Quick Media Switching
- Yes / Yes / No
- 8K signal pass-through / scaling / GUI overlay
- o / o / o
- 4K Signal Pass-Through / Scaling / GUI Overlay
- o / o / o
- DSD Audio Capability
- Yes
Performance Technologies
- Copper Plated Chassis
- Yes
- Toroidal Power Supply Transformer
- Yes
- Hyper Dynamic Amplifier Modules (HDAM)
- Yes
- Pure Direct Mode
- Yes
- Gold Plated RCA Terminals
- Yes
- Clock Jitter Reducer
- Yes
Acoustic Room Correction
- Audyssey
- MultEQ XT32
- Audyssey Dynamic EQ / Dynamic Volume
- Yes / Yes
- Audyssey LFC
- Yes
- Dirac Live Support
- Yes
- Variable Cross Over
- Yes
- Optimized Bass Redirection
- Yes
- Bass Sync
- Yes
- Dirac Live Upgradability
- Yes
Music File Support
- Lossy Formats
- MP3 / WMA / AAC
- Lossless formats
- FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
- DSD Audio
- 2.8 MHz / 5.6 MHz
- Gapless Playback
- FLAC, WAV, ALAC, DSD
- Compressed Audio Enhancer: MDAX2
- Yes
- Network Audio Sharing
- Yes
Streaming Services
- HEOS Multi-room and Streaming
- Yes
- AirPlay Audio Streaming
- AirPlay 2
- Internet Radio
- TuneIn
- Spotify*
- Spotify Connect
- Pandora
- Yes
- SiriusXM
- Yes
- Other Streaming Services *
- Amazon Music HD/Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
- Roon tested
- Yes
Network Connectivity
- Ethernet Ports
- Yes
- Wi-Fi
- Yes
- Bluetooth
- Yes
- Bluetooth Re-transmit for Bluetooth headphones
- Yes (with volume control)
Smart Home Integration and Control
- Voice Assistant Compatibility
- Alexa / Google Voice Assistant / Apple HomePod
- App for Smart Phones & Tablets (iOS & Android)
- Marantz AVR Remote
- HEOS Multi-Room Integrated
- Yes
- HEOS Link Compatibility: IR/ IP
- Yes /Yes
- Multi-Room zones
- 3
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog
- 2 Ch / 2 Ch / Yes / Yes
- Zone Audio Output: Speaker / Preout
- Yes / Yes
- Zone HDMI Output from HDMI Source
- Yes
- Control Connectivity
- IP Control / RS232 Control / Web Control / App Control
- IR Flasher In
- Yes
- Marantz Remote Bus
- Yes
- DC Trigger Output
- 3
- HDMI Diagnostics
- Yes
Others
- Front Display
- 2 line FLD + port hole OLED
- GUI Languages
- 3
- Setup Assistant
- Yes
- Smart Select on Remote
- Yes
- Firmware Update by Network / USB
- Yes / Yes
- ECO Mode
- Yes
- Auto Power off
- Yes
- Sleep Timer
- Yes
- GUI Overlay on HDMI
- Yes
- CEC
- Yes
- Auto Speaker Setup by Microphone
- Audyssey MultEQ XT32 / Dirac Live (upgrade)
- Graphic User Interface - GUI
- Modern HD GUI
- Smart Select
- Yes
General
- Available Colors
- Black / Silver-Gold
- Metal Front Panel
- Yes
- System Remote Control
- RC-051SR
- Power Consumption in W
- 780
- Power Consumption No-Sound (ECO on/off) in W
- 65 W / 110 W
- Standby Consumption in W
- 0.2
- CEC Standby Consumption in W
- 0.5
- Network Standby Consumption in W
- Less than 2.0
- What's in the box
- Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antennas, AC cord
- Weight in lbs.
- 42.8
- Maximum Dimensions: Antenna: Horizontal: (W x D x H) in inches Antenna: Vertical: (W x D x H) in inches w/o Antenna: (W x D x H) in inches
- 17.4 x 18.0 x 7.5 17.4 x 18.0 x 10.2 17.4 x 17.6 x 7.5
