The SPU Classic G MkII is known for its dynamic and powerful sound reproduction

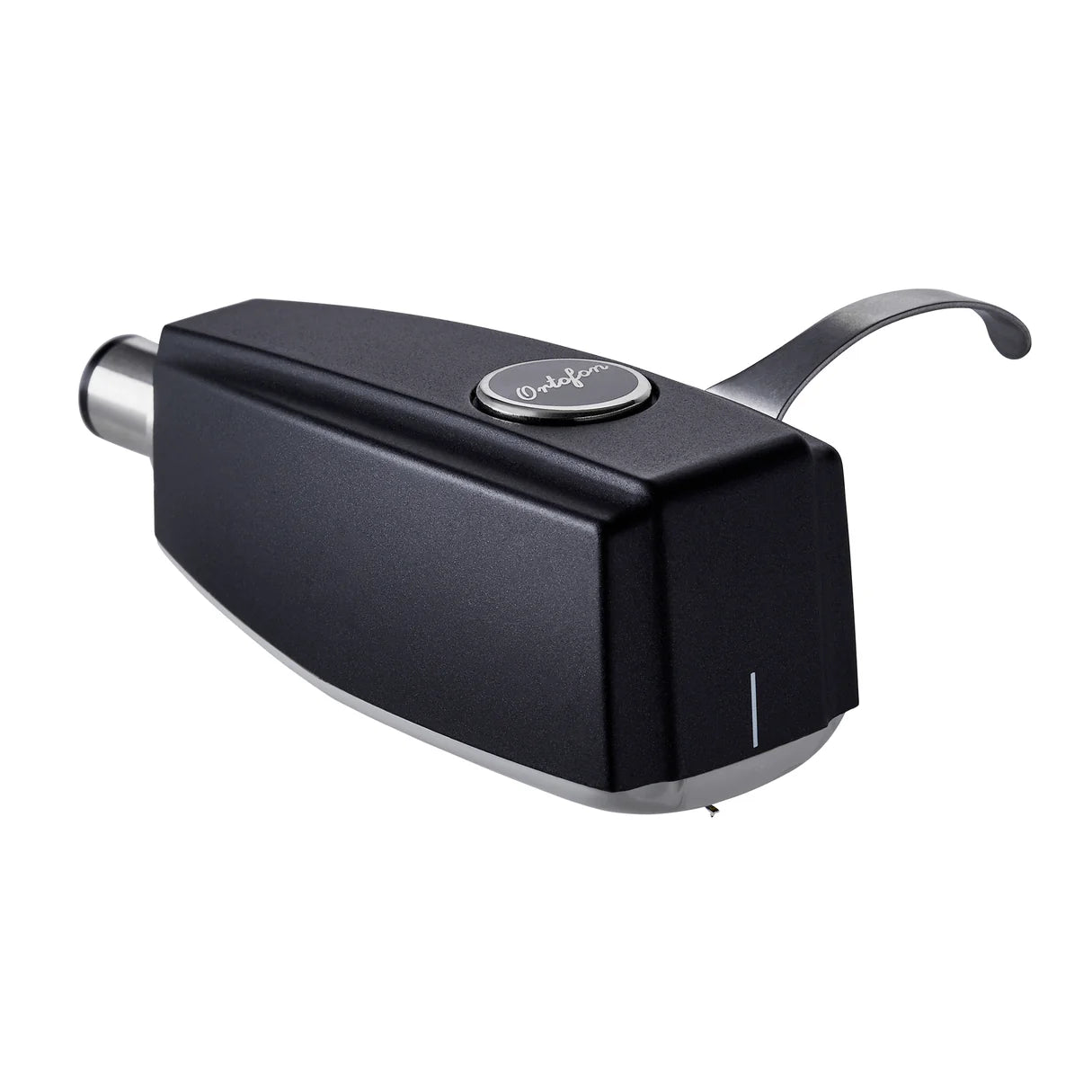

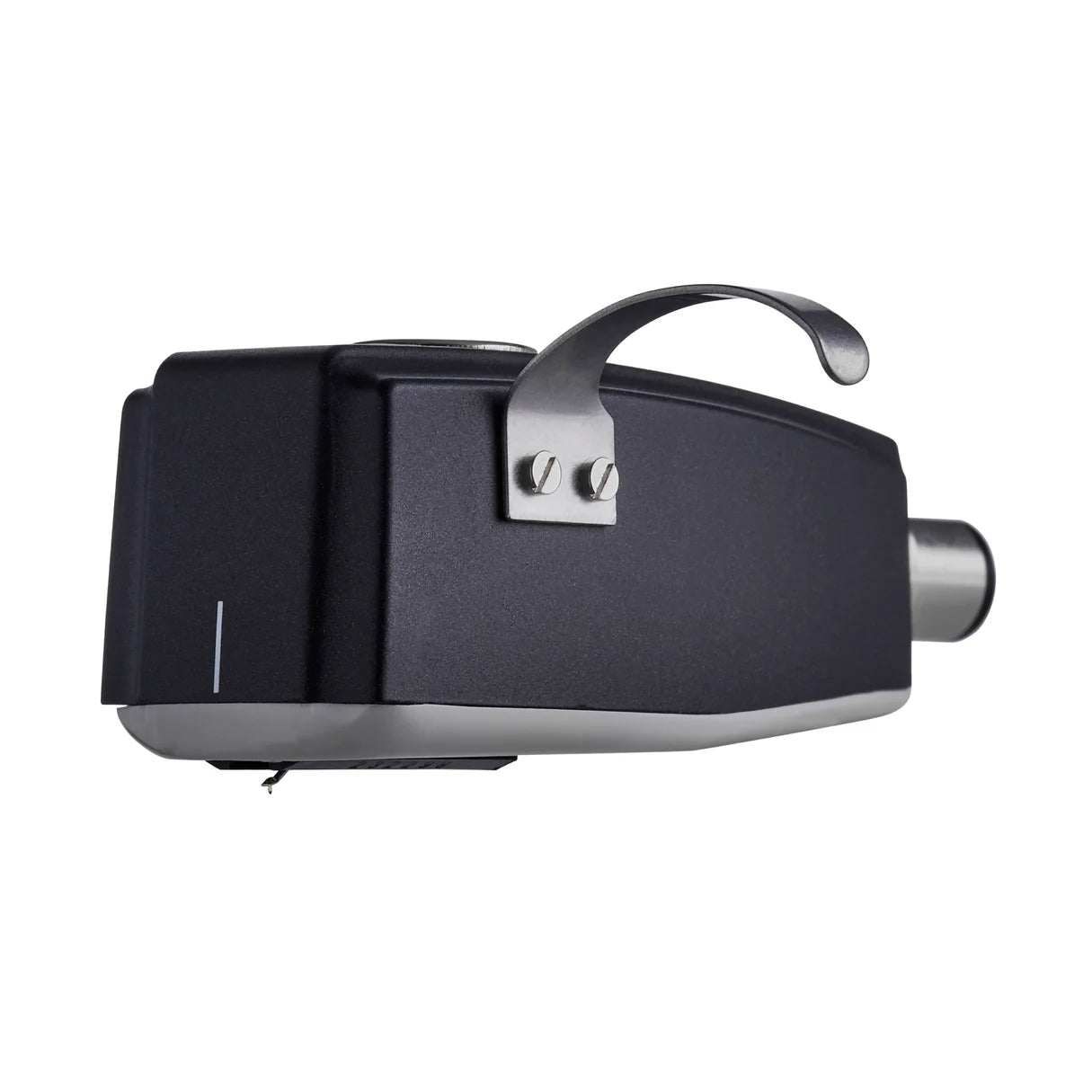

SPU Classic G MKII
The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of early and modern and contemporary stereo recordings.
The SPU Classic G MkII is a Moving Coil cartridge with an 18 µm spherical stylus profile.
Dynamic and powerful sound reproduction
Stylus
The SPU Classic series is known for its dynamic and powerful sound reproduction, without any roughness, minimum of intermodulation distortion, and a splendid channel separation, the images being firm and positive.
The SPU Classic G MkII is a Moving Coil cartridge with an 18 µm spherical stylus profile.
Specifications
Channel balance at 1 kHz
1 dB
Output voltage at 1 kHz, 5cm/sec
0.2 mV
Channel separation at 1 kHz
20 dB
Frequency response 20 Hz - 20 kHz
3/- 3 dB
Tracking ability at 315 Hz
60 µm
Compliance, dynamic, lateral
8 µm/mN
Stylus type
Nude Spherical
Stylus tip radius
R 18 µm
Tracking force range
3.0-5.0 g (30-50 mN)
Tracking force, recommended
4.00 g (40 mN)
Tracking angle
20°
Internal impedance, DC resistance
2 ohm
Recommended load impedance
10 ohm
Coil wire material
High Purity Copper (OFC)
Cartridge body material
Ground wood and resin composite
Cartridge colour
Black matte
Cartridge weight
28 g
