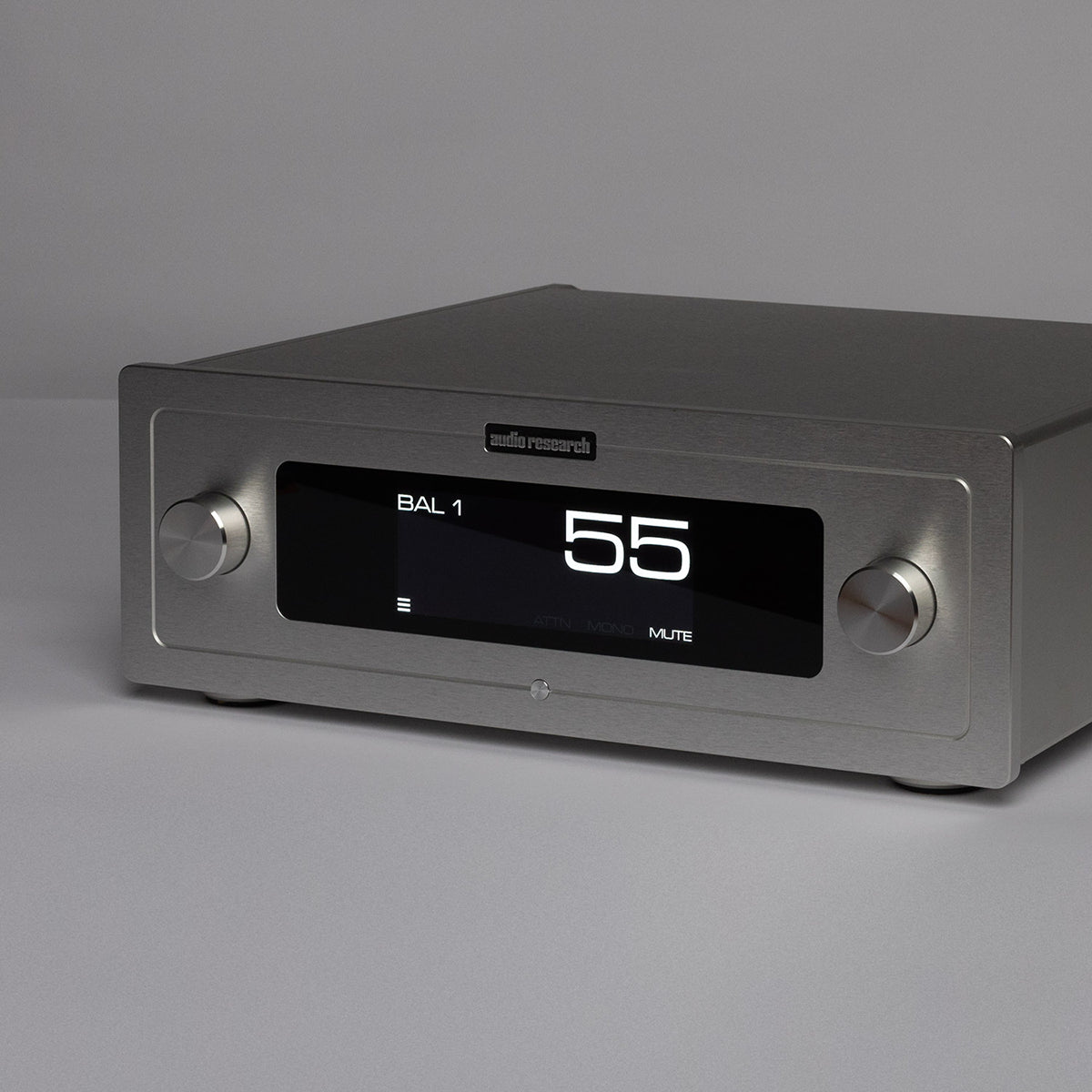

LS-3 Solid State Preamplifier

LS-3

Preamplifier

Inspired by the original LS3 line stage that received numerous awards worldwide in 1992, the modern LS-3 is a solid-state design that utilizes a fully balanced differential JFET input stage, a bipolar transistor-based voltage amp, and Class-A output stages.
The signal path is fully dual-mono, with separate power transformers and zero gain-cascaded voltage reference, and linear power supplies that provide low noise and outstanding dynamics.

LS-3 Solid State Preamplifier
Product Banner

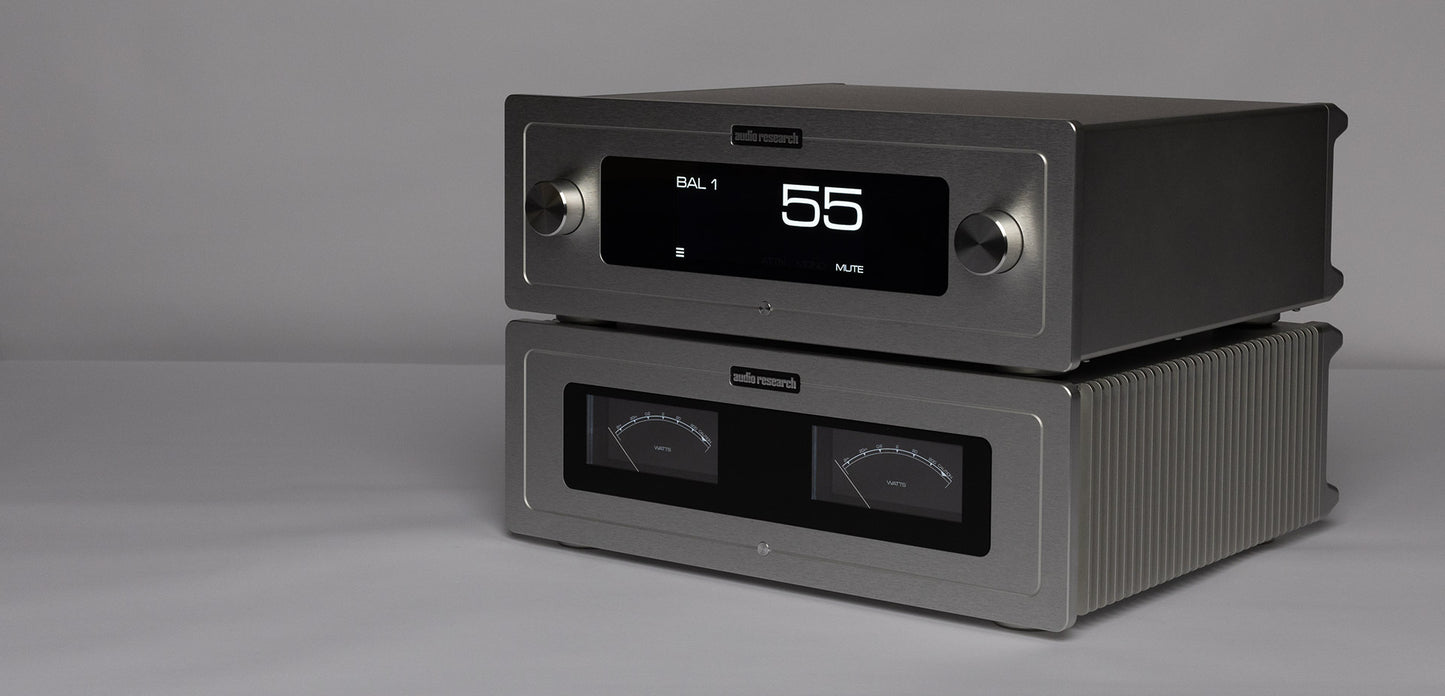

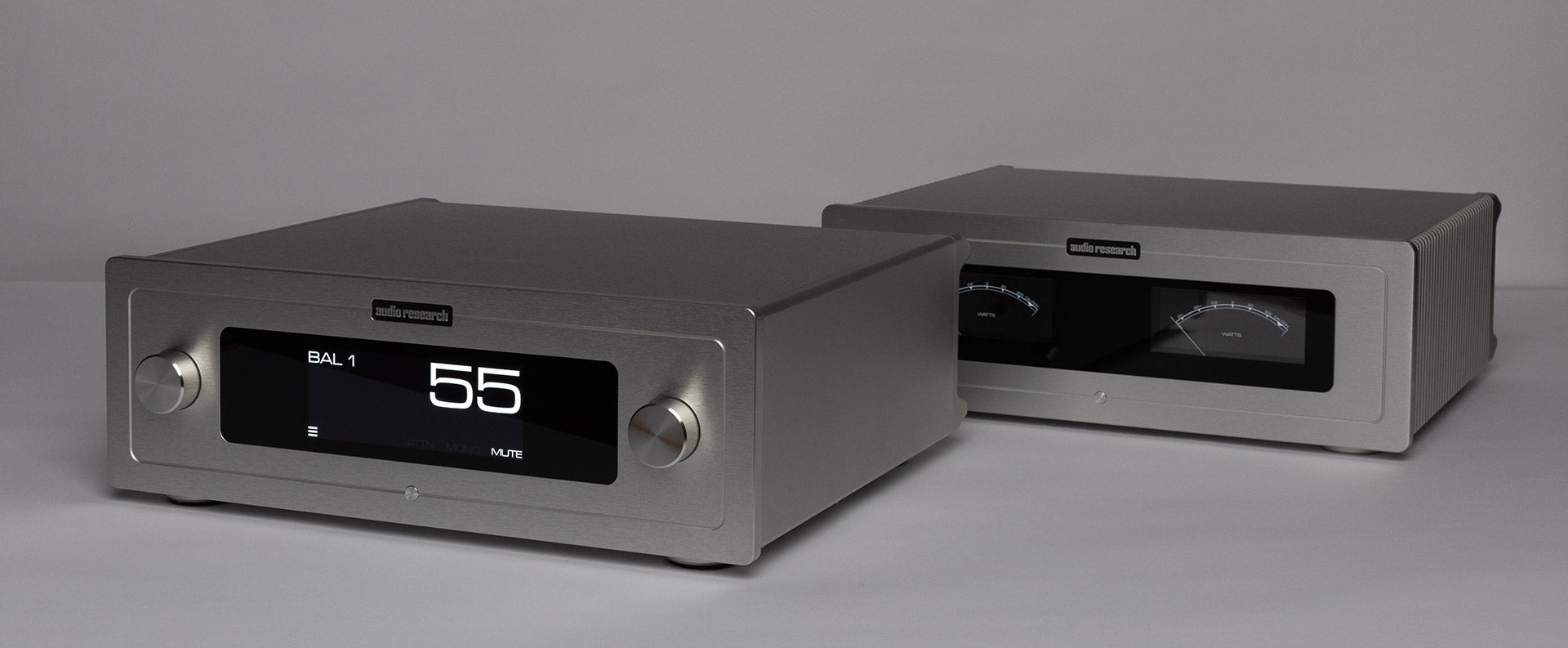

shown with the S-200 power amplifier, the new LS-3 preamplifier showcases the innovative work of our team of solid-state engineers.
LS-3 Solid State Preamplifier

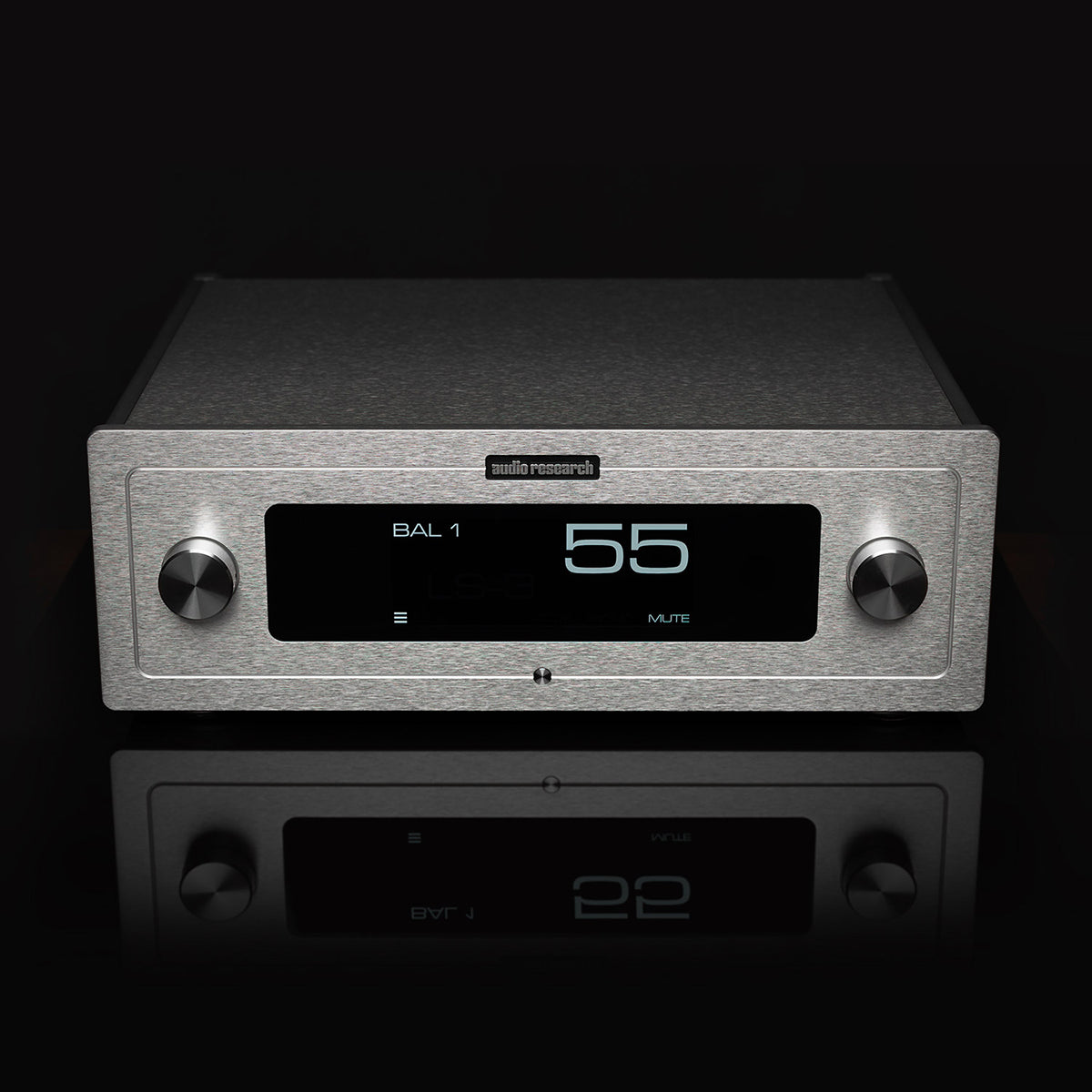

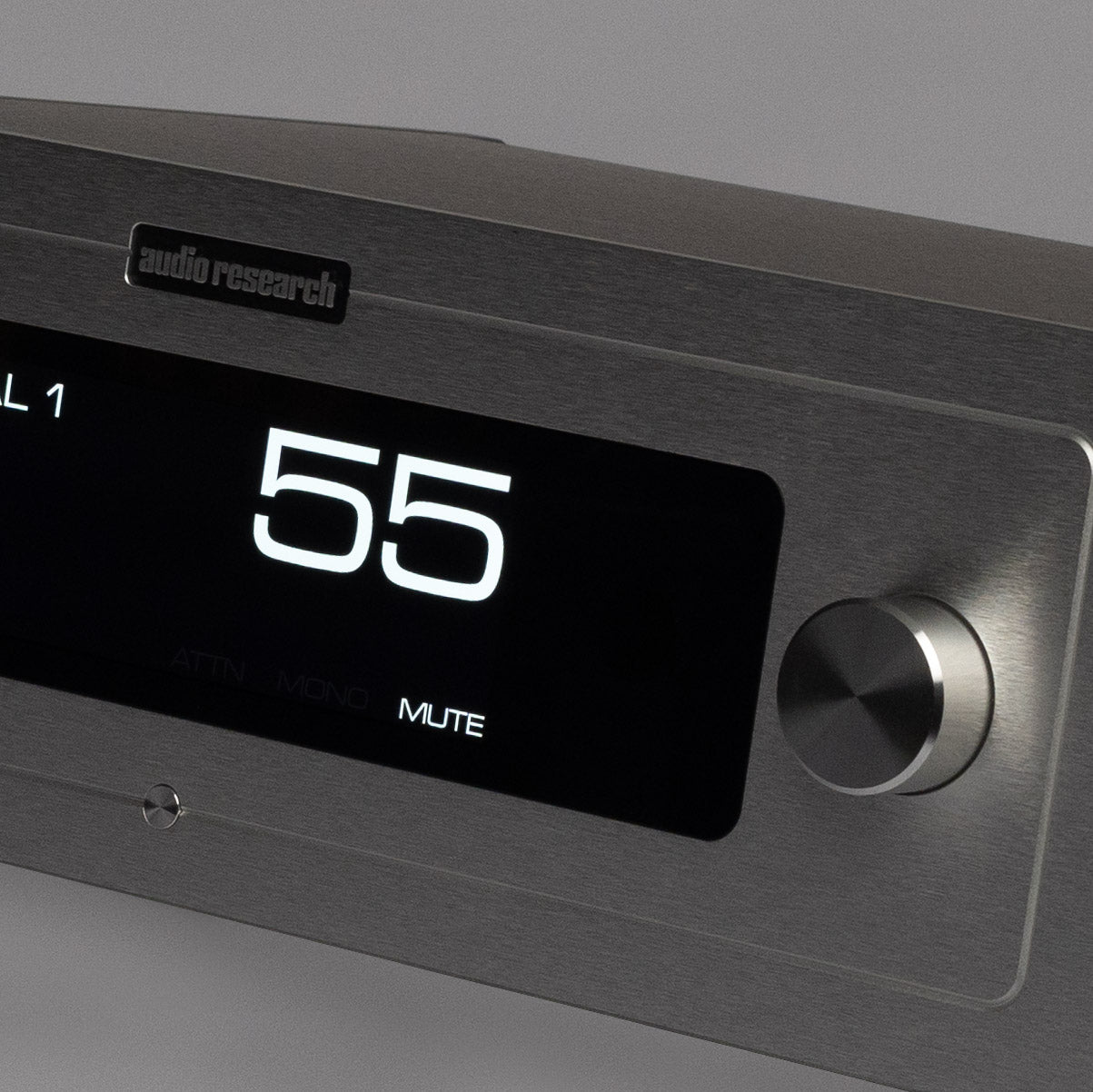

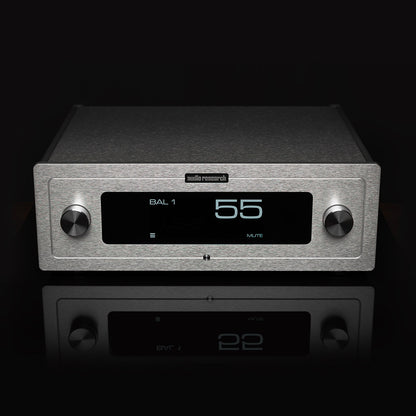

The chassis is elegant and modern, while providing a silhouette that is instantly recognizable as an Audio Research. An all-new touch screen display allows for input naming, adjustment of the display intensity and color selection, plus many other functions. The display carries forward the font style of our Reference GhostMeters® for a cohesive look.

Sources are rendered with a rich tonal balance, speed, dynamics, and a sense of energy that propels the music forward and involves the listener. It also plays big, reproducing the recording space with air, space, and great focus.
The LS-2 and LS-3 share the same, beautiful all aluminum chassis that has been carefully designed to offer the stability and rigidity necessary to isolate this circuit for maximum performance.

LS-3 Solid State Preamplifier
LS-3 Solid State Preamplifier

TECHNICAL SPECIFICATIONS

Frequency Response +/-0dB 10Hz to 40kHz at rated output (Balanced, 100k ohms load)
THD+Noise Less than .007% at 2V RMS BAL output
Noise -75dBV at Max Volume (99)
Crosstalk -82dB
Gain 20 dB Balanced Output
20 dB SE Output
Input Impedanc 25K ohms BAL and SE
Output Impedance 10 ohms BAL, 25 ohms SE
Output Polarity Balanced: Non-inverting
SE: Inverting
Power Requirements 120VAC 60Hz 35W Maximum
Standby 4.2W
Dimensions Width 19" (48.26 cm)
Height 7” (17.78 cm)
Depth 17.5” (44.45 cm)
Weight: 33lbs (15kg) Net, 48lbs (21.8kg) Shipping
