Canor AI 1.20

Integrated Solid-State Amplifier

Premium Line

CANOR AI 1.20 is an integrated solid-state amplifier in pure class-A up to 50 W per channel with a relay attenuator with two standalone blocks for each channel.

Highlights

Operates in a pure class A

264 000 uF of total filtering capacitance

Possibility to create a monoblock connection of 2 units

Main Features

Heat disposal

We used a special copper plate for heat dissipation, which is installed on the heatsink and the power transistors are installed directly on the given copper plate.

Dual-mono connection

Dual-mono connection each channel has its own power transformer. Power transformers are located in separate parts of the device.

Amplifier design

A shielded tunnel passes through the center of the Al 1.20 amplifier, in which filters with nanocrystalline coils are located. In addition, the input circuits are equipped with low-noise J-P transistors.

Monoblock connection

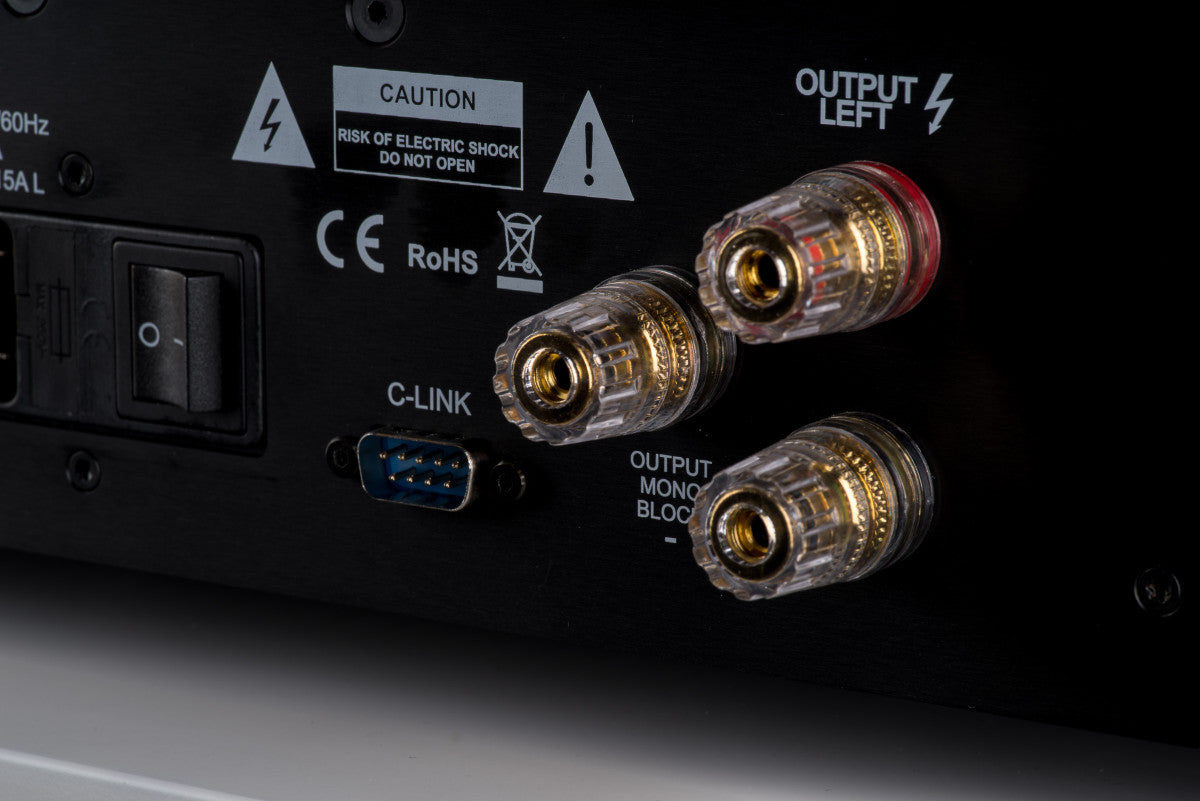

For even better performance and sound, it is possible to connect Al 1.20 as monoblocks using a data cable. One unit becomes the "master" unit and the other the "slave". This is the so-called bridge connection of two amplifiers (a fully symmetrical connection)

Color variants

Black version

Silver version

Gallery

Overview

Product Features

an integrated solid-state amplifier in pure class-A up to 50 W per channel
a relay attenuator with two standalone blocks for each channel
PCB’s utilize our premium CMT™ technology (CANOR® PCB Milling Technology), it is the way we mill printed circuit boards
CMT™ technology originated in a long-standing endeavour to improve the sonic performance of our products
power supply units with filtered out interfering signals from the mains supply
interference-rejection and as small as possible leakage field ensure custom-wound toroidal transformers
264 000 uF of filtering capacitance simulates a nearly stabilized supply voltage
an option of synchronous control enables the use of two amplifiers in a monoblock mode without the need of using an extra preamplifier and that is a Master/Slave mode with an output power of 100W per channel
