EMM Labs

EMM Labs - MTRX/2 Amplifier

Precio habitual $115,000.00 USD
Precio habitual Precio de venta $115,000.00 USD
En oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

More than a decade in the making, these 1000W (1 kW) Class A/B solid-state powerhouses are able to drive the most fiendish and complex speaker loads effortlessly, while sounding as sweet, musical and detailed as a classic single-ended triode tube amps. “It is truly a gentle giant,” as Ed would say.

The MTRX monoblocks achieve their superlative performance and transparency using 21st century technology with proprietary Meitner circuit topologies and zero overall negative feedback.

Hot on the heels of Ed Meitner’s ground breaking reference MTRX amplifier, comes the eagerly anticipated debut of its smaller sibling monoblocks, the MTRX2.

The MTRX2s are 1kW Class A/B solid-state powerhouses built using MTRX technology.

Capable of driving the most fiendish and complex speaker loads effortlessly, while sounding as sweet, musical and detailed as a classic single-ended triode tube amps. “It is truly a gentle giant,” as Ed would say.

The MTRX2 monoblocks achieve their superlative performance and transparency using 21st century technology, along with proprietary Meitner circuit topologies and zero overall negative feedback developed in Ed’s reference MTRX monoblocks.

These monoblocks have been meticulously designed, from its short and fully balanced audio paths throughout, to its proprietary power systems and beautifully finished chassis and custom plated panels.

MTRX2 systems are fully discrete, offering ultra low distortion, very high bandwidth and the ability to deliver massive transient currents instantaneously. It also employs our custom made ceramic PCB boards plus a host of proprietary systems for speaker protection and self-protection.

Conservatively rated at 1000W into 4Ω. The MTRX2 is also completely stable driving difficult, complex loads, and has the uncanny ability to drive low impedance speakers down to an Ohm! All while keeping distortion at miniscule levels.

The MTRX2 monoblock amplifiers just like our reference MTRX amplifiers are designed, manufactured, and built in Canada with no compromise.

Specifications


Frequency Response: DC – 500Khz (Full Rated Power)
Signal to Noise: > 120dB (A Weighted)
THD+N : < 0.005% (20-20Khz, Full Rated Power)
IMD: < 0.005%
Slew Rate: > 100V/μS
Damping Factor: > 1000

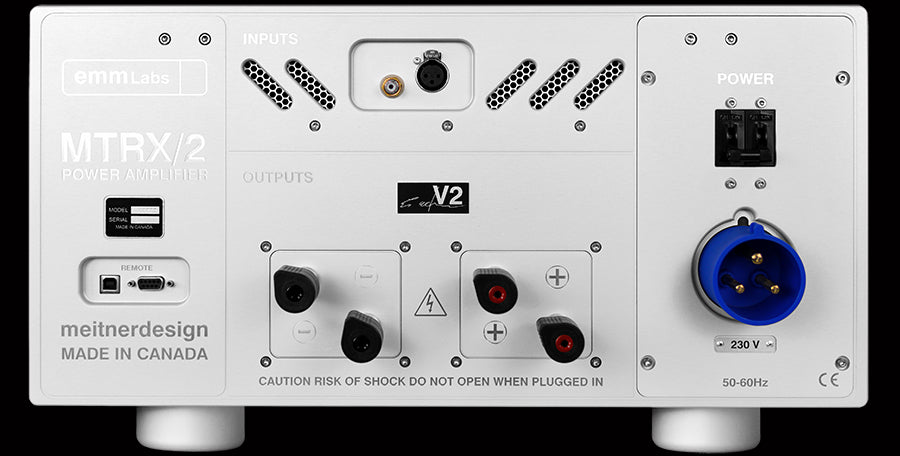

Inputs:
1 Balanced (XLR)
1 Un-balanced (RCA)
1 RS-232 Communication Port
1 USB Communication Port
1 250V/30A IP44 Industrial Power Inlet

Input impedance:
100KΩ Balanced (XLR)
100KΩ Un-balanced (RCA)

Outputs:
2 Sets Furutech Binding Posts

Output Power:
1000W into 4Ω

Power: 100/115/240V, 50/60Hz (Factory Built)

Finish:
Silver and Black Ultrafine CNC Precision Finish
Standard black or premium 24K Gold/Silver/Custom plated insert and power button

Custom Kimber Kable 30A Power Cable

Custom EMM Labs Flight Case

Amplifier Dimensions (W x D x H): 544 x 584 x 297 mm, 21.4 x 23 x 11.7 inches
Weight: 82kg, 180lbs
