Gold Note

Gold Note PA-10 EVO

Precio habitual $2,095.00
Precio habitual Precio de venta $2,095.00
En oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SELECT OPTIONS:

PA-10 EVO
PA-10 EVO
AWARD

Compact and powerful: our new
Mono/Stereo power amplifier

The new PA-10 EVO is a compact and versatile power amplifier, fully balanced and with high-power output, designed for modern High-End audio systems.
Musically engaging and controlled, capable of driving a wide selection of loudspeakers with power and control.

The PA-10 EVO can be used in Stereo or Mono mode, with two units as monoblocks to get the best audio performance. Carefully designed with select components, meticulously assembled and tested by hand, it features the ultra-solid chassis of the Series 10 in solid aluminium, inspired by the Italian style and our modular philosphy. Despite the size, the PA-10 EVO is extremely capable and efficient, delivering up to 140W in Stereo (8Ω) and up to 280W in Mono (8Ω).

Thanks to the adjustable damping factor, the amp can be perfectly matched with any loudspeakers – 3-way floor-standing designs as well as mini-monitors. Featuring both balanced and unbalanced inputs, it can be connected to all sorts of sources and thanks to the GN Link technology, the amp can be easily switched ON/OFF from the source in master-slave mode.

Paired with the DS-10 EVO and the A3 EVO II (or A6 EVO II) loudspeakers, the PA-10 EVO is the ideal power amplifier for a contemporary, compact high-performance system.

Please Note – The PA-10 EVO cannot be matched to the PA-10, but it is fully compatible with all of our electronics, pre-amplifiers and valve output stages.

image 1
image 2
image 3

MAIN FEATURES

POWER OUTPUT(THD 1%)
2x 140W @ 8Ω / 4Ω (Stereo)
1x 280W @ 8Ω / 4Ω (Mono)
FREQUENCY RESPONSE
5Hz-50kHz (@ -3dB)
TOTAL HARMONIC DISTORTION (THD)
0,01% (1kHz @ 1W)
DAMPING FACTOR
High = 250 or Low = 25

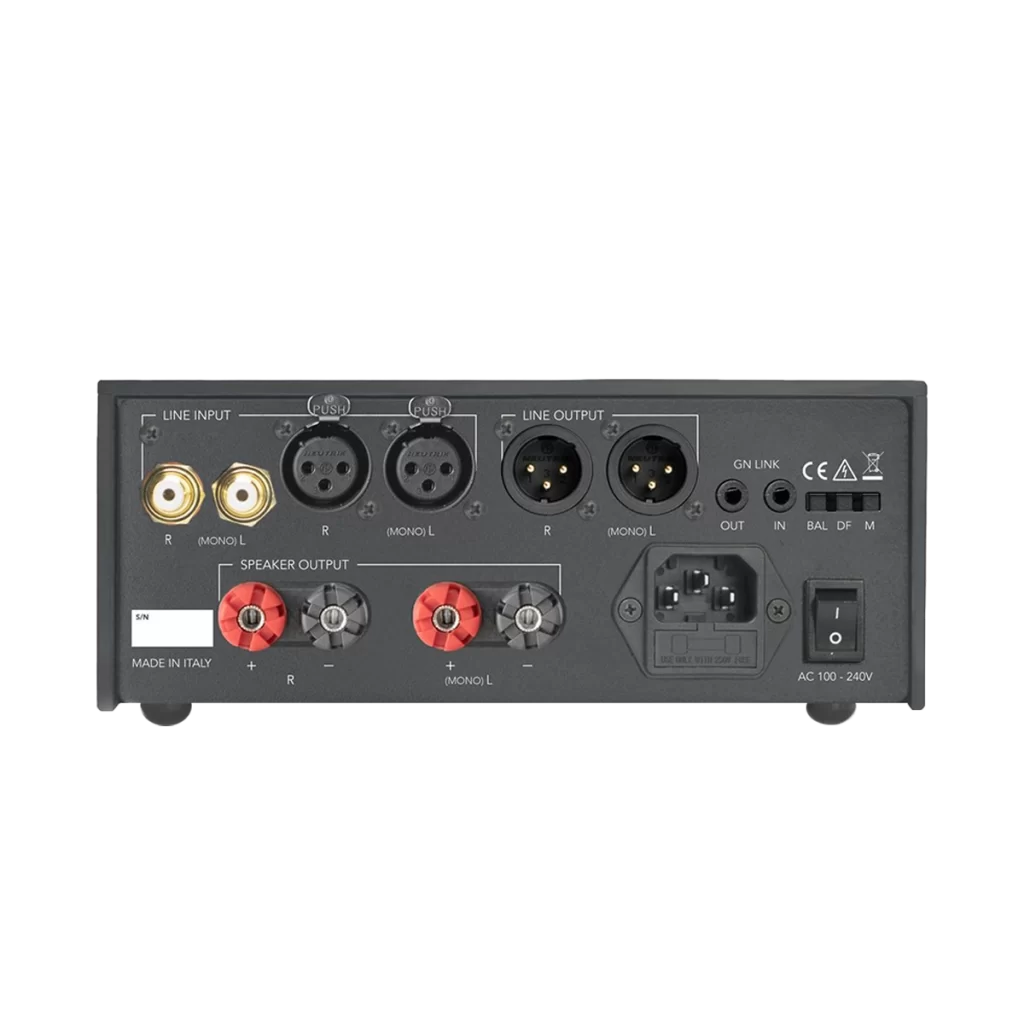

INPUTS AND OUTPUTS

AUDIO INPUTS
1x RCA Stereo unbalanced
1x XLR Stereo balanced
INPUT SENSITIVTY
2,5Vrms RCA/XLR
INPUT IMPEDANCE
3,6kΩ RCA
7,2kΩ XLR
AUDIO OUTPUTS
Speaker terminals: Binding posts

POWER

POWER SUPPLY
100-240V, 50/60Hz
POWER CONSUMPTION
<1W standby
<6W no signal
FUSE
5A T

DIMENSIONS AND WEIGHT

DIMENSIONS
200mm W | 80mm H | 260mm D
WEIGHT
Kg. 3 – net
Kg. 4 – boxed

FINISHES

BLACK
Black anodised aluminium with a traditional brushed finish
SILVER
Silver anodised aluminium with a traditional brushed finish
GOLD
Gold anodised aluminium with a traditional brushed finish

OPERATING CONDITION LIMITS

TEMPERATURE
From 0°C to 35°C
HUMIDITY
90% without condensation
