Marantz

Marantz PM-10

Marantz PM-10

$8,999.00 USD
$8,999.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Color
Shipping Deliveries over $700 - Signature Required!

Ver todos los detalles

Marantz / Integrated Amplifiers

PM-10

PM-10 is a purely analog reference integrated amplifier with 200W per channel into 8 ohms. Its balanced architecture, HDAM circuitry and MM/MC phono stage support a stereo system built around separate sources.

PM10 - Experience the height of elegant listening
2.2 Channels
200 Watts Per Channel

Design & engineering

Inside the PM-10.

PM10 - Optimized Design

Separate tasks within one amplifier

The preamplifier and power-amplifier sections are optimized for their different electrical roles.

PM10 - Pure Marantz Sound

An analog signal path

PM-10 keeps digital source conversion outside the amplifier; compatible sources connect through its analog inputs.

PM10 - Sound Master Tuned

HDAM circuitry

Discrete Marantz modules and the circuit-board layout form part of the analog audio design.

PM10 - Pure Analog

Substantial construction

A double-layer copper-plated chassis, heavy aluminum case panels and machined feet support the mechanical design.

System connections

Plan the rest of your system.

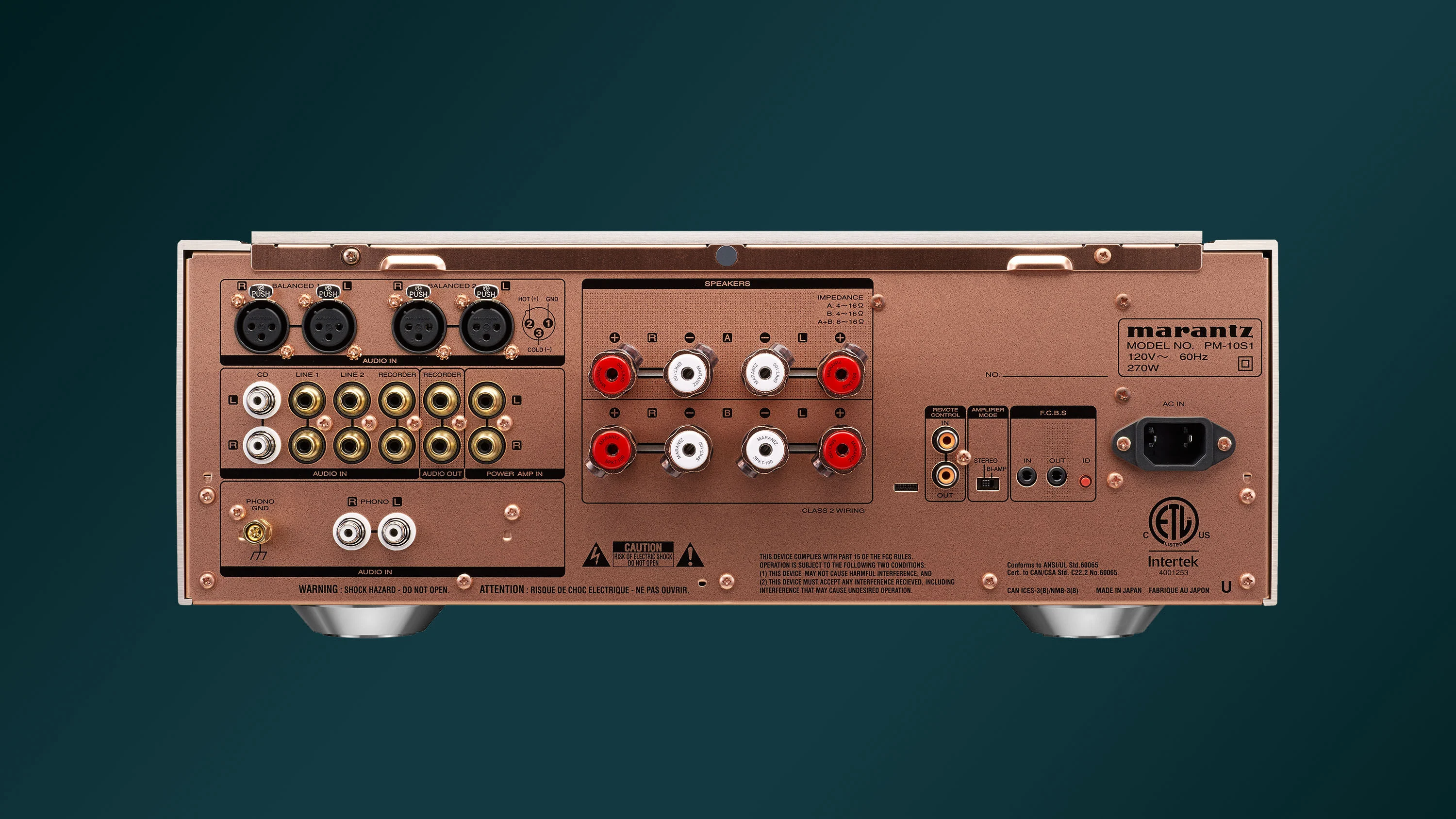

Marantz PM-10 rear connections, US model

Technical reference

Details & specifications

Technical data from Marantz’s US product page. Power ratings use different loads and test conditions; read the complete entry when comparing models. A dash means no value is supplied. Unsupported or malformed source entries are identified where encountered.

Features
Channels
2
Current Feedback Topology
Yes
Full balanced circuitry architecture
Yes
Double Mono Power Amp construction
Yes
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium
No / No / Yes
Digital in: USB-B / optical / coaxial / USB-A
No / No / No / No
Sample Rate digital In
No
USB-A: DSD / WAV / FLAC / AIFF / ALAC
No
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6
No
USB-B PCM sample rate
No
DAC chip
No
Asynchronous mode rear USB
No
Bit-perfect transmission
No
Ground isolator for DAC Mode operation
No
Bluetooth / aptX / NFC
No
Streaming audio from PC
No
Wi-Fi / Wired LAN
No
Internet radio
No
AirPlay Audio Streaming
No
Windows Play to
No
vTuner / Spotify*
No
DLNA certified
No
DSD-Audio network streaming
No
Lossy formats: MP3 / WMA / AAC
No
Lossless formats: DSD / FLAC192/24 / ALAC96/24 / WAV192/24 / AIFF192/24
No
Gapless Playback
No
Remote APP: iDevice / Android
No
Analog Mode
No
HDAM version
SA3
Power Transformer: Toroidal / El
SMPS
High Grade Audio Components
Yes
Customised Components
Yes
Symmetric PCB Layout
Yes
Aluminium extrusion heat sink
Yes (Separate)
Copper Plated Chassis
Yes
Tri Tone Control (Bass / Mid / Treble)
No
Balance / Bass / Treble / Loudness
Yes / No / No / No
Others
Marantz Musical Digital Filtering
No
Linear Drive Power Supply
Yes (pre-amplifier stage)
Liniear volume control
Yes
BI-AMP and Multichannel option
Yes
Shottky diodes
Yes
Input buffer amp (all inputs / CD only)
Yes / No
System block shielding: Copper / metal / none
Yes / No / No
Double Layer Bottom Plate
Yes
Low Noise OELD display
No
Low noise LCD display
Yes
Source Direct
No
Power Amp direct
Yes
5mm aluminium top plate
Yes
Inputs Outputs
Audio Inputs
7
Digital in: USB-B / optical / coaxial / USB-A
No / No / No / No
Phono Input: MM / MC
Yes / Yes
Audio Outputs
1
Balanced In / Out
2 / No
Pre-out / Main-in
No / No
Power Amp Direct IN
Yes
Gold Plated Cinch
Yes / CD & Phono nickel-plated
Speaker A / B
No
Speaker Terminals
Marantz SPKT-100+
Number of terminals
4
D-Bus
Yes
Floating Control Bus (3.5 mm mono jack x 2)
Yes
Headphone Out
Yes
Headphone Gain Control (low / mid / high)
No
Specifications
Power Output (8 / 4 Ohm RMS)
200 W / 400 W
Frequency response
5 Hz - 50kHz
Total Harmonic Distortion
0.01%
Damping Factor
500
Input Sensitivity: MM
2.6 mV / 47 kohm
Input Sensitivity: MC
280
Input Sensitivity: High level
400 mV / 20 kohm
Input Sensitivity: Balanced High level
800 mV / 40 kohm
Signal to Noise Ratio: High level
111 dB(2V input/Rated output)
Input Sensitivity: Power Amp Direct IN
1,5 V / 20 kohm
Signal to Noise Ratio: Power Amp Direct IN
113 dB
General
Available Colors: Gold / Silver / Black / Silver-Gold
Yes / No / Yes / No
Metal Front Panel
Yes
Power Consumption in W
270
Standby Consumption in W
0.3
Auto Power off
Yes
Detachable Power Cable
Yes
Remote Control
RC004PMSA
System Remote Function
Yes
Maximum Dimensions (W x D x H) in mm
440 x 453 x 168
Weight in kg
21.5
