Monitor Audio IV140
This product may take 3 to 5 business days to fulfill.
No se pudo cargar la disponibilidad de retiro

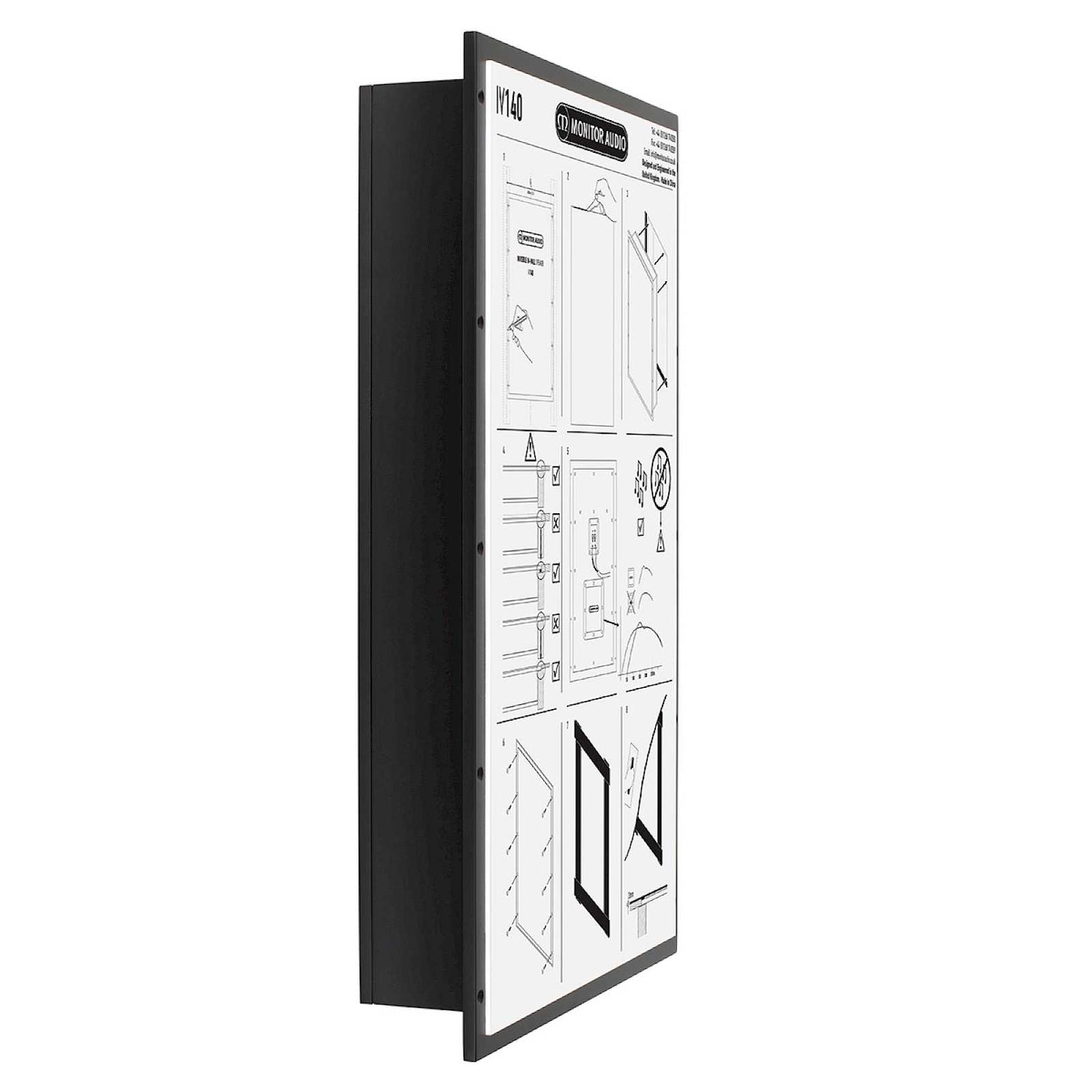

The Monitor Audio IV140 invisible speaker is designed to deliver ‘best in class’ audio performance in concealed in-wall and in-ceiling applications.
Key Features:
- Low-Frequency transducer
- Dual High-Frequency transducer
- Integrated ‘hybrid’ controlled performance back box system
- Rigid MDF back box construction
- Gold-plated Sprung push-type terminals
- WBIV140 Pre-Construction Bracket
- Self-tapping screw
Innovative sound solutions

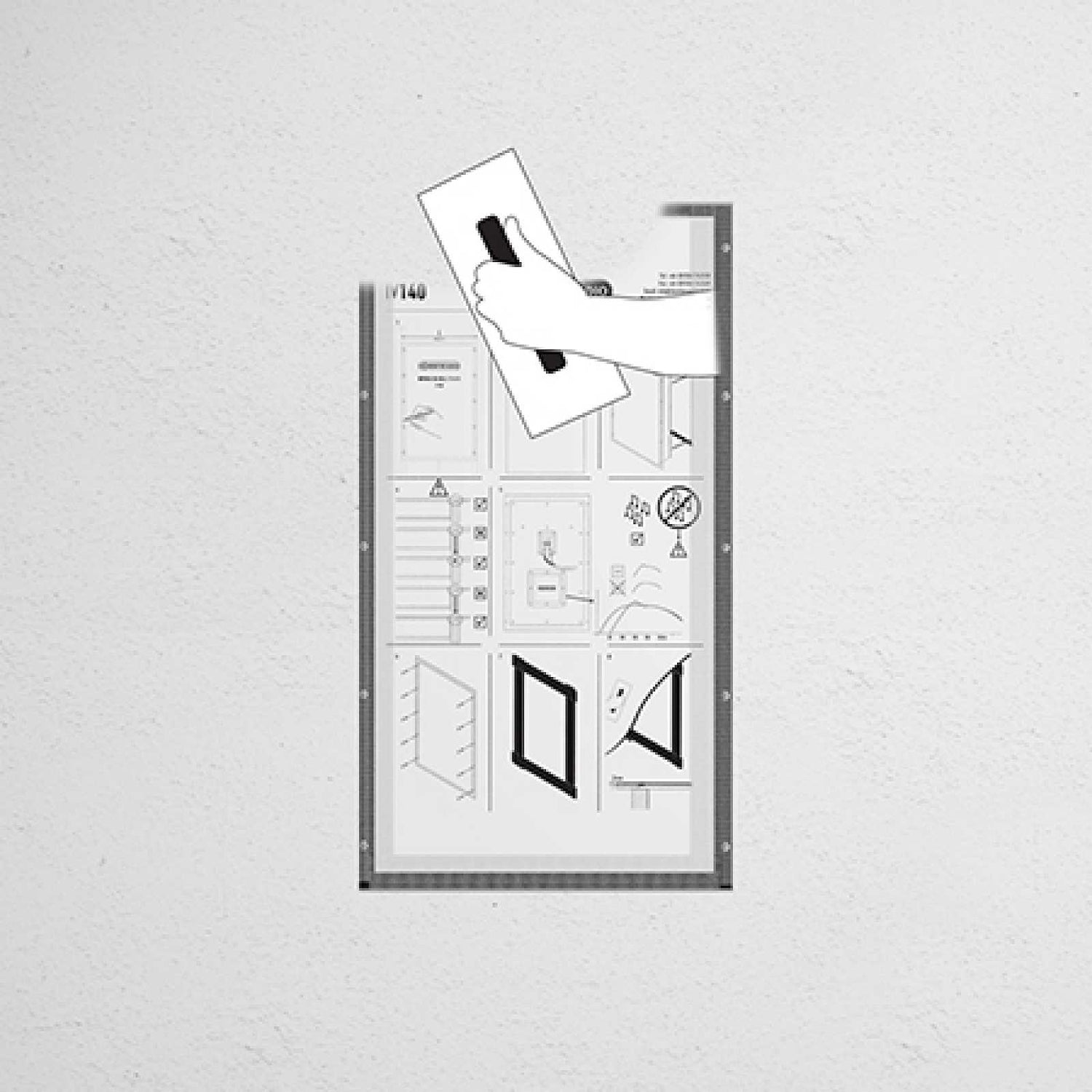

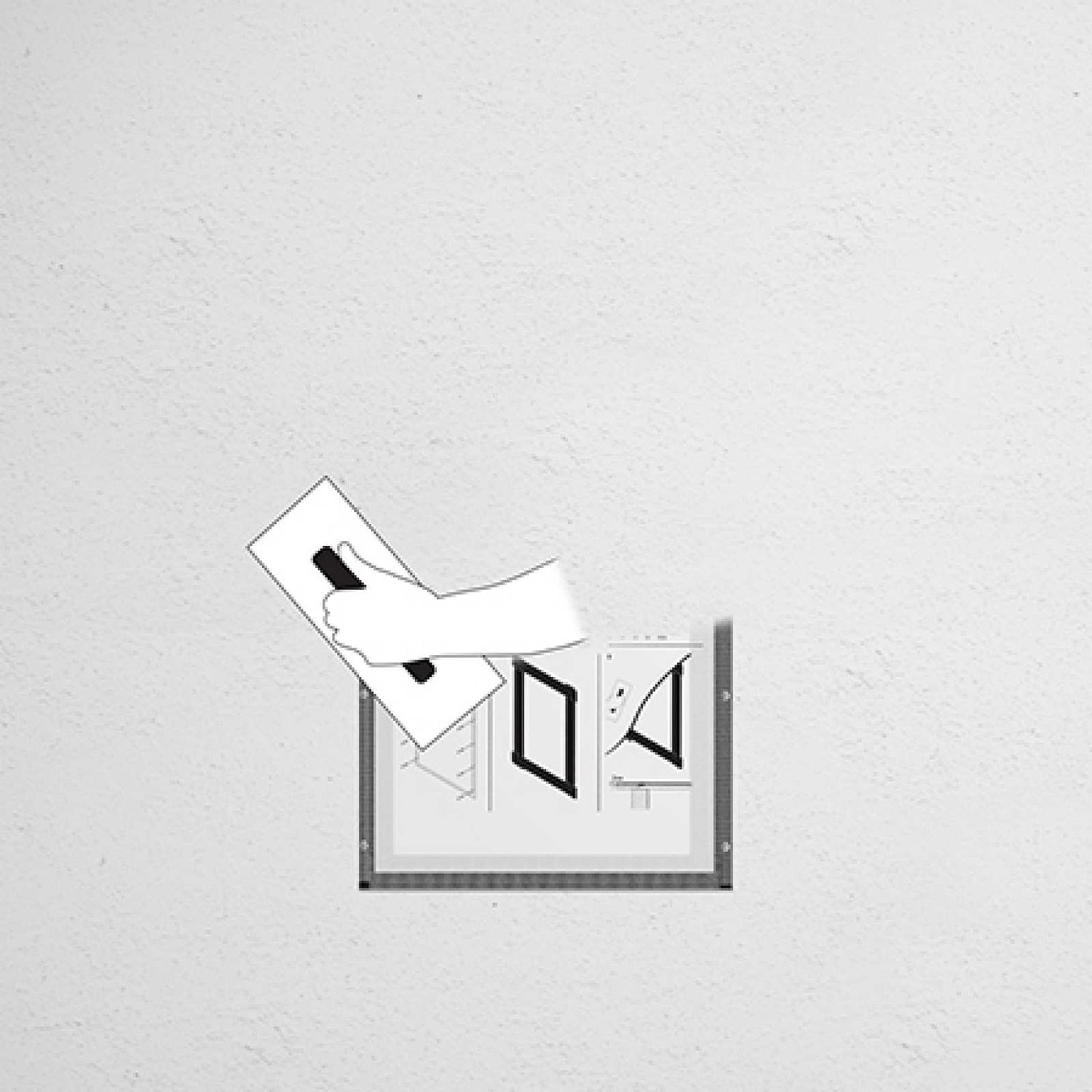

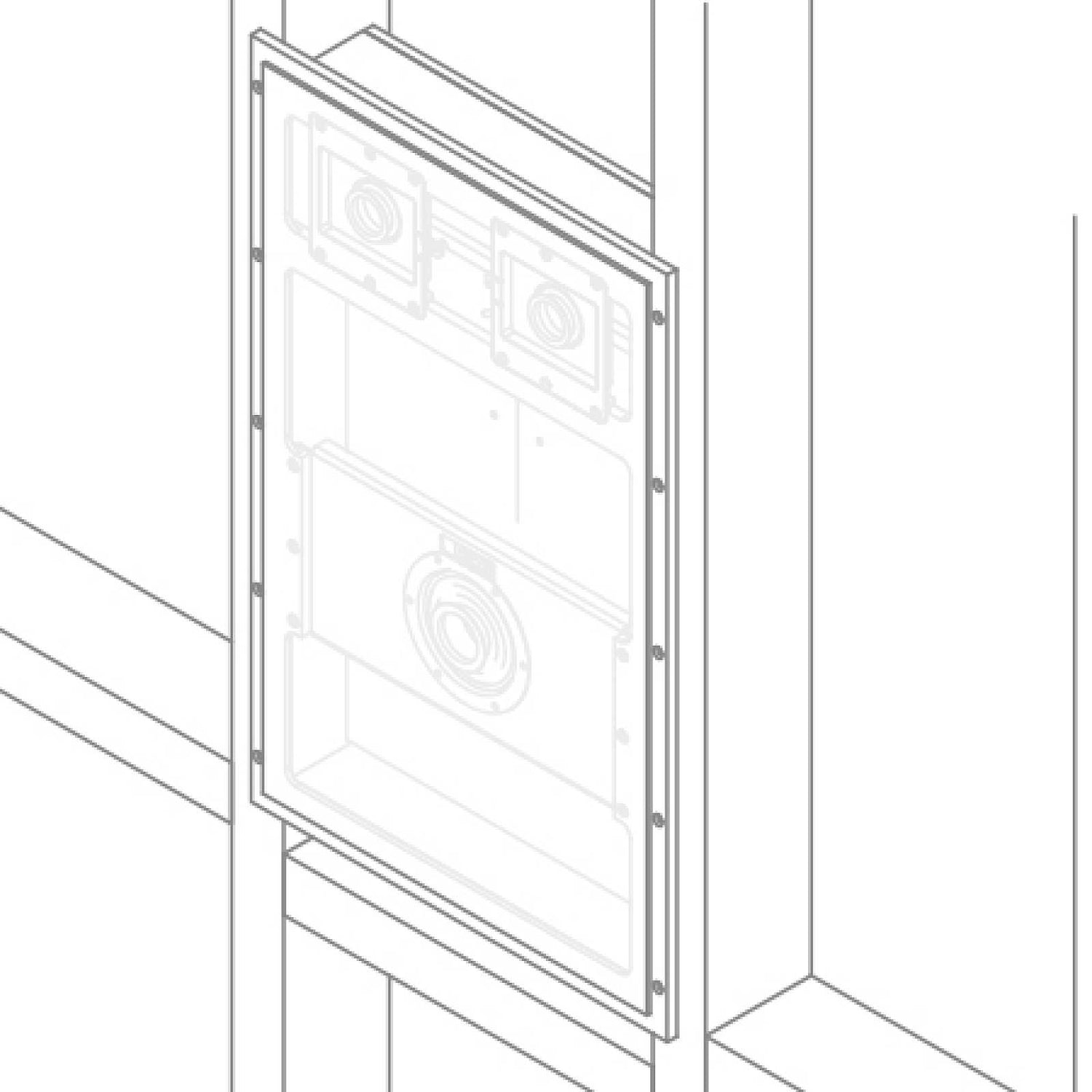

Concealed in-wall or in-ceiling, the speaker fits into all conventional 4" stud bays, leaving enough room for cabling. Once installed and skimmed with plaster, the speaker is completely out of sight, with paint, light wallpaper, or fabric hiding it from view.
A large low-frequency transducer and two high-frequency transducers provide punchy, high-power bass and sound vibration. This two-way transducer design also features an integrated crossover to generate a wider frequency range and deliver crystal clear sound quality with smoother overall balance and character.

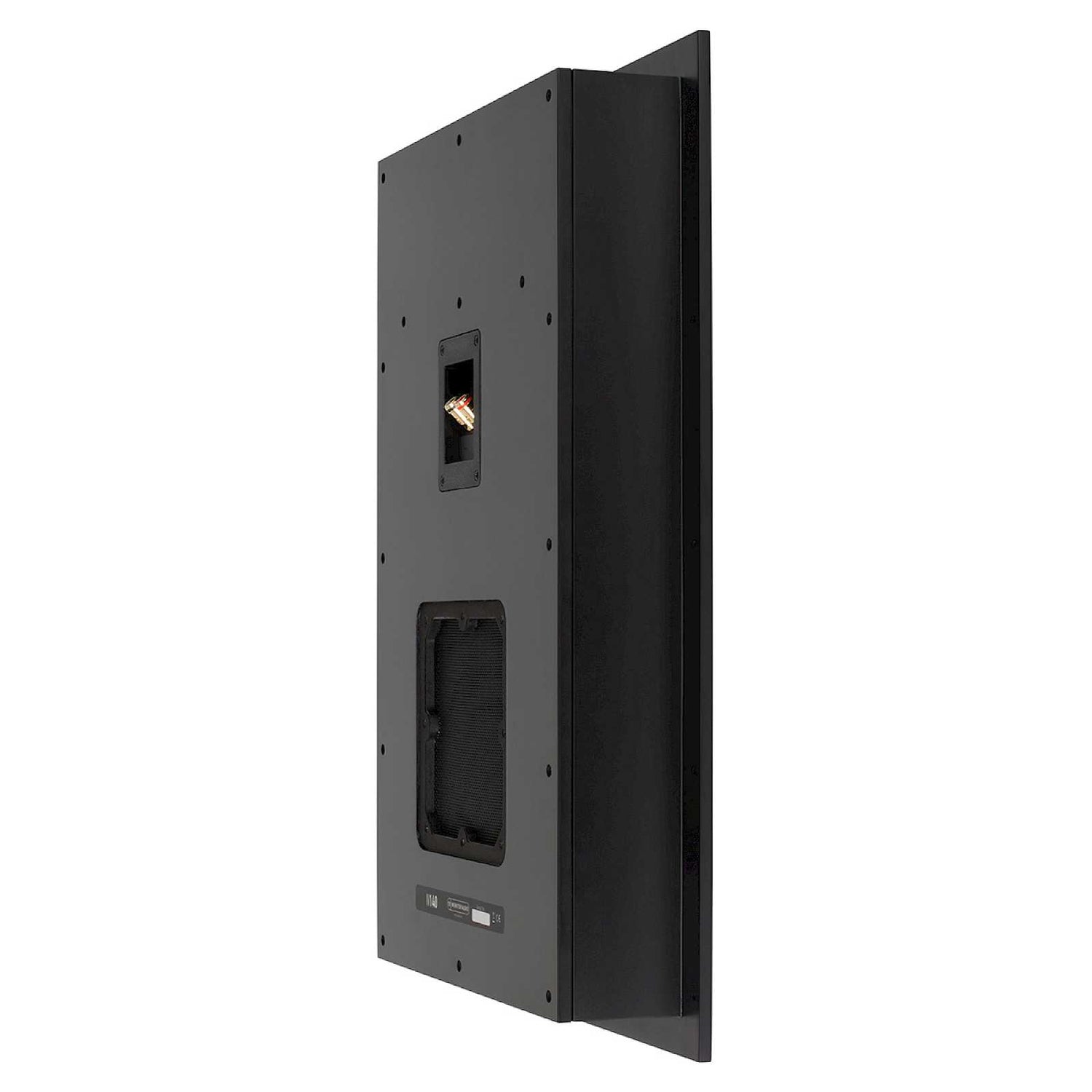

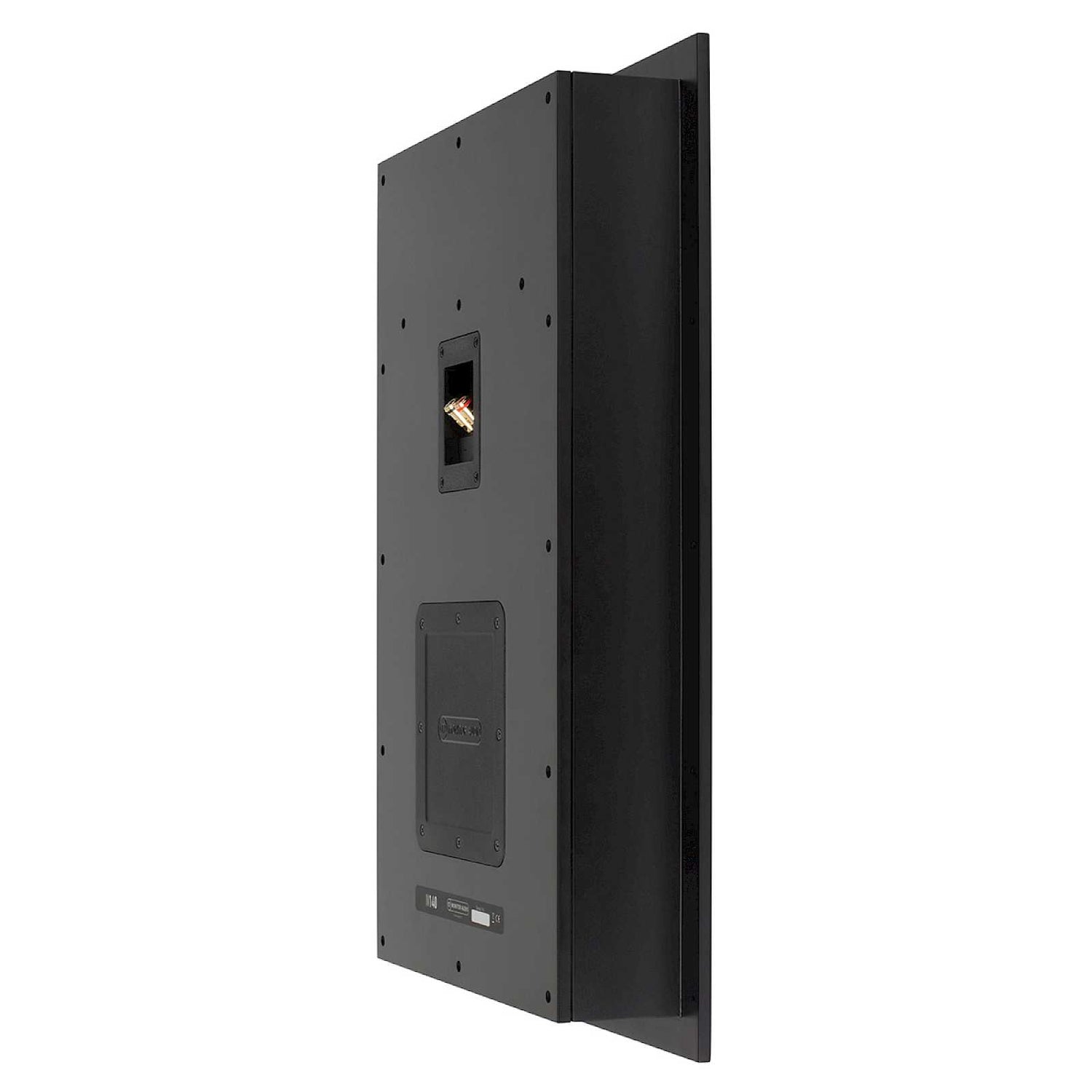

An integrated back box design isolates sound and ensures consistent, controlled performance. This rigid back box reduces sound emitted from the rear of the speaker, minimising leakage into other rooms.
Monitor Audio’s IV140 is protected against overload by automatic resetting circuit breakers (PTC). These will attenuate output for a specific time period to allow the system to cool until normal operation can safely resume.
Specifications
Category |
Details |
|---|---|
| Frequency Response (-6 dB) |
75 Hz — 18 kHz (CP sealed) 55 Hz — 18 kHz (Open back) |
| Sensitivity (1W@1M) | 82 dB (when installed as directed) |
| Nominal Impedance | 8 ohms |
| Maximum SPL | 102.8 dBA |
| Power Handling (RMS) |
50 Watts (full range – IEC268-5 rating) 100 Watts Music program (Using Minimum 80Hz High Pass filter) |
| Recommended Amplifier Requirements |
20-50 Watts (full range) 20-100 Watts (Using Minimum 80 Hz High Pass filter) |
| Drive Unit Complement |
1 x Low-Frequency transducer 2 x High-Frequency transducer |
| Overall Dimensions (Including Grille - H x W x D) | 642 x 401.5 mm (251/4 x 1513/16") |
| Overall Depth | 106 mm (43/16") |
| Cut-Out Dimensions | 591 x 350.5 mm (231/4 x 1313/16") |
| Mounting Depth | 94 mm (311/16") |
| Connection | Sprung push type terminals – Gold plated |
| Fixing Type | Self-tapping screw |
| Construction Material | 9 mm MDF |
| Colour / Finish | Black painted, white membrane |
| Pre-Construction Bracket | WBIV140 Pre-Construction Bracket |
| Weight | 9 kg (20 lb) |
| Sold As | Single Unit |
| Warranty | 5 years |
Innovative sound solutions
Monitor Audio has a range of cleverly designed, ultra-discreet speaker solutions that enable sound to be integrated with the minimum of interior space intrusion. Packed with innovative acoustics technologies, each model provides lifelike sound performance that has become synonymous with the brand.
IV140
Bringing Monitor Audio’s legendary expansive audio performance to any room, the IV140 couldn’t be more discreet. Once installed and skimmed with plaster, the two-way speaker disappears completely out of view. Choose to finish the illusion with wallpaper or paint.
