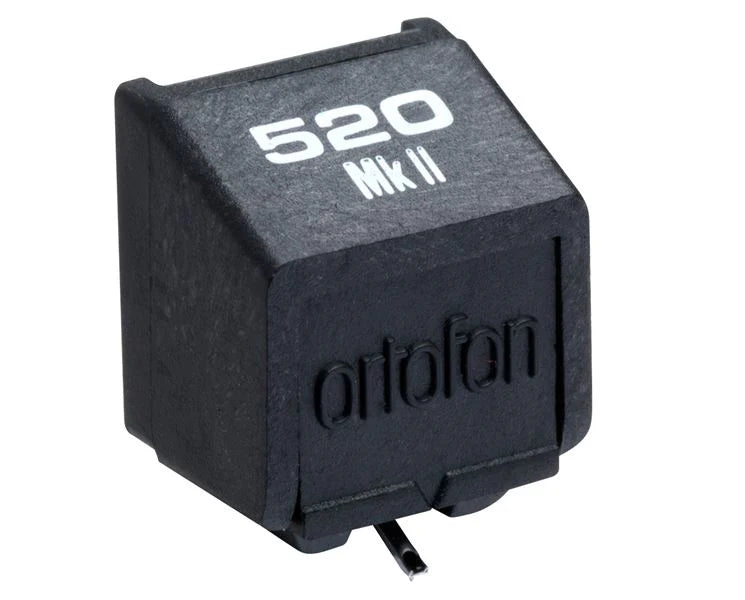

Stylus 520 MK II
Ortofon stylus 520 MkII for the Series 520 MkII, 520, and 520 P.
Specifications
Frequency response 20 Hz - 20 kHz
2 /- 3 dB
Tracking ability at 315 Hz
70 µm
Compliance, dynamic, lateral
25 µm/mN
Stylus type
Nude Elliptical
Stylus tip radius
r/R 8/18 µm
Tracking force range
1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended
1.5 g (15 mN)
Tracking angle
20°
Stylus colour
Black
