Focal
Focal 100 IWSUB8 & 100 IWSUB8 AMPLIFIER
SELECT OPTIONS:
This product may take 3 to 5 business days to fulfill.
Couldn't load pickup availability
FOCAL 100 IWSUB8 & 100 IWSUB8 AMPLIFIER
This combo included: 1x100 IWSUB8 & 1x100 IWSUB8 AMPLIFIER
100 IWSUB8 AMPLIFIER - AN IMMERSIVE LISTENING EXPERIENCE
THE HIGH-POWER SUBWOOFER AMPLIFIER
Designed for integration, with rack-mountable design, 100 IWSUB8 Amplifier delivers a peak power of 200 watts and a continuous power of 150 watts under 4 ohms, whilst ensuring a high-level electronic protection. Specially tailored for the passive subwoofer 100 IWSUB8, this amplifier is able to power up to two subwoofers connected in parallel.
This powerful combination is the ideal add-on to a 100 Series audio/video setup, delivering an unique ambiance and sound coverage in your living spaces.
PERFORMANCE
KEY POINTS
Peak power: 200W (continuous power : 150W under 4Ώ).
Amplifier able to drive 2 x 100 IWSUB8 subwoofers connected in parallel.
High-level electronic protection (dynamic power control, thermal protection, short circuit, fuse, and over-current protection).
Flush potentiometers.
Dimensions (HxWxD): 1¾ x 16⅞ x 10⅛" [44.5 x 429 x 257mm]
- Height with stands: 2⅟16"
- Width with brackets: 19"
High-power
ABLE TO POWER UP TO TWO 100 IWSUB8 SUBWOOFERS
100 IWSUB8 Amplifier delivers a peak power of 200 watts and a continuous power of 150 watts under 4 ohms, whilst ensuring a high-level electronic protection. This amplifier is able to power up to two subwoofers 100 IWSUB8 connected in parallel.

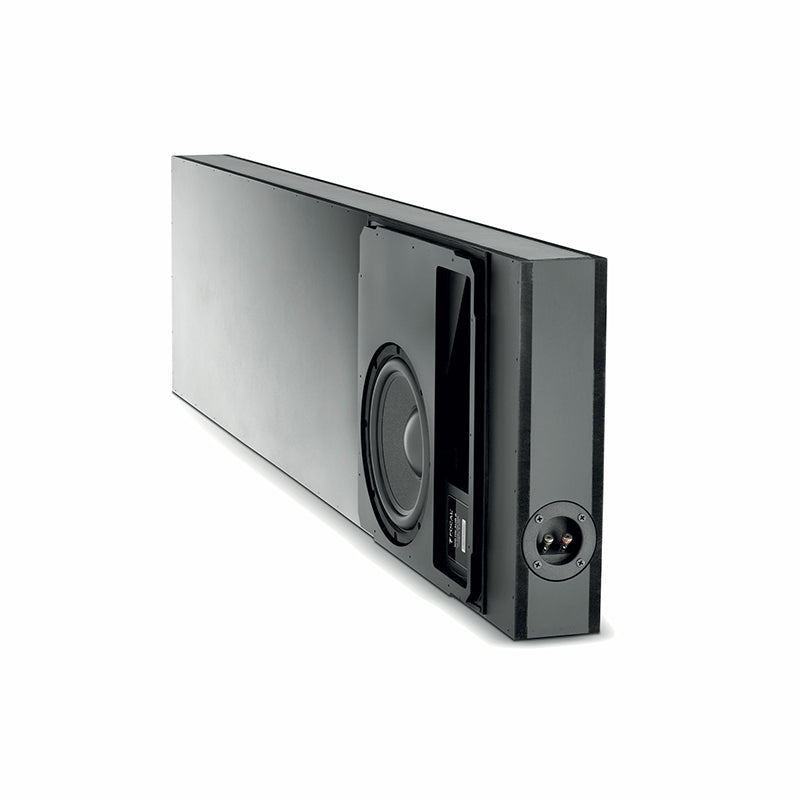

100 IWSUB8 - SENSATIONAL BASS
HIGH POWER PASSIVE BASS-REFLEX SUBWOOFER
Complete your 100 Series audio/video system with the subwoofer 100 IWSUB8. Including an 8" Polyglass speaker driver and a front vent with a streamlined inner frame to guarantee no-noise operation, this passive bass-reflex subwoofer can be installed during pre-construction of the walls using 16" OC joists. With a shallow in-wall depth (33/8"), a high-quality bass reproduction and covered with a low profile magnetic grille which can be painted, it is as high-performance as it is discreet!
In a bid to design the very best products and combinations of audio solutions for create an unique ambiance, Focal has developed a dedicated easy-install amplifier specially tailored for this subwoofer: 100 IWSUB8 Amplifier.
PERFORMANCE
POWERFUL AND DISCREET
KEY POINTS
- Bass cut-off frequency: 30Hz to -6db
- Low depth (3⅜" / 86mm) fitting 16" OC studs in-wall installation.
- Nominal impedance of 8Ω, able to be connected by pairs with 100 IWSUB8 Amplifier.
- Dimensions (HxWxD) : 513/16 x 13⅞ x 3⅞" (1,300 x 352 x 98mm)
Installation
READY-TO-PAINT GRILLE
- metal low profile grille
- ready-to-paint
- magnetic fixing on mounting frame
SPECIFICATIONS
100 IWSUB8 AMPLIFIER |
|
| Type | Subwoofer amplifier |
| Power (continuous) | Max 200W, 150W continuous (4Ώ) |
| Minimum load | 4Ώ |
| Voltage range | 100-120V~60Hz / 220-230V~50Hz |
| Power consumption | 150W |
| Stand-by power consumption | 0.5W |
| Bandwith | 20-250Hz |
| Subsonic filter | 18dB/oct |
| Inputs | LFE, Line in L/R |
| Outputs | Line out L/R and subwoofer power output on speaker terminal |
| Cord | Detachable IEC power cord |
| Protection | Dynamic power control, thermal protection, short circuit, fuse, and over-current protection |
| Dimensions (HxWxD) | 13/4 (21/16 with stands) x 167/8 (19 with brackets) x 101/8" [44.5 x 429 x 257mm] |
| Net weight | 6.8lbs (3.1kg) |
100 IWSUB8 |
|
Sound - Acoustic |
|
| Product type | Passive subwoofer |
| Membrane | Polyglass |
| Response at - 6dB (Low frequency point) | 30 Hz |
| Frequency response (+/- 3dB) | 34 - 140 Hz |
| Nominal Impedance | 8 Ω |
| Recommened amplifier power | Max 200 W / 4 Ώ |
| Sensivity | 89 dB |
Design |
|
| Depth behind surface (Mounting depth) | 3.37 in / 3.37 in |
| Mounting height | 1300 mm / 5.81 in |
| Mounting width | 352 mm / 13.87 in |
| Depth | 98 mm / 3.87 in |
| Height | 1.3 mm / 5.81 in |
| Width | 352 mm / 13.87 in |
| Weight | 14.6 kg / 32.3 lb |
Accessories |
|
| Black and white felt | Black and white felt ready to stick |
| Cut Out template | Yes |
| Grids | Ready-to-paint low profile grille with magnetic fixing |
