Focal 1000 ICW6
SELECT OPTIONS:
1000 ICW6
Musicality and power handling
The 1000 ICW6 in-wall loudspeaker is a solution that can be fully integrated into walls or ceilings for the ultimate Stereo and Home Cinema experience. Made in France, it combines exclusive technologies, such as the "W" diaphragm of its midrange/bass driver and the pure Beryllium tweeter. The tweeter is also adjustable, for optimum adjustment to your listening room.
EXCLUSIVE INNOVATIONS
Made in France, this in-ceiling loudspeaker incorporates exclusive Focal technologies, notably the "W" cone of the midrange/bass driver and the pure Beryllium tweeter. These innovations are the source of exceptional sound reproduction in the home.
ULTIMATE HOME CINEMA
The swivel-mounted mid-high stage allows perfect adjustment to the listening position. What's more, center, left or right channel positioning, combined with the ability to adjust the level of each loudspeaker, means you can customize your Home Cinema system to suit your personal taste and room configuration.
AND HIGH-FIDELITY LIGHTS UP YOUR ROOM.
INVISIBLE EXCELLENCE

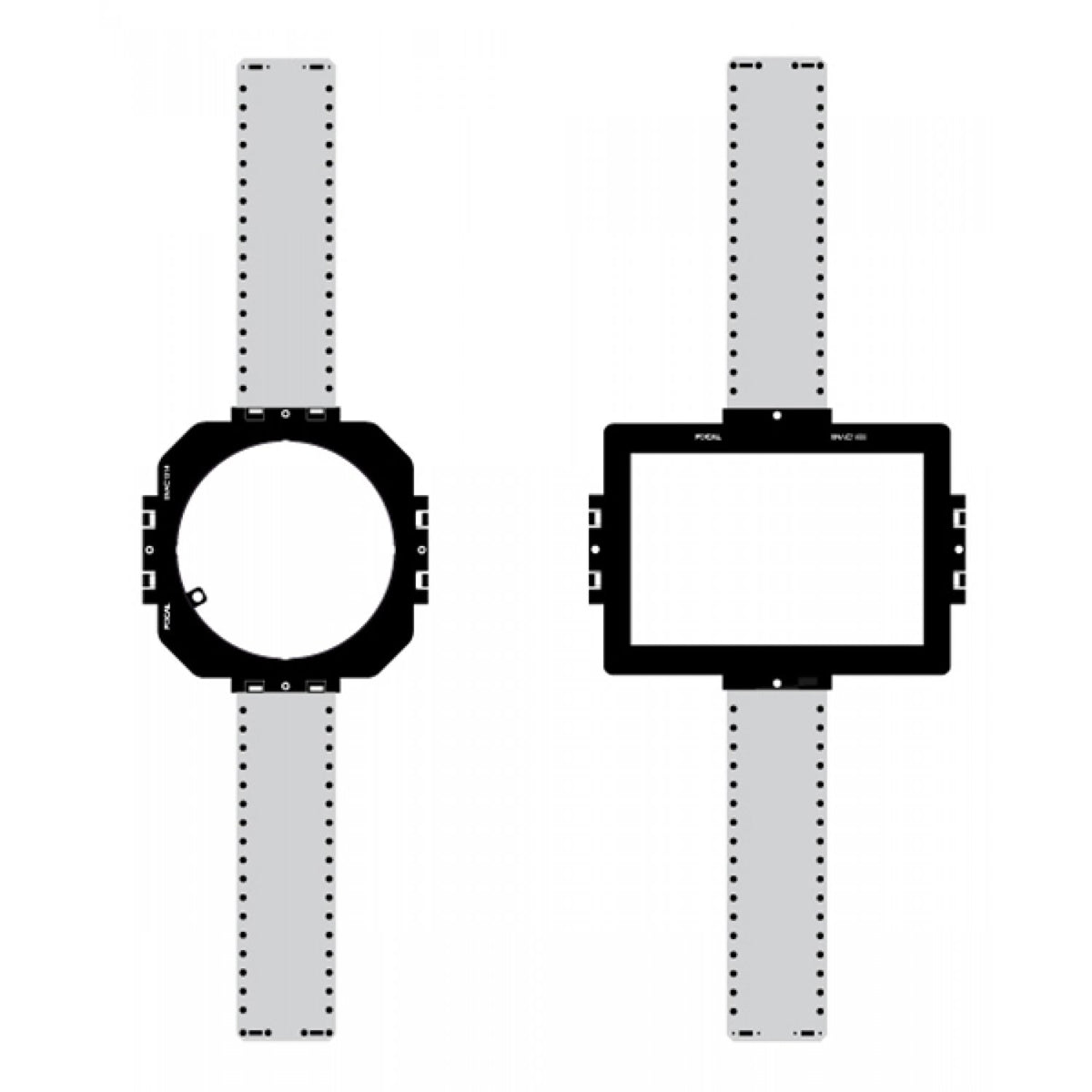

Thanks to the Easy Quick Install system, installation of the 1000 ICW6 is quick and easy. The included square and circular magnetic grilles ensure total discretion, while the rear dust cover and orientation handles simplify tool-free attachment to the mounting frame.
TECHNOLOGIES
"W" MEMBRANE
Perfectly defined midrange and bass
By developing and manufacturing its own membranes, Focal pushes the limits of innovation in acoustics. The sandwich "W" membrane of the loudspeakers plays an essential role in sound reproduction. It consists of two sheets of glass placed on either side of a central foam body; a sandwich construction that enables us to master the three key parameters of a good loudspeaker: lightness, rigidity and damping. This flagship membrane of Focal know-how perfectly optimizes the frequency response curve, providing low distortion and total listening transparency. Sound is the ultimate in precision.
BÉRYLLIUM TWEETER
For exceptional treble
Membrane shape and materials are essential for high-fidelity reproduction. For exceptional treble, our engineers have developed the Béryllium inverted dome tweeter in pure Beryllium. Thanks to its unrivalled rigidity, Beryllium is the material of choice for high-frequency loudspeakers. Developed and patented by Focal, the pure Beryllium inverted dome is capable of covering more than five octaves (1,000 - 40,000 Hz) for perfect perception of micro-details.
EQI SYSTEM
Easy to install
Sound quality is not enough. That's why Focal adds a valuable criterion for integration products: ease of installation. Thanks to the EQI (Easy Quick Install) system, assembly is greatly improved and facilitated, with installation time reduced to a minimum. This ingenious mechanism allows products to be installed by hand, simply and without tools.
SPECIFICATIONS
Sound - Acoustics |
|
Product type | 2 -way ceiling/ wall |
Medium | 6.5" (16.5cm) "W" Midrange/Bass |
Membrane | W cone |
Response at - 6dB (Low frequency point) | 45 Hz |
Frequency response (+/- 3dB) | 55 Hz - 44 kHz |
Minimum impedance | 4.9 Ω |
Nominal Impedance | 8 Ω |
Recommened amplifier power | 25 - 150 W |
Sensivity | 89 dB |
Design |
|
Allowable ceiling thickness (min) | 5 mm / 0.25 in |
Allowable ceiling thickness (max) | 30 mm / 1.12 in |
Easy Quick Install | Yes |
Depth behind surface (Mounting depth) | 4 in / 4 in |
Cut-Out diameter | 216 mm / 8.5 in |
Depth | 105 mm / 4.12 in |
Accessories |
|
Black and white felt | Black and white felt ready to stick |
Cut Out template | Yes |
Grids | Delivered with square and circular grilles ready for painting |
