The CF230 is Monitor Audio’s most visually discreet speaker system, providing an abundance of design possibilities for integrators, architects, and installers.

Its ingeniously designed retrofit and pre-construction make it a dream to install, while its C-CAM-based driver array delivers the superb audio this British maker is famed for.

Key Features:

• 3" Bass/mid-range driver
• C-CAM cone
• 19 mm tweeter with C-CAM Gold Dome
• Flush fit or retrofit applications
• Round and square grille options
• High-quality 2-way crossover

Innovative sound solutions

Choose from a beautifully flush fit or a discreet, trimless retrofit. Round and square options are on offer, while further choice is provided by the option of ceiling mounting or fitting into a standard stud wall construction.

Used on its own, or in multiples, the CF230 presents beautiful-sounding audio from its specially designed coincident driver. Featuring Monitor Audio’s innovative C-CAM metal cone technology and housing both the bass-midrange driver and tweeter within a single assembly unit, the result is superb quality sound from an incredibly compact driver.

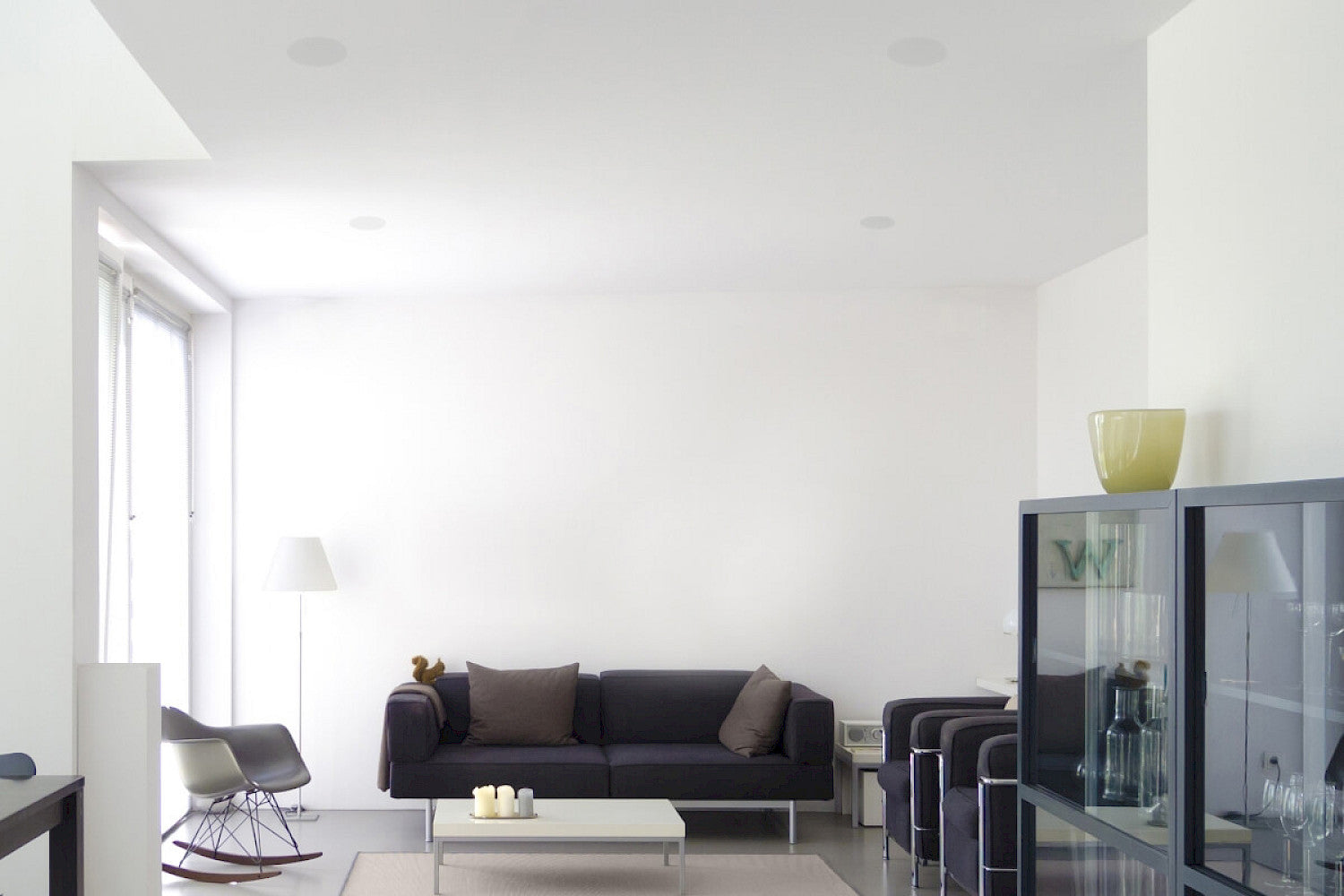

In a pre-construction set-up, the CFB3-R & CFB3-SQ enable a seamless, flush fit appearance. You get clean lines, with no shadow-creating edges, and paint the grille to match the ceiling, and the speaker disappears even further into the background.

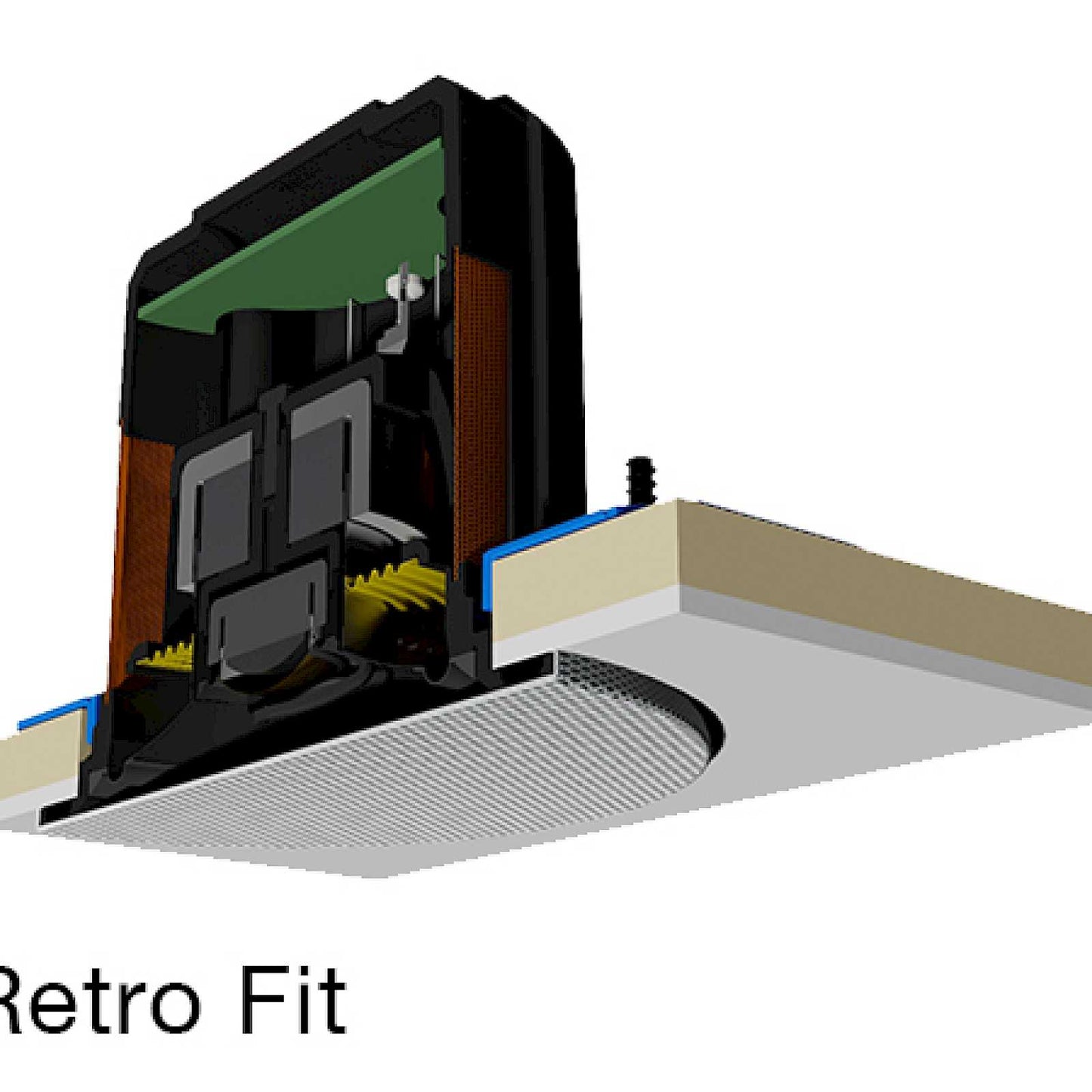

The CFB3-KIT retrofit installation kit cleverly provides a firm fixing behind plasterboard/Sheetrock and requires just three screws to complete the fit. Forget cutting out huge chunks of material and say goodbye to expensive bracket assemblies.

Add a subwoofer, and the result is deep bass to further enhance the already impressive sound. Designed specifically for this model, the driver and chassis are a one-piece mould, which saves space and enables maximum driver size compared to grille size. The completely enclosed rear assembly and its fine mesh prevent the ingress of dust and residual building materials.

The CF230’s ability to fit into any environment opens up numerous system possibilities. Available in mono or stereo formations, the CF230 provides consistent coverage in a room of around 3 m2, with a ceiling height of around 2.4 m. It’s easy to drive, and its impedance of 8 ohms means that a single stereo amplifier, such as the Monitor Audio IA150-2, can comfortably power a brace of CF230s.

Journey beyond a four-speaker setup and a multi-channel amplifier, such as Monitor’s own eight-channel IA150-8C, works impeccably well. Whatever the size of the space, the CF230 setup remains compact while sonically covering a wider area than a conventional in-ceiling speaker, saving on cost as well as visual impact.

Designed and built by people who intimately understand the world of home technology, the CF230 is a shoo-in for any custom speaker project.
