Monitor Audio Core C165
This product may take 3 to 5 business days to fulfill.
Couldn't load pickup availability

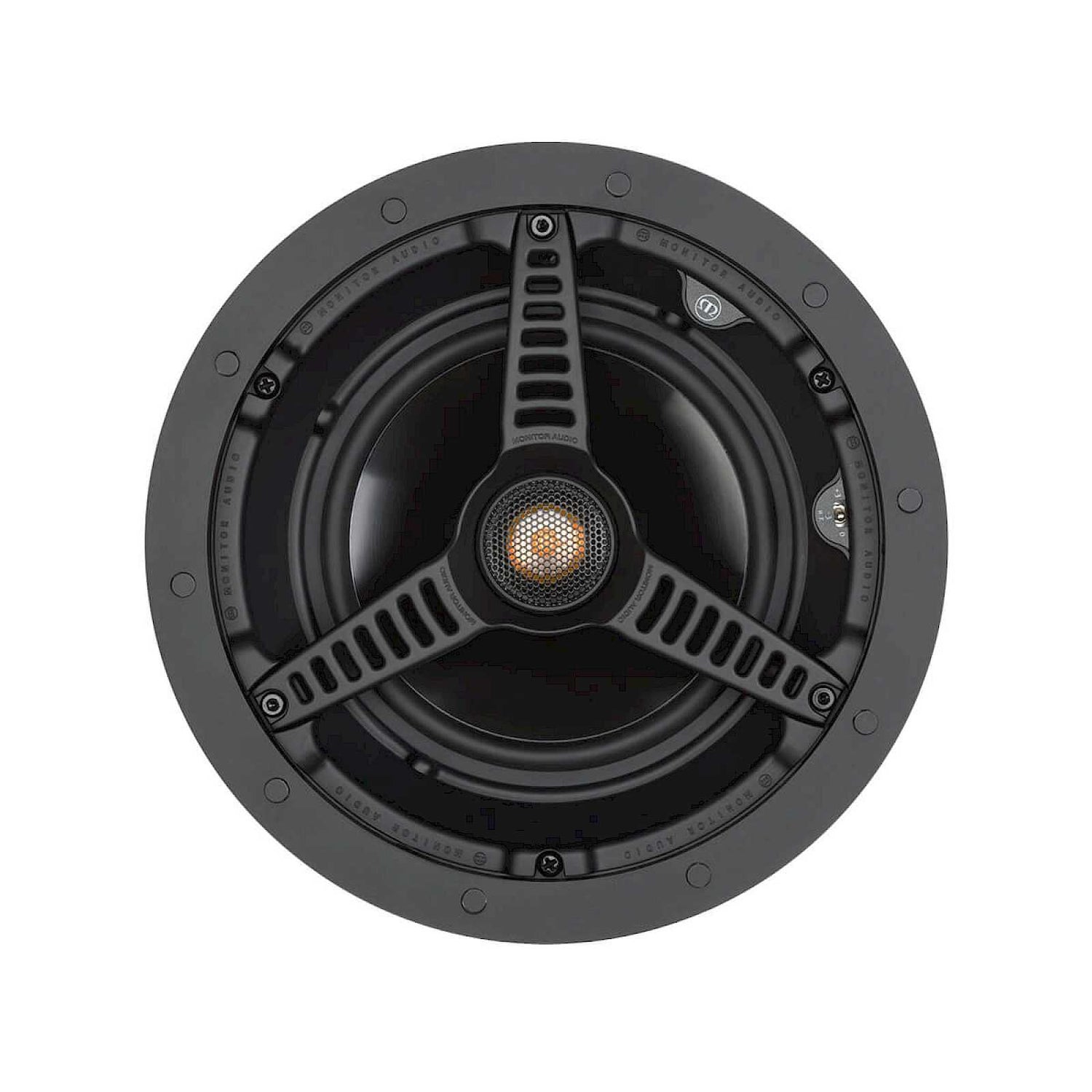

Incorporating a 6 1/2 inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.
Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

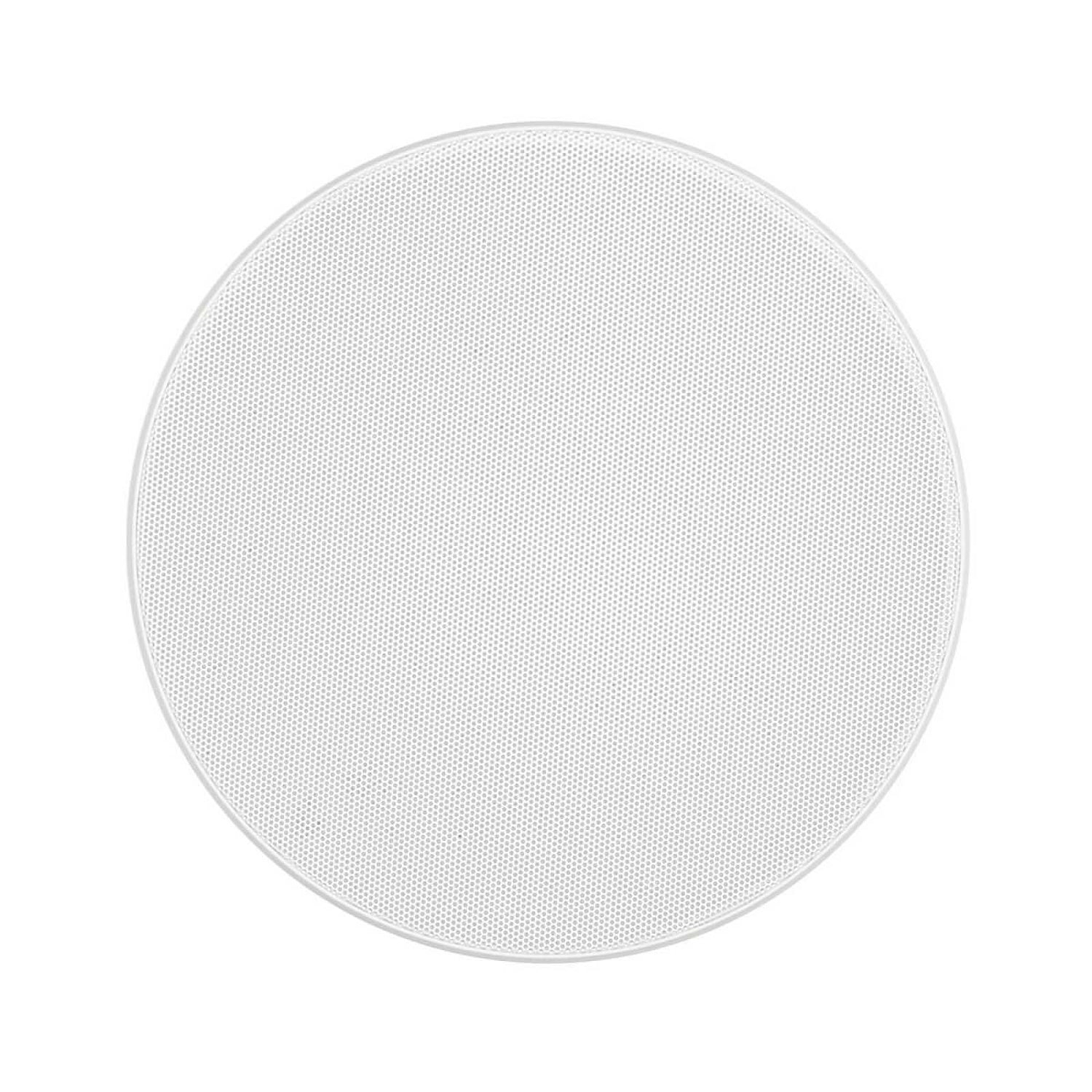

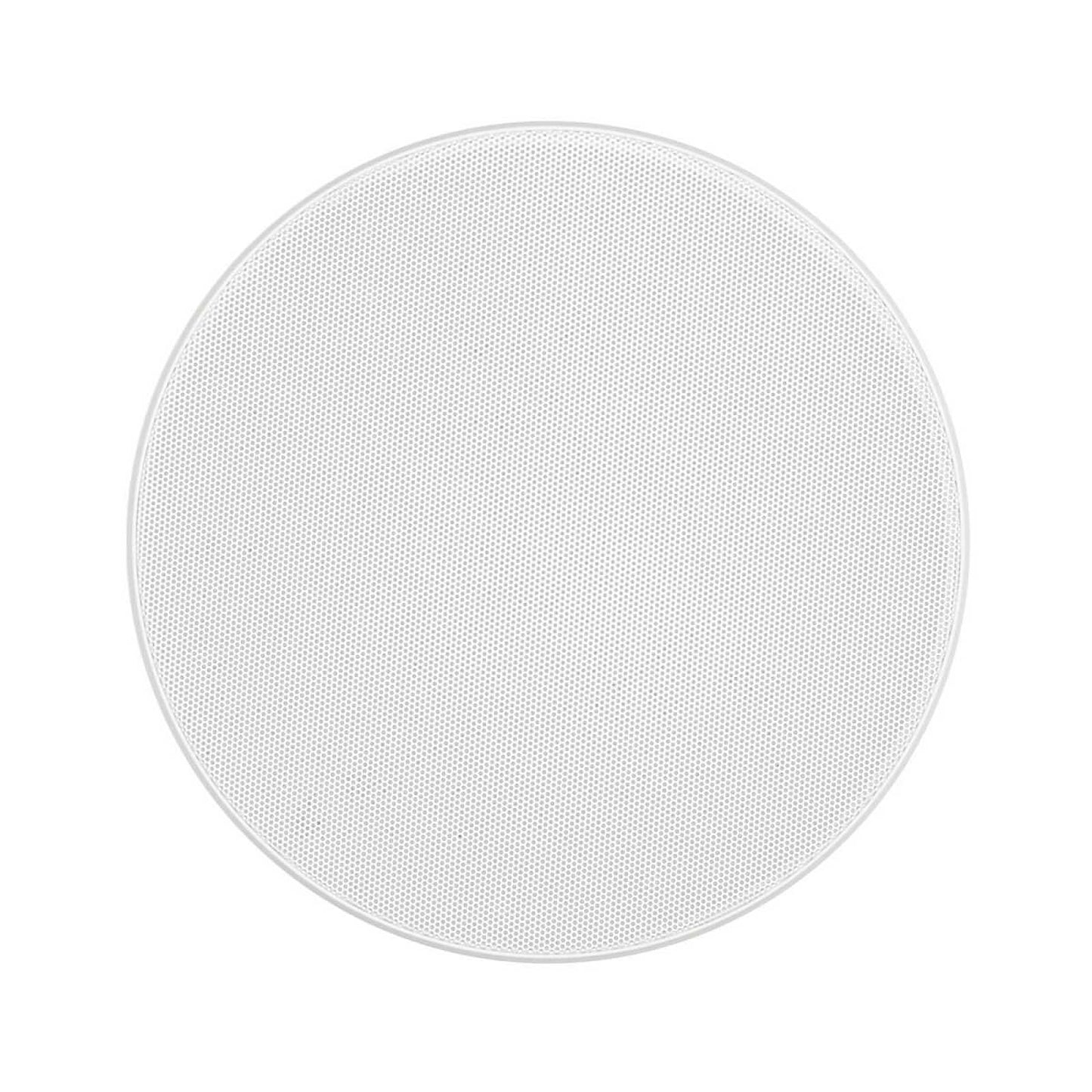

Optional square or premium grille can be used with this model.
Specifications
Category |
Details |
|---|---|
| Frequency Response | 60 Hz – 25 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 88.5 dB |
| Maximum SPL | 107.4 dBA |
| Power Handling (RMS) | 65 W |
| Recommended Amplifier Requirements | 20 – 65 W |
| Drive Unit Complement |
6 1/2" MMP II cone bass driver 1" C-CAM pivoting Gold Dome tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB) |
| Overall Diameter (Including Grille) | 250 mm (913/16") |
| Overall Depth (Including Grille) | 120 mm (43/4") |
| Mounting Depth | 116 mm (49/16") |
| Cut-Out Hole Diameter | 211 mm (81/4") |
| Optional Square Grille - Outer Dimensions | 249 x 249 mm (9 3/16") |
| Fixing Type | 3 position Tri-Grip dog fixings |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 1.92 kg (4 lb 4 oz) |
| Pre-Construction Bracket | CM-B |
| Back Box | CSM-BOX |
| Sold As | Single Unit with CM-Round Grille (white) |
| Warranty | Lifetime |
Entry-level discreet audio solutions
Combining well-established Monitor Audio acoustic technologies such as Gold-Dome tweeters and Metal Matrix Polymer II (MMP II) bass drivers, our Basics range of in-ceiling and in-wall architectural speakers provide exceptional audio performance – with little intrusion into the interior space.
In-Ceiling
Offering total placement flexibility, the C165, C165-T2 and C180 in-ceiling models, a 6” and 8” driver size respectively, provide the perfect answer to whole-house integrated audio solutions. With a shallow depth, and patented Tri-Grip fixings, the models are quick and easy to install, and with paintable grilles – they’ll blend in seamlessly. The C165-T2 also cleverly features dual, independent, pivoting 1-inch C-CAM tweeters to enable high performance stereo sound playback from a single speaker, particularly useful for smaller spaces.
In-Wall
The W165 and W180 in-wall models, again a 6” and 8” driver size respectively, partner perfectly with the Basics in-ceiling models, offering further multiroom, whole-house flexibility. Benefitting from the same shallow back profile, Tri-Grip fixings, and same metal drive unit technology, performance is strong, delivering lifelike clarity and detail from music and film with room filling wide dispersion.
Climate
With the advent of the versatile Climate range, no environment is beyond the reach of great sound, whatever the weather!
This range is certified to be resistant to UV, corrosion and water. Wall mounted in any combination, it provides a wide and even dispersion of full range sound over large areas. Low frequencies are augmented from an Auxiliary Bass Radiator (ABR) in each cabinet. Paintable textured white or black finishes with weatherproof aluminium grilles.
