Monitor Audio

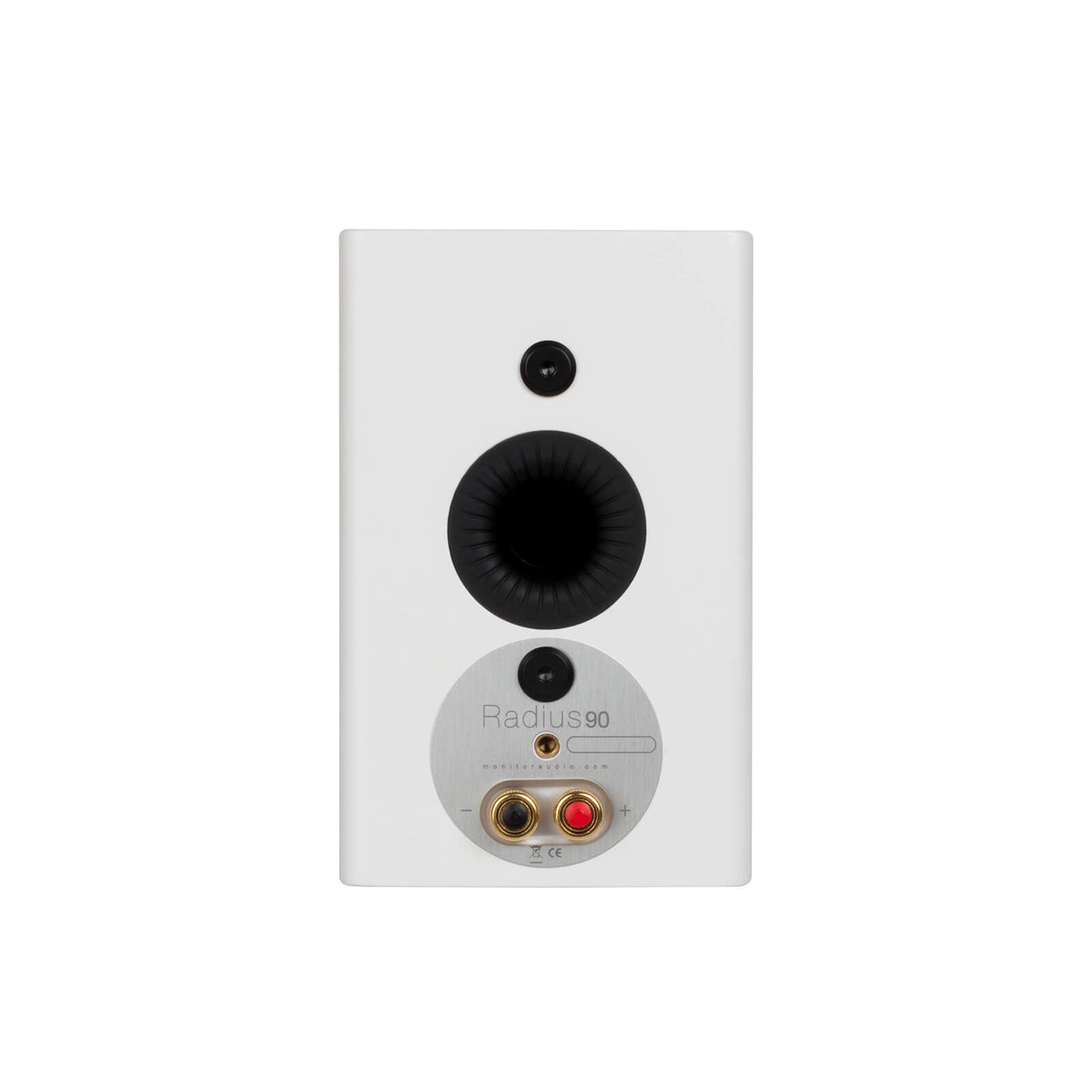

Monitor Audio Radius 90

$729.00
$729.00
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:

For ultra-discreet sound all around the home, or partnered with the Radius 380 sub for explosive stereo, the original hi-fi mini monitor continues to evolve, incorporating a 4" C-CAM bass driver and 1" C-CAM tweeter.

Key Features:

  • 4" C-CAM bass driver
  • 1" C-CAM tweeter
  • HiVe II port design
  • Single through-bolt driver fixing
  • Single point ¼” x 20TPI wall fixing
  • Internal wired stand (optional)
  • Rear ported

Specifications

Category

Details
Frequency Response 80 Hz — 35 kHz
Sensitivity (1W@1M) 83 dB
Nominal Impedance 8 ohms
Power Handling (RMS) 75 W
System Power Handling (RMS) 100 W
Recommended Amplifier Requirements 30 — 100 W
Maximum SPL 102 dBa
Bass Alignment Bass reflex - Rear ported
Drive Unit Complement

1 x 4" (100 mm) C-CAM cone bass/mid driver

1 x 1" (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions (H x W x D) 198 x 125 x 140 mm (713/16 x 415/16 x 51/2")
Cabinet Dimensions (Including Grille and Terminals (H x W x D)) 198 x 125 x 164 mm (713/16 x 415/16 x 67/16")
Cabinet Dimensions (Including Grille and Bracket (H x W x D)) 198 x 125 x 203 mm (713/16 x 415/16 x 8")
Pre-Construction Bracket Optional - Monitor Audio Speaker Mount (MASM)
Weight 2.1 kg (4 lb 10 oz)
Sold As Pair
Warranty 5 years
