Monitor Audio Studio 89
SELECT OPTIONS:
This product may take 3 to 5 business days to fulfill.
Couldn't load pickup availability
The compact, high-performance Studio 89 is inspired by the creativity and individuality of the 1980s. This sense of adventure is brought up to date with the latest Monitor Audio technology, including an MPD III high-frequency transducer and twin 4 ¼” RDT III C-CAM bass-mid drivers.
Key Features:
- Two-way design with MTM driver array
- 1 x MPD III high-frequency transducer
- 2 x 4 ¼” RDT III, C-CAM bass-mid drivers
- Compatible with the bespoke Studio 89 Stand
- New crossover design
- Rhodium-plated speaker terminals
- Twin velocity reflex HiVe II slot ports
Conceived in the 1980s. Reimagined for today
Studio 89 takes inspiration from the culturally explosive 1980s and Monitor Audio’s iconic Studio Series, but is a thoroughly modern loudspeaker. Inspired by individual expression and the culture that shapes it, Studio 89 is the loudspeaker for the new change-makers.
Studio 89 is a compact bookshelf model that houses many of the advanced acoustic technologies found in both Platinum Series 3G and Monitor Audio’s statement speaker, Hyphn. Powerful twin 4 ¼” RDT III C-CAM bass-mid drivers provide punchy, articulate and controlled bass that seamlessly blends with the MPD III high-frequency transducer. The sonic package delivers exceptionally lifelike HF clarity and taught MF/LF bass precision for a truly high-fidelity presentation.
Studio 89’s cabinet is finished in a deep high-gloss black paint with gold-coloured drive units. This is a reference to the iconic Studio 15, which was the only model within the original Studio Series available in this stylish combination.
Studio 89 delivers a breathtakingly big sound, from a beautifully finished compact box.
Specifications
Category |
Details |
|---|---|
| Sensitivity (2.83v @ 1m, Free-Field) | 86 dB |
| Recommended Amplifier Power (RMS into 4 Ohm, Music Signal) | 50 - 300 W |
| Continuous Power Handling (RMS into 6 Ohms, Pink Noise with 6dB Crest Factor) | 150 W |
| Nominal Impedance | 6 Ohms |
| Minimum Impedance (20 Hz to 20 kHz) | 4.2 Ohms @ 220 Hz |
| Drive Unit Complement |
2 x 41/4" (108 mm) RDT III Bass-Mid Drivers 1 x MPD III Tweeter |
| Frequency Response, Free-Field (-6dB) | 53 - 60 kHz |
| Frequency Response, In-Room (-6dB) | 48 Hz - 60 kHz |
| Maximum Peak SPL (single speaker @1m Z-Weighted) | 113 dB |
| Bass Alignment | Ported |
| Port Tuning Frequency | 58 Hz |
| Crossover Frequency | 2400 Hz |
| External Dimensions (including Terminals (H x W x D)) | 340 x 157 x 361 mm (133/8 x 63/16 x 143/16") |
| Weight (each) | 7.6 kg (16 lbs 12 oz) |
| Warranty | 5 years |
Conceived in the 1980s. Reimagined for today
The iconic Studio Series. A legendary speaker range born when music television, and video tape ruled. An era of bold styles, vibrant colours, early computer gaming and breathtakingly rapid technological innovation fuelled an un-rivalled explosion of popular culture and laid the foundation for today’s digital era.
Simplicity personified
Small, compact and visually unique, the all-new Studio 89 is an uncompromising little speaker. It packs an awful lot of acoustic technology into its compact dimensions, and while it is one hundred percent a Monitor Audio speaker, born of our Transparent Design Philosophy, it is as unique in the range as the statement Hyphn.
Studio 89 is designed to be different. Listen Again.
Born of a decade fuelled by cultural change-makers
Studio 89 takes inspiration from this culturally explosive decade but is a thoroughly modern loudspeaker. Inspired by individual expression and the culture that shapes it, Studio 89 is the loudspeaker for the new change-makers
-
MTM Driver Array
The MTM (Mid-Tweeter-Mid) Driver Array offers advantages of vertical symmetry. Also, increased bass-mid driver cone surface and voice coils mean improved dynamic capability and better in-room floor and ceiling interaction. Working like a point source, the sound dispersion is large, spacious and enveloping.
-
RDT III
Studio 89’s bass-mid driver cones are made up of three ultra-thin layers to ensure rigidity and strength. A C-CAM outer skin, ‘ceramic-coated aluminium magnesium’, sits over a Nomex honeycomb central core with the underside skin made up of a woven carbon fibre. The result: super lightweight and very, very strong.
Transparent Design Philosophy
The all-new Studio 89 is built upon an R&D philosophy of maintaining a balance between design and technology. One is never allowed to overpower the other and both play a vital role in delivering on our promise of musical neutrality and acoustic transparency. The physical speakers are designed to sit comfortably within their environment. They are a beautiful statement, but one where perfectly balanced design neutrality means they will blend in for a lifetime of use.
-
Cabinet design
Compact in size and extremely narrow, Studio 89’s design optimises acoustics and helps present a much larger soundstage into the listening area. The cabinet is also carefully internally braced to ensure structural rigidity.
-
New crossover design
The crossovers have undergone hours of listening and part selection, using only the best bespoke polypropylene and polyester capacitors, air-core and low-loss laminated steel-core inductors to provide maximum signal transfer and reduced distortion for optimum sound delivery.
MPD III
The MPD III (micro-pleated diaphragm) high-frequency transducer delivers precise, lifelike high frequencies with ease. Its super-fast-reacting accordion-like pleats produce a smooth, wide and fast response.
Articulate, powerful and controlled bass
Studio 89 is compact for good reason. We know space is at a premium within the home, while large room-filling sound is a must. Advances in metal driver cone technology and powerful motor systems mean that the two things aren’t mutually exclusive.

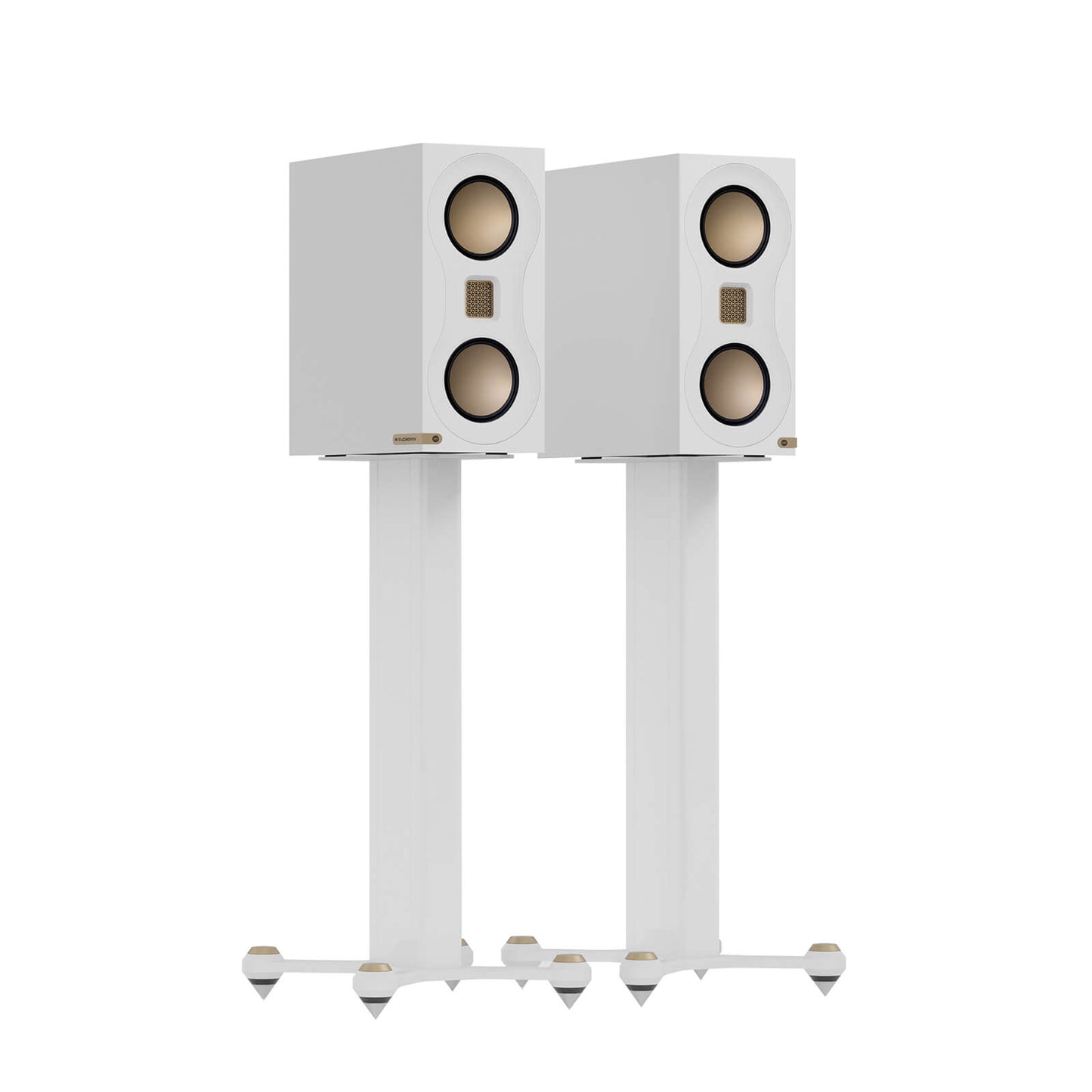

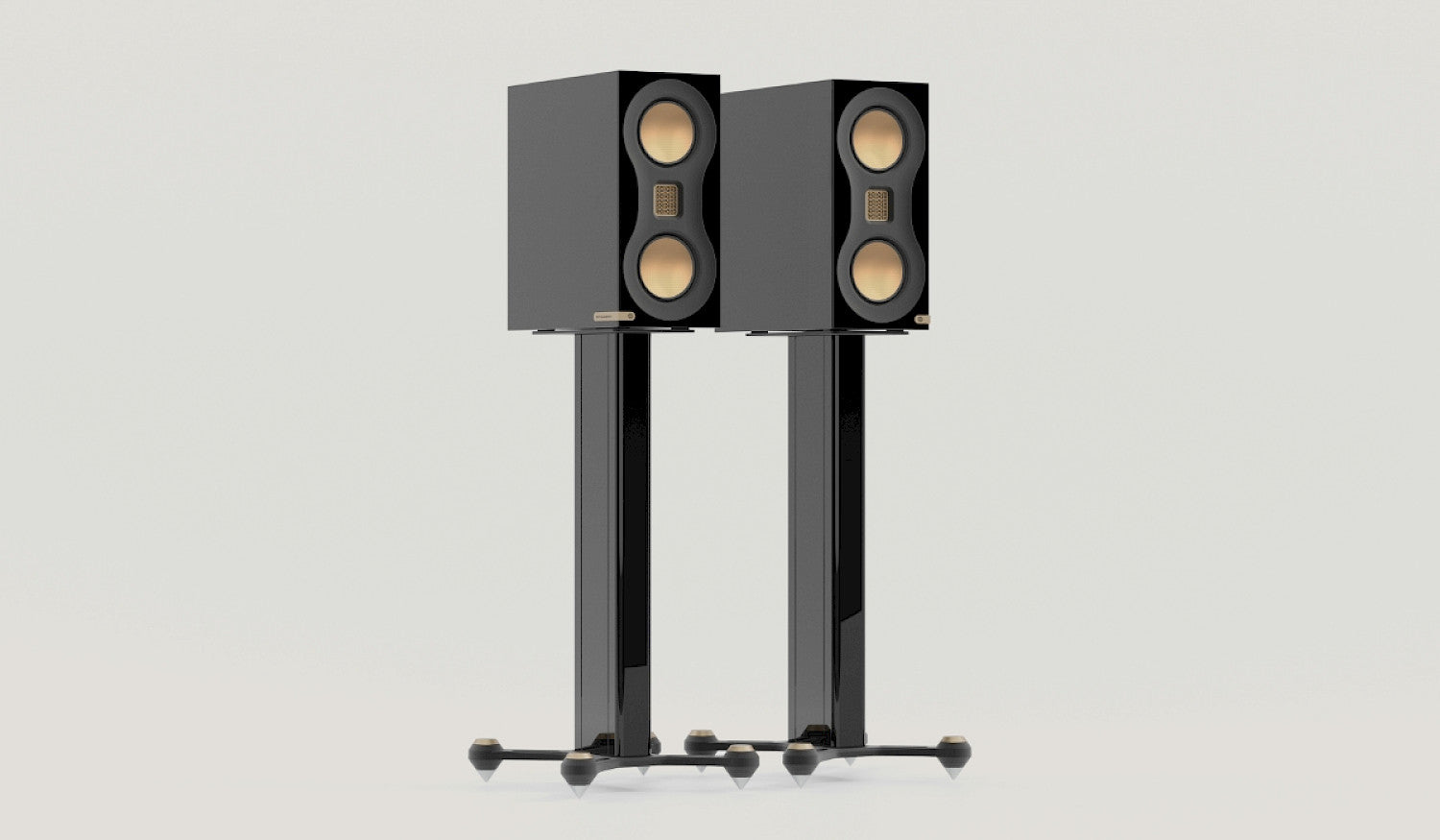

A bespoke stand, unique to Studio 89
Delivering perfect stability for pristine audio reproduction, the Studio 89 Stand offers a striking improvement to any set-up.
The Studio 89 Stand provides maximum placement versatility and assures that the Studio 89 speakers reach their full potential by delivering the best in terms of sonic punch, detail and rhythm.
