Audio-Technica

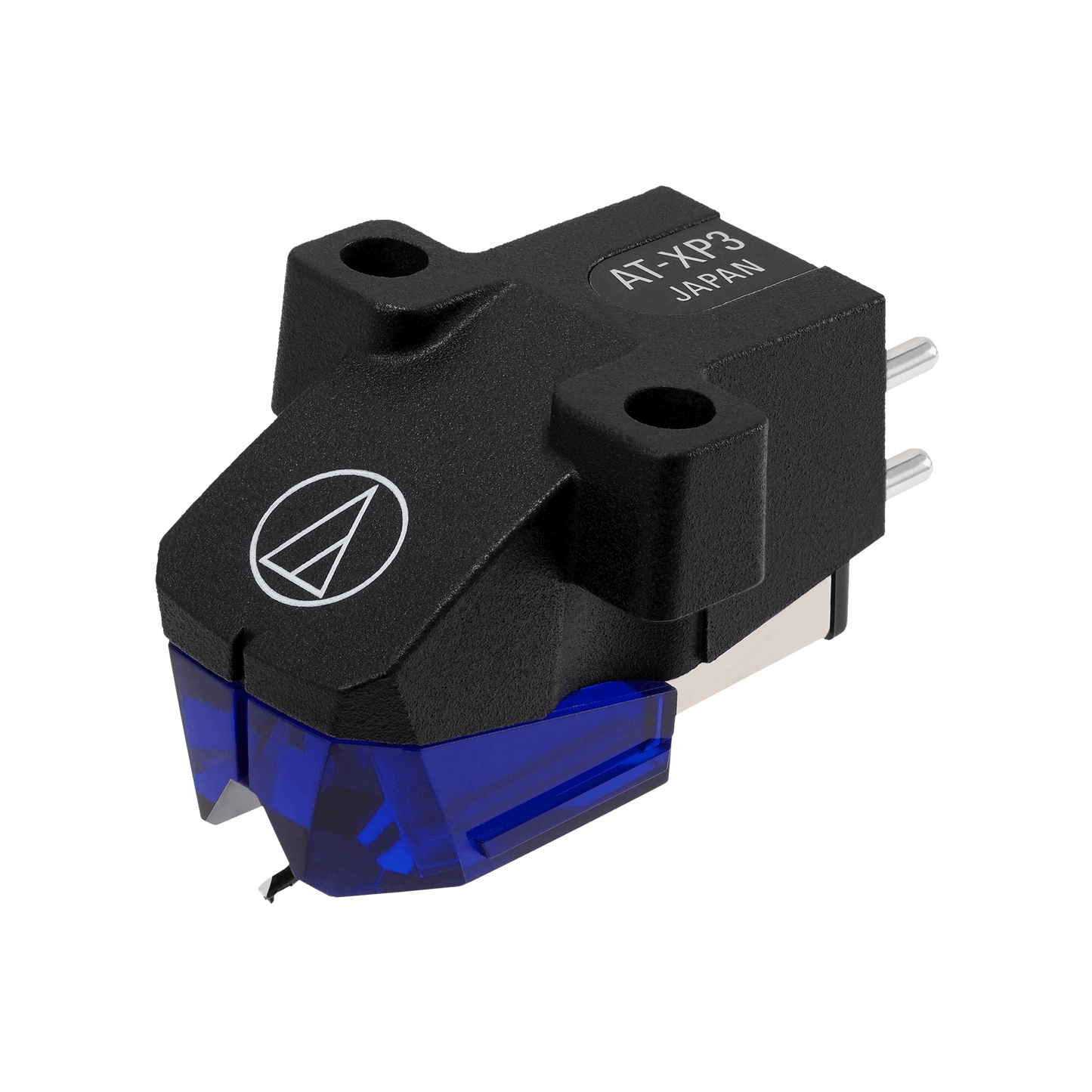

Audio-Technica AT-XP3 Dj Phonograph Cartridge

Regular price $59.00
Regular price Sale price $59.00
Sale Sold out
Shipping calculated at checkout.
We cannot guarantee delivery before Christmas on this item.

The AT-XP3 cartridge is specially designed for DJs. It features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body, has a tracking force of 2 to 4 grams, and offers a powerful output level of 5.5 mV. Its 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. And the cartridge design provides maximum visibility of the stylus tip. The AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application.



Features:

  • 0.6 mil conical bonded stylus tip
  • Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
  • 5.5 mV high-level output
  • Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
  • Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
  • Design offers maximum visibility of the stylus tip
  • Great tracking and channel separation for high-fidelity sound
  • AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application



Specifications



Frequency Response 20-18,000 Hz
Channel Separation 20 (dB at 1 kHz)
Vertical Tracking Angle 20°
Vertical Tracking Force 2.0-4.0 g (3.0 g standard)
Stylus Construction Bonded round shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 6.7 k ohms (1 kHz)
Coil Inductance 550 mH (1 kHz)
Output Voltage 5.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 2.0 dB (1 kHz)
Stylus Shape 0.6 mil conical
Cantilever Carbon fiber-reinforced ABS
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 6.0 x 10 – 6 cm / dyne (100 Hz)
Mounting Half-inch
Cartridge Weight 6.2g
Dimensions 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
Model  AT-XP3
Mounting Feature Half-inch mount
Recommended Load Capacitance 100 to 200 pF
Replacement Stylus ATN-XP3
Stylus Size 0.6 mil
Weight 6.2 g (0.22 oz)
