Pro-Ject Audio Systems

Pro-Ject Optical Box Phono E

Regular price $179.00 USD
Regular price Sale price $179.00 USD
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:

This product is on backorder.
Call for details: 904-642-6677

Estimated arrival date: 07/17/23

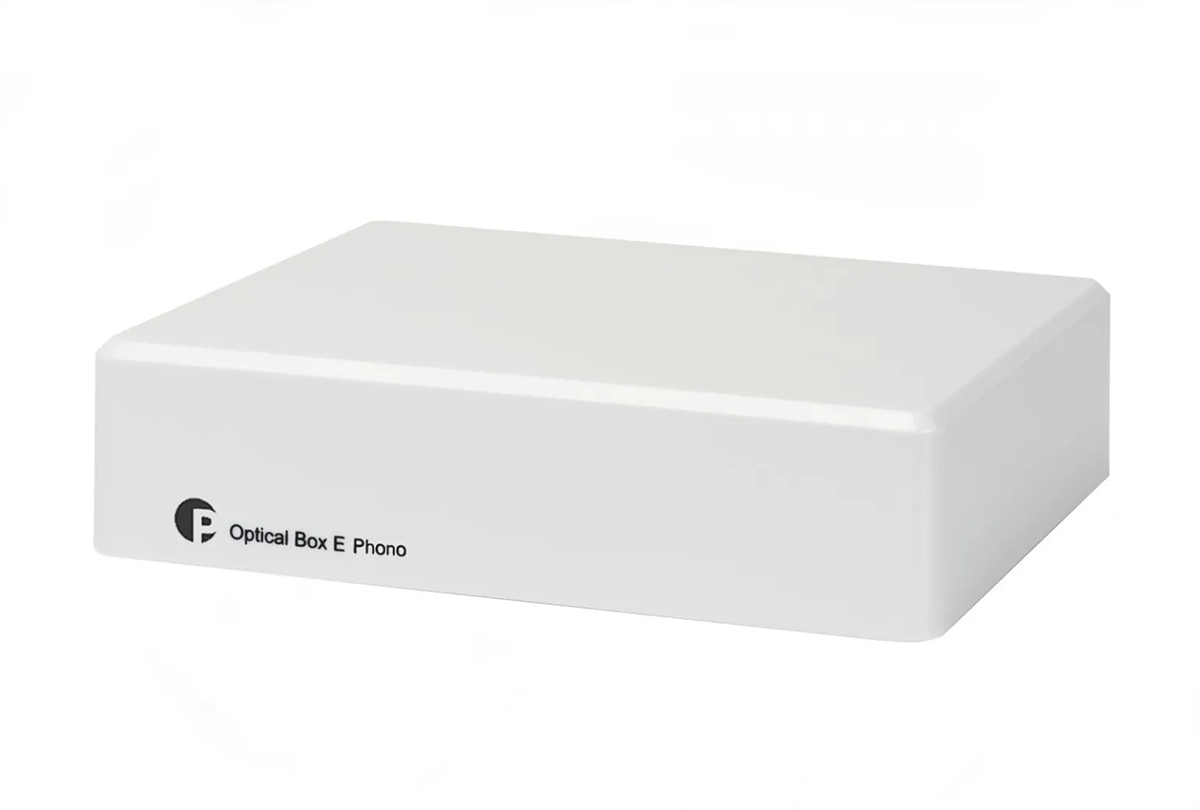

Optical Box E Phono

Multi-purpose phono preamplifier with A/D conversion and 2 output options: Line level and digital optic!

Anyone who wants to use the record player together with devices with digital inputs only, such as home cinema receivers, sound-bars or all-in-one systems will love this little box. The Optical Box E Phono takes many needs into account and offers a digital-optical signal output plus a standard analogue output that will work simultaneously. Therefore it can be used as the perfect signal splitter 1>2 to play the same signal on 2 systems at the same time. Another very useful purpose of Optical Box E Phono is that it can act as an input expander, for a system with shortage in inputs. Last but not least Optical Box E Phono is able to digitize not only phono sources, but also line signals from tape decks, tuners etc. To ensure that the incoming signal is maintained as unadultera-ted as possible, the A/D conversion in highest precision with 24bit / 96kHz resolution.

Of course it can also be used as an ordinary MM phono preamp with line output (3.5mm jack) that integrates in any HiFi system. The internal part of the housing is lined with metal, thereby eliminating RF interference and vibrations, so that an undisturbed listening experience is guaranteed. The Optical Box E Phono is the perfect partner for all modern Audiophiles who want to use their analogue signal sources with digital or analogue playback devices!



Features

  • Especially for use with devices with no analogue input such as home cinema receivers, soundbars etc
  • Analogue RCA and digital optic output work simultaneously
  • Works as input extender (2>1) or output splitter (1>2)
  • 2 Inputs: 1 Phono and 1 Line In
  • Suitable for MM cartridges
  • Precise RIAA equalisation
  • Low noise circuitry
  • Internal metal shielding
  • Gold-plated RCA inputs
  • Outboard power supply included

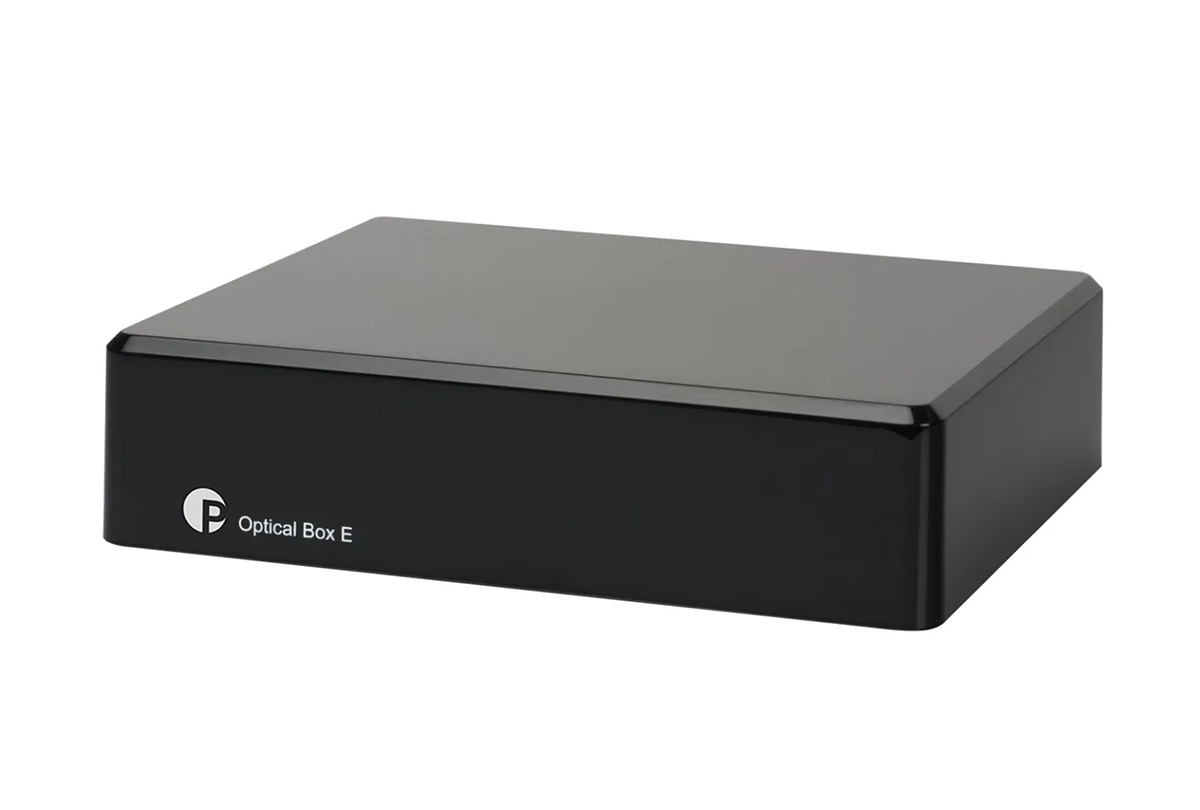

  • Colour options: black or white



Technical Specifications

Phono input impedance 47 kohms
Phono capacitance 100pF
Gain phono 43 dB

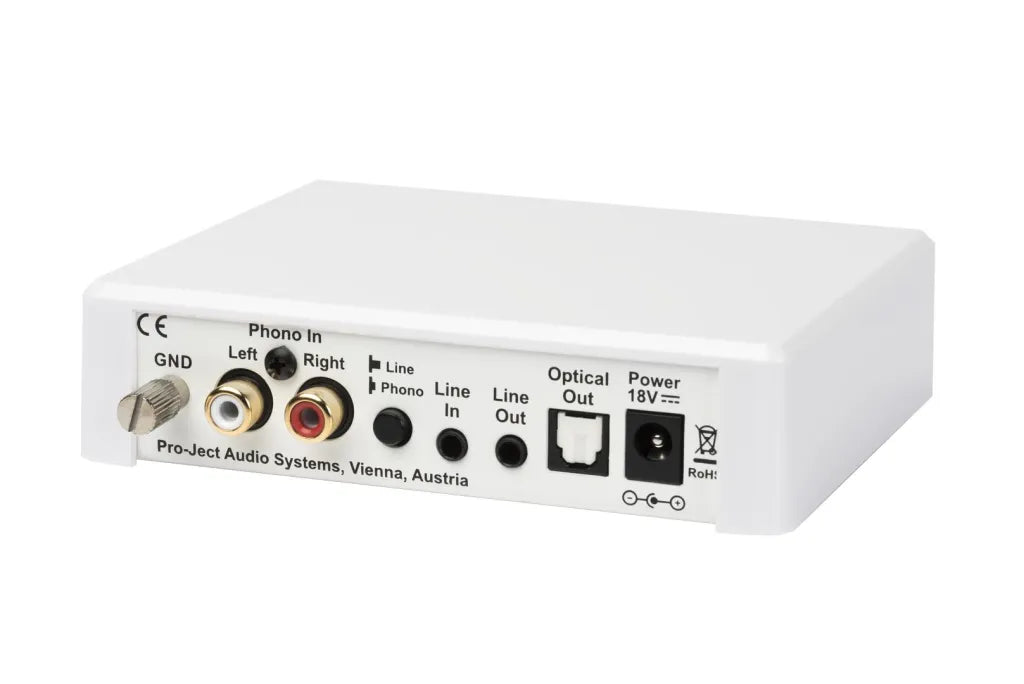

Inputs 1 Phono (RCA), 1 Line In (3.5 mm)
Outputs 1 Line Out (3.5 mm), 1 Toslink
Noise floor 74 dB
THD < 0,04%
RIAA equalisation curve accuracy within 0.5 dB / 20 Hz - 20 kHz
Outboard power supply 18 V / 500 mA DC
Power consumption 200 mA DC
Dimensions W x H x D (D with sockets) 120 x 32 x 100 (106) mm
Weight 250 g without power supply
