EMM Labs

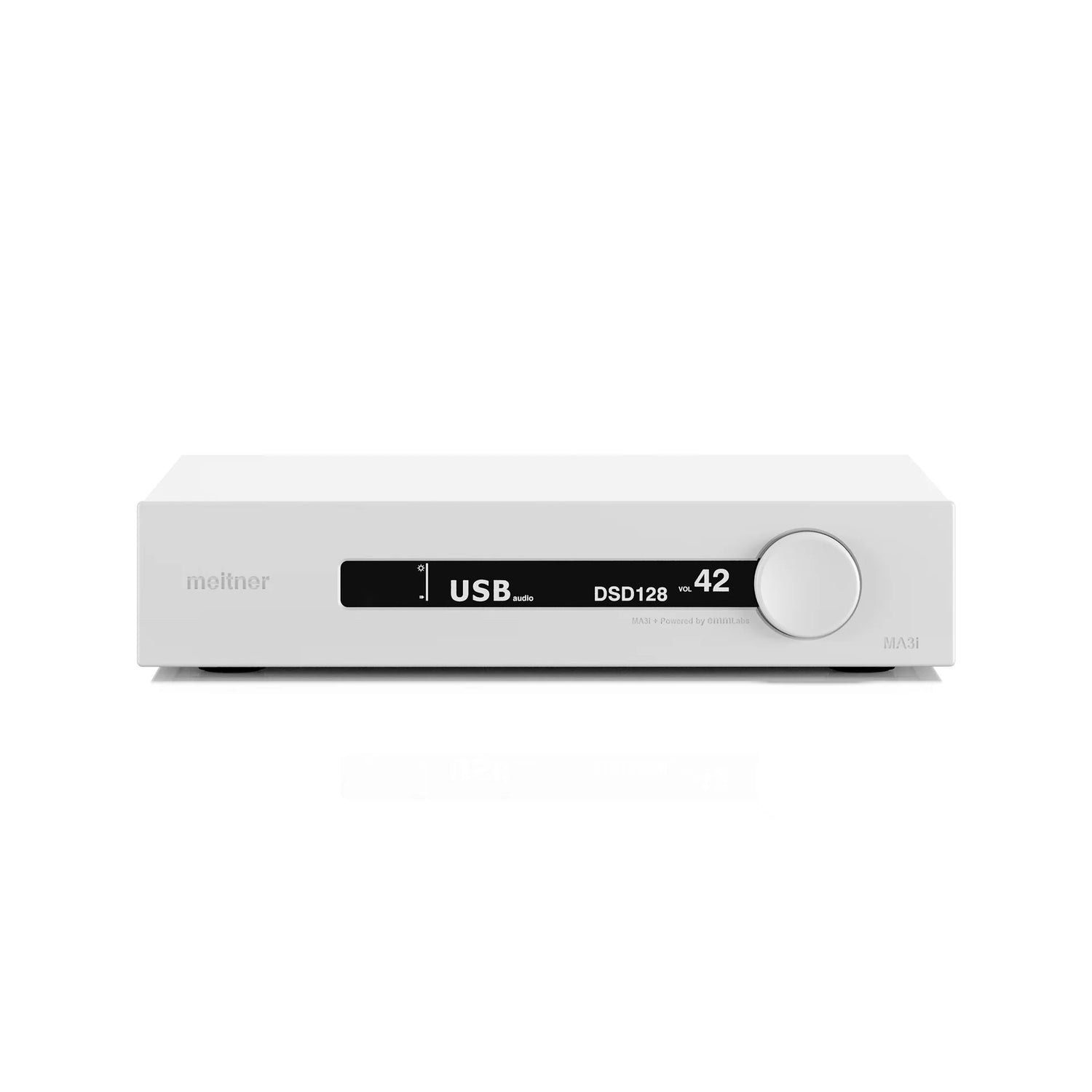

Meitner - MA3 - Integrated D/A Converter with Streamer
Couldn't load pickup availability
The MA3 combines Ed Meitner's proven world-class sound techniques from the beloved DA2 V2 and DV2 converters, with network audio streaming functions from popular and simple to use NS1 Streamer - creating one sleek, affordable package to serve your greater enjoyment of music.
The Meitner MA3:
16xDSD MDAC2™ DACs coupled with proprietary MDAT2™ DSP VControl™ volume control used in the EMM DV2 converter Supports DSD128/2xDSD, DXD and MQA® Built in network streamer for music streaming service integration
16xDSD MDAC2™ and MDAT2™ DSP:
The MA3 employs MDAC2™ fully discrete single-bit, 16xDSD, D-to-A converters, coupled with MDAT2™ DSP which performs real-time transient detection in addition up-conversion of all incoming audio. VControl™ maintains the input signal without re-quantization allowing for complete transparency at any volume setting, wide attenuation range, and no loss of audio resolution.
USB Isolation, MFAST™ and MCLK2™:
The USB interface includes EMM’s proprietary hardware galvanic isolation. MFAST™ high-speed asynchronous jitter removal technology working in tandem with custom built clock (MCLK2™) provides jitter removal from all digital sources.
Built in Network Streamer:
Connect to high resolution streaming services like TIDAL, QOBUZ plus support for popular music services like SPOTIFY, DEEZER, vTUNER etc. UPnP/DLNA support for network and NAS file playback, ROON READY and ROON ENDPOINT functionality plus direct USB audio file playback. Designed and manufactured in Canada, simply connect it directly to amplifier(s) and speakers of your choice and enjoy! The MA3 is the perfect integrated digital hub for any high end system, regardless of budget.
Key Features:
Up to 24bit/192kHz & DSD support over all inputs: USB Audio, AES, TOSLINK, COAX and Network(RJ45)
2xDSD (via DoP), DXD (352/384kHz) over USB Audio
Full MQA® unfolding via USB Audio and Network(RJ45)
Proprietary & discrete dual differential D-to-A converters (MDAC2™) with
Meitner Digital Audio Translator signal processing technology (MDAT2™)
MFAST™ instant signal acquisition and jitter-free performance
Proprietary asynchronous clocking system (MCLK™)
VControl™ high resolution volume control
Galvanically isolated USB Audio interface
Network streaming with UPNP/DLNA and ROON READY/ROON ENDPOINT functionality
High resolution, Tidal and Qobuz and popular, Spotify, Deezer, vTuner plus many more, streaming audio services support
AAC, AIFF, ALAC, FLAC, MP3, WAV and WMA audio file playback
USB service port for future software upgrades
IR remote and serial port for wired remote control
mConnect app for network control on Android, IOS and tablets
Newly designed strong and elegant all-metal chassis
Power supply:
Power factor corrected
Universal 90V-260V, 50/60Hz
Power consumption: max. 50W
CE Approved
Stereo analog outputs: Balanced (XLR) and Unbalanced (RCA)
Output voltage:
XLR outputs: 7.0V (+19.1dBu)
RCA outputs: 3.5V (+13.1dBu)
Output impedance:
300 ohms balanced (XLR)
150 ohms unbalanced (RCA)
Dimensions W x D x H: 435 x 400 x 92mm
Weight: 7.43 kg/16.39 lbs net with remote control
Designed and Manufactured in Canada
