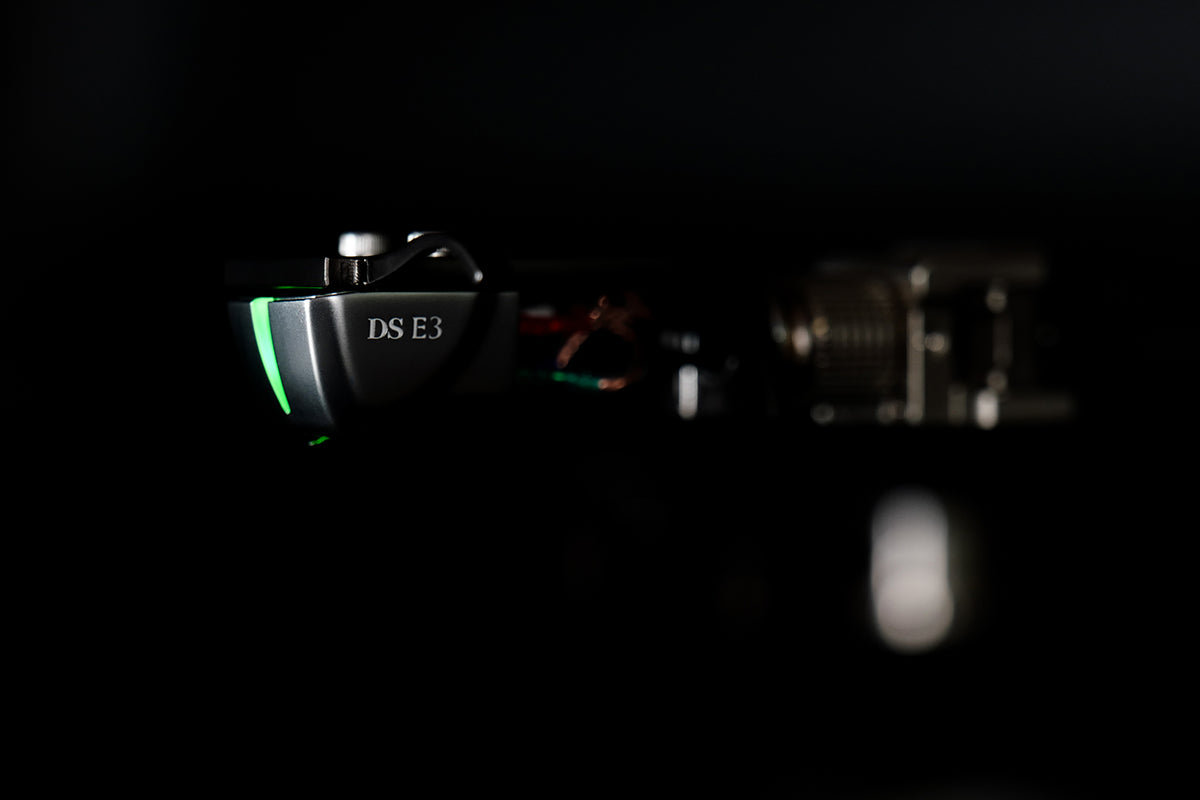

DS Audio DS E3

Name: DS Audio DS E3
Availability: InStock

$1,500.00

Sale Sold out

Shipping calculated at checkout.

SELECT OPTIONS:

Product variants

Quantity

Phono Cartridge

DS-E3

"The game changer"

DS-E3

Truly beyond price.
The DS-E3 is a revolutionary technology in historic record reproduction.

Ikuo Tsunoda, Audio Critic

Details

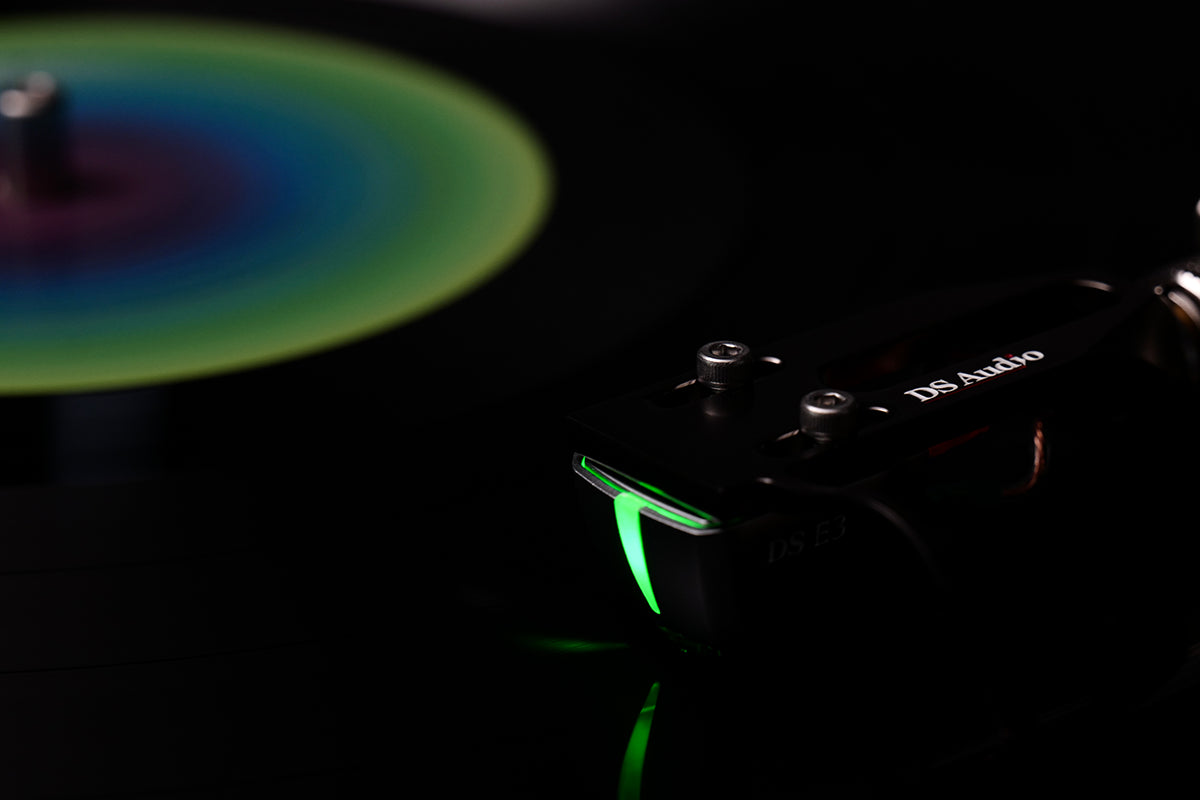

Cartridge

Uses a third-generation optical cartridge mechanism

The DS-E3 uses a third-generation optical cartridge mechanism, the same design as our other products. The DS-E3 achieves an overwhelmingly low price while inheriting the merits of the third-generation mechanism, such as higher output due to independent LED and PD, improved channel separation, and the use of a beryllium light shielding plate.

Aluminum cantilever with elliptical needle

The cantilever is made of aluminum and the needle tip is a solid elliptical needle. While adopting the third-generation optical cartridge mechanism, the channel separation is set 1db lower to improve mass production efficiency.

Equalizer

New Amplification and Power Supply Circuits

In the DS-E3 equalizer, the amplification circuit has been made symmetrical, and the voltage supplied to the cartridge has been stabilized to achieve a clearer and faster sound.

Miniaturization is achieved by using an operational amplifier

The DS-E3 equalizer uses an operational amplifier as the amplifying element to minimize the signal path, thereby greatly reducing the number of components and achieving a smaller size. As a result, the DS-E3 equalizer is about 1/3 the size of the DS003 equalizer.

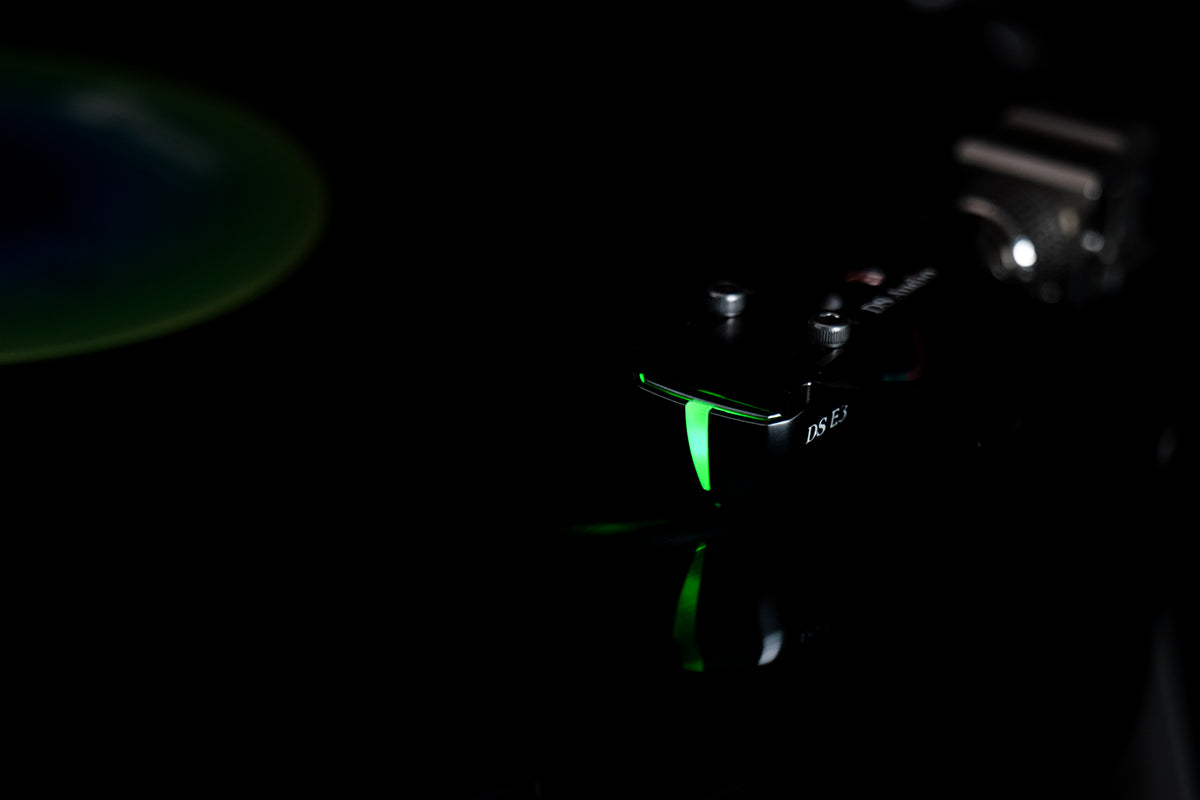

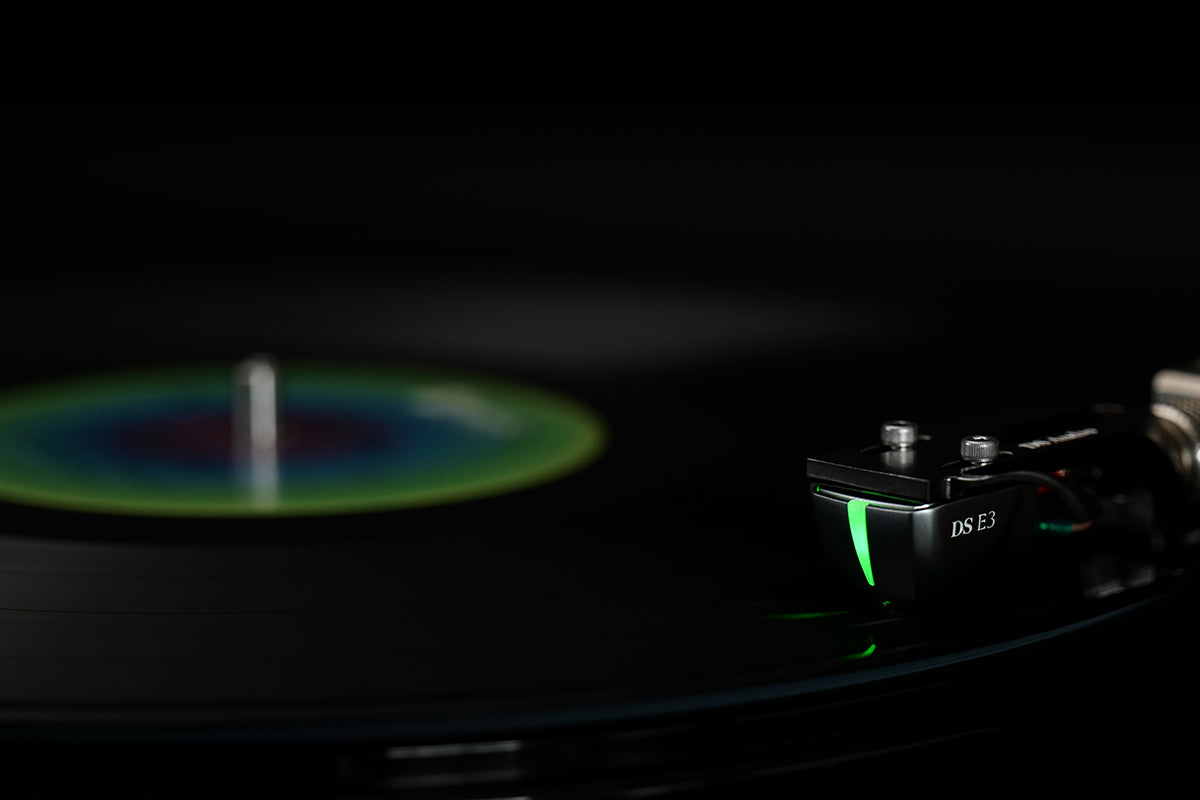

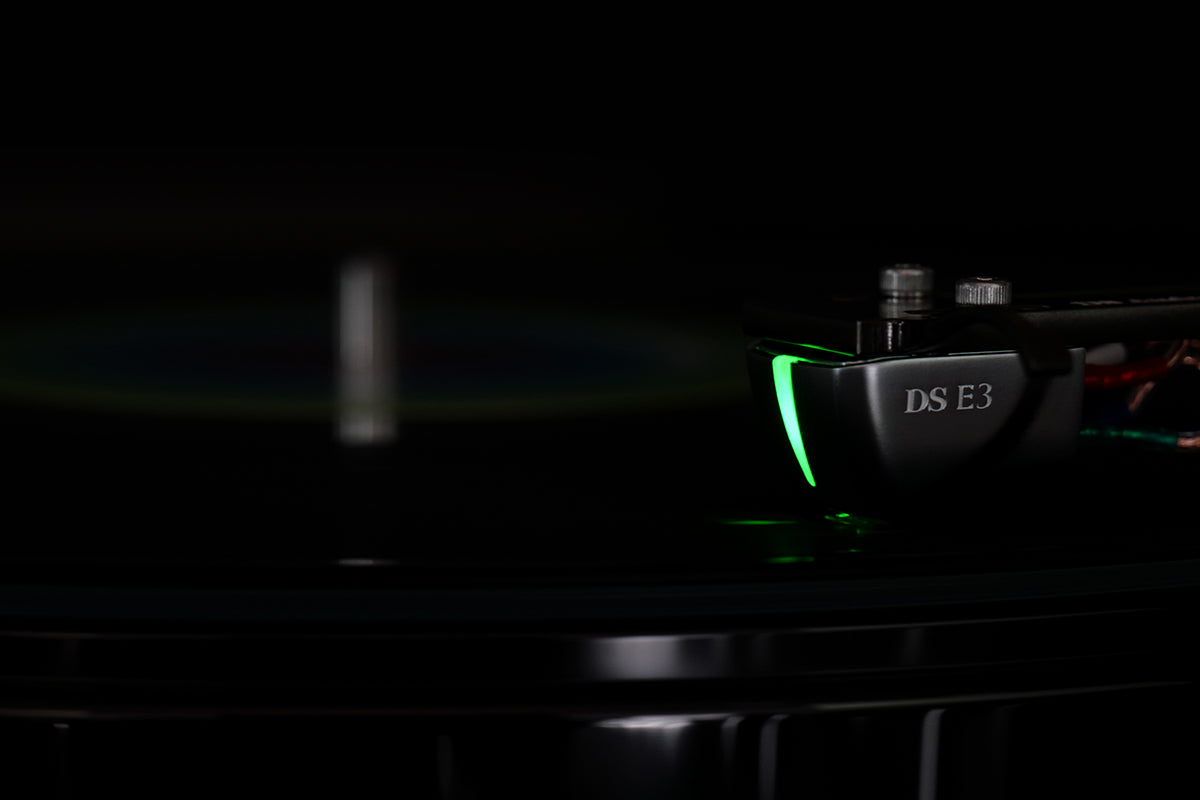

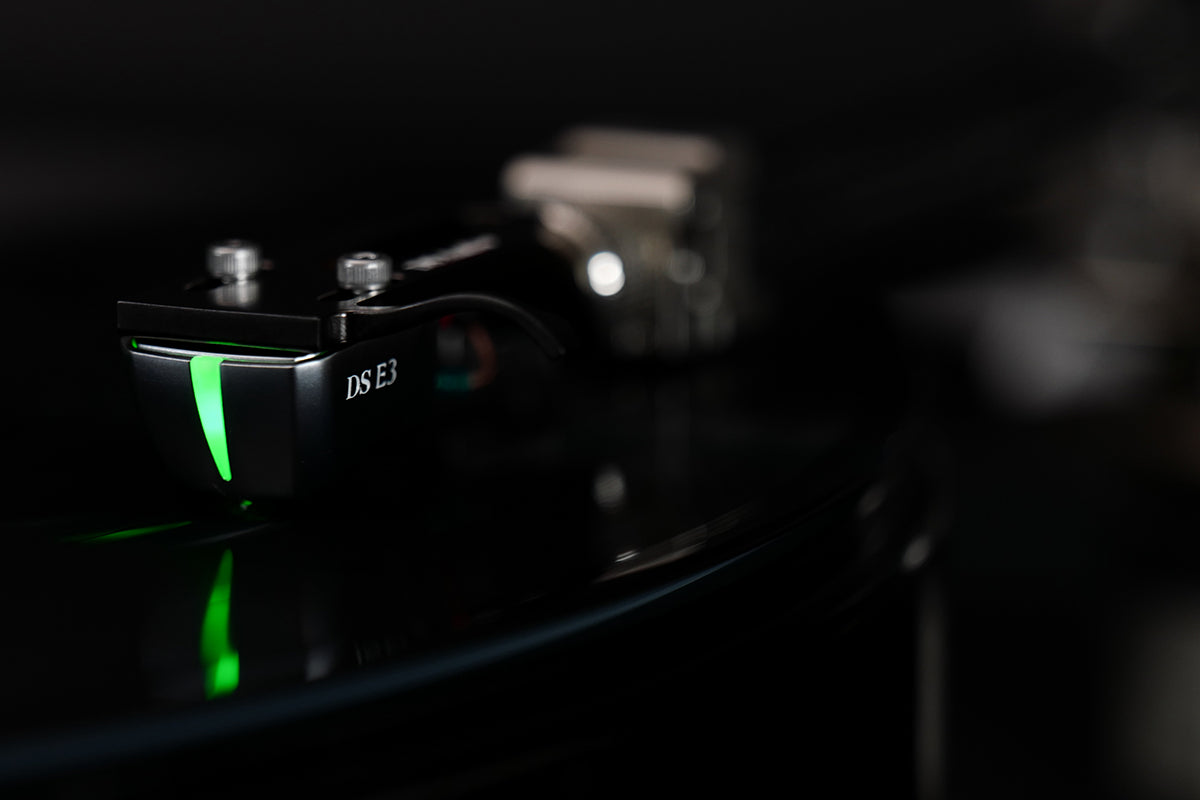

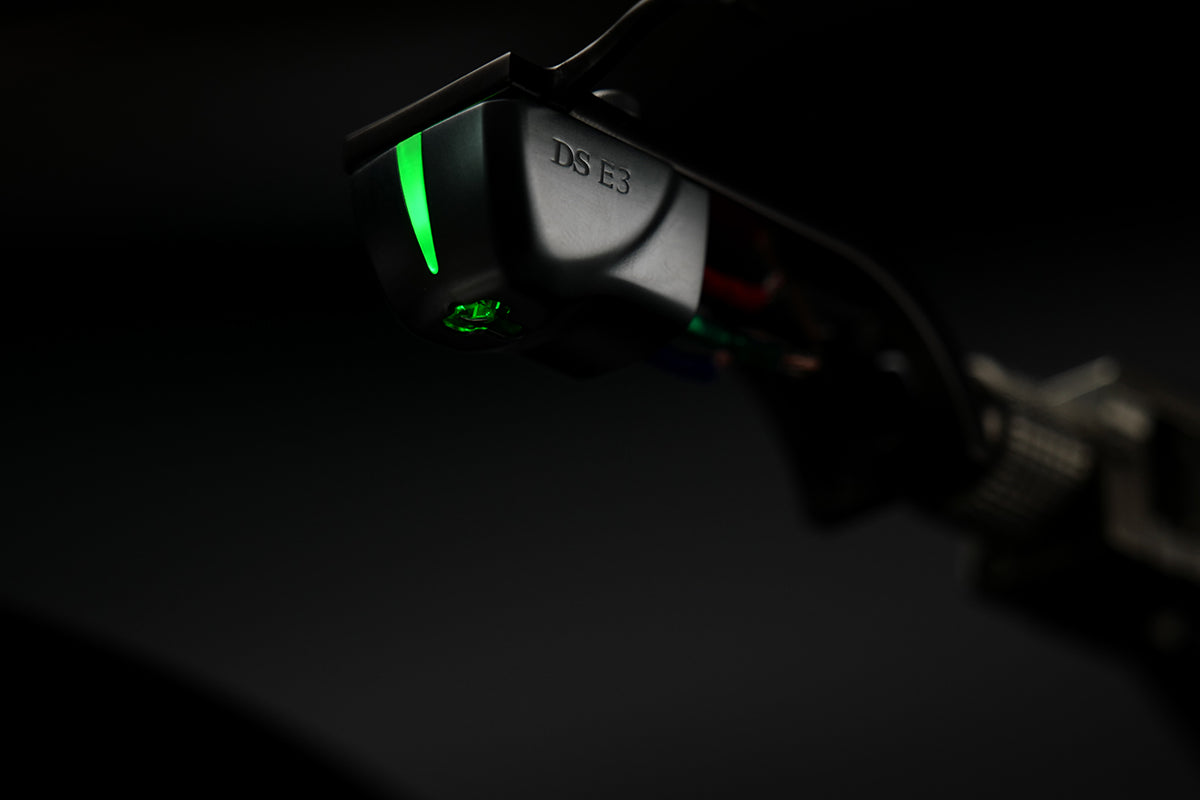

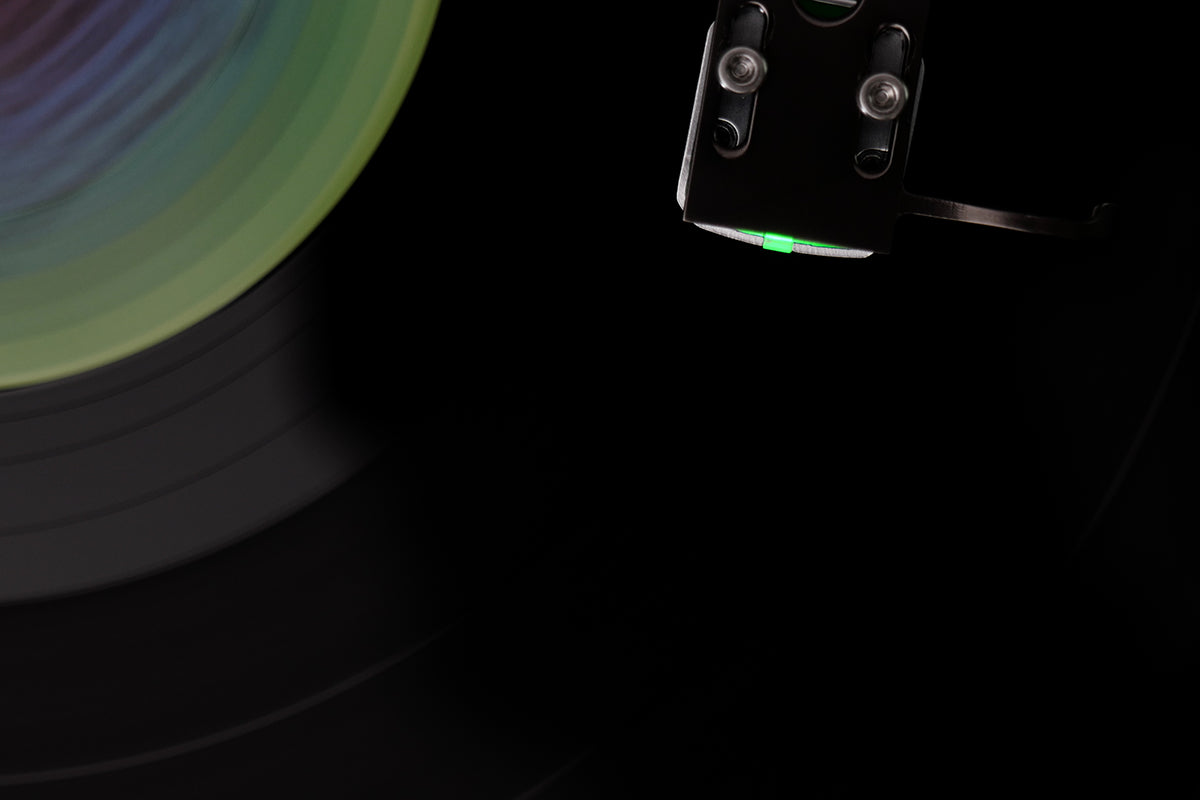

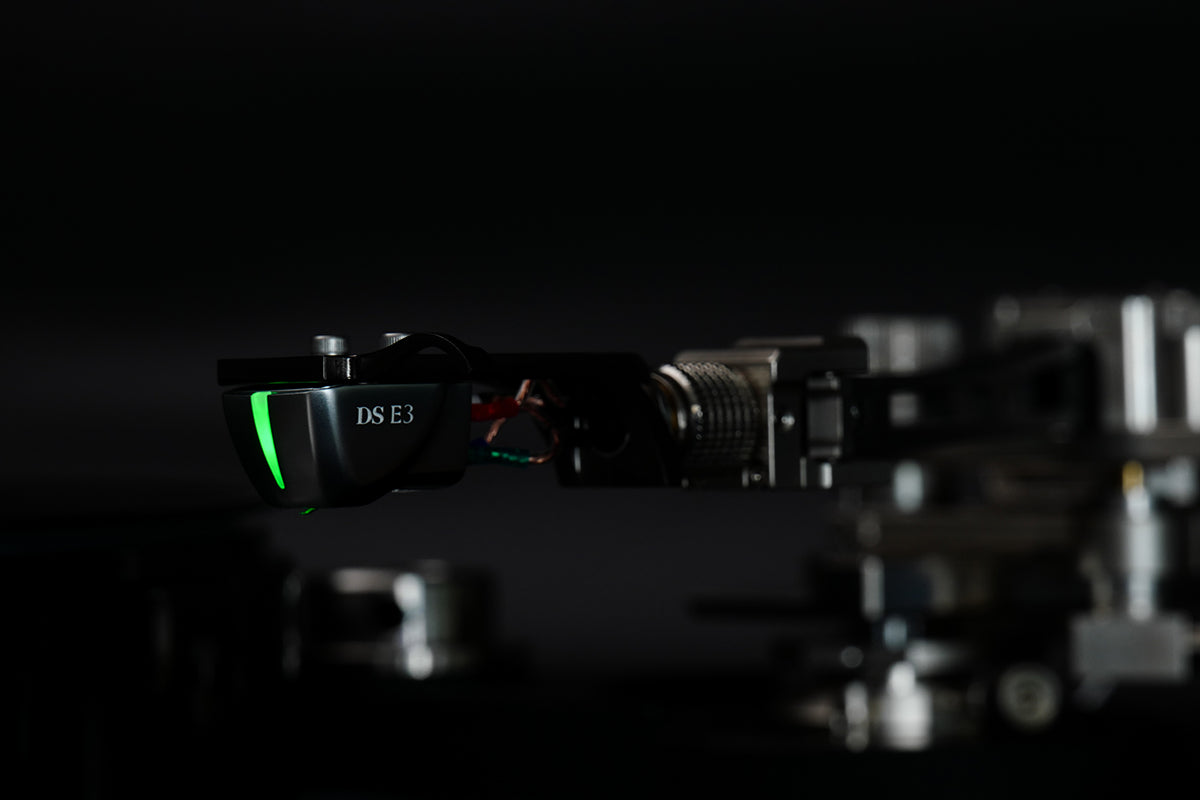

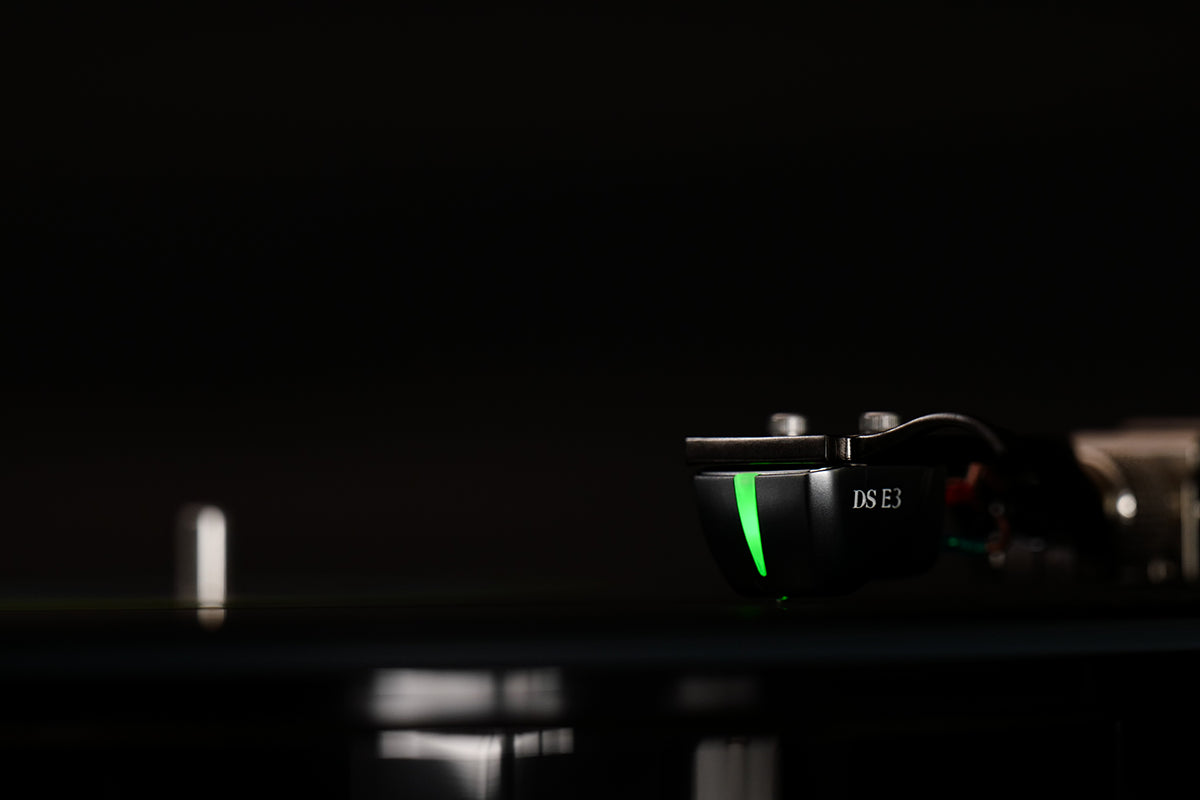

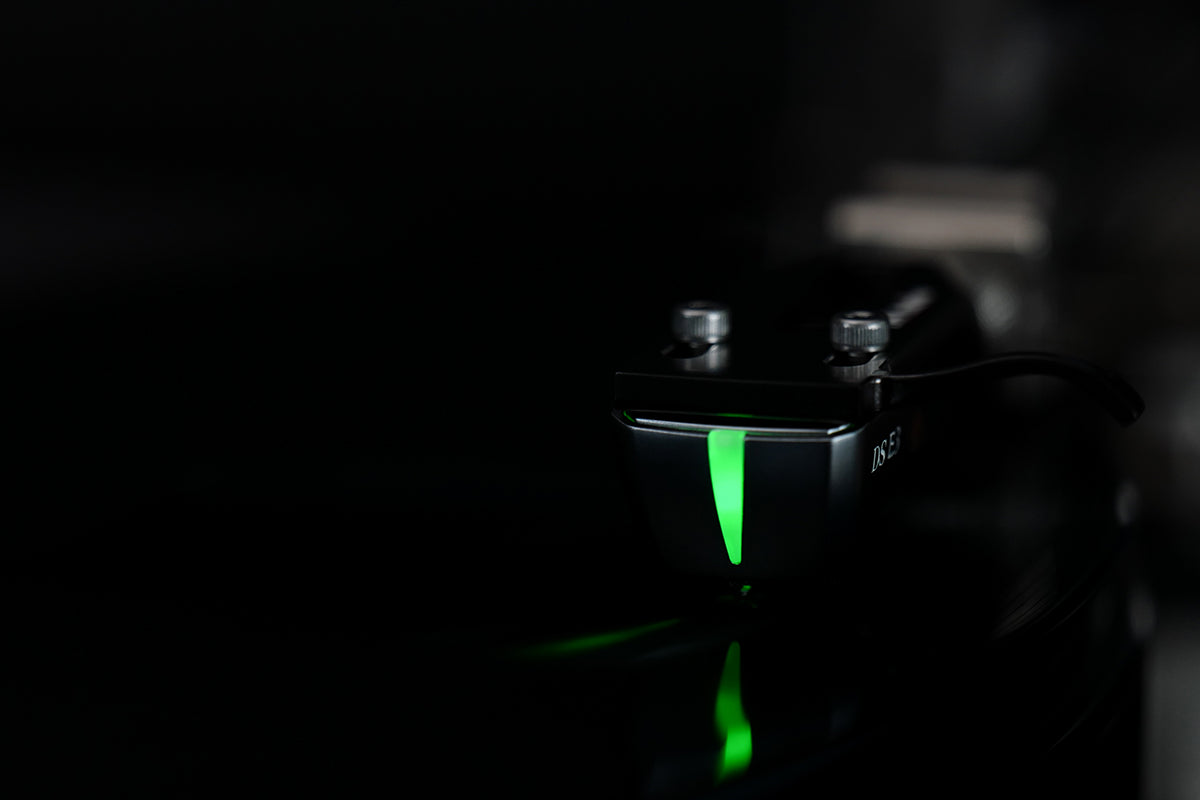

DS-E3 Optical Cartridge

Signal output	Photo-electric Conversion
Channel separation	26db more (1kHz)
Weight	7.7g
Output signal level	70mV more
Canti-lever	Aluminum
Body material	Aluminum
Needle pressure	2.0g~2.2g(2.1g is recommended)
Stylus	Elliptical Needle

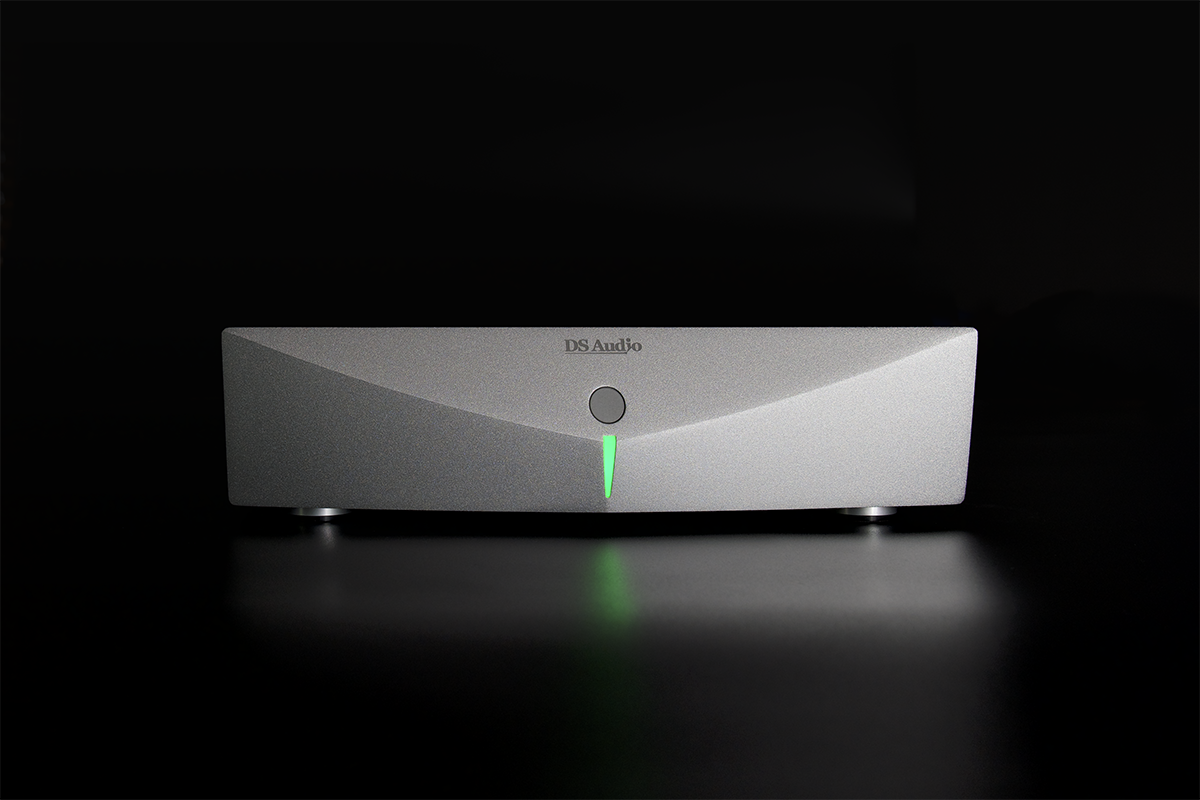

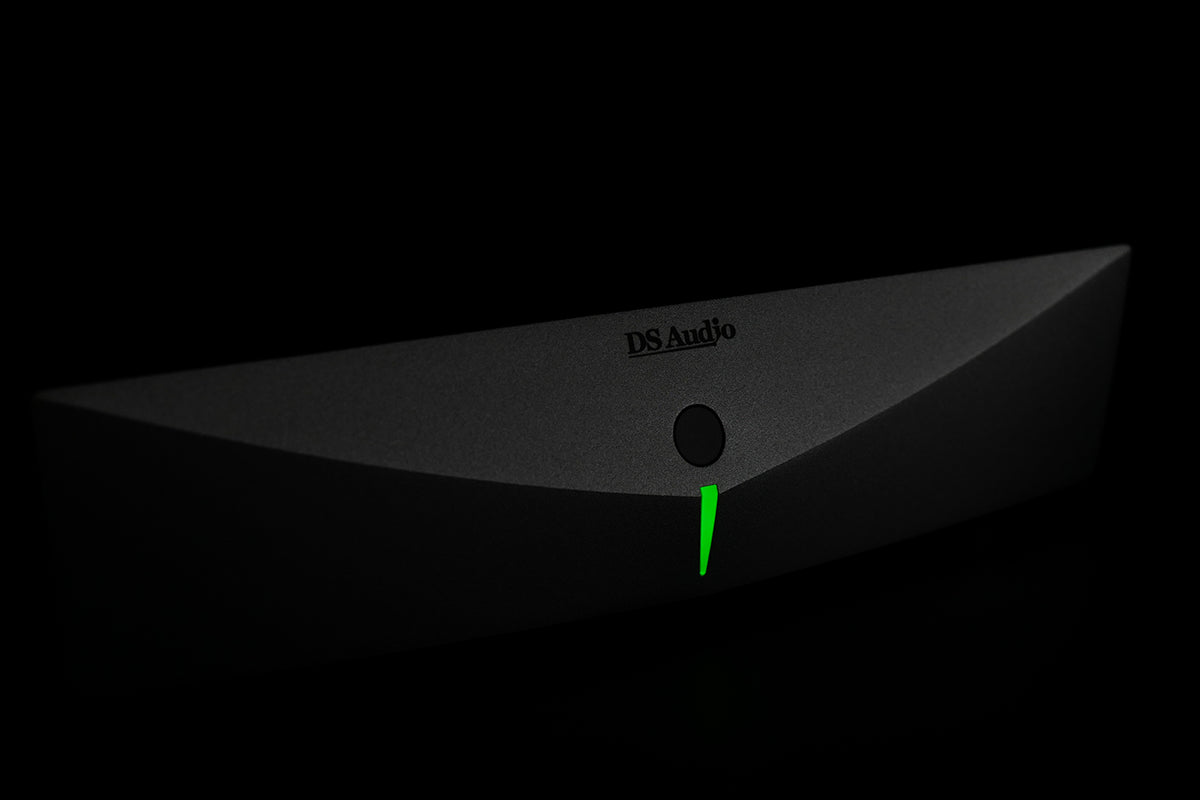

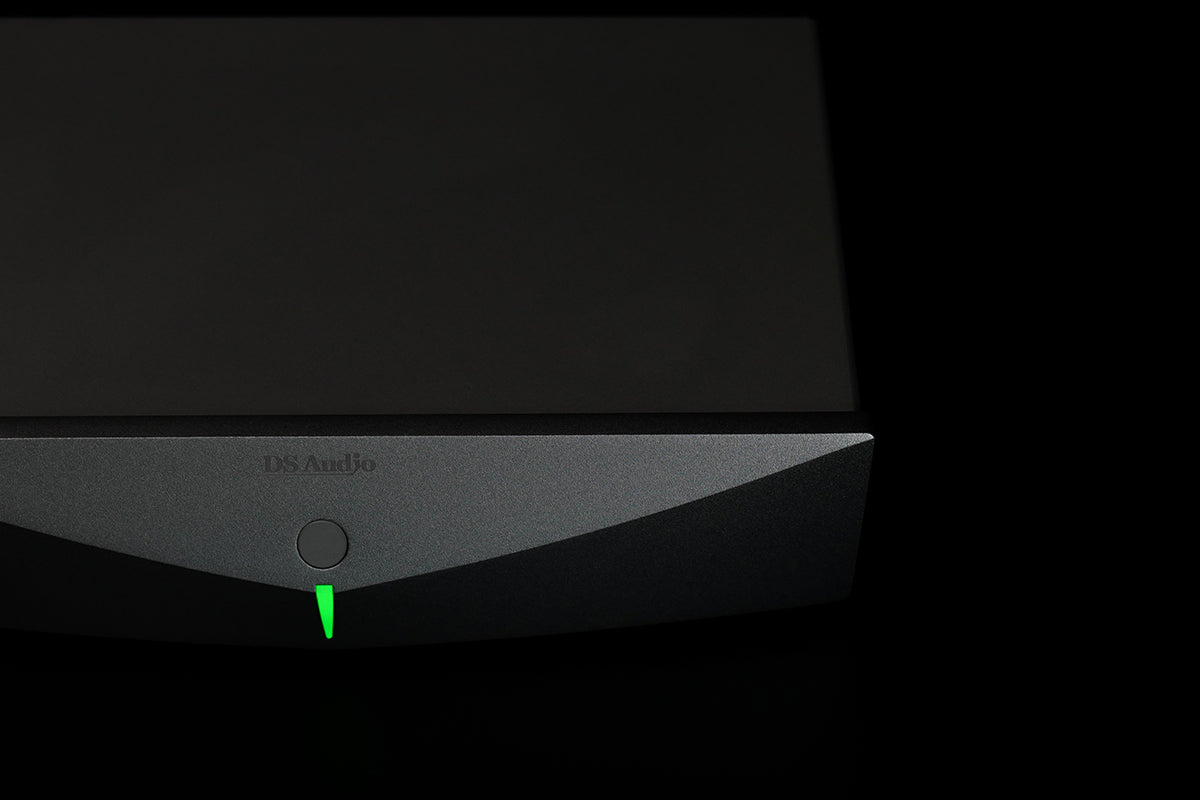

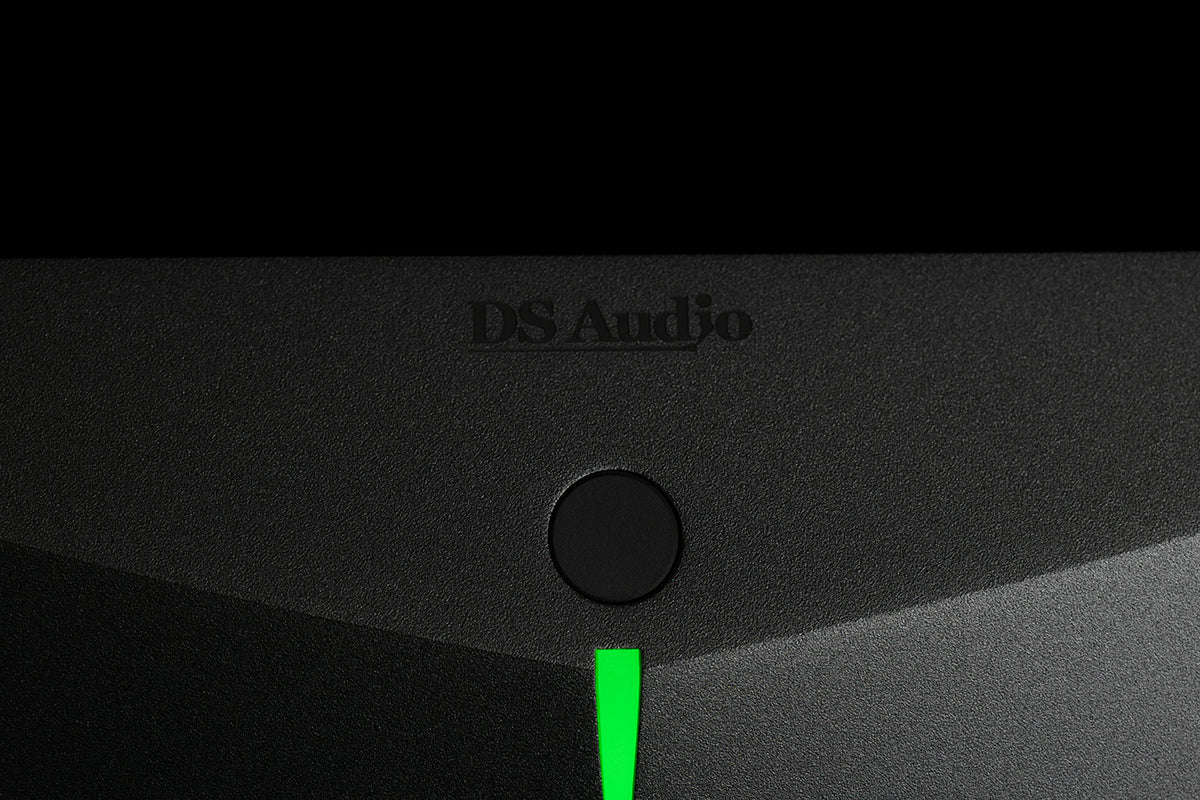

DS-E3 Equalizer for Optical Cartridge

Output voltage	500mV(1kHz)
Output impedance	120Ω
Pre amp input impedance	More than 10kΩ

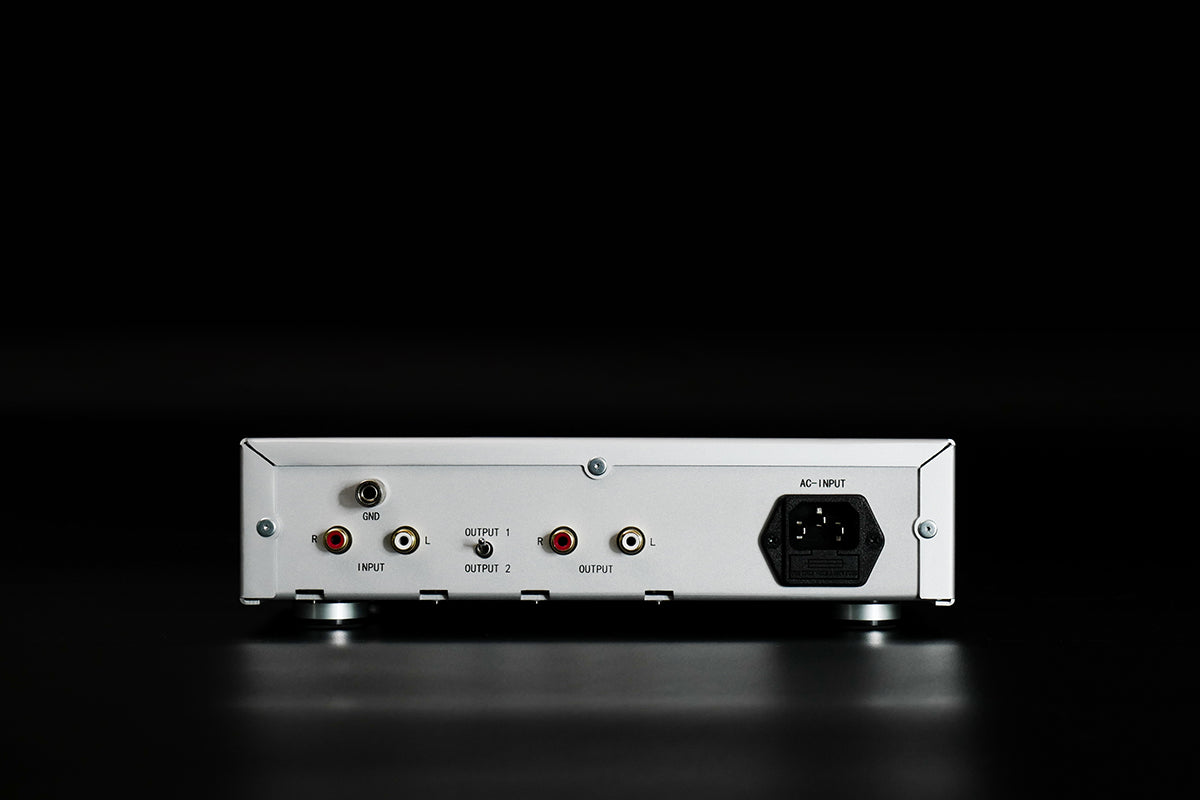

Input terminal	RCA terminal
Output terminal	RCA terminal (Switch two outputs with switch)
Size	W26cm×H6.9cm×D19.5cm
Weight	1.86kg
