Monitor Audio Climate Garden CLGW12BR
This product may take 3 to 5 business days to fulfill.
Couldn't load pickup availability

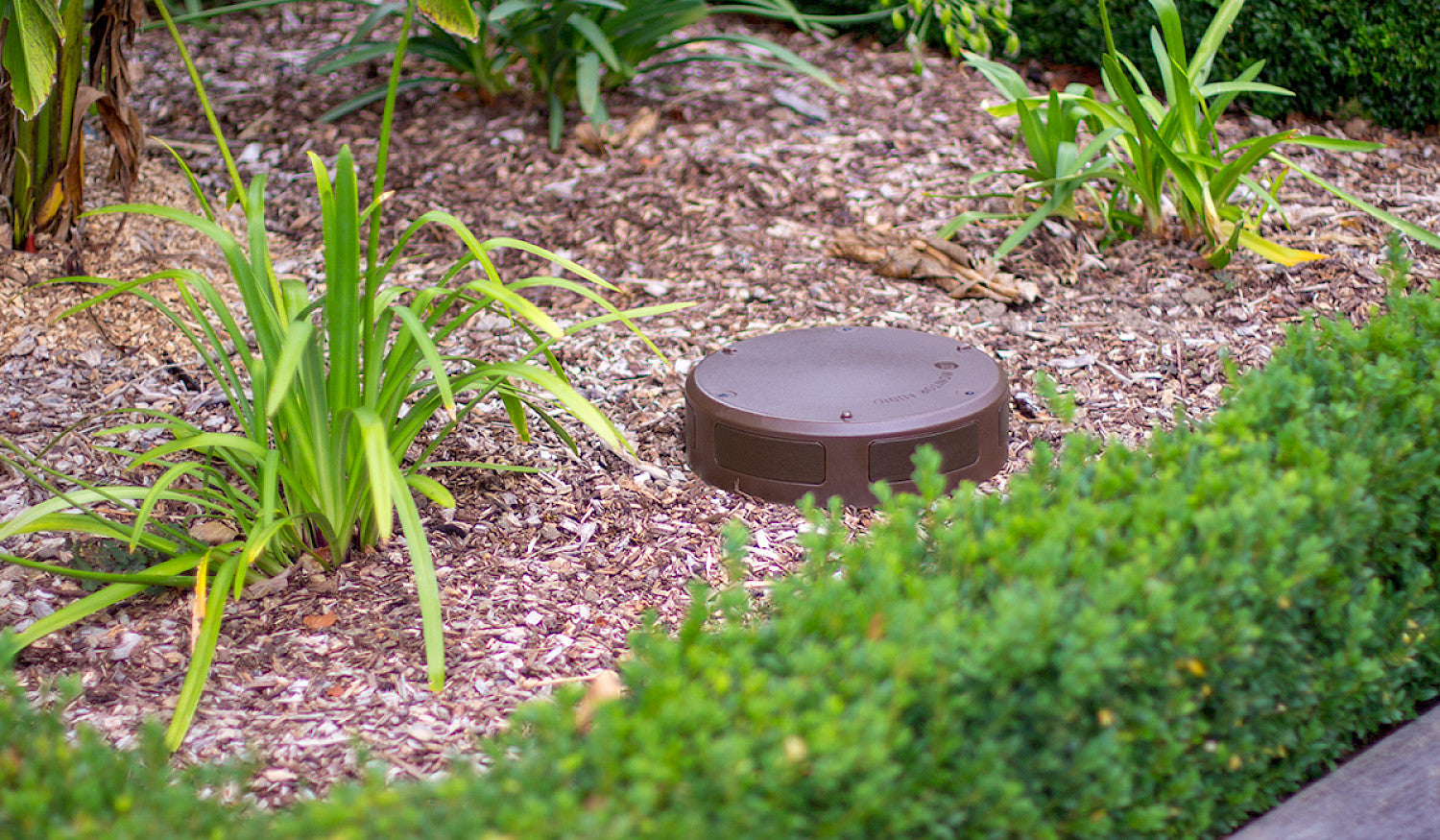

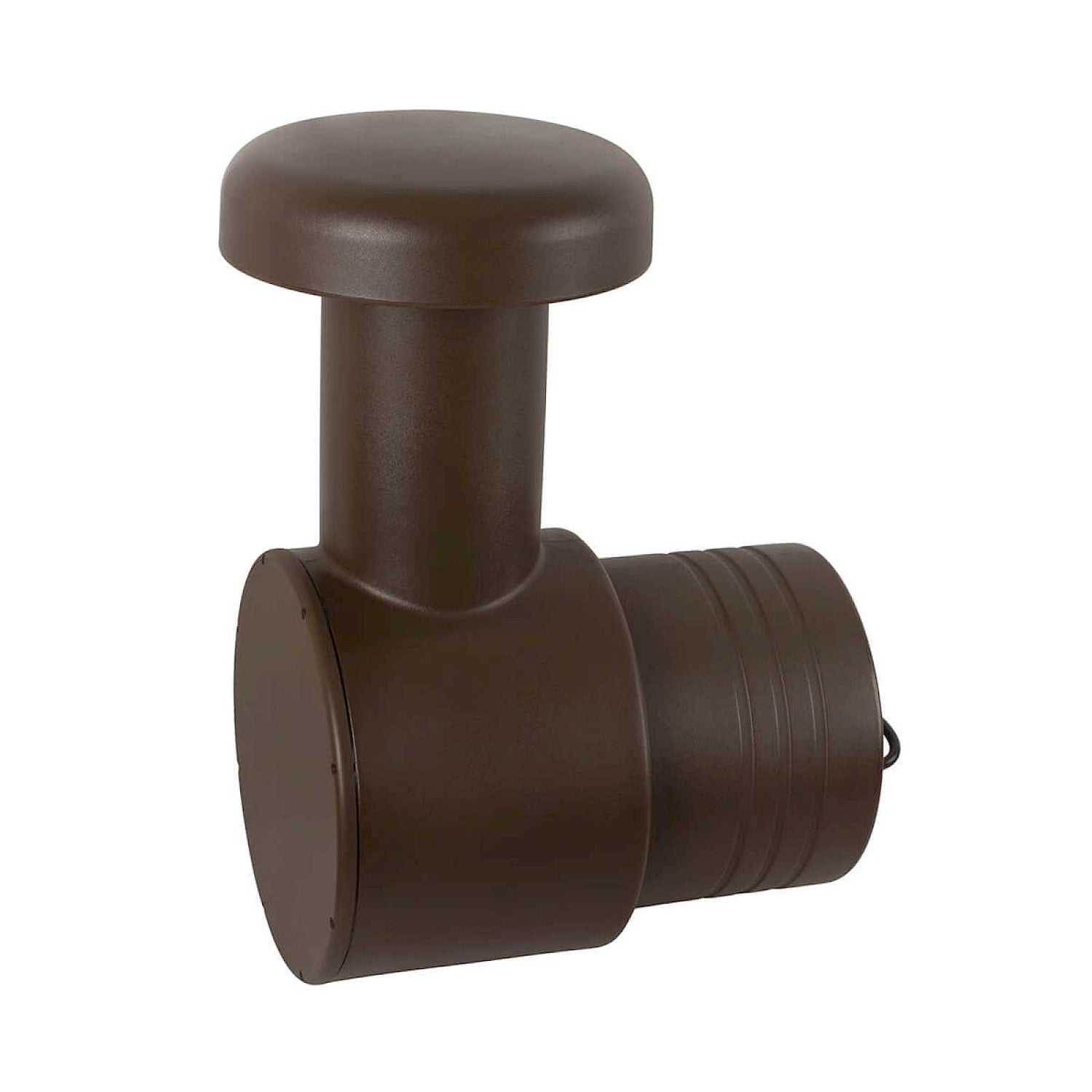

The CLG-W12 is a passive subwoofer. Optimised for discreet sub-surface installation, its proprietary Monitor Audio bandpass design incorporates an internally loaded 12" C-CAM driver, which sits in a waterproof rotationally moulded polymer enclosure buried below the garden surface—only the CLG-W12’s domed output port is visible.
Key Features:
- 12" C-CAM driver
- Fully waterproof
- Extended response down to 30 Hz
- Long throw 12" sub-woofer driver
- 70/100 V and 4 ohm tap
- Robust-moulded cabinet
- Certified to IP54
- Various outdoor applications
Bringing indoor high-fidelity audio outside

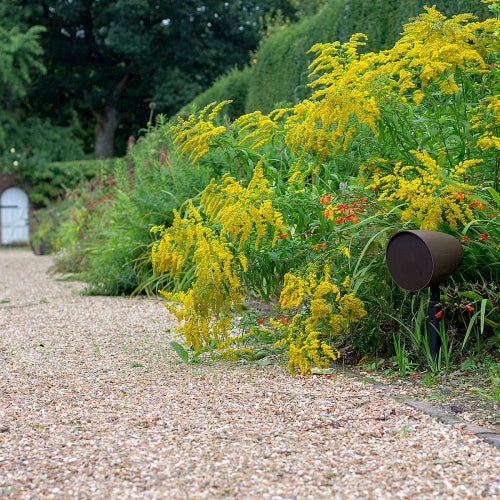

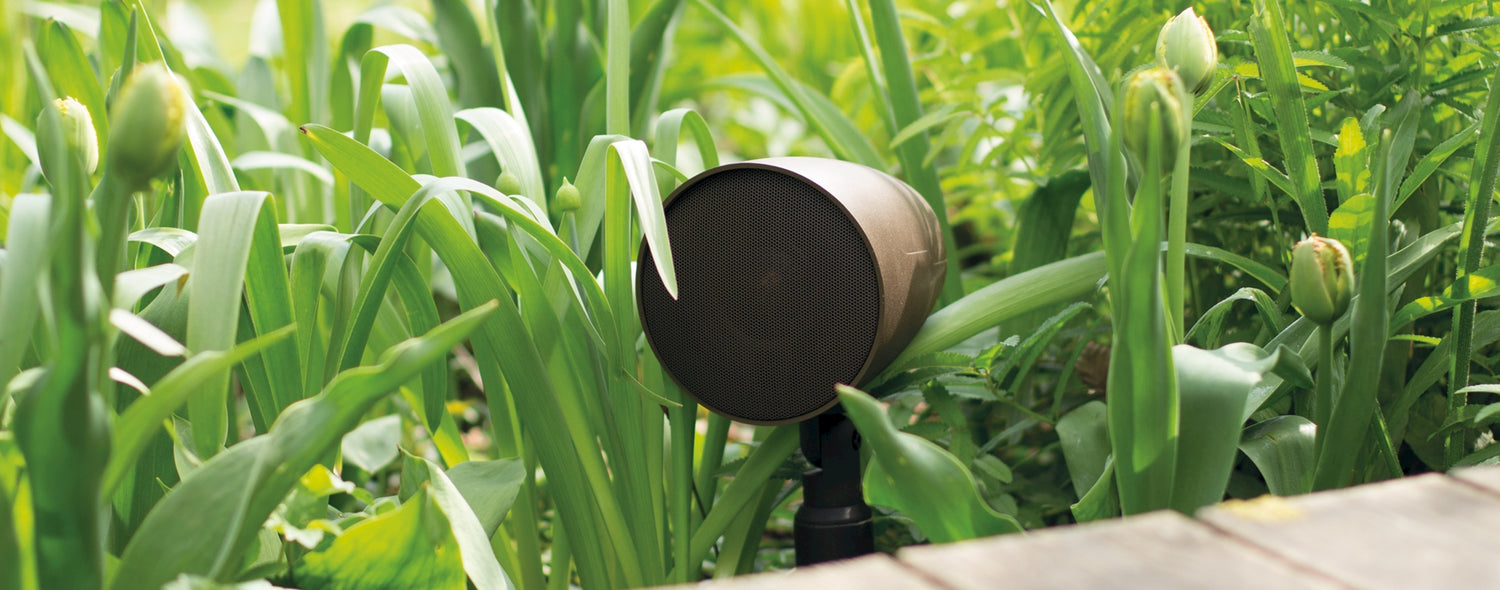

From this little ‘chimney’ powerfully taut bass frequencies will join the clean mids and highs of the surrounding CLG140/CLG160 satellites for punchy and articulate full-range garden sound.
The CLG-W12 can be powered from a single amplifier channel at 4 ohms, with its 70/100 V line option recommended for cable runs over 10m (30ft) and for adding subwoofers to the system. In this line configuration, the CLG140/CLG160 satellites are daisy-chained to the CLG-W12, one after the other, up to a recommended maximum of twelve per subwoofer. System expansion to larger garden spaces simply involves the addition of amplifier channels, subwoofers and satellites.
In the simplest designs, satellites are connected in a mono configuration to one amplifier channel, the other channel powering the subwoofer. The use of a stereo power amplifier with 70/100-volt line capability and crossover features will allow the adjustment of levels between bass and mid-high range. Alternatively, the system can be designed to provide stereo operation by adding elements to create left/right zones.

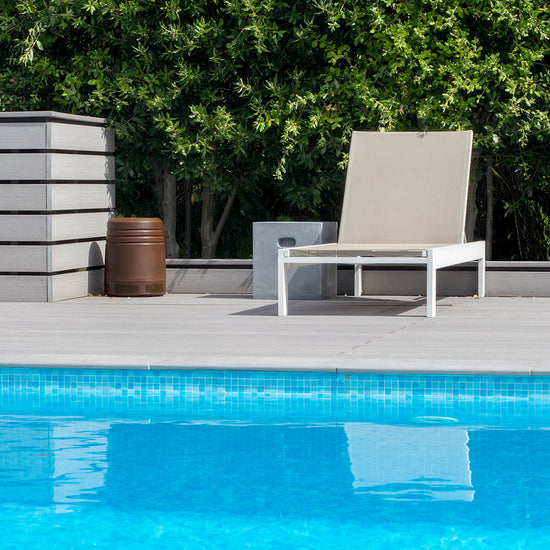

When installed, the Climate Garden System delivers a smooth, wide-open, and controlled frequency response from 30 Hz to 30 kHz in the targeted environment: better than many home audio systems! For patio or deck applications, the CLG-W12 will install within a planter box to enhance Monitor Audio’s CL Series all-weather cabinet speakers with deep bass frequencies, giving custom installers additional design options.
Specifications
Category |
Details |
|---|---|
| Frequency Response (-6 dB) | 30 Hz — 100 Hz |
| Sensitivity (1W@1M) | 87 dB |
| Nominal Impedance | 4 ohms or 70/100 Volt line level (cable select) |
| Maximum SPL | 110 dBA |
| Power Handling (RMS) | 250 W |
| Recommended Amplifier Requirements | 100 — 250 W |
| Drive Unit Complement | 1 x 12" C-CAM cone, long throw sub-bass driver |
| Crossover Recommendation | 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum) |

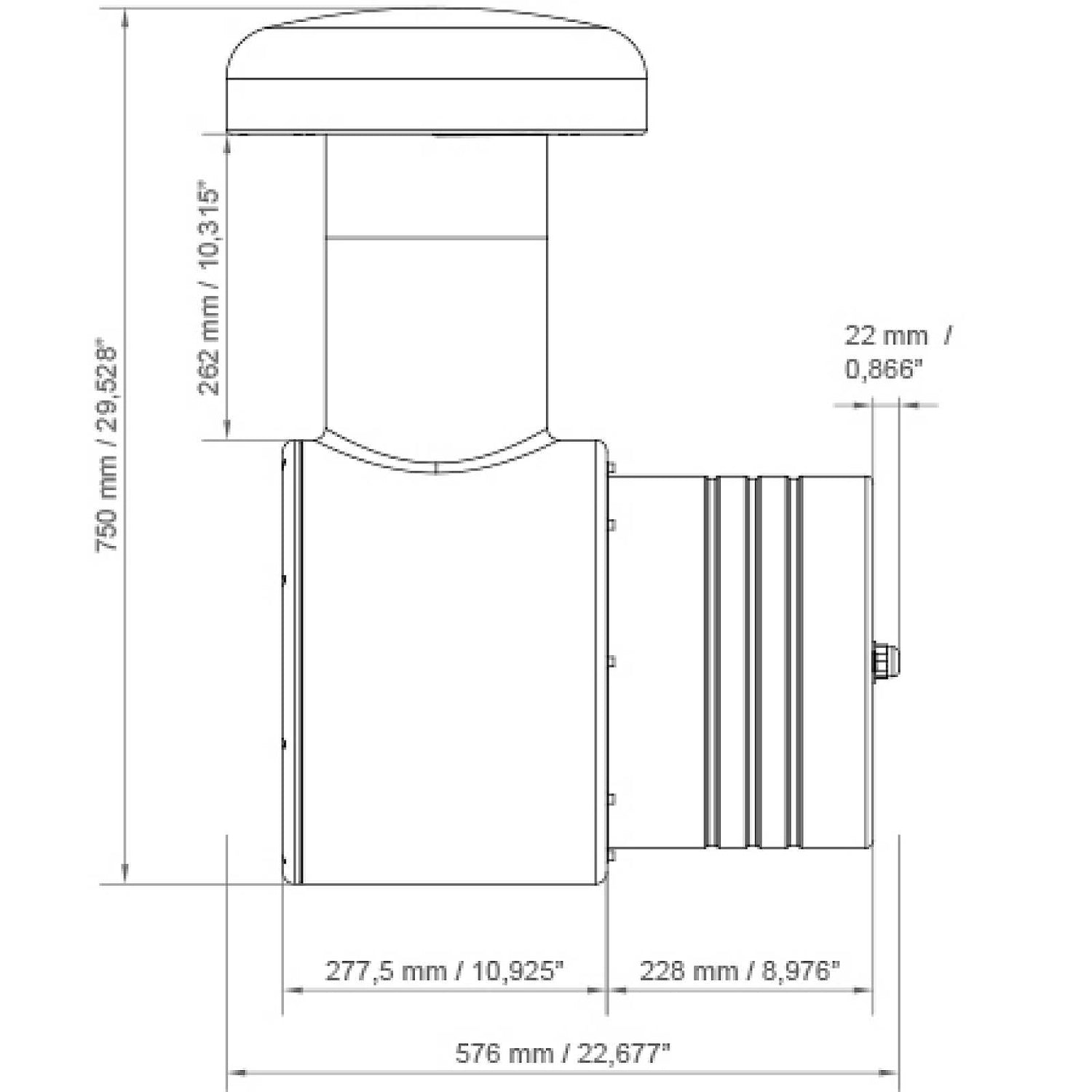

| External Dimensions (H x W x D) | 750 x 380 x 505.5 mm (191/2 x 1415/16 x 197/8") |
| Connection | Encapsulated cable connection |
| Environmental Protection Rating | IP54 |
| Colour / Finish | Brown |
| Weight | 19.5 kg (42 lb 14 oz) |
| Sold As | Single Unit |
| Warranty | 5 years |
Weather Resistant
Bringing indoor high-fidelity audio outside
Whole-house audio, doesn’t just mean sound throughout your interior. It can also mean within your outside living space too. Which is why with Monitor Audio’s Weather Resistant range of robust, and acoustically innovative installation speakers, you can enjoy all the detail of your favourite music outside, whatever the weather.
All Weather

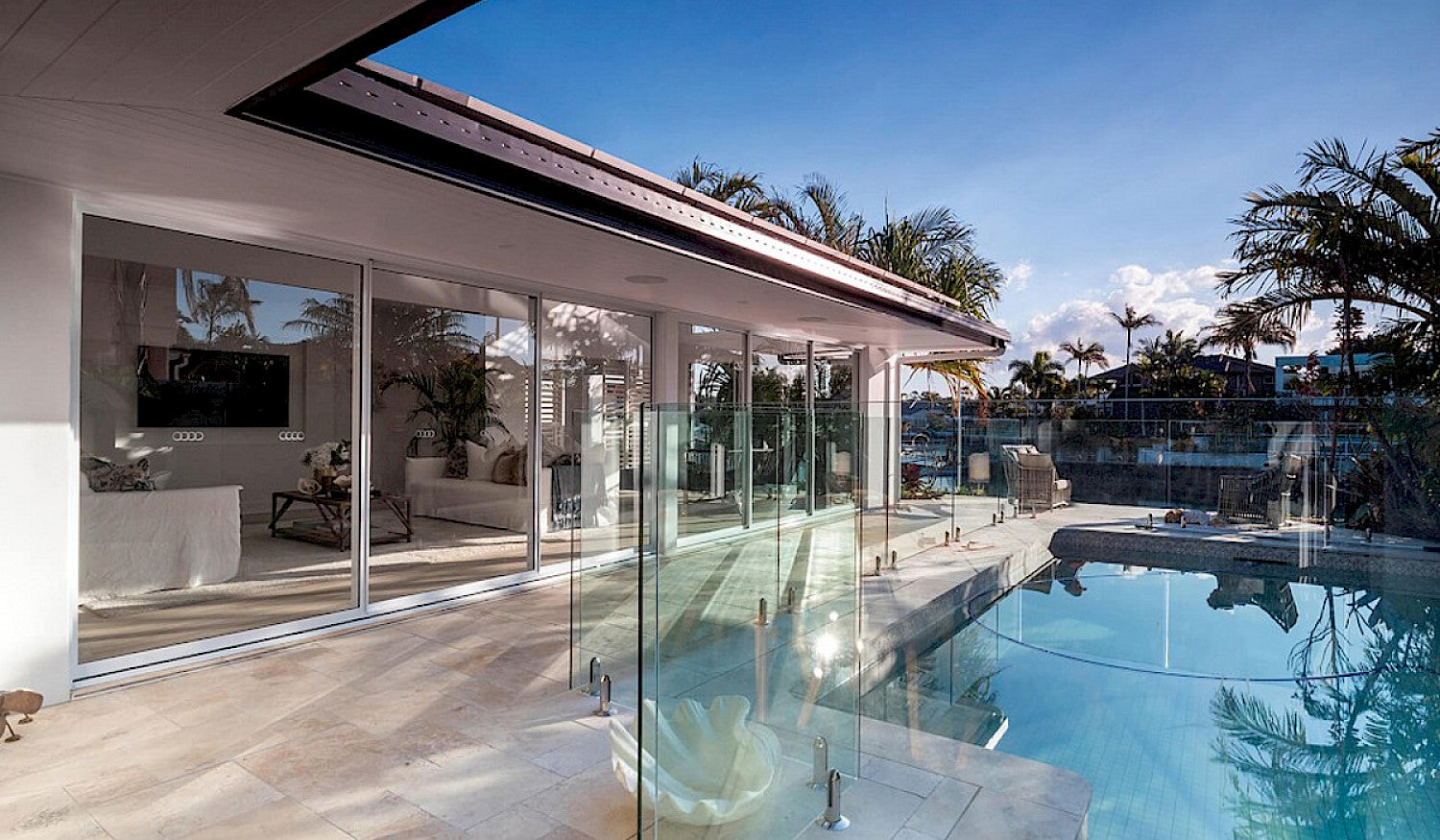

The All Weather In-Ceiling series has a weatherproof construction for installation in more extreme environments such as bathrooms, beach houses, saunas or even boats.
It offers long-term high performance reliability being built with heightened levels of water, dust, corrosion, UV and temperature protection. These speakers feature super-discreet Stainless Steel grilles and are certified against salt spray, UV stability, water, vibration and anti-corrosion.

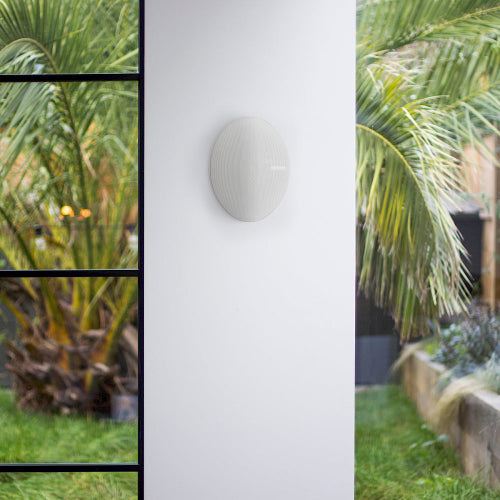

Vecta
With the popularity of high quality audio increasing, Monitor Audio provides integrators with a range of speakers that allow this level of sound to be enjoyed both inside and out.

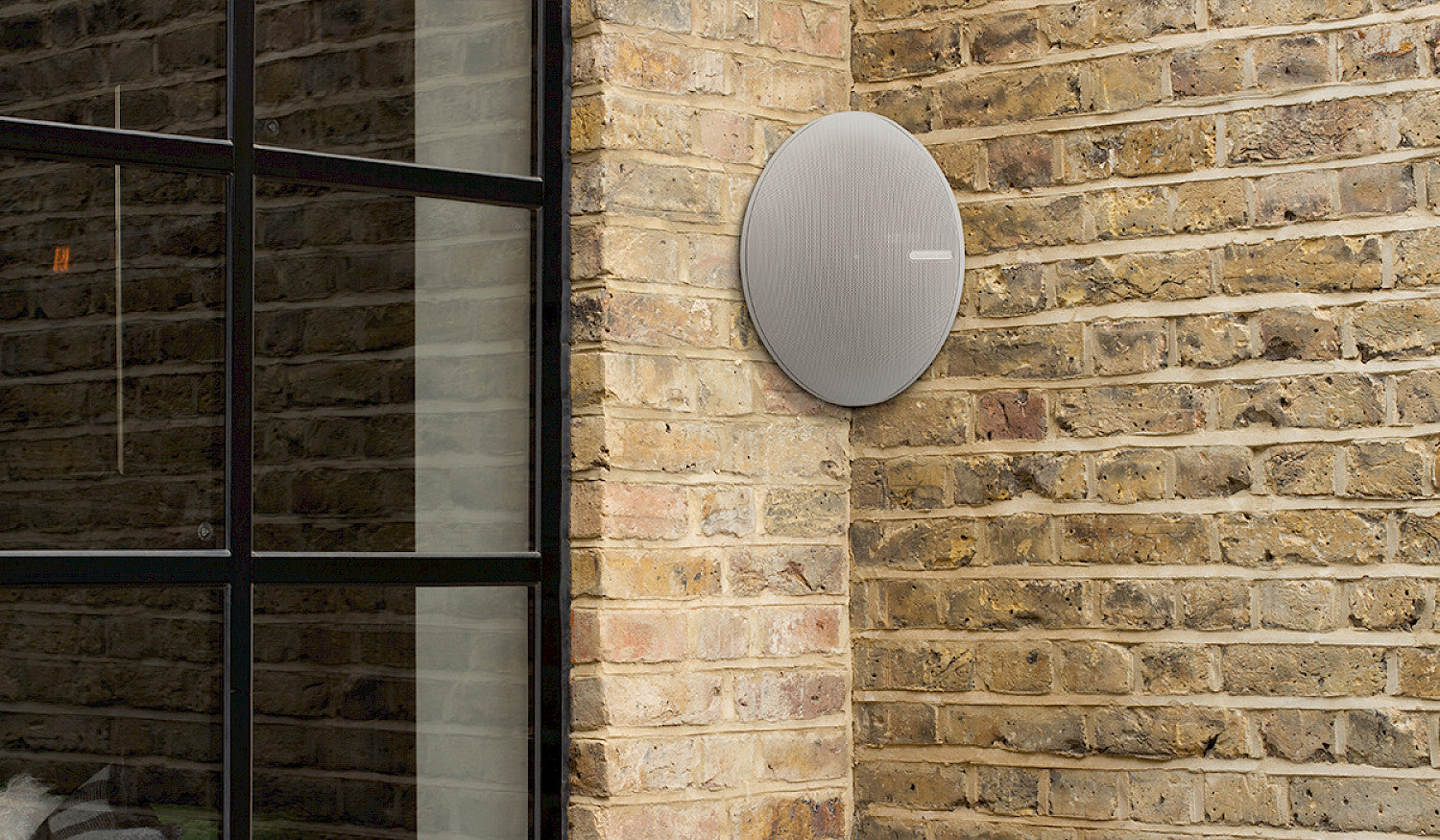

Wall mounted either horizontally or vertically, Vecta can be discreetly installed under eaves, straight on the wall, or configured as a group for 360-degree sound with the LV version. A curved baffle minimises ceiling or wall reflections to deliver a controlled sound field and wide dispersion.
Climate Garden
The Climate Garden System comprises of super discreet all weather satellite speakers and a subwoofer.
It’s ground level installation amongst shrubs and trees delivers a luxury blend of unobtrusive aesthetics and natural full range audio in gardens of any size. 70/100 V line arrays of up to twelve satellites per subwoofer makes the Climate Garden System expandable with additional satellite and subwoofer sets according to garden area.
