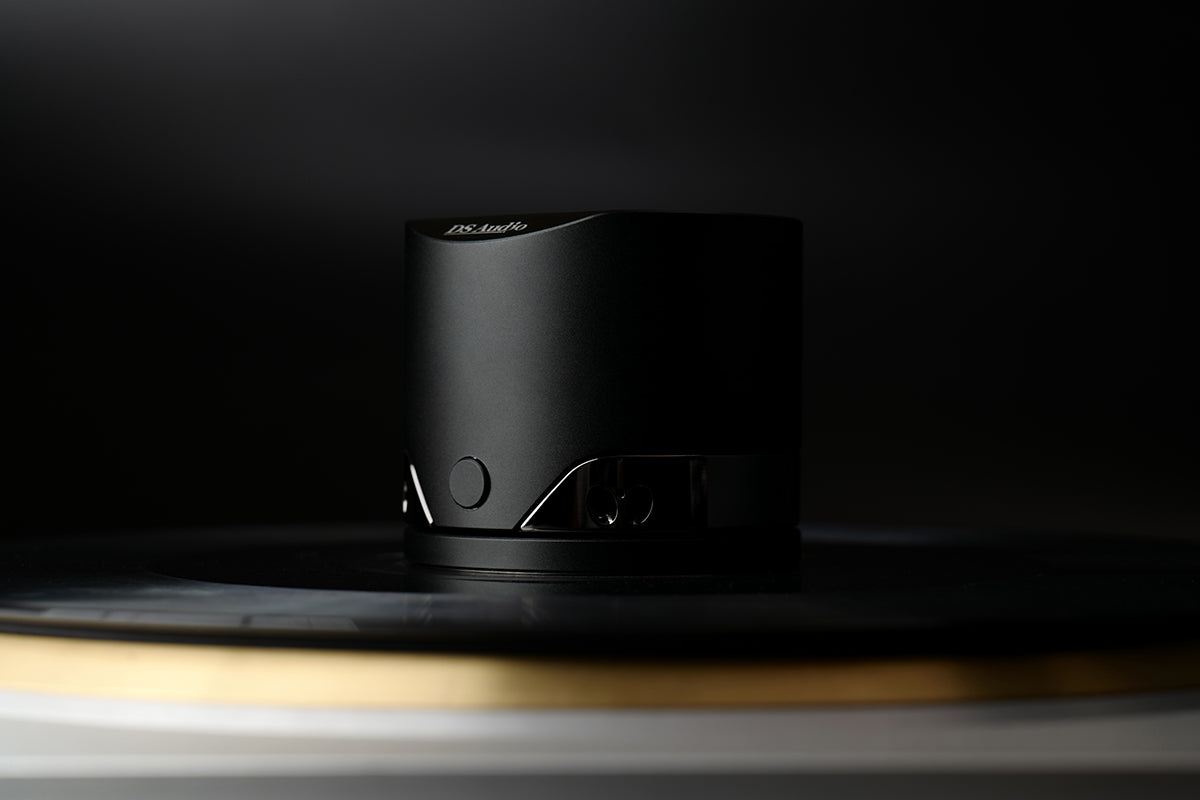

DS Audio ES-002 Eccentricity Detection Stabilizer
SELECT OPTIONS:
Couldn't load pickup availability

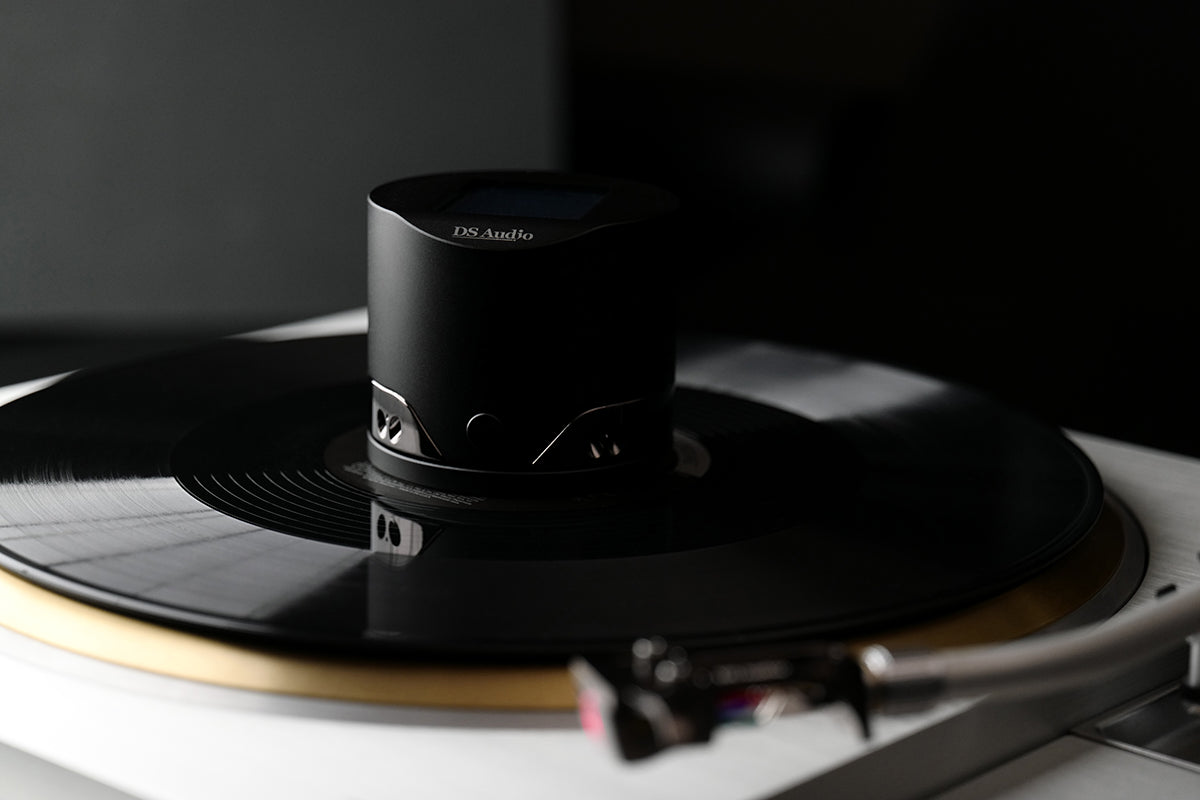

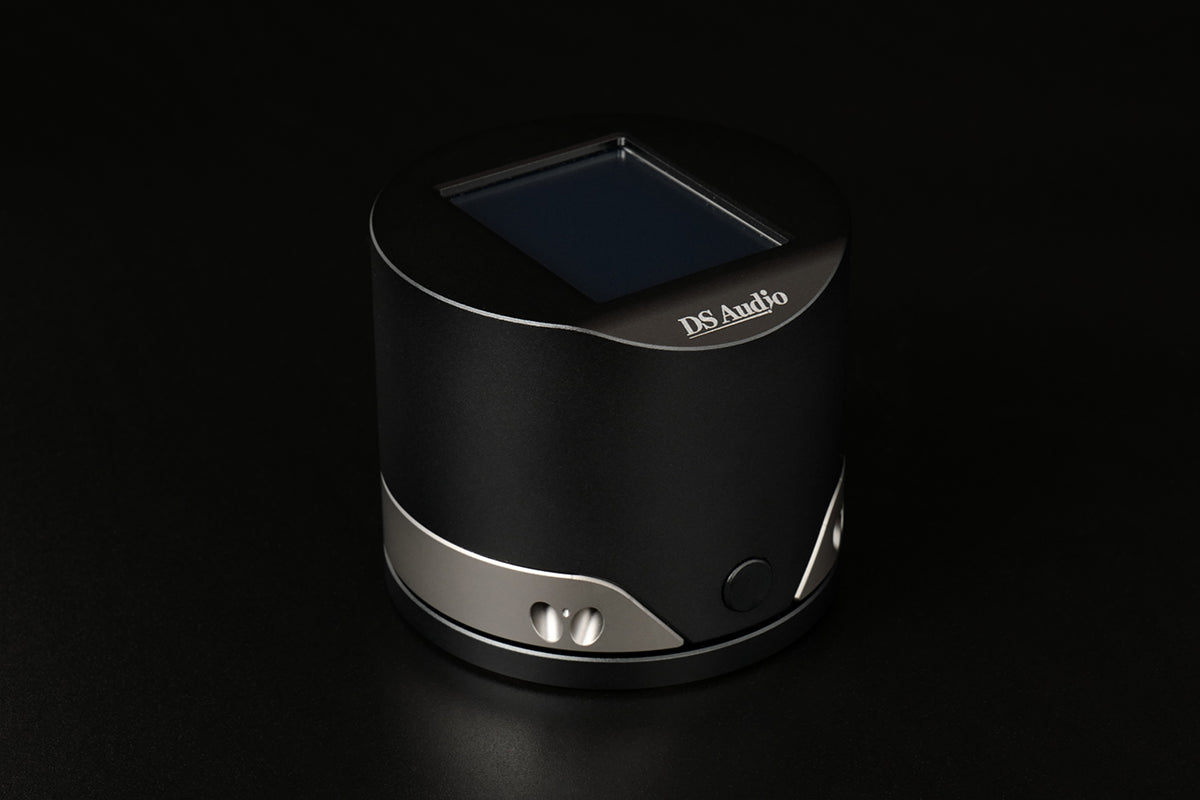

ES-002 Eccentricity Detection Stabilizer
ES-002 Eccentricity Detection Stabilizer
Details
Further Pursuit of Perfection in the ES-002
The ES-001 eccentricity detection stabilizer earned high praise from analog audio enthusiasts. Inheriting its core design, the ES-002 introduces carefully considered improvements to achieve a higher level of perfection. Enhancements in structure, materials, and balance ensure superior reliability and ease of use in practical applications. The ES-002 is a meticulously refined evolution of the ES-001, enhancing durability, reliability, and operability in every aspect. The difference is in the details.
• Simplified and Robust Construction
The number of components has been reduced, resulting in a more streamlined and reinforced design. This simplicity contributes to improved reliability and structural stability.
• Improved Housing Durability
The battery compartment has been redesigned, and new materials have been adopted for the sensor unit, further enhancing durability during extended use.
• Optimized Center of Gravity for Greater Stability
The internal configuration has been rebalanced to achieve ideal rotational performance. This refinement enables the stabilizer to deliver smoother, more natural operation.

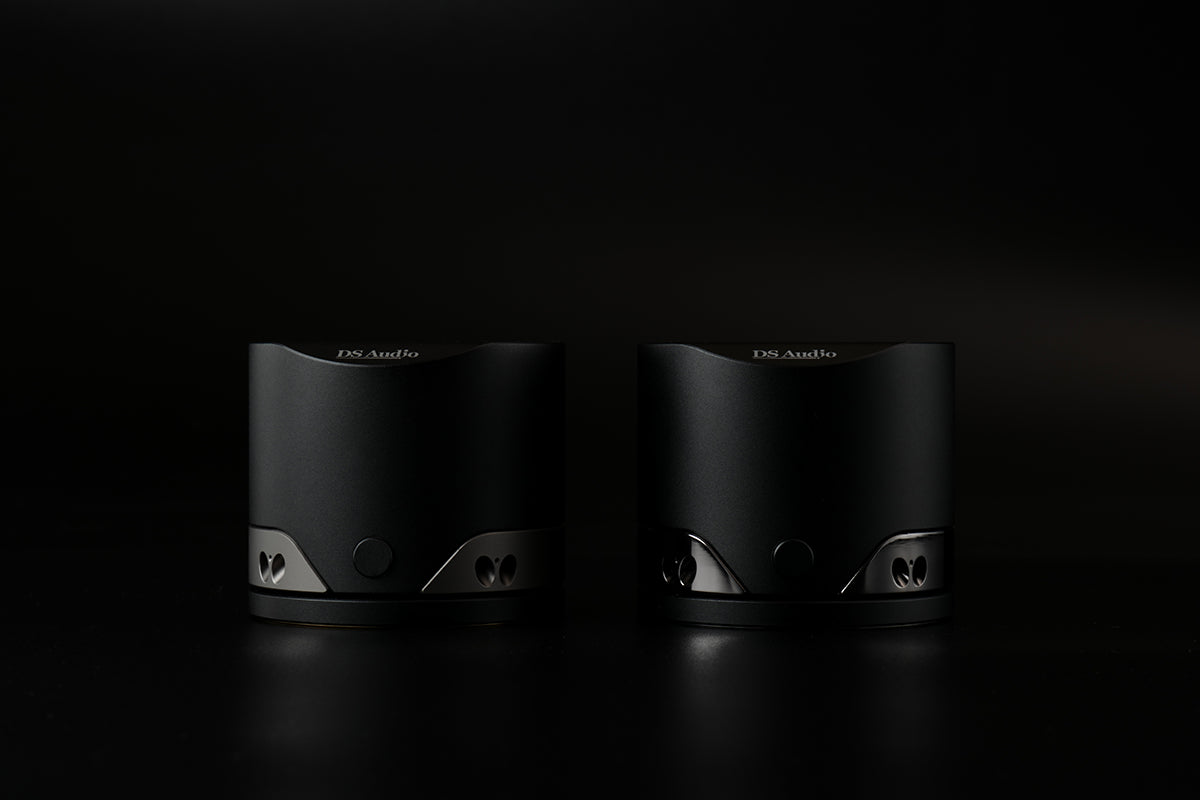

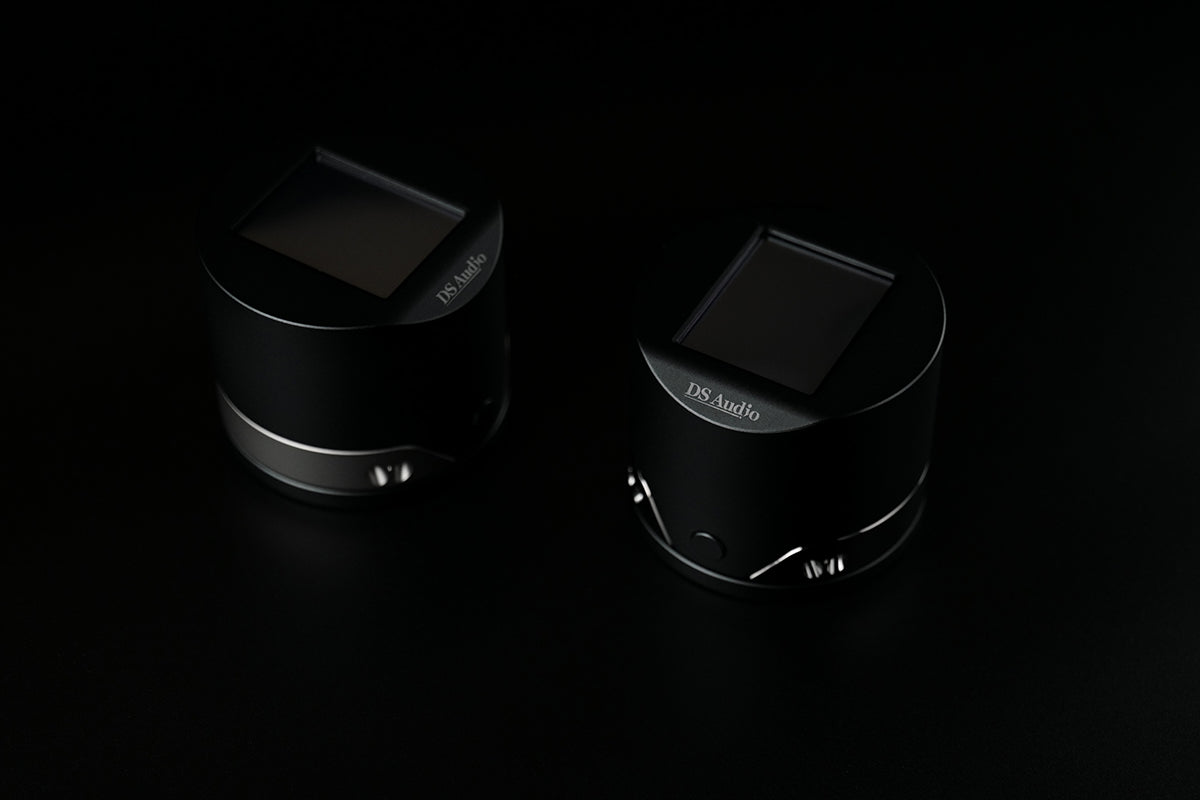

ES-002 Reference (Reference Model)
Building upon the design philosophy of the ES-001, the ES-002 Reference is a reference model that pursues an even higher level of refinement. Prioritizing sound quality above all, it is constructed using only the finest grade components.
Combining outstanding audio performance with highly accurate eccentricity detection, this model represents the culmination of DS Audio's stabilizer technology.
ES-002 Core (Core Model)
Offering the same measurement accuracy and core functionality as the Reference model, the ES-002 Core is a practical option designed with cost-efficiency in mind.
By replacing the most expensive reliable tungsten components with brass, using resin for internal parts, and simplifying the accessories, it maintains identical performance while being more accessible.Both models deliver the same high level of measurement precision and detection performance, ensuring and consistent operation.
You Can't Reduce Wow & Flutter Without Eliminating Record Eccentricity
The dominant cause of wow & flutter in analog playback is not the turntable itself, but the eccentricity of the record.No matter how precise or expensive your turntable may be, as long as the record is off-center, wow & flutter cannot be truly reduced.
For example, a record with an eccentricity of just 0.34 mm can generate wow levels more than 20 times greater than those of the turntable alone—even if the turntable boasts a wow & flutter rating of just 0.008%.
This means that record eccentricity severely degrades the rotational accuracy of the entire playback system, making it impossible to achieve faithful sound reproduction, regardless of the hardware quality.
By accurately correcting the record's eccentricity, you can dramatically reduce total wow & flutter—allowing your turntable system to finally perform to its full potential.
Two Major Problems Caused by Record Eccentricity
When a record is off-center, it increases wow & flutter and causes two major problems in playback accuracy and sound quality.
The first issue is instability in playback frequency.For example, even if a 3kHz tone is originally recorded into the groove, excessive wow & flutter will prevent it from being reproduced accurately at 3kHz.This is a fundamental flaw for any system that aims to faithfully reproduce the recorded material.
The second issue is mechanical instability.As the tonearm traces an off-center record, the cartridge is constantly shaken from side to side.This causes it to move away from its ideal operating center, resulting in interchannel phase shift, which can lead to audible muddiness and unstable imaging.
To eliminate these issues and allow your audio system to reach its full potential, it is essential to reduce record eccentricity as much as possible.
Precise Centering in 3 Simple Steps
With the ES-001 Eccentricity Detection Stabilizer, correcting record eccentricity is easy and accurate—just follow these three simple steps:Measure → Adjust → Restart
STEP 1: Measurement
Start by turning on your record player.While the platter is rotating, gently hold down the top of the stabilizer to stop its own rotation.This triggers the stabilizer to detect platter movement and enter measurement mode automatically.Once in measurement mode, the outer ring display will begin to rotate, and a message saying “Tap screen to start measurement” will appear.Tap the screen, and the message will change to “Measuring…”After approximately 2 seconds, the measurement is complete.
STEP 2: Adjustment
Stop the turntable and refer to the display.A cross mark (representing the center of rotation) will appear on the screen.Press and slightly shift the record so that the cross mark aligns as closely as possible with the absolute center of the screen.The display's color elements—outer ring, cross mark, and “After” bar—visually indicate the degree of eccentricity.
STEP 3: Restart
Once the cross mark is aligned with the true center, restart the record player to confirm that the eccentricity has been corrected.Then, enjoy playback with minimized wow & flutter and enhanced audio performance.
ES-002 Reference
| Dimensions | φ80mm × H70mm |
| Weight | 640g |
| Body Material | Aluminum (A5052) |
| Exterior Finish | Black anodizing + Glossy black nickel plating |
| Bottom Plate | Non-magnetic tungsten |
| Internal Parts | Sound-quality prioritized metal components (partial use) |

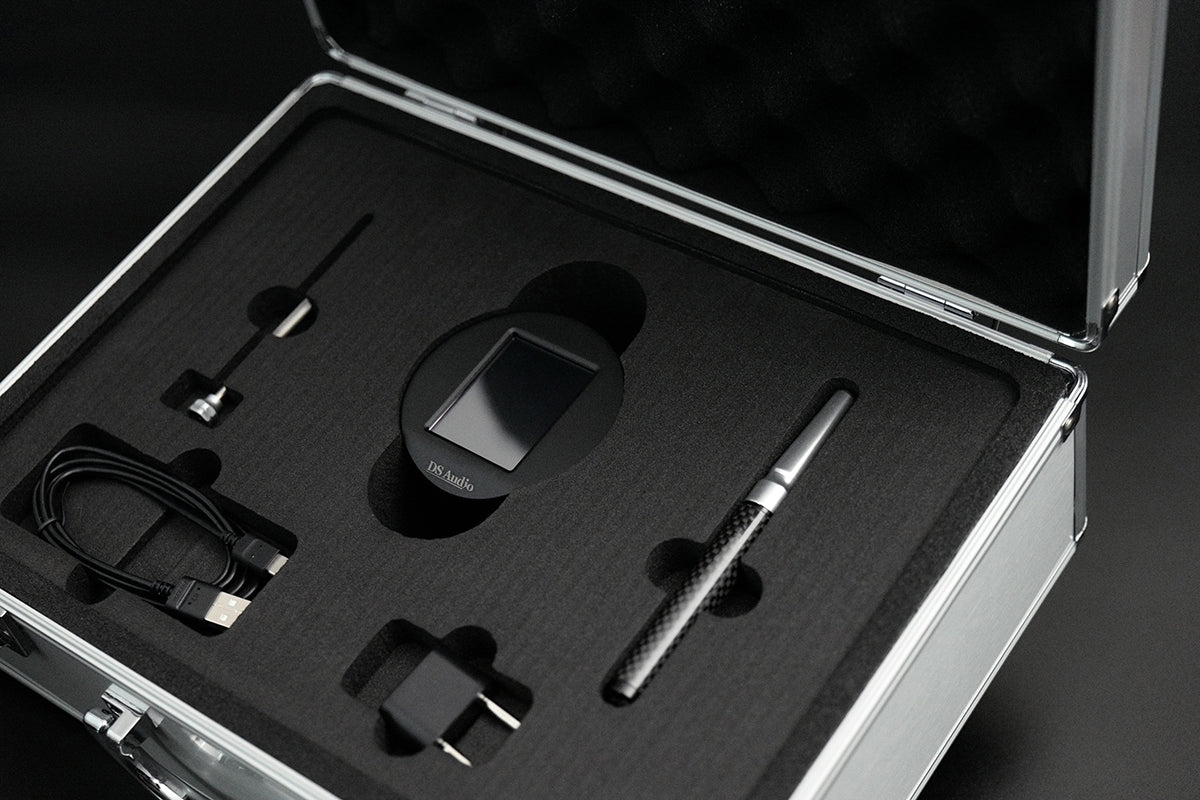

| Dedicated Case | Included |
| Batteries | Two AA batteries |
| Accessories | Battery set,Screwdriver,Reamer,USB cable |
ES-002 Core
| Dimensions | φ80mm × H70mm |
| Weight | 540g |
| Body Material | Aluminum (A5052) |
| Exterior Finish | Black anodizing + Gray anodizing |
| Bottom Plate | Brass |
| Internal Parts | Lightweight-prioritized resin components (partial use) |
| Dedicated Case | Not included |
| Batteries | Two AA batteries |
| Accessories | Battery set,Screwdriver,Reamer |
