Ortofon

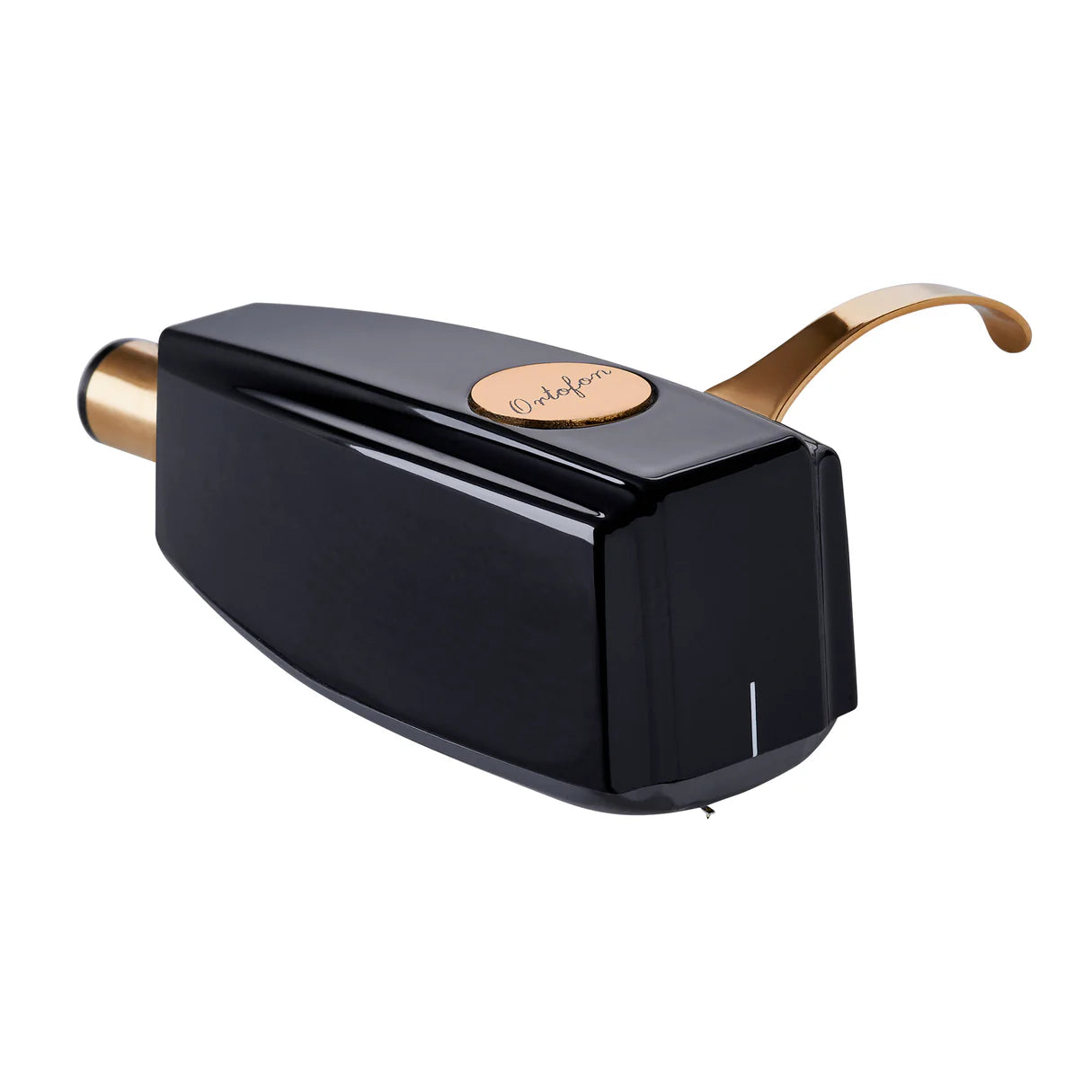

Ortofon SPU Synergy G

Regular price $2,549.99
Regular price Sale price $2,549.99
Sale Sold out
Shipping calculated at checkout.
This product cannot be sold online.
Please call our store to purchase:
904-642-6677

The SPU Synergy G modernizes the classic SPU design with a number of optimizations designed for optimum compatibility and sonic purity

SPU Synergy G

The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems.

For optimum compatibility and sonic purity

Features

The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems.

While still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability.

Ortofon SPU Synergy G

Specifications

Channel balance at 1 kHz
1.5 dB
Output voltage at 1 kHz, 5cm/sec
0.5 mV
Channel separation at 1 kHz
23 dB
Frequency response 20 Hz - 20 kHz
2 dB
Tracking ability at 315 Hz
60 µm
Compliance, dynamic, lateral
8 µm/mN
Stylus type
Nude Elliptical
Stylus tip radius
r/R 8/18 µm
Tracking force range
3.0-4.0 g (30-40 mN)
Tracking force, recommended
3.5 g (35 mN)
Tracking angle
20°
Internal impedance, DC resistance
2 ohm
Recommended load impedance
10 - 50 ohm
Coil wire material
High Purity Copper (OFC)
Cartridge body material
Ground wood and resin composite
Cartridge colour
Shiny black
Cartridge weight
28 g
