Acoustic Signature

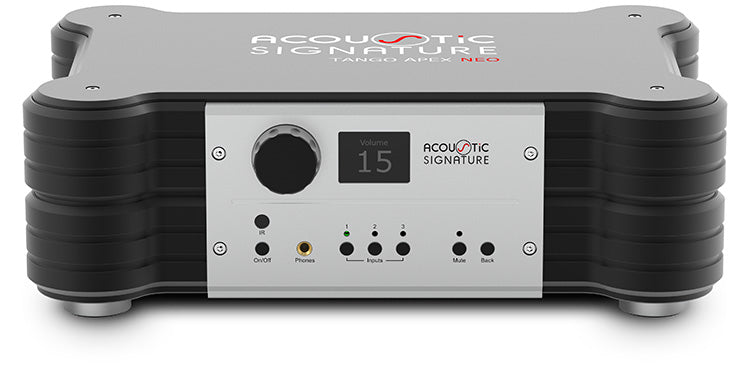

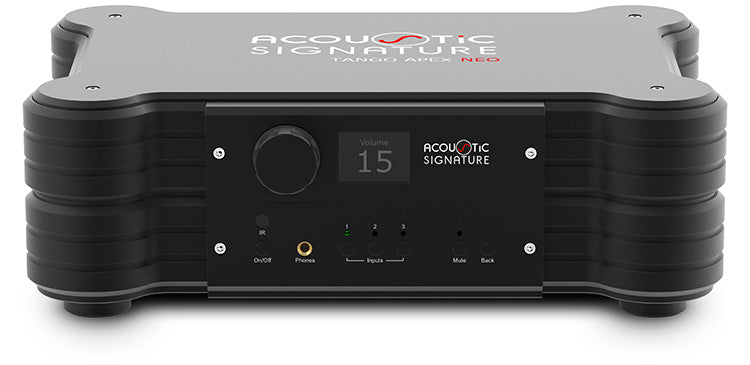

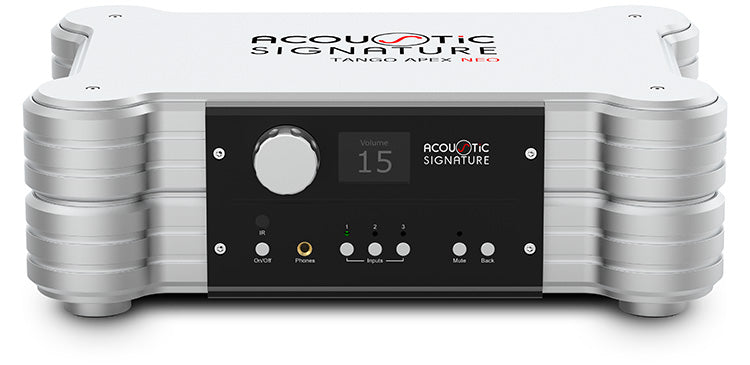

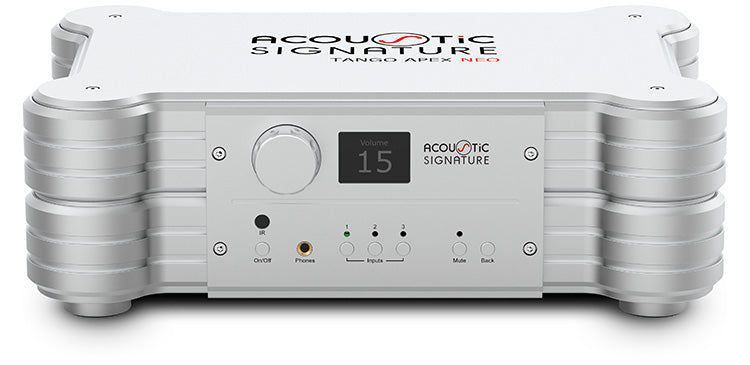

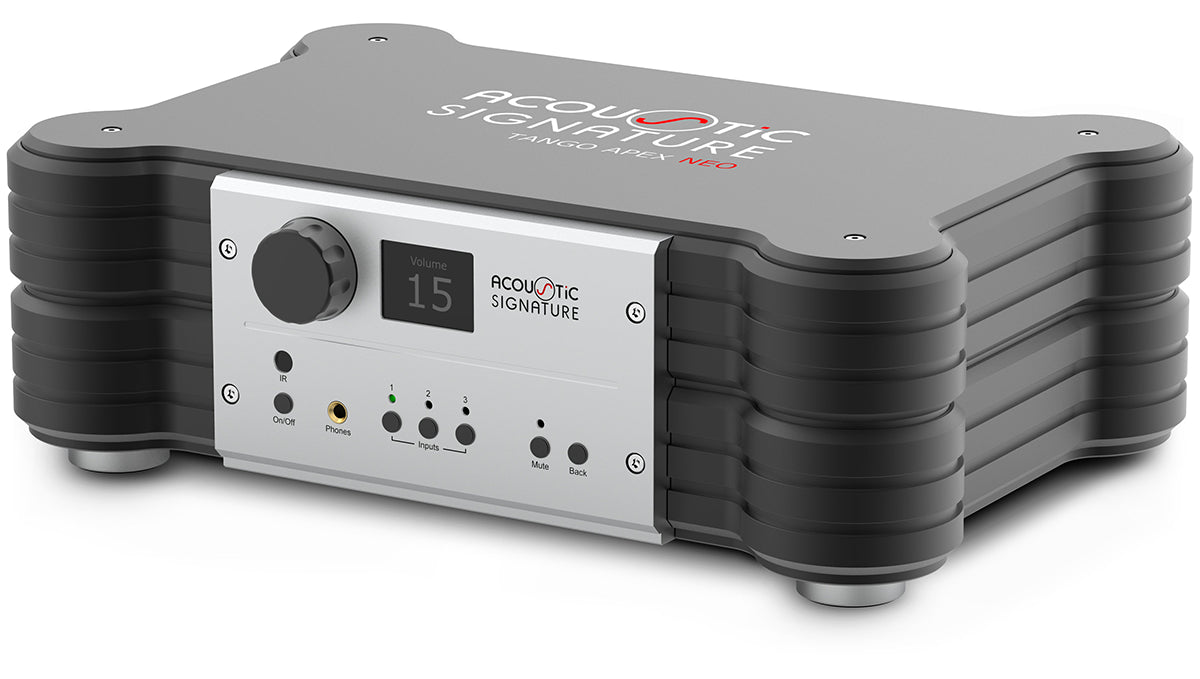

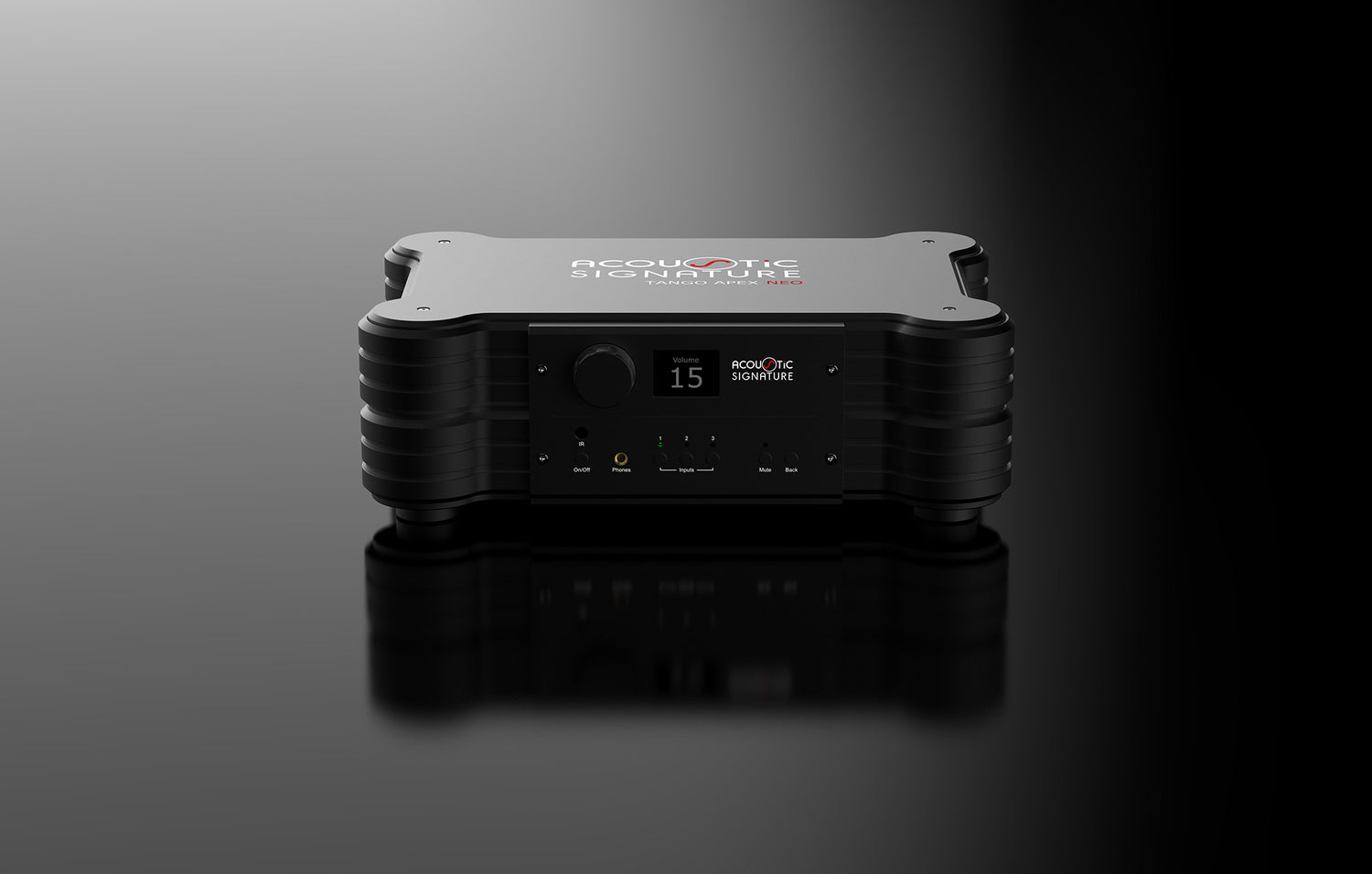

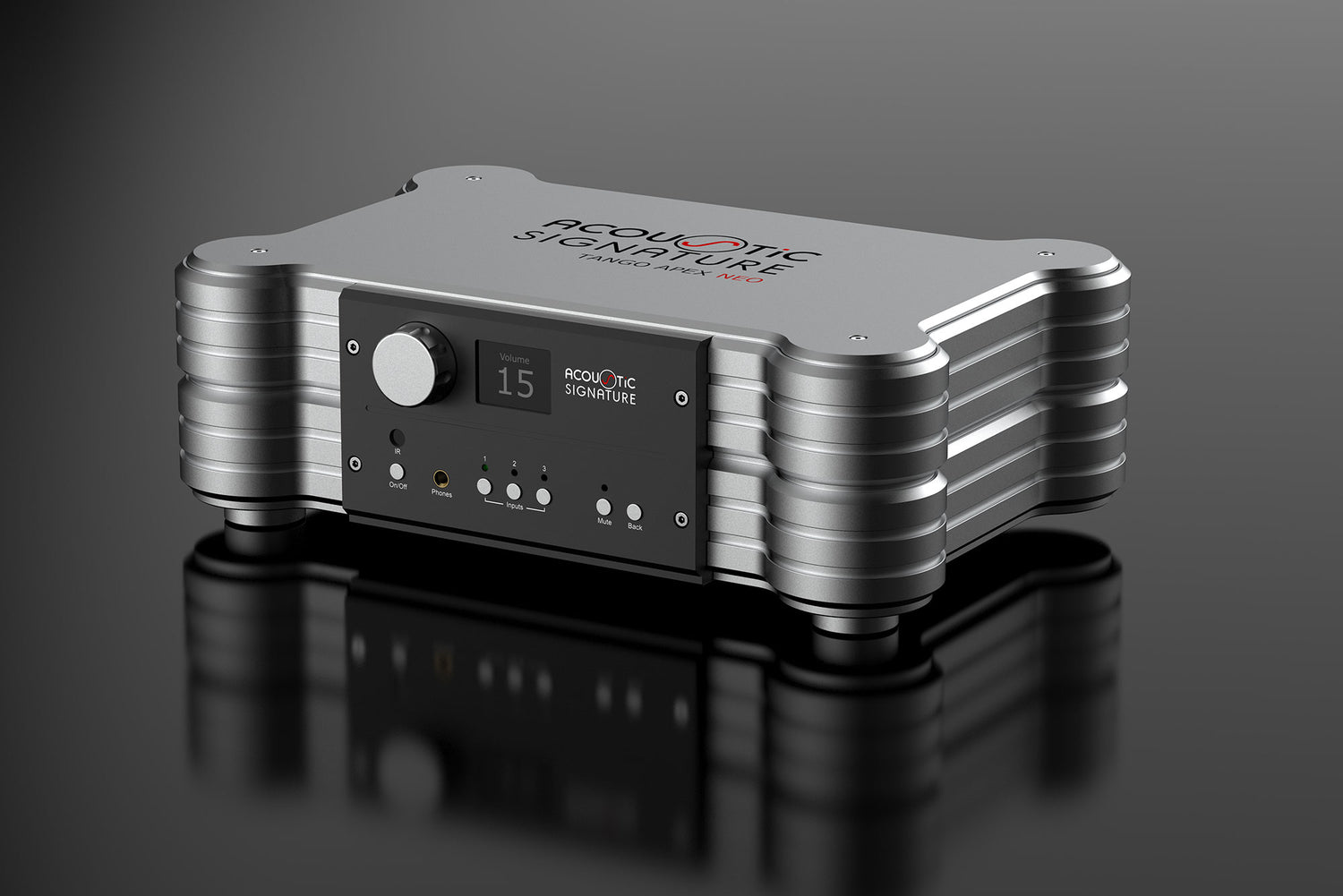

Acoustic Signature Tango Apex Neo - Phono Preamplifier

$33,999.00
$33,999.00
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:


TANGO APEX NEO
Acoustic Signature Tango Apex Neo

QUICK PROFILE

The Balanced phono preamp

The new Tango Apex NEO is a balan­ced phono preamp with a strictly double mono cons­truc­tion. The preamp is desig­ned with an extra housing per channel, a dedi­cated power supply per channel and a phono amp per channel. All features of the Tango Apex NEO are remote con­trolled.

AWARDS


OFFERINGS



REVIEWS

FINISHES:


Finish 3

FEATURES:

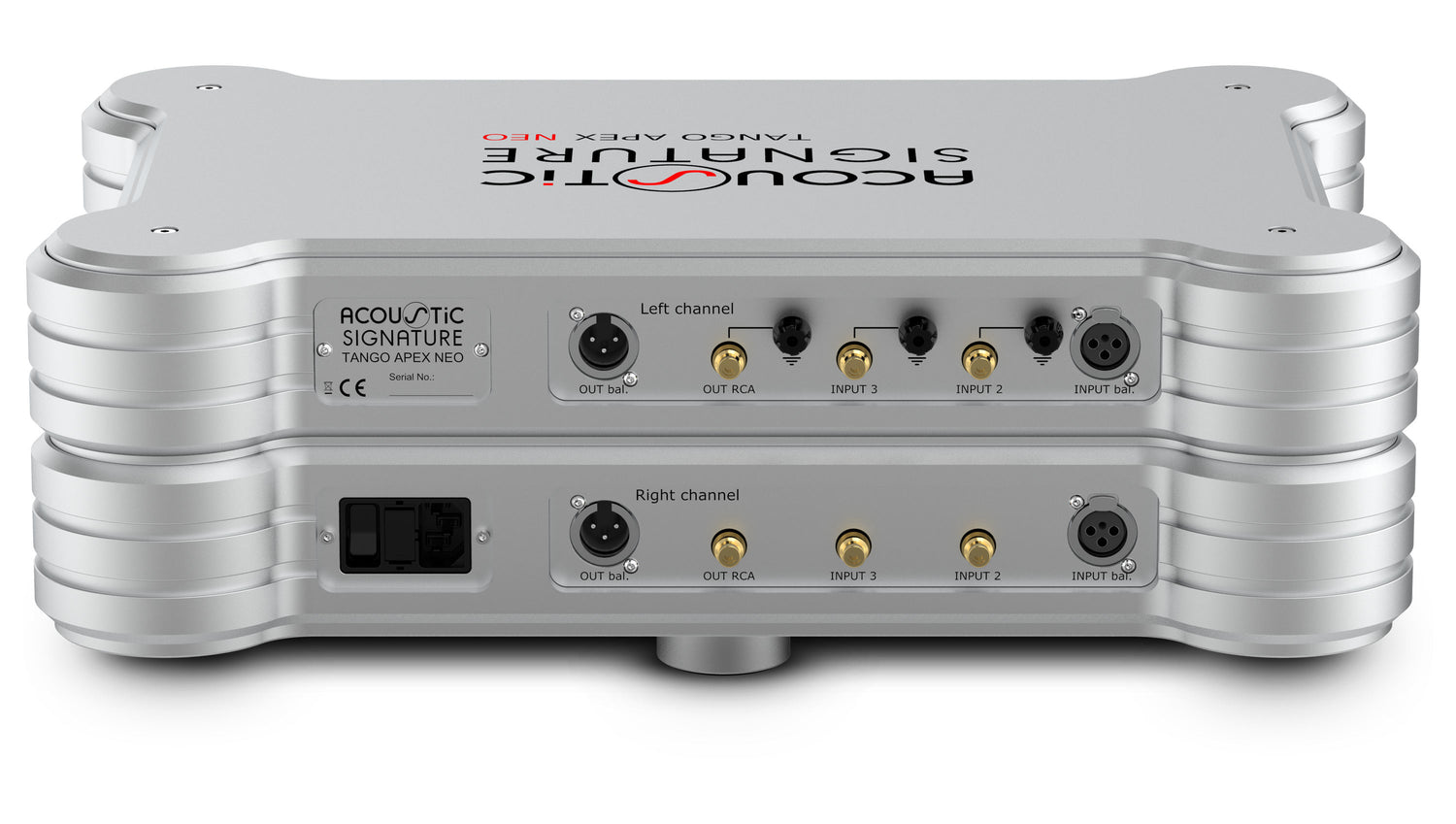

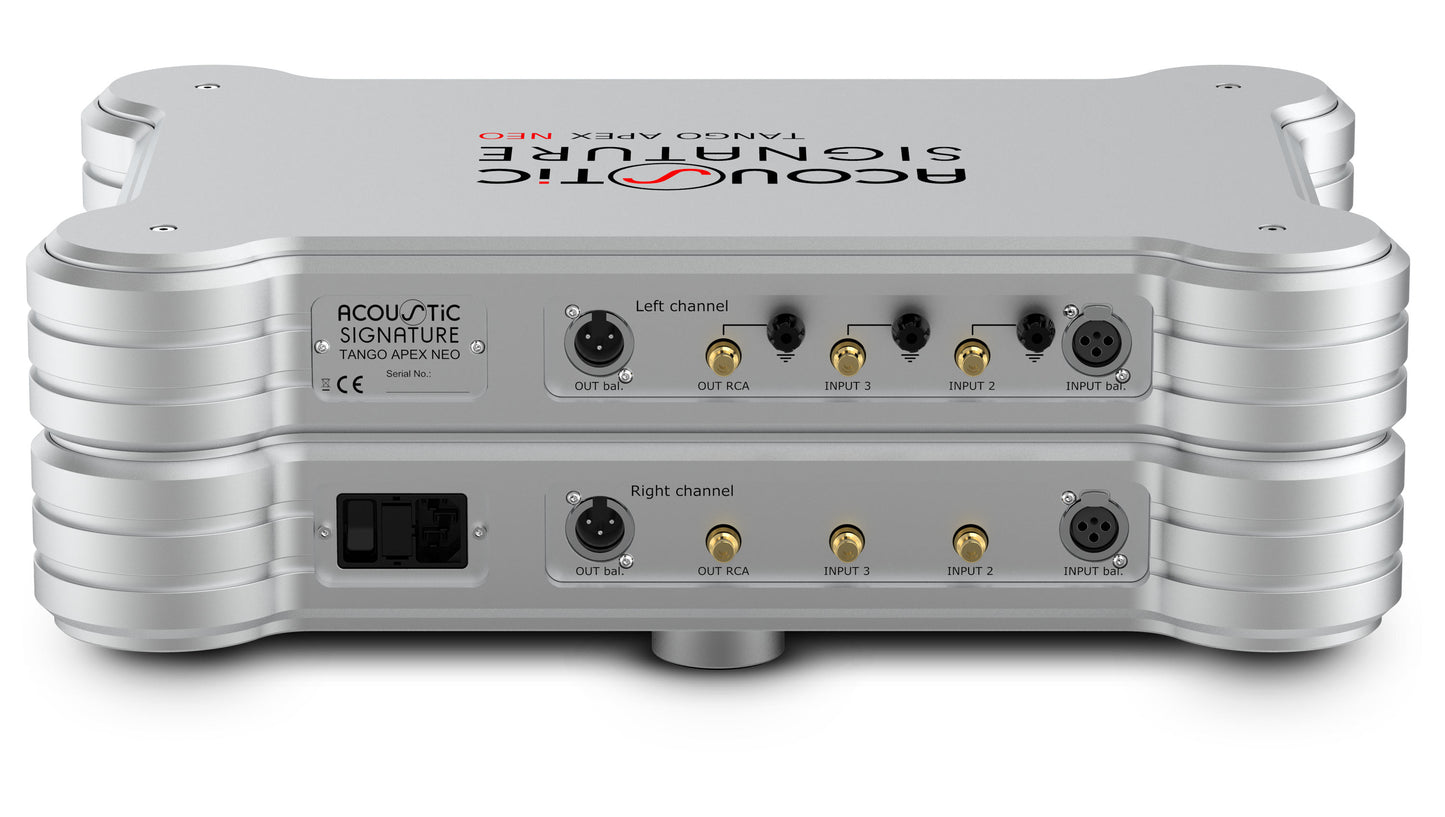

  • 3 inputs: 1 x balan­ced XLR and 2 x unba­lan­ced RCA
  • All signal switching is carried out with ultra high-quality miniature signal relays
  • Adjustable gain for each input (indivi­dually adjus­table): 40 dB, 50 dB, 60 dB and 70 dB
  • Input impe­dance indivi­dually adjus­table for each input: 47, 100 , 220 , 470 , 1 k, 47 k and all values resulting from parallel connection.
  • Input capa­citance: basic capa­citance approx. <=100 pF, switch­able capaci­tances for unba­lanced inputs: 100 pF and 220 pF; Two capaci­tances can be switched on, resul­ting in three values (C1, C2, C1+C2)
  • Subsonic filter: -24 dB. Ope­rating frequency 20 Hz
  • 2 outputs: 1 x XLR and 1 x RCA, maxi­mum output voltage 8.5 V RMS switch­able as fixed output or as adjus­table output (volume control in 100 steps)
  • Built-in head­phone amplifier: maxi­mum output voltage 8.5 V RMS
  • Power supply unit: separate shunt power supply with 25 VA per channel and one sepa­rate power supply with 25 VA for the micro­pro­cessor control. Digital control galva­nically isola­ted from the analog power supply.
  • S/N: e.g. -73 dB at 60 dB ampli­fication
  • Frequency response: +-0.13 dB RIAA equa­lized
  • Distortion factor: 0.06 %
  • Crosstalk attenua­tion: better -90 dB due to double mono design
  • Weight: 34,5 kg

TECHNICAL DATA:


Gain:
40–70 dB (+ value in (input lvl))
MM Input capacity [pF] (47 ΚΩ):
100, 220, 320
MC Input impedance [Ω]:
47, 100, 220, 470, 1000, 47000
Outputs (impedance/power):
Unbalanced (RCA), 10 Ω
Balanced (XLR), 10 Ω
Phones: max. 900 mW (30-250 Ω)
Power supply:
Internal analog power supply for each channel,
Input 115 V or 230 V AC 50/60 Hz
(factory setting)
Fuse: 2 A @ 115V/1A@230 V, slow blow
Rated power. 25 W, standby: 0.5 W
Channel separation:
> 89 dB (1 kHz)
RIAA-accuracy:
± 0.2 dB(30 Hz-20000 Hz)
Distortion:
< 0.01%
Max output level:
XLR: 6.5 Veff
RCA: 6.5 Veff
Subsonic filter.
24 dB at 15 Hz
Dimension (WxDxH):
502 x 337 x 165 mm
19.77 x 13.27 x 6.5 inch
Weight
34.5 kg
76 lbs
