Acoustic Signature

Acoustic Signature Tango Reference - Phono Preamplifier

$6,295.00
$6,295.00
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:


TANGO REFERENCE

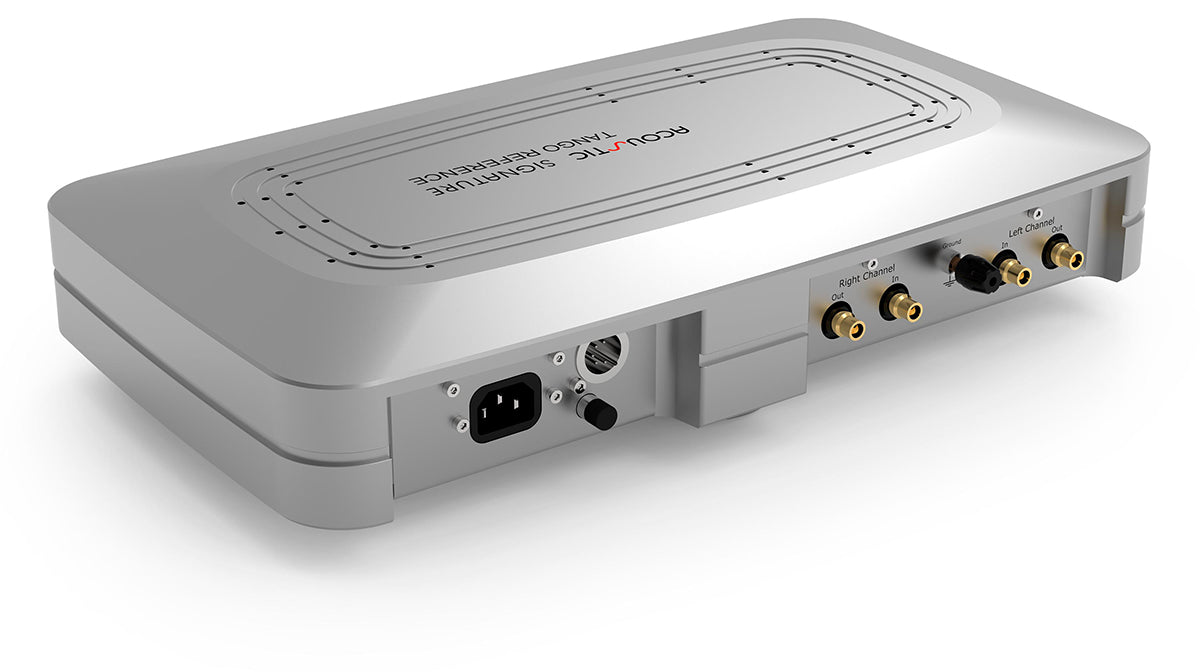

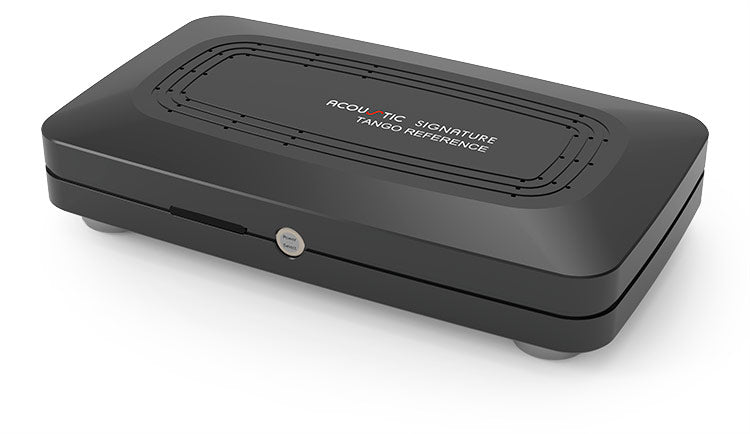

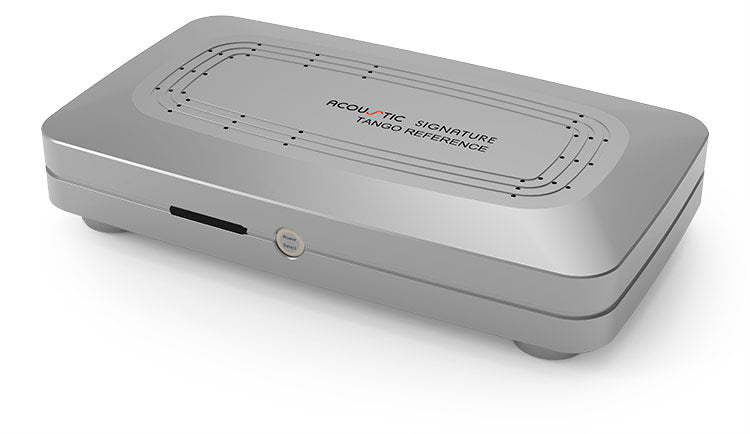

Acoustic Signature Tango Reference - Phono Preamplifier

QUICK PROFILE

Processing the deli­cate phono signal is one of the biggest chal­len­ges that ampli­fier desig­ners have to face. That is why the Acoustic Signa­ture Tango Refe­rence is undoub­tedly the most elabo­rate phono pre­amp­lifier we have ever made.

The reso­nance-opti­mized and anti-mag­netic chassis made of a 70 mm thick and 22 kg solid alu­minum block, makes it clear how serious we are about this phono equa­lizer. The over-dimen­sioned power supply with toroi­dal trans­former is located on a sepa­rate board to ensure an absolute current stability. Both assem­blies are mounted on a special shiel­ding steel plate to avoid any inter­ference with the phono signal.

The Tango Refe­rence uses only high quality compo­nents that are indivi­dually selec­ted. In this way, its semi-active RIAA equa­lization achie­ves extre­mely accurate values with a maxi­mum devia­tion of less than 0.1 dB from the ideal curve! The elabo­rate single-ended output stage was desig­ned in Class A to gua­ran­tee minimal distor­tion as well as low hum and noise – the basis for high-reso­lution, fasci­nating 3D-imaging and invol­ving musi­cality. With its selec­table gain and 90-steps load impe­dance confi­gu­ra­tion, the Tango Refe­rence also offers optimal mat­ching options for any high-quality MM and MC cart­ridge.

AWARDS


OFFERINGS



FINISHES:


Finish 3

FEATURES:


  • Phono pre­ampli­fier for MC, MI & MM cart­ridges
  • Reso­nance-opti­mized and anti­mag­netic alu­minum chassis
  • Super precise RIAA and extre­mely low distor­tion due to high quality compo­nents and single-ended output stage (Class A)
  • Extremely low hum & noise due to very short signal paths
  • Over-dimen­sioned power supply
  • Subsonic filter against low-frequency inter­fe­rences
  • 4 selec­table gain steps
  • Adjus­table load impe­dance via 90-steps DIP switch

TECHNICAL DATA:


Amplification:
MM: 42 ­dB,
MCH: 54­dB,
MCL: 66­dB
Input connection:
RCA, MM/MC selectable
Output connection:
unbalanced RCA
Operation voltage (internal power supply):
24 ­V­ DC
Channel separation:
> 92­ dB (1­ kHz)
RIAA-accuracy:
±­0.1­ dB
Signal-to-noise ratio:
MM: 89 ­dB,
MC: 74­ dB
Subsonic filter:
yes
Dimension (WxDxH):
424 x 244 x 80 ­mm
Weight:
16 ­kg
Warranty:
2 years
Chassis:
Black (anodized),
Silver (anodized)
