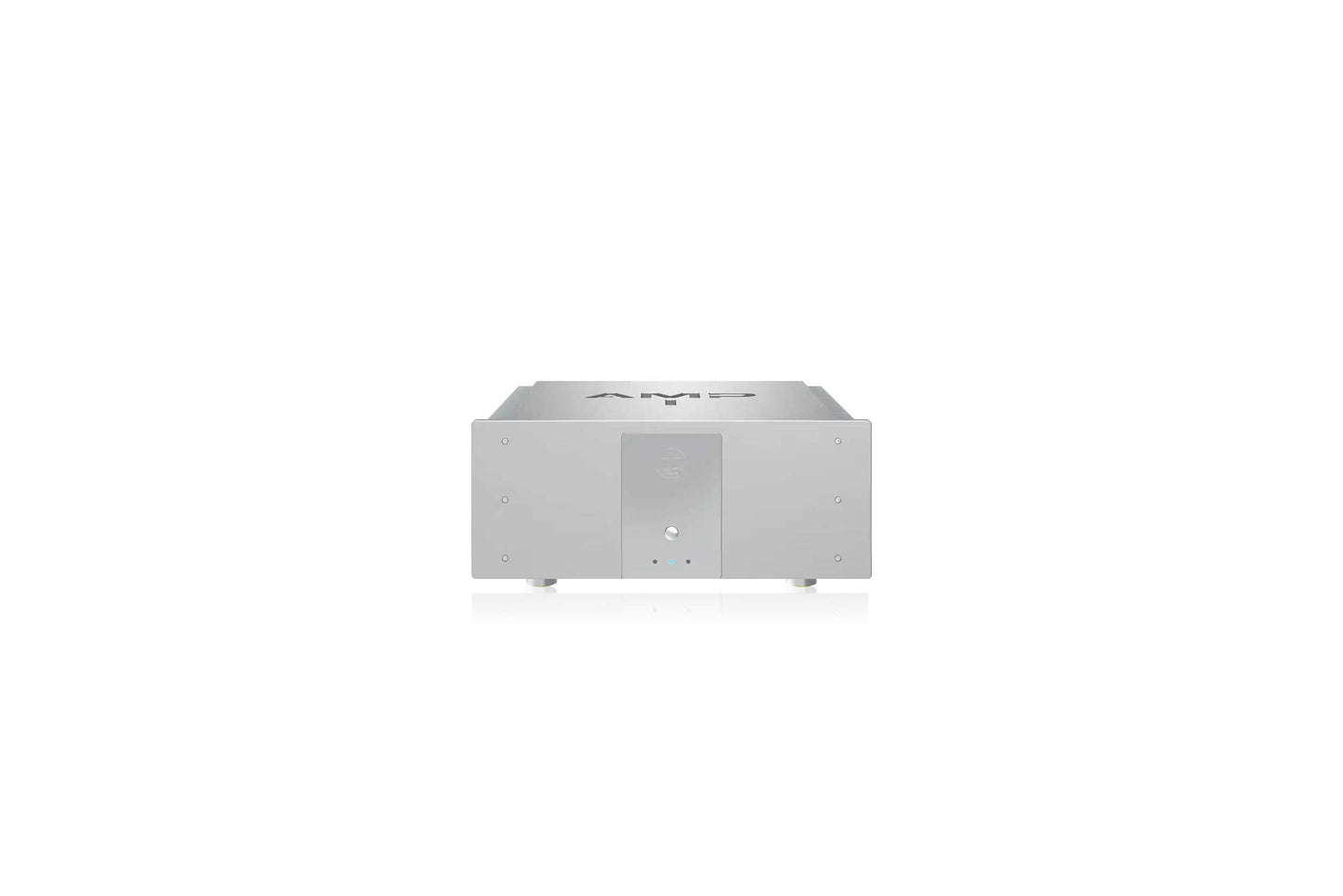

ACCUSTIC ARTS® AMP I – Audiophile stereo power amplifier with outstanding sound for the ultimate listening experience
AMP I highlights
- Audiophile stereo power amplifier with high output performance; also suitable for less efficient, impedance critical and low ohm loudspeaker systems down to 2 Ω
- 8 selected MOS-FET output transistors of finest quality per channel
- Magnetically shielded and encapsulated 600 VA toroidal core transformer for high output reserves; separate windings for right and left channel
- Very good smoothing thanks to more than 80,000 μF power supply capacity; premium quality capacitors (“Made in Germany”)
- Damping factor linerization for perfect speaker control
- lntegrated protective circuit switches ascents off when clipping, HF oscillations or too high DC offset occurs
- Constant low operating temperature due to generously dimensioned heat sinks integrated in housing
- Balanced input (XLR) and unbalanced input (RCA) – the inputs are switchable
- All used components and parts are selected and of highest quality
- WBT loudspeaker terminals
- Full metal housing for optimum shielding
- Front panel made of brushed aluminium; inlay made of massive brass
- ACCUSTIC ARTS® AMP I is “Handmade in Germany”
Specifications
| Voltage gain: | 25.0 dB |
|---|---|
| Total transformer power: | approx. 600 VA (watts) |
| Power supply capacity: | more than 80,000 µF |
| Input resistance: | balanced (XLR): 2 x 20 kΩ unbalanced (RCA): 28 kΩ |
| Rated power output: (at THD+N = 0,1 %) |
2 x 330 watts at 4 Ω 2 x 210 watts at 8 Ω |
| Rise time / fall time: | 3.6 μs with 4 Ω load (square-wave 20 kHz, 12 Vpp) |
| Signal-to-noise-ratio: | -98 dBA (ref. 6.325 V) |
| lntermodulationsverzerrung: | 0.00019 % with 10 watts on 4 Ω |
| Distortion (THD+N): | 0.007 % on 4 Ω load at 1 kHz and 10 watts 0.004 % on 8 Ω load at 1 kHz and 10 watts |
| Damping factor: | approx. 670 on 8 Ω |
| Dimensions (H x W x D) | 145 x 482 x 440 mm / 5.7 x 19 x 17.3 inches |
| Weight: | approx. 20 kg / 44 lbs. |
