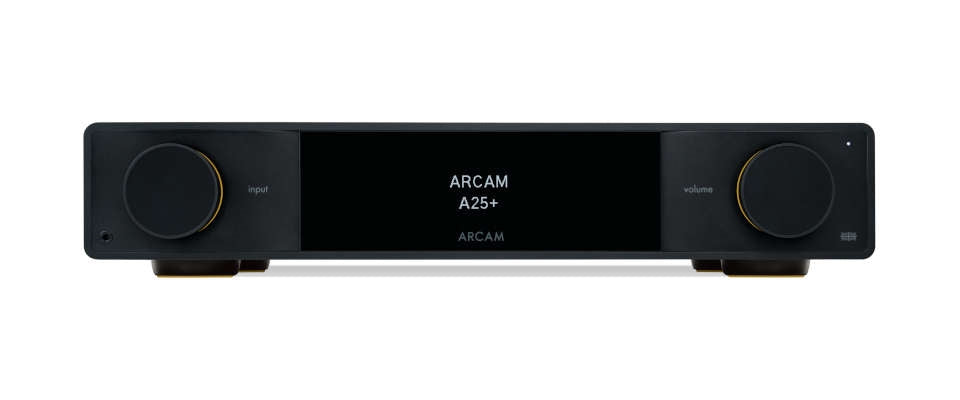

ARCAM / Class G Integrated Amplifier
More room for the music to move.
The A25+ brings ARCAM’s Class G amplification to a stereo that may have several jobs: records in the evening, television after dinner and a computer or streamer whenever the mood changes. HDMI eARC and USB-C make those connections practical without making the front panel look like mission control.
The House of Stereo perspective
Where the A25+ fits.
Its 100-watt-per-channel rating is only part of the story. Class G changes power-supply rails as demand rises, giving the amplifier a way to balance efficiency and dynamic headroom. The right comparison is with your speakers playing your music. We can work through that choice with you.
At a glance
A25+ specifications
Stereo 8-ohm power ratings: both channels driven, 20Hz–20kHz, 0.5% THD. Speaker impedance, room size and listening level all affect amplifier matching.
Class G, and room for more than one kind of source.
The A25+ uses ARCAM’s fifth-generation Class G amplifier design, with a revised power supply and digital section. Its 100-watt rating is measured into 8 ohms with both channels driven across 20Hz–20kHz; the 165-watt, 4-ohm figure uses a 1kHz test. Those are useful specifications, not interchangeable measurements.

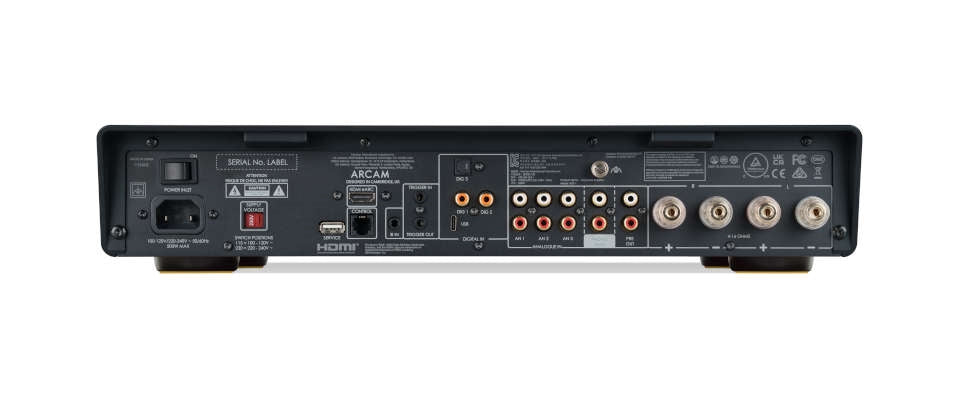

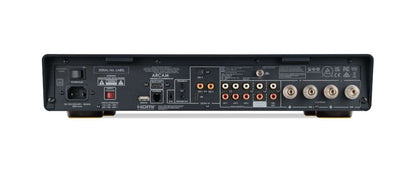

USB-C accepts compatible PCM streams up to 384kHz, while the other digital connections top out at 192kHz. HDMI eARC/ARC makes television listening straightforward. Three RCA line inputs and a moving-magnet phono input keep conventional sources in play, and the headphone output is specified for loads from 16Ω to 2kΩ. This is the model to consider when a computer, TV and turntable all have to coexist.
Full technical specifications
Manufacturer specifications. Power figures retain their load, bandwidth and channels-driven conditions. Regional mains versions and firmware-dependent features should be checked for your unit.
Continuous power output (0.5% THD), per channel
2 channels driven, 20Hz - 20kHz, 8Ω 100W
2 channels driven, 1kHz, 4Ω 165W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.002%
Analogue Inputs
Number of inputs 3 (RCA pairs)
Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB
Frequency response 20Hz—20kHz ± 0.2dB
Phono (MM) Input
Input impedance 47kΩ + 100pF
Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB
Digital Inputs
Supported Sample Rates (kHz)
USB-C Only 384, 352.8, 192, 176.4, 96, 88.2, 48, 44.1
Other digital inputs 192, 176.4, 96, 88.2, 48, 44.1
Bit depths (bit) 32, 24, 16
Frequency response (filter 1) 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB
Headphone Output
Maximum output level (RMS) into 32Ω/300Ω 2.5V/5V
Load range 16Ω - 2kΩ
Wireless Specifications
Bluetooth Version - 5.4; A2DP Sink/Source, AVRCP, BLE, SBC, AAC, aptX, aptX HD and aptX Lossless, LE Audio, Auracast
Bluetooth Transmitter Frequency and Power - 2,400 MHz to 2,483.5 MHz: <20dBm
General
Mains voltage 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 500W
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 83mm
Weight (net) 9kg
Weight (packed) 12kg
Supplied accessories
Mains lead(s)
Remote control with 2 x AAA batteries
Quick Start Guide
Important Safety Instructions
Manuals, setup guides and downloads
- English Owner's Manual
- EU declaration of conformity
- Quick Start Guide (Multi Language)
- Radia Remote
- Specification Sheet
Manuals in additional languages
ARCAM product support and current downloads
External resources open in a new tab. Check the model and follow ARCAM’s instructions before installing firmware. Manuals may describe regional versions or features added through updates.
Independent reviews
Publisher opinions are separate from House of Stereo’s advice. Review-era prices, software and specifications can differ from current information.
Audiograde — A25+ and ST25 system review
A review of this amplifier with the ST25, including listening impressions and practical comments on controls and cable access.
A few useful answers
Can I order this online?
Please call House of Stereo at 904-642-6677 to order. We will confirm availability, system compatibility and delivery details with you.
Does it include Wi-Fi streaming?
Use a separate network streamer for dedicated Wi-Fi playback. Built-in Bluetooth serves compatible wireless sources; it is a different connection from a network streaming platform.
