Arcam AV41
Please call our store to purchase:
904-642-6677
HDMI 2.1 AV Processor
The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.
OVERVIEW
Rich Musicality + Immersive Sound = Stunning Realism
The AV41 is a high-performance, audio/visual processor that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AV41 can deliver incredible theatre experiences in partnership with Arcam power amplifers.

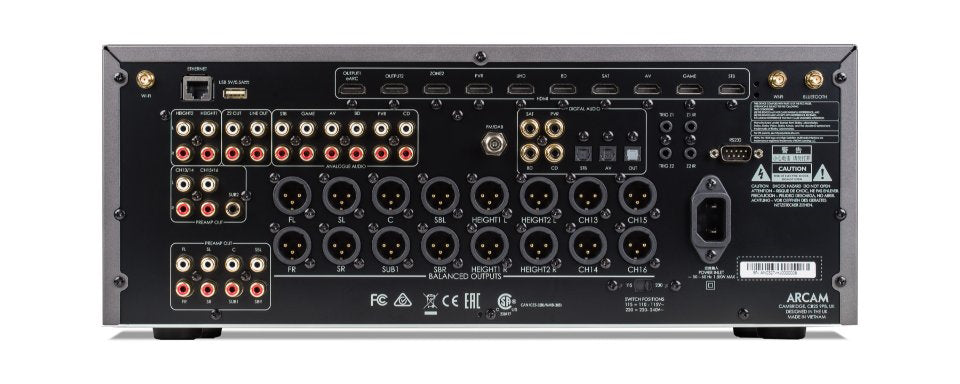

The Arcam AV41 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AV41 boasts XLR balanced outputs for all 16 channels to deliver the highest quality analogue connection to power amplifiers.
The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.
Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.
FEATURES
- 16 Channels of Dolby Atmos, DTS:X & AURO-3D decoding
- 7 HDMI inputs, 3 HDMI outputs inc Zone 2, eARC compatible
- HDMI 2.1 with HDCP2.3
- All inputs support 8K@60fps and 4K@120fps
- Supports Dolby Vision, HDR10+, HDR10 and HLG
- Includes Dirac Live® room correction
- Ready for Dirac Live Bass Control*
- Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators
- 16 transformerless balanced XLR output channels
- Pairs with PA720, PA240 & PA410 power amplifiers
- Wi-Fi / Ethernet, RS232 and IR control
- Google Chromecast® built-in for streaming audio
- Apple® Airplay2
- Bluetooth aptX®HD
- Free MusicLife iOS and Android UPnP app
- Roon Ready and supports MQA
REVIEW & AWARDS
Arcam AV41 AV Processor Review - Read More
" I am now seriously staring down the barrel of retiring my fantastic two-channel preamp and ageing multi-channel AV processor and heading in this consolidated direction. So if you are considering a new digital front end, or want to optimise your system's in-room performance with the latest DSP technologies, this is a seriously interesting place to start your search. " - CRAIG JOYCE
SPECIFICATIONS
Stereo Line Inputs |
|
Maximum input | 4.5V rms |
Nominal sensitivity | 1V, 2V, 4V (user adjustable) |
Input impedance | 47kΩ |
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct | 100dB/110dB |
Frequency response | 20Hz—20kHz ± 0.2dB |
Preamplifier Outputs |
|
Balanced (XLR) nominal output level per channel | 2V RMS (max. 10V RMS) |
Single-ended (RCA) nominal output level per channel | 1V RMS (max. 5V RMS) |
Output impedance | 560Ω |
THD+N (20Hz—20kHz) | –100dB |
Headphone Output |
|
Maximum output level into 32Ω | 5Vrms |
Output impedance | <100Ω |
General |
|
Mains voltage | 110–120V or 220–240V, 50–60Hz |
Power consumption (maximum) | 50W (Thermal dissipation approx. 170 BTU/hour) |
Power consumption (idle, typical) | 40W (Thermal dissipation approx. 170 BTU/hour |
Power consumption (standby) | <0.5W |
Dimensions W x D (including speaker terminals) x H (including feet) | 433 x 425 x 171mm |
Weight (net) | 10.6kg |
Weight (packed) | 13.9kg |
Supplied accessories |
Mains lead Remote control with 2 x AAA batteries Manual DAB/FM aerial 3 x WiFi/Bluetooth antennas Calibration microphone USB cable |
EAN | 6925281994548 |
