Pro-Ject Audio Systems

Pro-Ject CD Box DS3

$1,279.00
$1,279.00
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:

CD Box DS3

High-End Audio CD player

Made In Europe

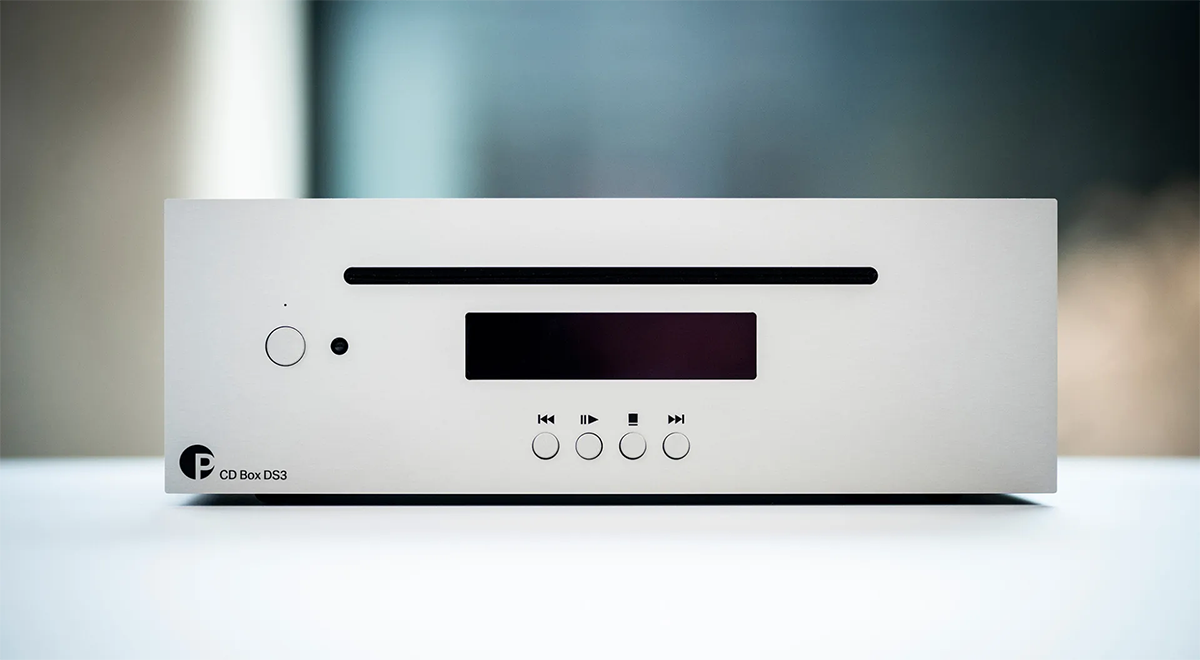

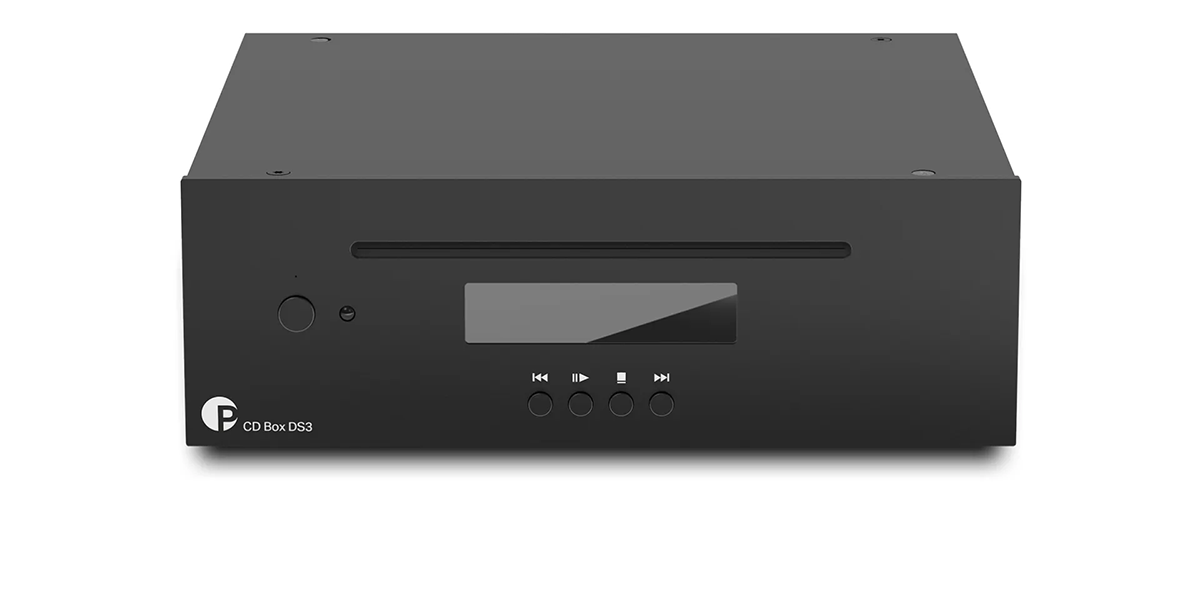

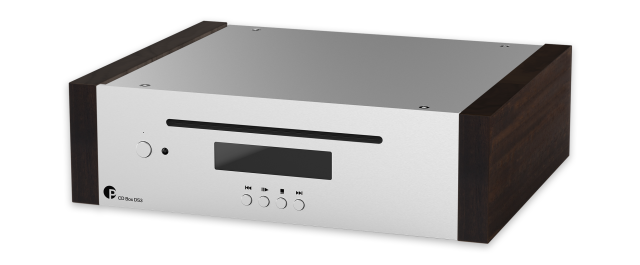

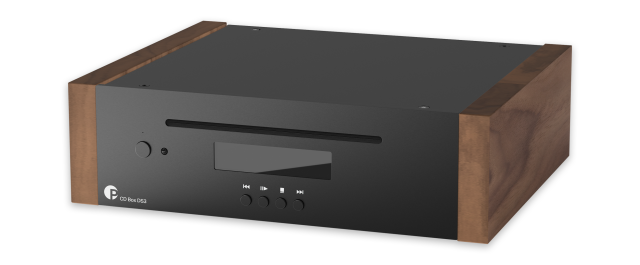

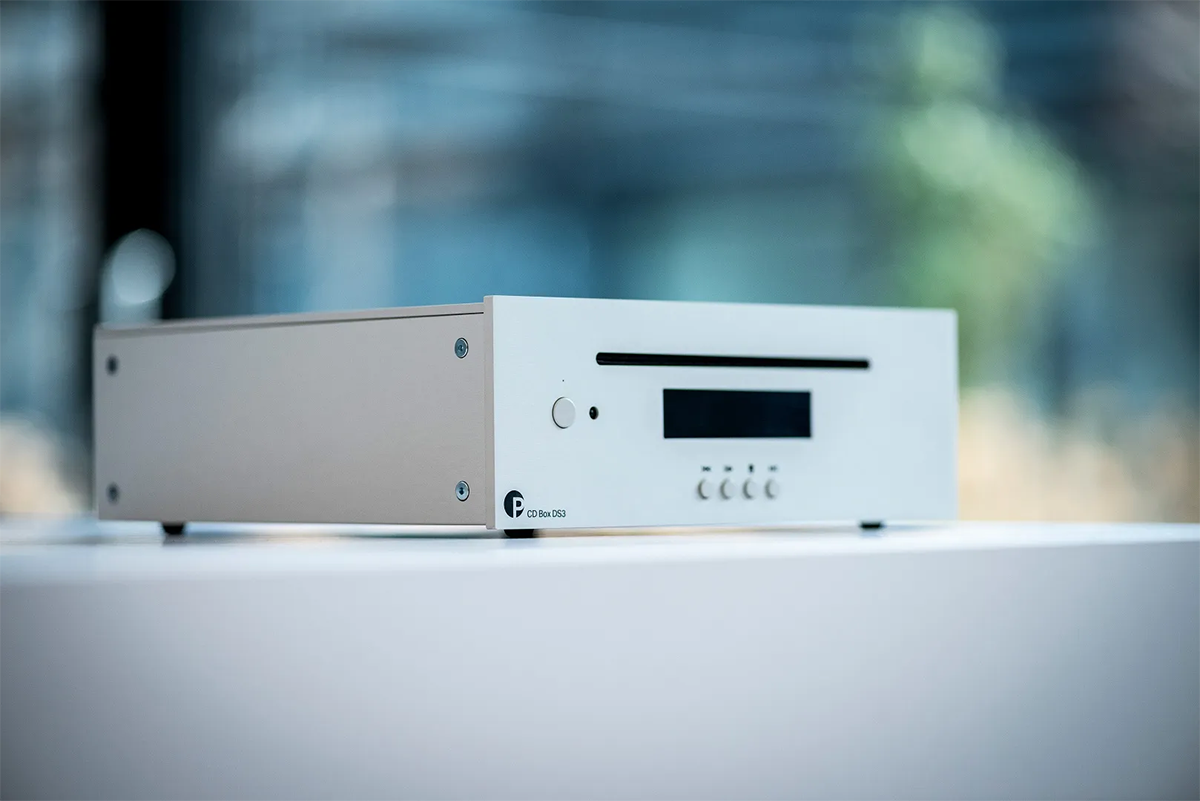

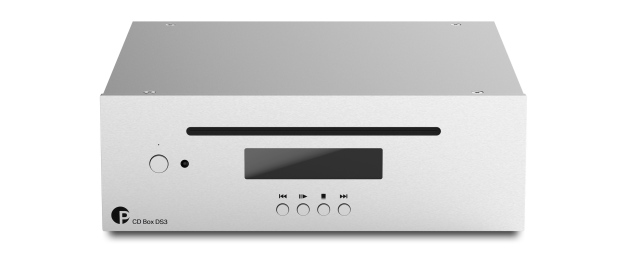

CD Box DS3 - a high end CD player

The CD Box DS3 introduces our completely new DS3 line. We picked the best features of its predecessors and added the Texas Instruments PCM1796 DAC to provide you the perfect CD player with all the features you really need. Easily control the CD player with the buttons on the front, or with the supplied remote control and the high contrast dot-matrix display shows you all relevant information you need to enjoy your favourite CDs.











Rigid Aluminium Housing

Standard sheet metal housings are not torsion-resistant and mechanical accurate enough to mount a sensitive CD drive where the laser position has to be correct all the time. Our massive aluminium chassis provides the best basis for the CD drive and our Blue Tiger CD-80 servo developed by Stream Unlimited is the most advanced on the market.







Suspension

True Red Book

Analog & Digital

Handmade in EU

A perfect resonance derivative
Three soft points isolate the drive from external vibration and one hard point leads high frequent vibration caused by the fast movement of the laser into the massive chassis.

Digital Audio Compact Discs (CDDA)
The drive is specifically optimized for 1:1 playback of the Red Book CDDA standard. Pure CD players are, in contrast to DVD or Bluray Disc players, frequently better in playback of stereo CDs.

We provide you both
Use the internal TI PCM1796 DAC & connect your CD Box with the RCA Line output to any preamp. For even more versatility, the S/PDIF coaxial & optical output can feed an external DAC.

Since 1991
Made in Europe by technicians, engineers and designers with decades of experience. Expert craftsmanship. Sustainable products with a long lifetime. Audiophile audio performance.










SPECIFICATIONS

Supports Red Book CD-DA
Line-level output 1 pair RCA
Digital outputs 1 x optical TOSlink®, 1 x co-axial (S/PDIF)
Frequency response 20Hz - 20kHz/ ± 0,15dB
Noise floor >105dBA / 20Hz – 20kHz
THD (analog output) <0,018%
THD (digital output) <0,005%
Line Level Output voltage 2 Vrms / 0dBFS
D/A-converter PCM1796
Power supply 18V/1A DC, suitable for your country
Power consumption 300 - 600mA DC, <0,5W in standby
Battery remote control 1xCR2032 / 3V or 1xCR2025 / 3V
Dimensions WxHxD 206 x 72 x 194 (200 incl. sockets) mm
Weight 1660 g without power supply
