Gold Note

Gold Note CD-1000 MKII Deluxe DSD

Regular price $9,413.00
Regular price Sale price $9,413.00
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:

CD-1000 MKII Deluxe DSD
CD-1000 MKII Deluxe DSD

Ultimate performance CD Player

The CD-1000 MkII, housed in a beautiful brushed aluminium chassis, integrates a digital and an analogue stage into a single, elegant device. It is designed to listen to music from a CD as well as to play audio files from a TV or DVD player connected via optical or coaxial input. The CD-1000 MkII delivers a natural, detailed and powerful sound, and can be easily integrated into any Hi-End stereo system. CD-1000 MkII supports Gapless playback and is equipped with a top-of-the-range 24bit/192kHz digital converter and digital inputs such as the S/PDIF coaxial and the TOS optical to get the best out of your system. The aluminium JPL-2800 transport mechanism made in Austria by Stream Unlimited is one of the best in the world and ensures maximum stability avoiding fluctuations or loss of definition. The CD-1000 MkII integrates our Zero-ClockTM technology which allows for an effective reduction of jitter, and features a digital volume control that can be used to drive directly a power amplifier or active speakers.

The CD-1000 MkII is available in three models: CD-1000 MkII equipped with the integrated DAC BurrBrown PCM1796 D/A converter chip; CD-1000 MkII DELUXE equipped with the superior DAC BurrBrown PCM1792A; and CD-1000 MkII DELUXE DSD which additionally features a USB-B port (supporting up to DSD256 and PCM 32bit/384kHz).
The CD-1000 MkII can be paired with external units that allow further improvement of its exceptional audio performance:
– TUBE-1012 and TUBE-1006 – class A valve output stages developed with 6 or 12 valves
– PSU-1250 and PSU-1000 – super inductive external power supply dedicated to the Gold Note series 1000.

image 1
image 2
image 3

MAIN FEATURES

CD-PLAYER
CD transport with integrated D/A converter
DAC
STANDARD model: 24bit/192kHz DAC PCM1796
DELUXE model: 24bit/192kHz DAC PCM1792A
FREQUENCY RESPONSE
20Hz-20kHz @ +/-0.3dB
THD – TOTAL HARMONIC
DISTORTION
DISTORTION 0.001% max
SIGNAL TO NOISE RATIO
128dB
DYNAMIC RESPONSE
127dB
VOLUME CONTROL
Switchable On/Off digital partializer
MECHANIC
Aluminium JPL-2800 Stream-Unlimited
SPEED FLUCTUATION
0.0001%
CD FORMATS
Red Book
DISC COMPATIBILITY
CD, CD-R, CD-RW
GAPLESS PLAYBACK
Supported
REMOTE CONTROL
Multifunctional remote included

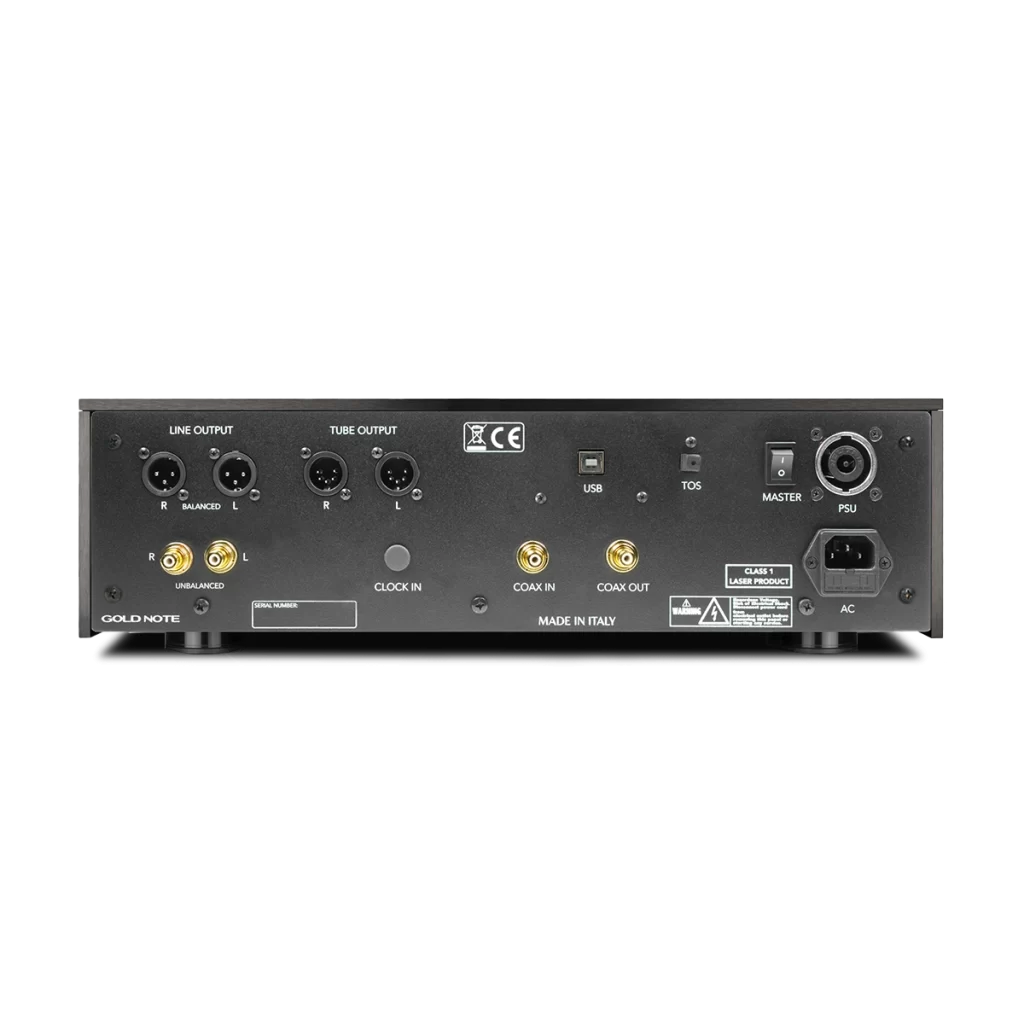

INPUTS AND OUTPUTS

DIGITAL INPUTS
1x RCA S/PDIF coaxial
1x TOS 24bit/192kHz
1x USB-B DSD256 and 32bit/384kHz (CD-1000 MKII DSD model only)
ANALOGUE OUTPUTS
1x unbalanced RCA
1x balanced XLR
1x TUBE-1012
DIGITAL OUTPUTS
1x S/PDIF Coax 75Ω
OUTPUT IMPEDANCE
50Ω
LINE OUTPUT LEVEL
RCA 2Vrms
XLR 2Vrms

POWER

POWER CONSUMPTION
30W
POWER SUPPLY
100-120V or 220-240V, 50/60H
Dual-Mono power supply
FUSE (220/240V)
1A F/T
FUSE (100/120V)
2A F/T

DIMENSIONS AND WEIGHT

DIMENSIONS
430mm W | 135mm H | 375mm D
WEIGHT
Kg. 12 – net
Kg. 16 – boxed

FINISHES

BLACK
Black anodised aluminium with a traditional brushed finish
SILVER
Silver anodised aluminium with a traditional brushed finish
GOLD
Gold anodised aluminium with a traditional brushed finish

MODELS

CD-1000 MKII DELUXE DSD
Upgraded DAC: 24bit/192kHz DAC PCM1792A
USB-B input: asynchronous, supports up to DSD256 and PCM 32bit/384kHz

REMOTE CONTROL

REMOTE CONTROL
Multifunctional remote control included

UPGRADES

EXTERNAL POWER SUPPLY
PSU-1250: external inductive Dual-Mono power supply (300W)
PSU-1000: external inductive Dual-Mono power supply (200W)
VALVE OUTPUT STAGES
TUBE-1006: Class-A 6 Tubes output stages with Dual Mono/inductive tube power supply
TUBE-1012: Class-A 12 Tubes output stages with Dual Mono/inductive tube power supply
