Thirteen processed channels
The processor supports flexible immersive layouts, with four subwoofer channels for a more extensive bass system.
Marantz
Marantz AV 20
Marantz AV 20
Regular price
$8,565.00 CAD
Regular price
Sale price
$8,565.00 CAD
Shipping calculated at checkout.
Quantity
Deliveries over $700 - Signature Required!
Couldn't load pickup availability
Marantz / AV Processors
AV 20
AV 20 is a 13.4-channel balanced AV preamplifier for a theater with separate power amplifiers. It combines immersive processing, extensive connectivity, HEOS streaming and room optimization.
13.4 Channels
7 HDMI Inputs plus eARC
HEOS Built-In
Design & engineering
Inside the AV 20.
Independent power amplification
Use its preamplifier outputs with suitable external amplifiers. AV 20 does not power passive speakers directly.
Room-specific setup
Connectivity and calibration tools let the system be configured around the room, sources and loudspeaker arrangement.
The matching amplifier
AMP 20 is the twelve-channel partner in the same design family. Additional amplifier channels depend on the chosen layout.
Powered by HEOS
Find your music.
Connect your rooms.
Use the HEOS app for supported music services and compatible network music. Group compatible HEOS devices for multiroom playback, or choose a different source in each room where the system supports it.
Service availability depends on region and account. Subscriptions, compatible devices and current firmware may be required. The specifications below identify this model’s supported formats and connections.
From Marantz
Product film
Technical reference
Details & specifications
Technical data from Marantz’s US product page. Power ratings use different loads and test conditions; read the complete entry when comparing models. A dash means no value is supplied. Unsupported or malformed source entries are identified where encountered.
Multichannel Surround
- DTS
- DTS-HD, DTS:X, DTS:X Pro, DTS Virtual:X, DTS Neural:X (13ch)
- Dolby
- Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
- IMAX
- IMAX Enhanced
- Auro 3D / 360 Reality Audio / MPEG H
- Yes / Yes / Yes
- Multichannel Stereo
- Yes
- Max Number of Processing (Pre-amp) Channels
- 13.4
Sound Enhancements
- Copper-Plated Chassis / Toroidial Power Transformer
- Yes / Yes
- Current Feedback Topology / Hyper Dynamic Amplifier Modules (HDAM)
- Yes / Yes (SA3, monolithic)
- Pure Direct / Gold-Plated RCA Terminals
- Yes / Yes
- Clock Jitter Reducer
- Yes
- Dirac Live upgradability
- Yes
- Compressed Audio Enhancer: MDAX2
- Yes
- Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFC
- Yes / Yes / Yes
- Audyssey
- MultEQ XT32
Network
- Wi-Fi / Bluetooth / Ethernet
- Yes / Yes / Yes
- HEOS Multi-Room and Streaming
- Yes
- Bluetooth Retransmit for Bluetooth Headphones
- Yes
- Apple HomePod
- Yes
- Lossy formats
- MP3, WMA, AAC
- Lossless formats
- FLAC, FLAC HD 192/24, ALAC, ALAC 192/24, WAV, WAV 192/24
- DSD Audio Streaming
- Yes (2.8/5.6MHz)
- Gapless Playback
- FLAC, ALAC, WAV, DSD
- TuneIn / AirPlay 2 / Spotify
- Yes / Yes / Yes
- Roon-Ready
- Yes
- Other Streaming Services*
- Amazon Music / TIDAL / Deezer / Napster / Soundcloud
- Compatible with Remote App for Smartphones
- Marantz AVR Remote
- Compatible with Remote App for Tablets
- Android / iOS / Amazon Kindle
HDMI
- Total HDMI Inputs
- 7 (rear)
- HDCP2.3 Support
- Yes
- HDMI Outputs: Main / Zone
- 2 / 1
- HDMI Scaling
- 1080P/4K to 8K
- GUI Overlay on HDMI
- Yes
- HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB
- Yes / Yes
- 8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out
- 7 / 2 (up to 40Gbps)
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
- Yes / Yes / Yes / Yes / Yes
- Enhanced ARC
- Yes
- ALLM (Auto Low Latency Mode) Pass-Through for Gaming
- Yes
- Variable Refresh Rate / Quick Frame Transport
- Yes / Yes
- HDMI Pass-Though in Standby Mode
- Yes
- DSD Audio Capability
- Yes
- Auto LipSync
- Yes

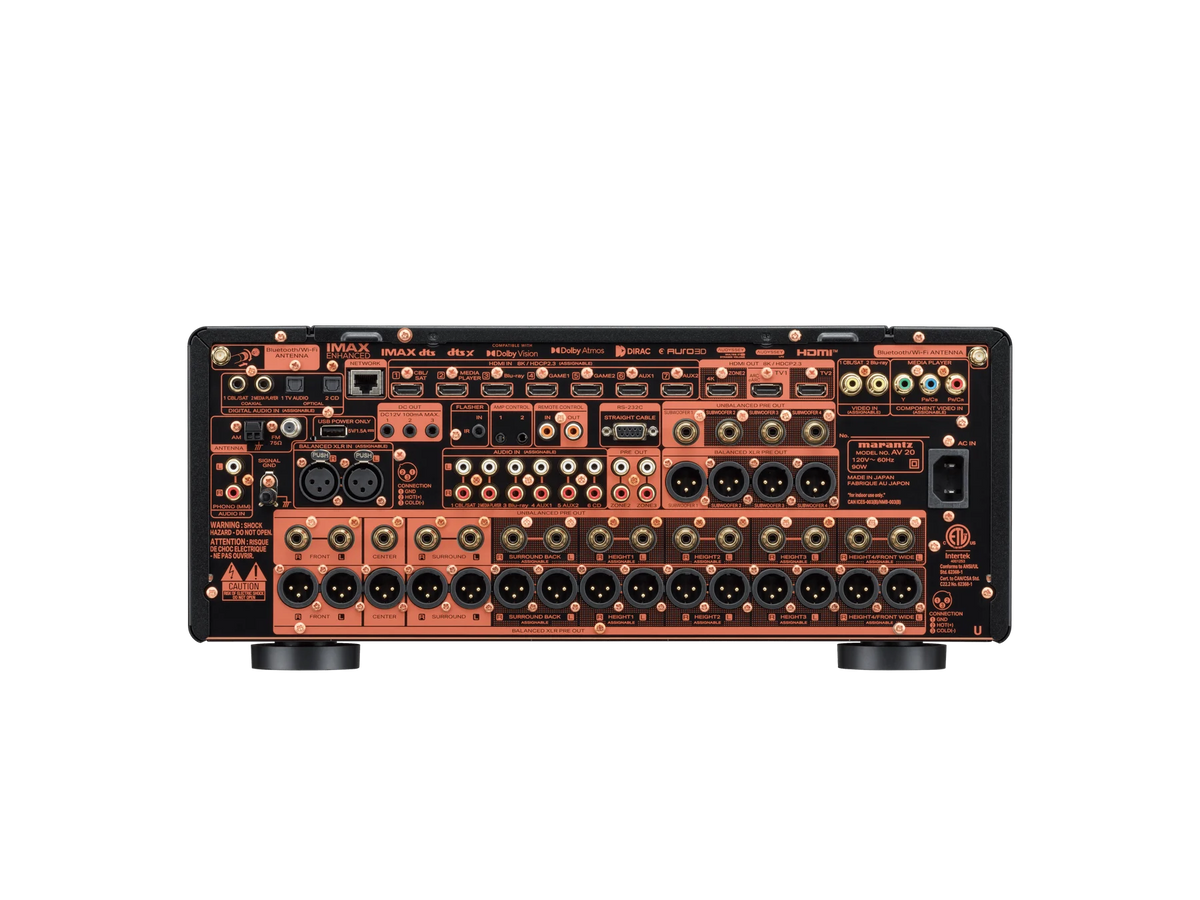

Inputs Outputs
- Composite In / Out
- 2 / 0
- Component In / Out
- 1 / 0
- HDMI In / Out
- 7 / 3
- Multi-Room Video Out: Video / HDMI
- No / Yes
- Analogue In
- 6 (1x XLR)
- Phono (MM) In
- Yes
- Digital In: Optical / Coaxial
- 2 / 2
- Multi-Room Out: analog / digital
- 2 / 0
- Multichannel Pre-Amp Out
- Yes (15.4 RCA, 15.4 XLR)
- Subwoofer Out
- 4 (independent) RCA, XLR
- Speaker A / B
- assignable pre out
- Bi-amp drive
- assignable pre out
- Front USB Input / USB Audio
- Yes / Yes
- USB Power Supply (Rear)
- Yes
- AM/FM Tuner
- Yes
Multi-Room CI
- HEOS Multi-Room Integrated
- Yes
- HEOS Link Compatibility: IR/ IP
- Yes / Yes
- Multi-Room Zones
- 3
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue
- Yes (2 ch) / Yes (2 ch) / Yes / Yes
- Zone Audio Output: Speaker / Pre-Out
- No / Yes
- Zone HDMI Output from HDMI Source
- Yes
- IP Control / RS232 Control / Web Control / App Control
- Yes / Yes / Yes / Yes
- IR Flasher In / Marantz Remote Bus
- Yes / Yes
- DC Trigger Output
- 3
- HDMI Diagnostics
- Yes
Others
- Auto Speaker Setup by Microphone
- Audyssey MultEQ XT32Dirac Live (upgrade)
- Front Display
- 2-Line FLD, Port Hole OLED
- Graphic User Interface - GUI
- Modern HD GUI
- GUI Languages
- 3
- Setup Assistant / Smart Select
- Yes / Yes
- Firmware Update by Network / USB
- Yes / Yes
- Variable Cross Over / Optimized Bass Redirection / Bass Sync
- Yes / Yes / Yes
- Auto Power Off / Sleep Timer
- Yes / Yes
General
- Metal Front Panel
- Yes
- System Remote Control
- RC051SR
- Backlit
- Yes
- Power Consumption
- 90 W
- Standby Consumption
- 0.2 W
- CEC Standby Consumption in W
- 0.5 W
- Network Standby Consumption
- <2.0 W
- Maximum DimensionsAntenna:Horizontal:(W x D x H) Antenna:Vertical :(W x D x H) W/o Antenna:(W x D x H)
- 17.4 × 18.0 × 7.5 in. 17.4 × 18.0 × 10.0 in. 17.4 × 17.2 × 7.5 in.
- Weight
- 33.1 lbs.
- What's in the box
- Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
- UPC Code
- 747192143848
